2 Gbps Wave Technology
Connect to a Wave AP and deliver up to 2 Gbps total throughput (1 Gbps duplex) over the 57–71 GHz band — ideal for high-capacity last-mile and backhaul links.
5 GHz WiFi 6 Backup Radio
An integrated 802.11ax (WiFi 6) 5 GHz backup radio keeps the link up when the 60 GHz path is obstructed by weather or line-of-sight changes, ensuring uninterrupted connectivity.
5+ km Link Range
A high-gain 41 dBi 60 GHz antenna with a tight 1° beamwidth supports point-to-multipoint station links of 5+ km with focused, interference-resistant performance.
Integrated GPS
A built-in GPS antenna provides accurate positioning and timing for synchronised PtMP deployments across multiple sites.
Fast Bluetooth Setup
Bluetooth-assisted onboarding via the UISP mobile app simplifies alignment and provisioning in the field — no laptop required to get a link online.
Built for the Outdoors
An IPX6-rated aluminium-alloy and UV-stabilised polycarbonate enclosure with a −40°C to 60°C range and 127 N wind loading at 200 km/h handles tough Australian conditions.
UISP & Router Mode
Managed through the UISP application with Bridge/Router mode, traffic shaping, ping watchdog, SNMP, and built-in alignment and speed-test tools.
NDAA Compliant
Fully NDAA Section 889 compliant for government, defence, and security-sensitive networks where supply-chain integrity is required.

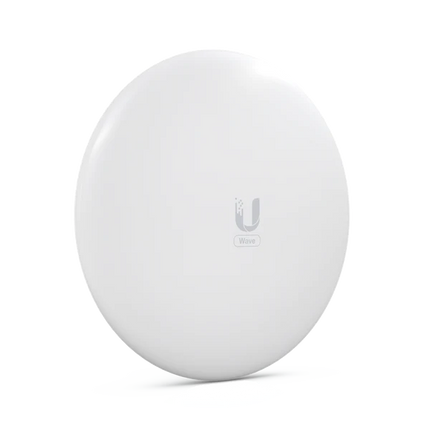

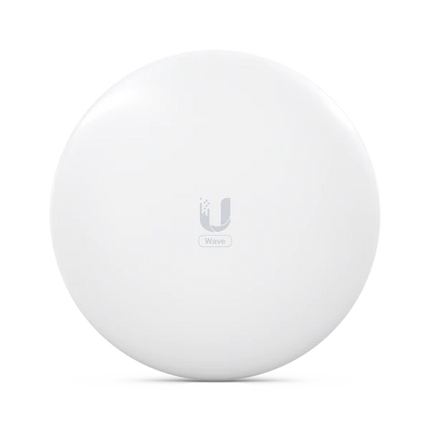

UISP Wave Nano Radio
60 GHz PtMP station with integrated 5 GHz backup radio and GPS antenna.

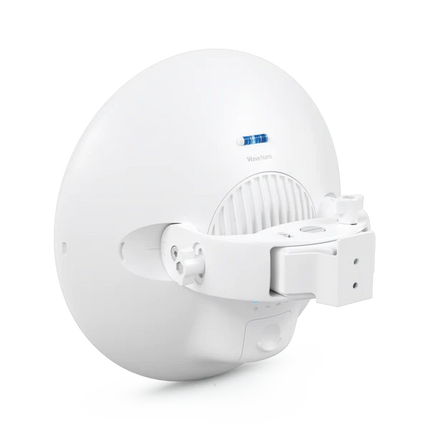

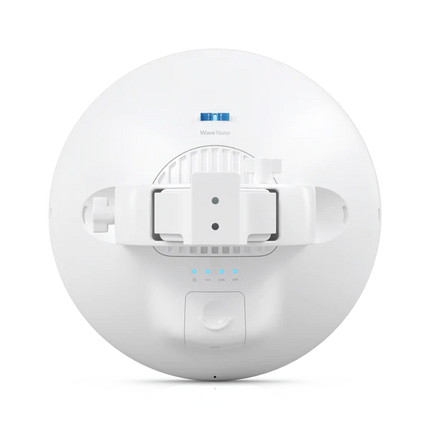

Pole Mount
Aluminium-alloy pole-mount bracket for 25–63.5 mm diameter poles.
Gigabit PoE Adapter
48 V DC, 0.65 A gigabit PoE adapter included to power the unit.
Not Included
A Wave AP and outdoor Ethernet cabling are required and sold separately.
What does the Wave Nano connect to?
It operates as a PtMP station that links to a Ubiquiti Wave AP, delivering up to 2 Gbps total throughput (1 Gbps duplex) per station.
What is the 5 GHz backup radio for?
The integrated 802.11ax (WiFi 6) 5 GHz radio automatically maintains the link if the 60 GHz path is impaired by rain or obstructions, keeping the connection uninterrupted.
How far can it link?
Up to 5+ km depending on line of sight and regulatory region, using its high-gain 41 dBi 60 GHz antenna.
How is it powered?
Via the included 48 V DC, 0.65 A gigabit PoE adapter, or directly from a UISP Router or UISP Switch.
Is it suitable for outdoor use in Australia?
Yes. IPX6 weatherproofing, a −40°C to 60°C range, and 127 N wind loading at 200 km/h suit demanding Australian outdoor sites.
Is the Wave Nano NDAA compliant?
Yes. Ubiquiti is a US-based manufacturer and the Wave Nano is NDAA Section 889 compliant — suitable for government and security-sensitive networks.
