Architecting Hyperscale Networks with the Ubiquiti UDM-Beast Cloud Gateway
Engineered for massive enterprise networks, multi-tenant corporate offices, and data-intensive campus environments, the Ubiquiti UDM-Beast represents the absolute apex of unified cloud gateway technology. This hyperscale-class hardware platform unifies carrier-grade routing, 25 Gbps deep packet inspection security, and complete multi-application ecosystem control into a resilient 1U rack-mount architecture designed to effortlessly scale past thousands of simultaneous active client sessions.
Throughput / Capacity
25 Gbps IDS/IPS
Interface Matrix
25G SFP28 & 10G RJ45
Client Density
7,500+ Active Users
Compliance & Build
NDAA Compliant 1U
Advanced Threat Protection & Comprehensive Ecosystem Management

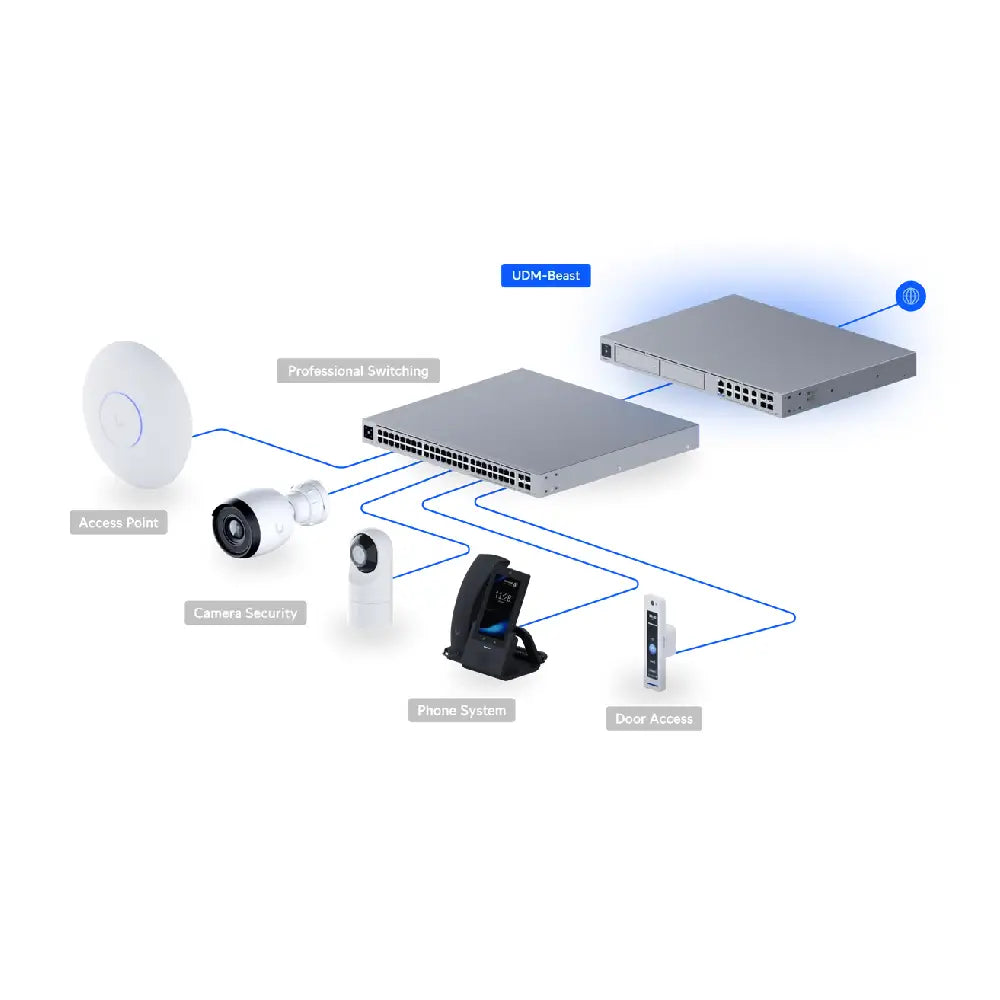

The Ubiquiti UDM-Beast runs the full suite of UniFi applications—including Network, Protect, Access, Talk, and Connect—allowing IT administrators to completely centralize infrastructure control from a single pane of glass. Equipped with over 55,000 signature-backed CyberSecure threat filters, a stateful layer-7 application firewall, and advanced multi-WAN load balancing, it guarantees uninterrupted business continuity. Discover full technical requirements below.
Hyperscale Switching & Multi-Gigabit Ports

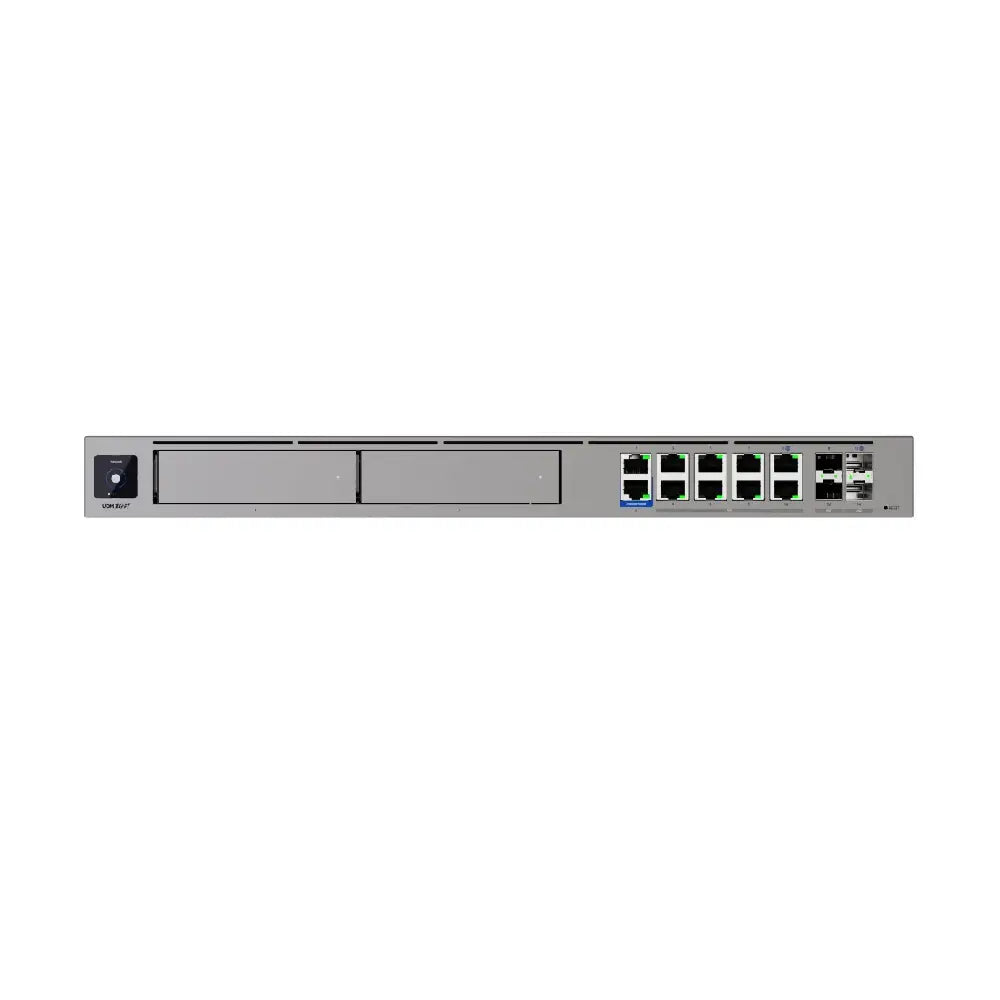

Boasting a robust physical configuration featuring eight 10 GbE RJ45 ports, two 10G SFP+ slots, and dual high-speed 25G SFP28 uplinks, the system eliminates traditional network bottlenecks, enabling seamless fiber aggregation and massive core switching capabilities.
Redundant Enterprise High Availability
Designed for mission-critical uptime, the unit features Shadow Mode (VRRP) gateway failover, dual 3.5-inch NVR hard drive bays backed by an internal 128 GB SSD cache, and DC power backup capabilities to protect crucial surveillance footage and routing logs.
Technical Specification Matrix
| Model |
UDM-Beast |
| Processor |
Octa-core ARM v9 at 2.1 GHz |
| System Memory |
16 GB |
| IDS/IPS Throughput |
25 Gbps |
| Max Client Capacity |
7,500+ simultaneous clients |
| Default WAN Ports |
(1) 25G SFP28, (1) 10 GbE RJ45 |
| NVR Storage Bays |
(2) 3.5-inch HDD bays with 128 GB built-in SSD |
| Regulatory Compliance |
NDAA Compliant |
Does the UDM-Beast support license-free SD-WAN and Site-to-Site VPN?
Yes, the gateway includes license-free SD-WAN functionality supporting Site Magic, WireGuard, IPsec, OpenVPN, and Teleport zero-configuration remote access tools out of the box.
How many security cameras can be managed via UniFi Protect?
The hardware supports extensive surveillance arrays, accommodating up to 100 HD cameras, 60 2K cameras, or 40 high-resolution 4K cameras simultaneously.
Is this hardware compliant with US federal procurement standards?
Yes, the UDM-Beast is fully NDAA compliant, satisfying strict regulatory standards required for enterprise, government, and institutional deployments.
What power redundancy options are available on this model?
The unit features a universal AC input alongside a dedicated USP-RPS DC input port for seamless backup power failover protection.
