Ubiquiti UniFi Access
Engineered Industrial Protection for UniFi Access & Network Infrastructure

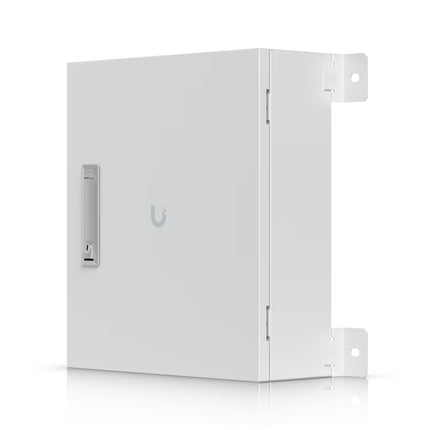

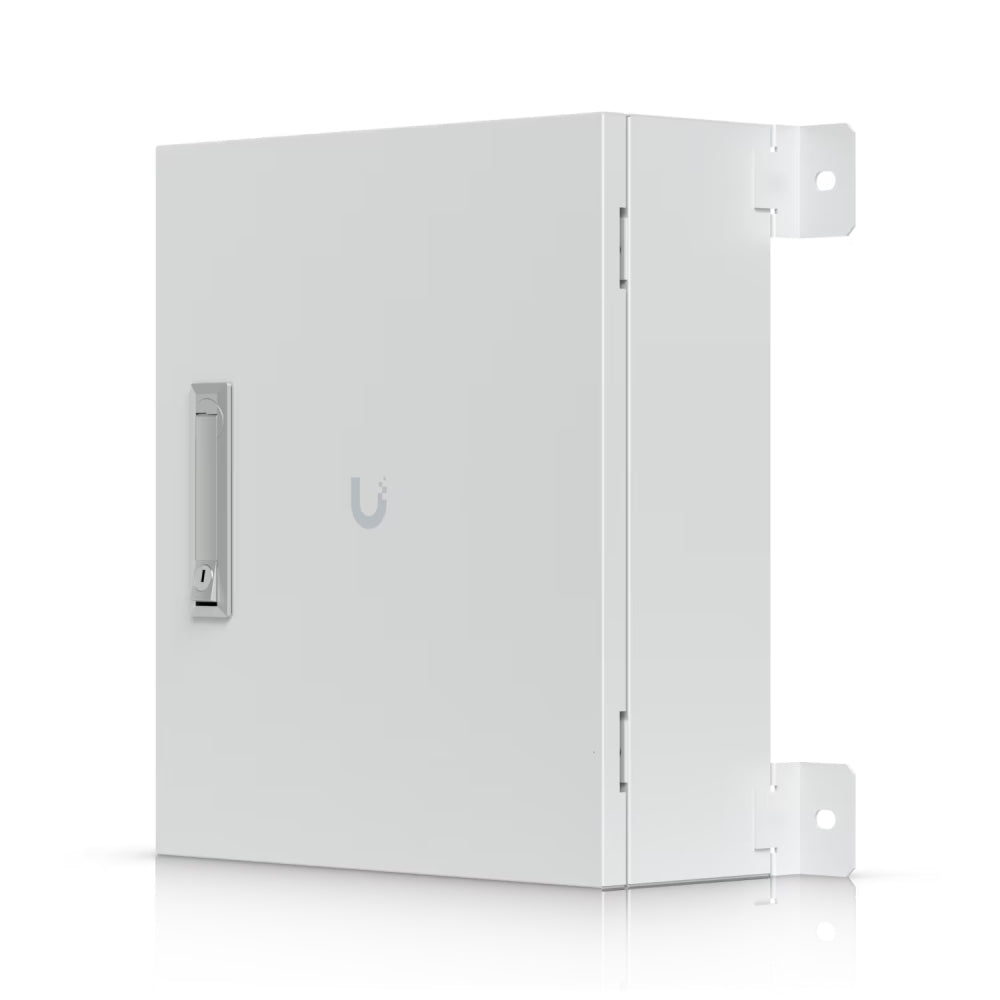

The UACC-Junction-Utility is a heavy-duty, weather-resistant mounting enclosure designed to safeguard critical UniFi Access Hubs, compact UniFi switches, and PoE accessories in demanding commercial environments. Built from robust galvanized cold-rolled steel (SGCC) and rated for outdoor resilience, this utility enclosure consolidates power, networking, and access control hardware into a clean, vandal-resistant, and unified wall-mounted footprint.
Protection Rating
IP55 / NEMA 3R
Build Material
Galvanized Steel (SGCC)
Mounting Plate
270 x 355 mm Internal
Compatibility
UniFi Access & Switches
Streamlined Cable Management & Hardware Integration

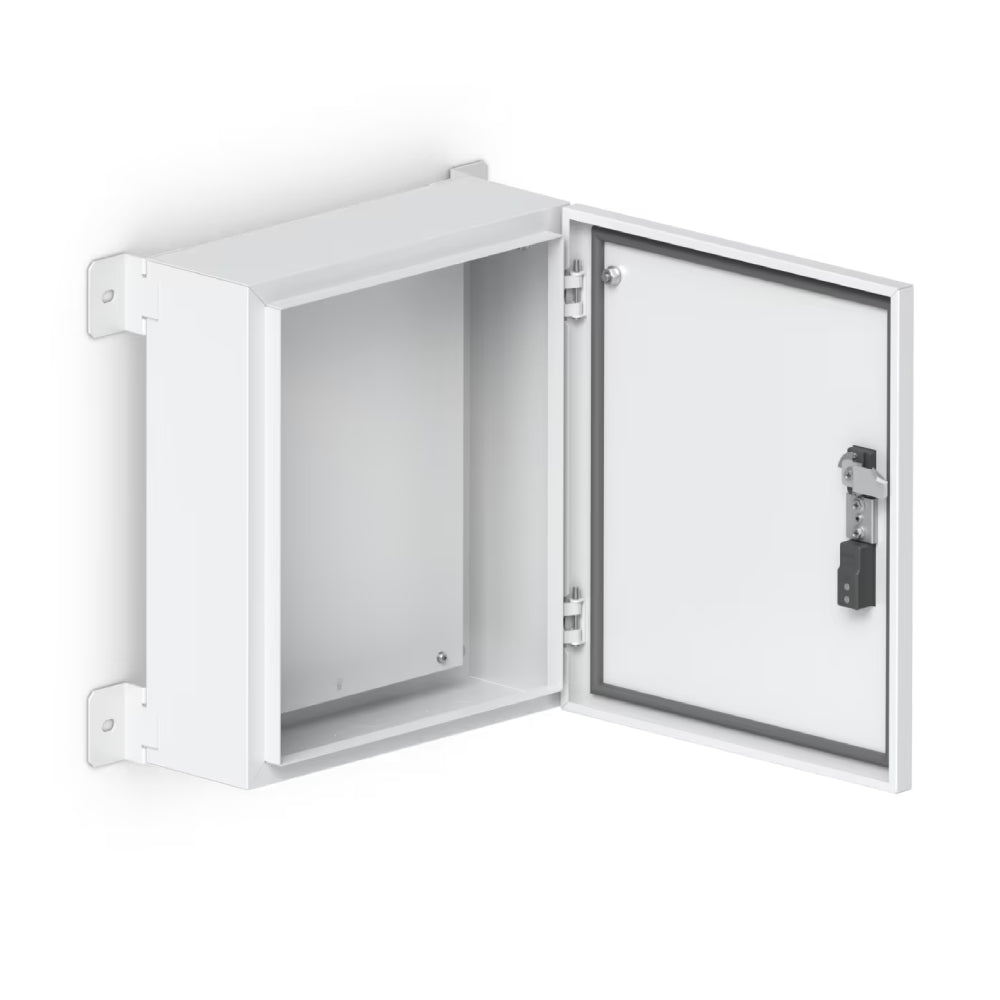

Designed to simplify field deployments, the UACC-Junction-Utility features a dedicated interior mounting plate measuring 270 x 355 mm, providing structured anchoring for core components such as the UA-Hub-Gate, UA-Hub-Door, USW-Flex, USW-Ultra, and retrofit extenders. Its IP55 weatherproofing and UL 50E NEMA Type 3R certification shield internal electronics against dust, severe water jets, and harsh outdoor elements, delivering an organized, tamper-resistant point of termination for commercial access control and network installations.
Weatherproof Commercial Construction
Manufactured from high-durability SGCC galvanized cold-rolled steel, the enclosure provides heavy-duty physical protection and environmental shielding against elements, vandalism, and harsh operational conditions in both indoor and outdoor settings.
Broad Universal Device Compatibility
Purpose-built for seamless integration across the Ubiquiti ecosystem, accommodating UniFi Access Hubs (UA-Hub-Gate, UA-Hub-Door, UA-Hub-Door-Mini), elevator controllers, PoE extenders, and compact UniFi switches (USW-Flex, USW-Ultra series).
Technical Specification Matrix
| Enclosure Model |
UACC-Junction-Utility |
| Enclosure Dimensions |
400 x 350 x 152 mm (15.7 x 13.8 x 6 in) |
| Inner Mounting Plate Dimensions |
270 x 355 mm (10.6 x 14 in) |
| Total Weight |
7 kg (15.4 lb) |
| Enclosure Material |
Galvanized Cold-Rolled Steel (SGCC) |
| Weatherproofing Rating |
IP55 |
| Outdoor Certifications |
UL 50E NEMA Type 3R Certified |
| Mounting Configuration |
Wall Mountable |
| Supported Hardware |
UA-Hub-Gate, UA-Hub-Door, UA-Hub-Door-Mini, UA-SK-Elevator, USW-Flex, USW-Flex-2.5G-8-PoE, USW-Ultra (42W/60W/210W), UACC-Retrofit-PoE-2Wire |
Which Ubiquiti devices can be mounted inside the UACC Junction Utility?
The unit accommodates various UniFi Access and switching products, including the UA-Hub-Gate, UA-Hub-Door, UA-Hub-Door-Mini, UA-SK-Elevator, USW-Flex, USW-Ultra series switches, and UACC-Retrofit-PoE-2Wire accessories.
Is this enclosure certified for outdoor weather exposure?
Yes, the UACC Junction Utility is IP55 rated and certified under UL 50E NEMA Type 3R standards, providing robust resistance against rain, dust, and outdoor environmental factors.
What materials are used in the construction of the enclosure?
The main body and internal assembly are fabricated from SGCC galvanized cold-rolled steel, offering high resistance to physical damage and corrosion over long-term operation.
How is the unit secured and mounted?
The UACC Junction Utility is designed for direct wall mounting, offering internal space and anchoring options for structured wire management and tidy device mounting.
