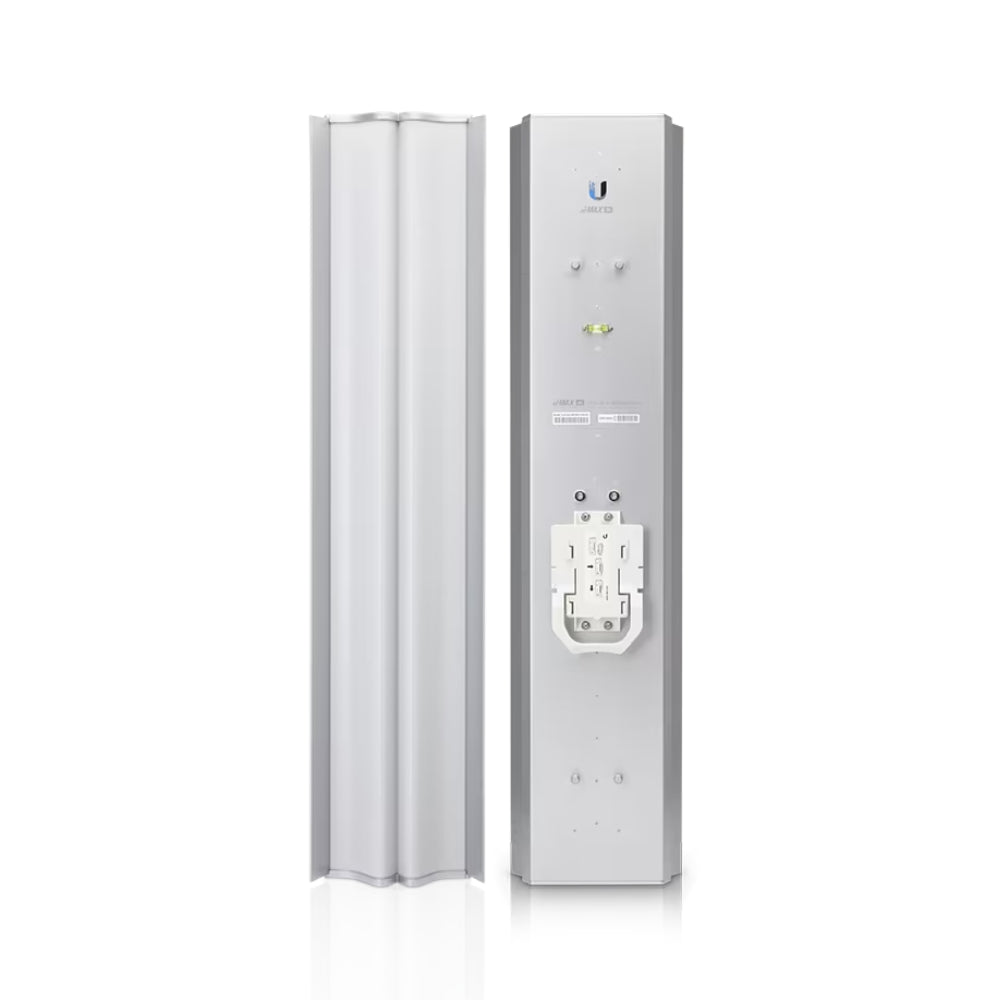

Ubiquiti airMAX AC Sector Antenna 5 GHz 21 dBi 60° (AM-5AC21-60)
The Ubiquiti airMAX® AC Sector AM-5AC21-60 is a 2x2 MIMO 5 GHz sector antenna engineered to pair with the Rocket™5ac radio for high-capacity, multipoint base stations. Its 21 dBi gain and 60° beamwidth, combined with an innovative deflector design that reduces sidelobes and backlobes, deliver strong noise isolation in co-location deployments and a better signal-to-noise ratio for higher-order modulation. It is also compatible with RocketM5 radios. All mounting accessories and brackets are included. Genuine Ubiquiti stock with fast Australia-wide shipping and expert AU support.
21 dBi Sector Gain
High 21 dBi gain across a focused 60° sector for reliable long-range, high-capacity multipoint coverage.
2x2 MIMO airMAX AC
Built for the Rocket5ac radio (also compatible with RocketM5) to deliver superior beam performance on busy networks.
Superior Noise Isolation
The deflector design with reduced sidelobes and backlobes rejects interference from co-located transmitters — even on the same tower.
Mounting Hardware Included
Ships with all mounting accessories and brackets for fast pole/tower installation out of the box.
Technical Specifications
| Model |
AM-5AC21-60 |
| Type |
airMAX® AC 2x2 MIMO Sector Antenna |
| Frequency Band |
5 GHz |
| Gain |
21 dBi |
| Beamwidth (Sector) |
60° |
| Compatible Radios |
Rocket™5ac (recommended) • RocketM5 |
| Polarity |
Dual-polarity (2x2 MIMO) |
| Mounting |
Pole / tower mount — all brackets & hardware included |
| Compliance |
NDAA compliant |
