Description

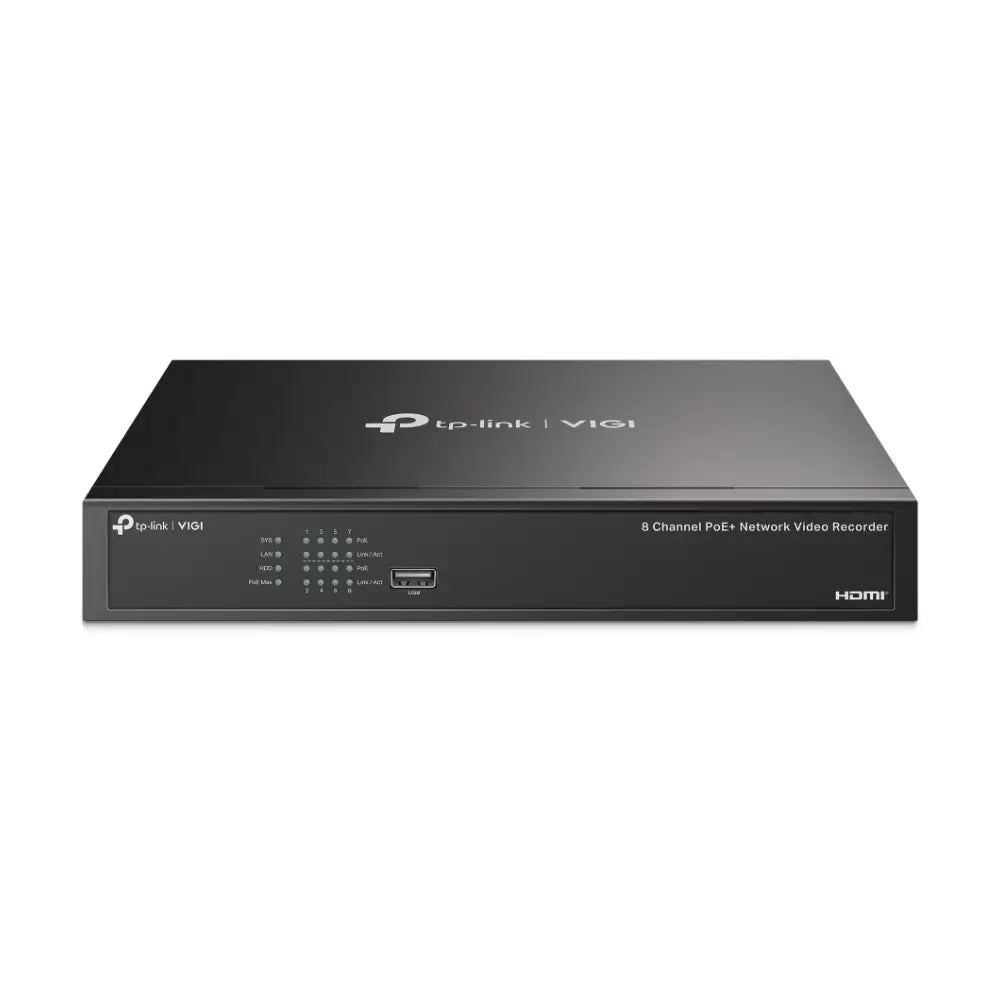

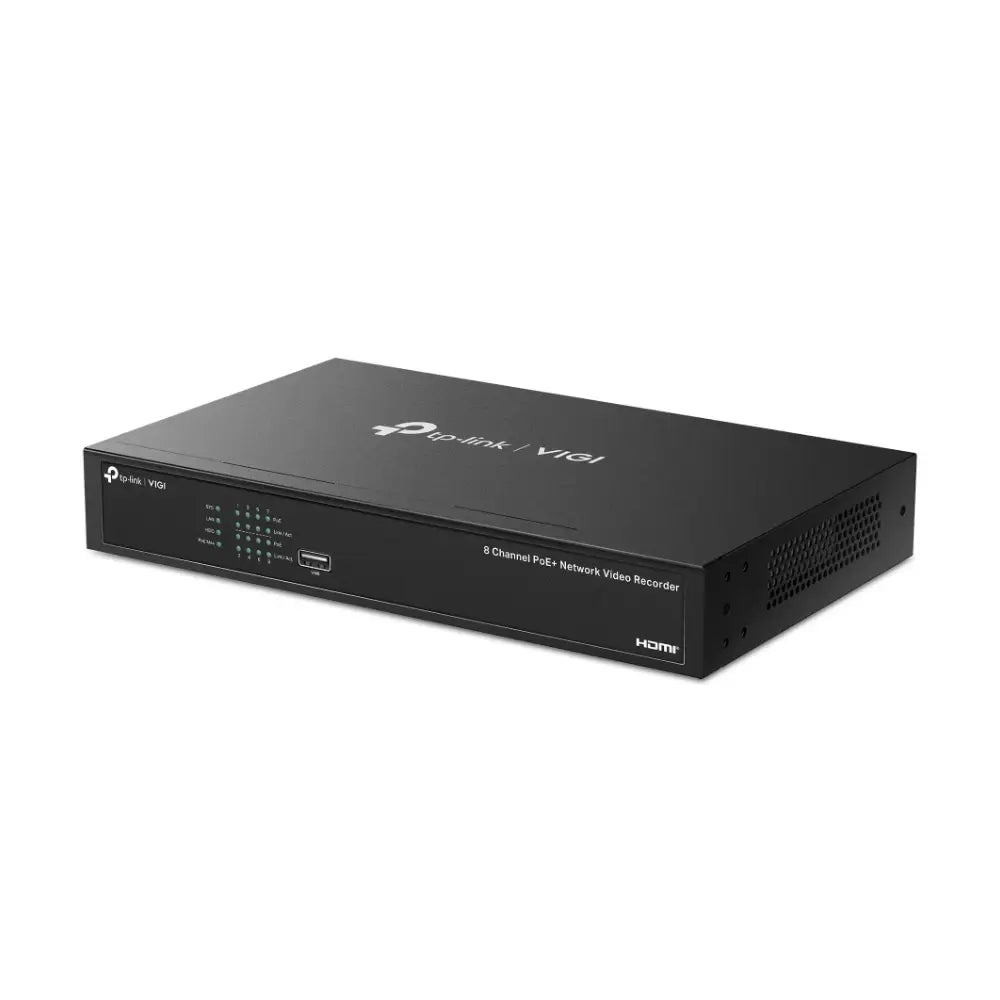

TP-Link VIGI NVR1008H-8MP 8-Channel PoE+ Network Video Recorder
8-Channel PoE+ NVR for Small to Medium Business Surveillance
The TP-Link VIGI NVR1008H-8MP is an 8-channel PoE+ network video recorder with 8 built-in PoE+ ports and a 113 W total power budget. It powers and connects up to 8 IP cameras over a single Ethernet cable per camera — no separate power adapters or PoE switch required. With 4K HDMI output, up to 8MP recording resolution, H.265+ compression, and plug-and-play VIGI camera support, it’s a complete, scalable CCTV solution for Australian businesses and commercial installations.
Key Features

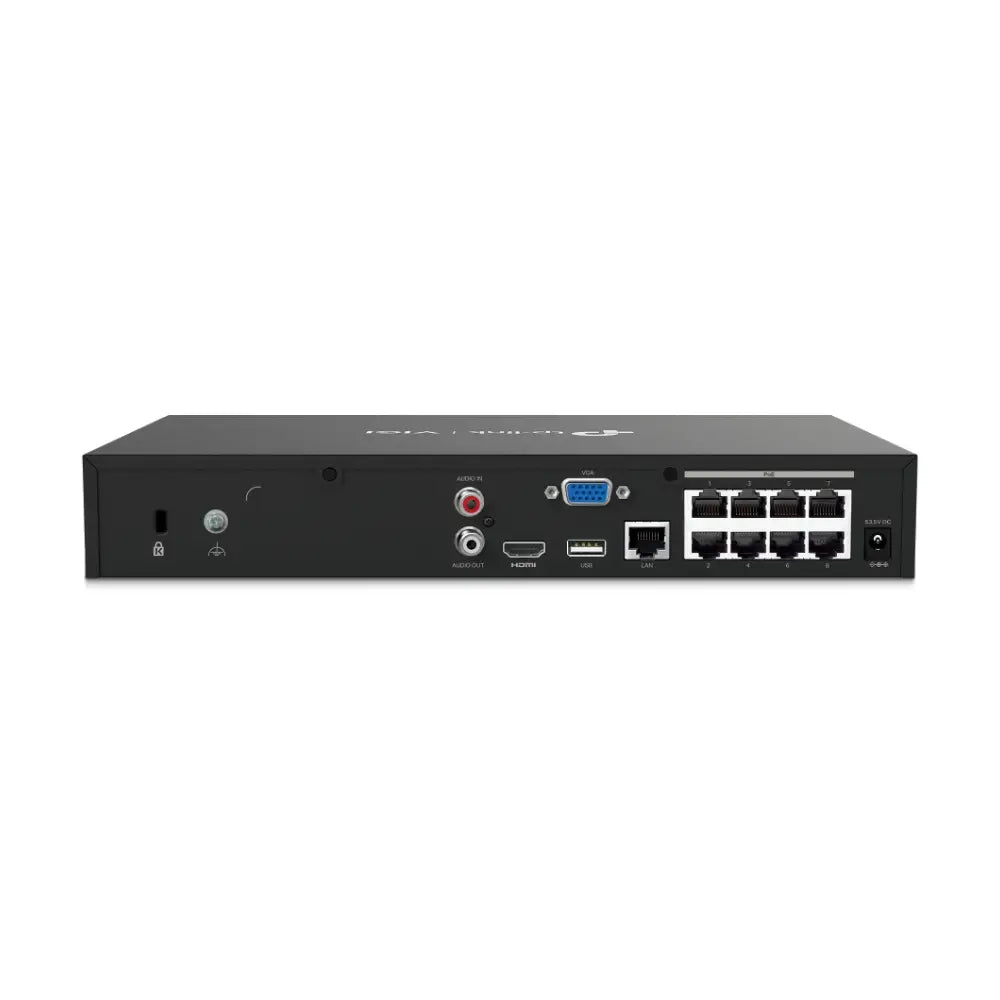

- 8 × built-in PoE+ ports (113 W total budget, up to 30 W per port) — power and connect cameras with a single RJ45 cable
- 4K HDMI video output with up to 16MP decoding capacity
- Records up to 8MP resolution across all 8 channels simultaneously
- H.265+ compression — reduces storage and bandwidth without sacrificing image quality
- Plug & Play — VIGI IP cameras are automatically detected and activated on connection
- ONVIF compatible — works with VIGI and third-party IP cameras
- 8-channel simultaneous playback with variable speed and event-based search
- 24/7 continuous recording with support for up to 10 TB HDD (SATA, sold separately)
- Remote monitoring via VIGI app, web UI, and VIGI Security Manager
- Two-way audio via voice intercom support
- Flexible installation — rack-mount, desktop, or under-desk deployment
Use Cases
-
Small to Medium Business: Groceries, warehouses, restaurants, and financial institutions needing 8-camera coverage with 24/7 recording and remote access.
-
Commercial Premises: Monitor entrances, car parks, loading docks, and internal areas from a single recorder with 4K display output.
-
Retail & Hospitality: Fast incident review with 8-channel simultaneous playback and event-based search — no scrubbing through hours of footage.
-
Remote Site Monitoring: VIGI app and web UI allow real-time viewing and playback from any location with an internet connection.
-
Scalable Installations: ONVIF compatibility allows integration of cameras from multiple brands as your system grows.
Specifications
| Specification |
Detail |
| Model |
VIGI NVR1008H-8MP |
| Video Channels |
8-channel IP video input |
| Max Recording Resolution |
Up to 8MP |
| Decoding Capacity |
Up to 16MP |
| Video Output |
1 × HDMI (4K) + 1 × VGA |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| PoE Ports |
8 × 10/100 Mbps PoE+ (802.3at/af) |
| PoE Budget |
113 W total (up to 30 W per port) |
| HDD Interface |
2 × SATA (up to 10 TB each) |
| ONVIF |
Supported |
| Remote Access |
VIGI App, Web UI, VIGI Security Manager |
| Two-Way Audio |
Supported |
| Mounting |
Rack-mount, desktop, or under-desk |
| Weight |
2.34 kg |
Frequently Asked Questions
Does the NVR1008H-8MP include a hard drive?
No. The NVR is sold without a HDD. You will need to install a surveillance-grade SATA HDD (e.g., Western Digital Purple or Seagate SkyHawk). The unit supports up to 2 SATA drives for expanded storage capacity.
Do I need a separate PoE switch to connect cameras?
No. The NVR1008H-8MP has 8 built-in PoE+ ports that power and connect your cameras directly — no separate PoE switch or power adapters required for the cameras.
Can I use non-VIGI cameras with this NVR?
Yes. The NVR1008H-8MP is ONVIF-compliant, allowing you to add IP cameras from other brands. Plug-and-play auto-detection and instant activation applies only to VIGI cameras.
How do I access footage remotely?
Download the free VIGI app on iOS or Android, or log in via the web UI using your TP-Link ID. The VIGI Security Manager desktop application is also available for PC-based monitoring and management.
How many cameras can I connect at full resolution?
The NVR supports 8 channels at up to 8MP resolution simultaneously. Actual performance depends on camera resolution and bitrate settings. H.265+ compression is recommended to maximise storage efficiency and maintain smooth playback.
What mounting options are available?
The NVR1008H-8MP supports rack-mount installation (rack ears included), desktop placement, or under-desk mounting — giving installers flexibility to suit the installation environment.
