Description

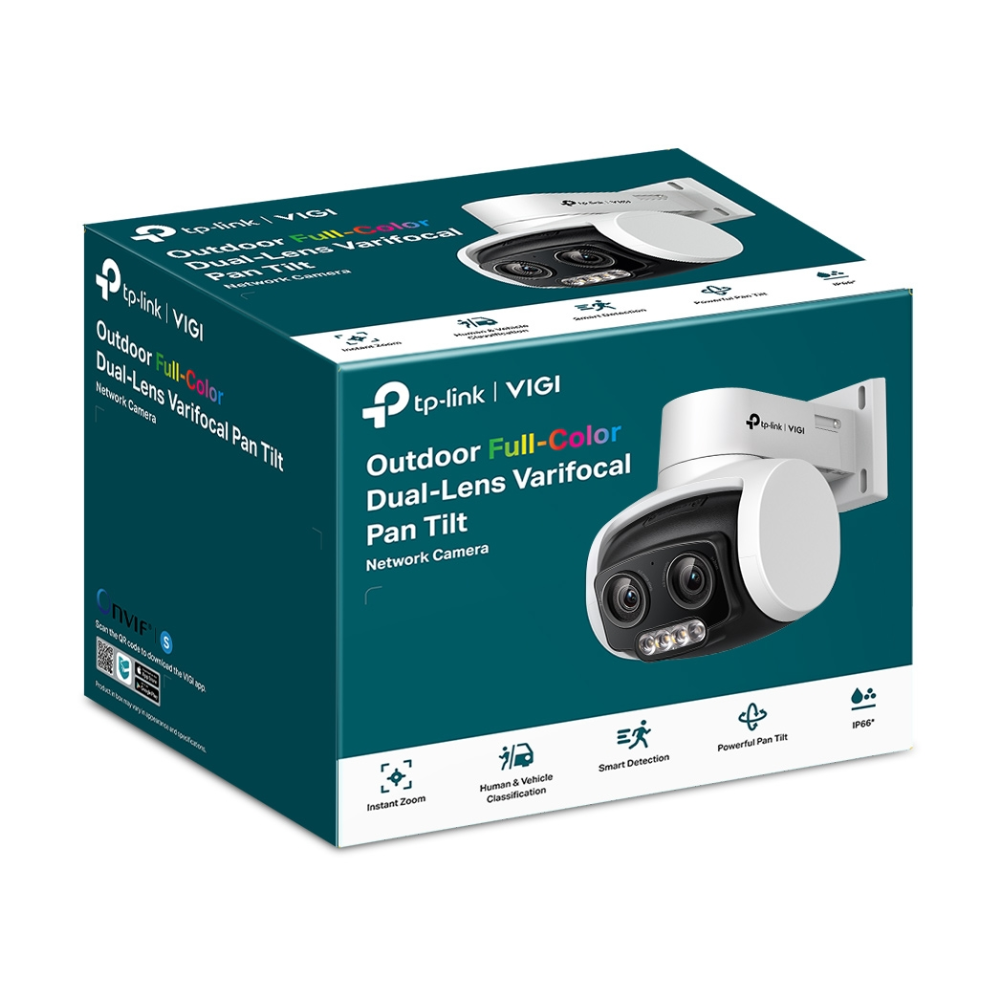

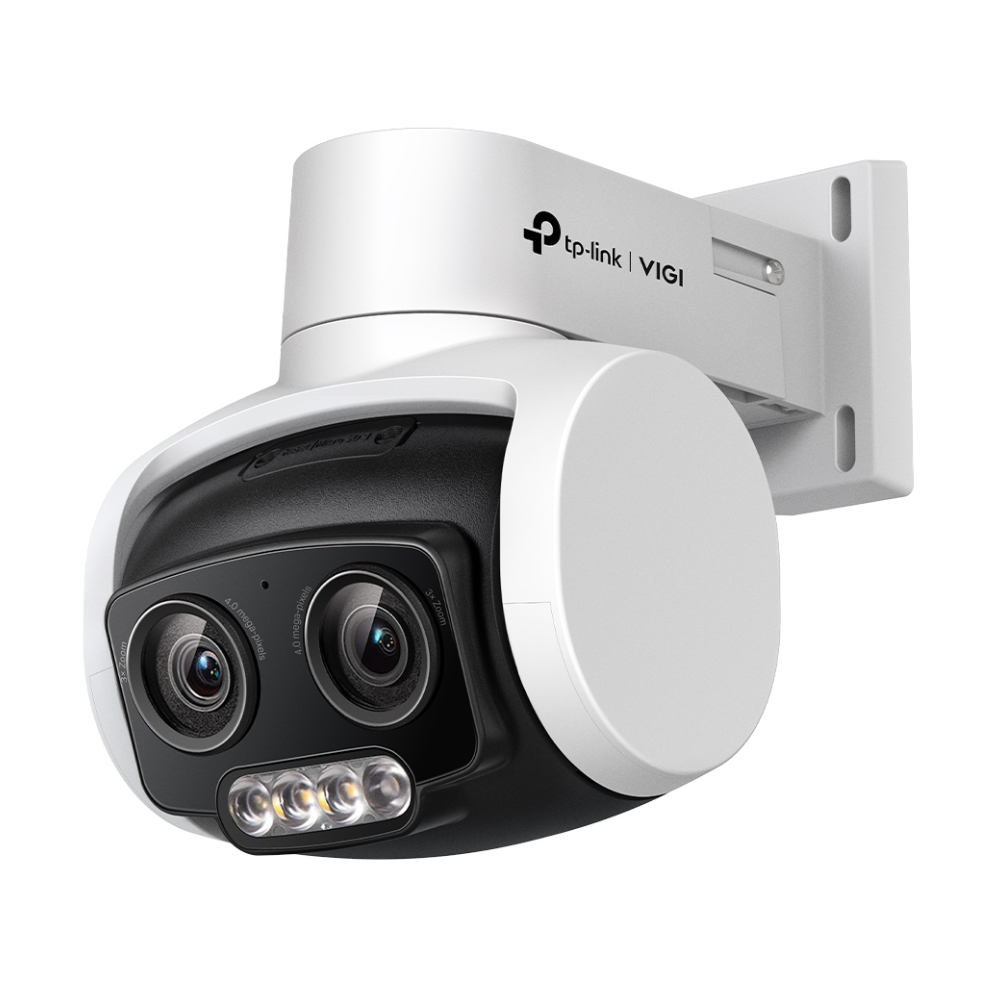

TP-Link VIGI C540V 4MP Dual-Lens Varifocal Pan Tilt Network Camera

The TP-Link VIGI C540V is a professional 4MP outdoor pan tilt network camera featuring a dual-lens varifocal design with 3× optical zoom — delivering instant, lag-free zoom without image dragging. With 24/7 full-colour night vision, AI human and vehicle classification, motorised pan and tilt with auto-tracking, active defence, and IP66 weatherproofing, it’s engineered for commercial and high-security residential installations across Australia where both wide-area coverage and close-up detail are required from a single camera.

Key Features

• Dual-Lens Varifocal Design — Two lenses work together to deliver simultaneous wide-angle overview and zoomed detail, providing greater situational awareness from a single camera position.
• 3× Optical Zoom — Instantly zoom in on subjects in expansive areas for closer identification without moving the camera or losing the wide-area view.
• Instant Zoom — Zoom transitions are immediate with no delay or image dragging, ensuring you never miss a critical moment during live monitoring.
• 4MP Full HD Resolution — Captures crisp 2560×1440 footage with fine detail for reliable identification of people, vehicles, and events.
• 24/7 Full-Colour Night Vision — Large-aperture lens, high-sensitivity sensor, and 4 × supplemental spotlight LEDs deliver true-colour footage in complete darkness.
• AI Human & Vehicle Classification — On-board AI distinguishes people and vehicles from other motion triggers, dramatically reducing false alarms from animals, foliage, or lighting changes.
• Smart Detection — Supports area intrusion, line-crossing, region enter/exit, object abandoned/removal, and video tampering alerts with instant push notifications.
• Motorised Pan & Tilt with Auto-Tracking — Customisable patrol routes and intelligent auto-tracking keep moving subjects in frame automatically for comprehensive area coverage.
• Active Defence — Triggers a sound alarm and light flash to deter intruders in real time when abnormal events are detected.
• Two-Way Audio — Built-in microphone and speaker support live voice intercom through the VIGI app from anywhere.
• H.265+ Compression — Reduces bandwidth and storage requirements without compromising image quality.
• IP66 Weatherproof — Dust-tight and rain-resistant for reliable outdoor performance in all Australian weather conditions.
• Up to 256GB Local Storage — Onboard microSD slot for standalone recording without an NVR.
• Flexible Management — Manage via VIGI App, VIGI NVR, VIGI Security Manager, or web UI.

Use Cases

• Large commercial car parks requiring simultaneous wide-area overview and number plate zoom from a single camera
• Building perimeters and fence lines where auto-tracking keeps intruders in frame across a wide area
• Retail centres, shopping precincts, and public spaces needing AI-classified alerts to reduce false alarm fatigue
• School grounds, sports facilities, and community properties requiring wide coverage with zoom capability
• High-value residential properties and estates where a single PTZ camera replaces multiple fixed cameras
• Construction sites and remote industrial facilities needing active deterrence and two-way audio

Technical Specifications

Recommended Accessories

• TP-Link VIGI NVR1104H-4P — 4-channel PoE+ NVR for centralised recording and AI event management; pairs directly with the C540V for a complete system.
• TP-Link TL-POE260S 2.5G PoE+ Injector — Powers the C540V via a single Ethernet cable from any non-PoE switch or router.
• MicroSD Card (Class 10 / U3, up to 256GB) — Enables standalone on-camera recording without an NVR.
• Cat6 Ethernet Cable — For reliable PoE data and power delivery to the camera installation point.
• Pole / Wall Mount Bracket — For flexible outdoor mounting on posts, walls, or eaves in commercial and perimeter installations.

Frequently Asked Questions

What makes the dual-lens design different from a standard PTZ camera?

A standard PTZ camera uses a single lens that physically zooms in, losing the wide-angle view in the process. The C540V’s dual-lens design maintains a wide-area overview on one lens while simultaneously providing a zoomed close-up on the other — giving operators both context and detail at the same time without switching between views.

Is the 3× zoom optical or digital?

The C540V uses optical zoom, which maintains full image quality at all zoom levels. Digital zoom crops and enlarges the existing image, reducing resolution and detail. Optical zoom is significantly superior for identification purposes at distance.

Does the C540V work without an NVR?

Yes. The C540V supports standalone operation with local recording to a microSD card (up to 256GB, sold separately) and remote management via the VIGI app. A VIGI NVR is optional but recommended for multi-camera deployments requiring centralised recording, playback, and AI event management.

What PoE standard does this camera require?

The VIGI C540V is powered by IEEE 802.3af PoE. It also accepts 12V DC power if PoE is not available at the installation point. Check the product datasheet for exact power consumption to ensure your PoE switch or injector can supply sufficient wattage for the motorised pan/tilt mechanism.

How does auto-tracking work?

When a human or vehicle is detected within the camera’s field of view, the C540V’s motorised pan and tilt automatically follows the subject as it moves, keeping it centred in frame. This is particularly useful for perimeter monitoring where subjects may move across a wide area beyond the initial detection zone.

Is this camera suitable for Australian outdoor conditions?

Yes. The IP66 rating protects against dust ingress and heavy rain, making it suitable for exposed outdoor locations across all Australian climates including tropical, coastal, and arid environments.
