Description
24/7 Full-Colour Surveillance with Intelligent Pan Tilt Control

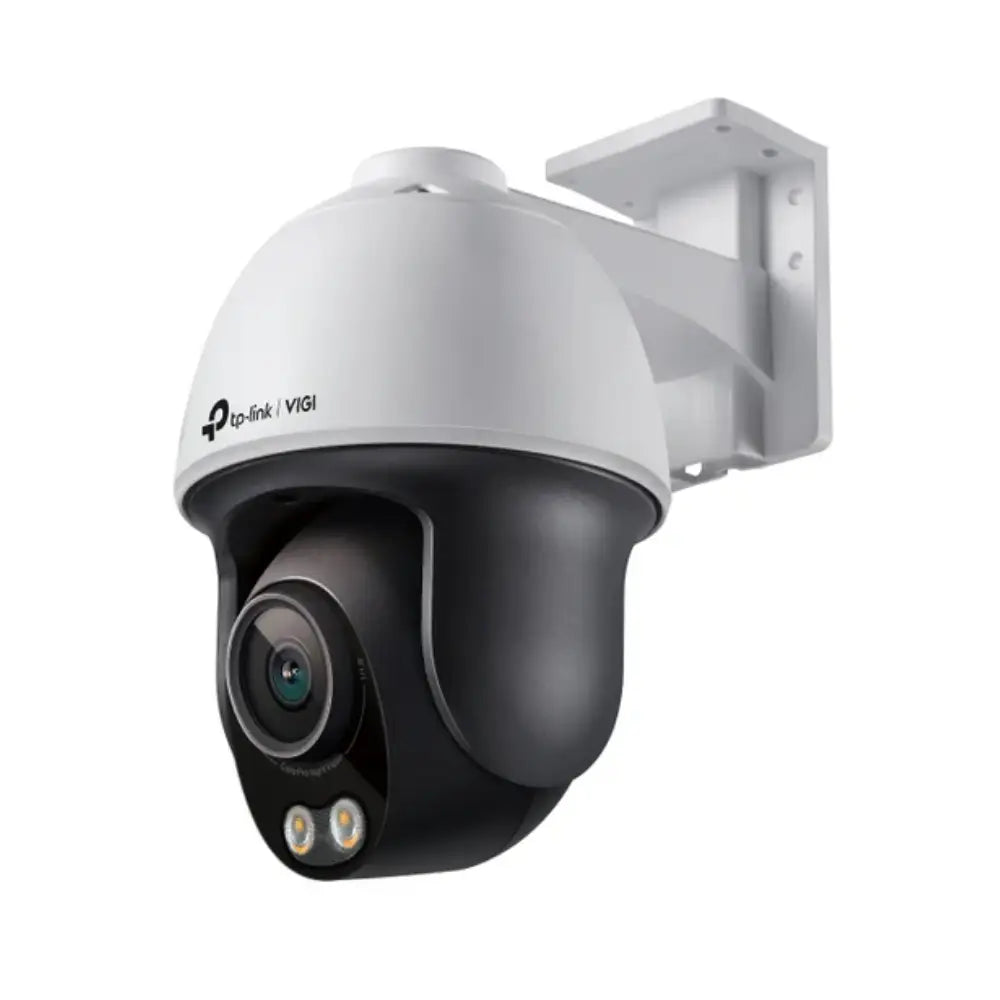

The TP-Link VIGI C540S is a professional-grade 4MP outdoor Pan Tilt network camera built for businesses and installers who demand reliable, round-the-clock visibility. Powered by TP-Link's industry-leading ColourPro Night Vision technology, the C540S captures vivid full-colour footage even in near-total darkness — without the need for supplemental lighting. Combine that with 360° pan tilt coverage, advanced AI analytics, and straightforward PoE installation, and you have a camera that works as hard as your business does.
Key Features
-
ColourPro Night Vision — Delivers sharp, full-colour 4MP images in ultra-low light conditions with no spotlights required, reducing light pollution and improving image clarity beyond standard IR cameras
-
360° Pan Tilt Coverage — Eliminates blind spots with full horizontal rotation and customisable patrol routes (up to 8 preset points per route)
-
Automatic Tracking — Automatically follows persons or vehicles of interest for seamless, uninterrupted footage
-
Human & Vehicle Classification — AI chips distinguish people and vehicles from other motion, reducing false alarms and delivering more relevant notifications
-
Smart Detection — Detects area intrusion and line-crossing events, triggering instant alerts to your device
-
Active Defence — Deters intruders in real time with built-in sound and light warnings when abnormal events are detected
-
Face Recognition — Captures and matches facial data against a stored library to support access management and attendance control
-
People & Vehicle Analytics — Filter footage by attributes such as clothing colour, hair length, vehicle type, and colour to locate events quickly
-
Two-Way Audio — Built-in microphone and speaker support live voice intercom from anywhere via the VIGI app
-
True WDR Technology — Produces clear images in high-contrast scenes such as entrances with bright backlighting
-
H.265+ Compression — Reduces video file size without sacrificing quality, lowering storage and bandwidth costs
-
PoE Powered — Single Ethernet cable carries both data and power, simplifying cable runs and reducing installation time
-
IP66 Weatherproof — Rated for reliable outdoor performance in rain, dust, and harsh Australian conditions
-
Flexible Storage — Supports onboard microSD card storage up to 256GB plus NVR/NAS network storage options
Typical Use Cases
- Retail stores and shopping centres requiring wide-area coverage from a single camera
- Warehouses and logistics facilities needing automatic tracking across large open spaces
- Car parks and driveways where vehicle detection and licence plate visibility are priorities
- Building entrances and reception areas utilising face recognition for access control
- Schools, aged care facilities, and hospitality venues requiring discreet but comprehensive monitoring
- Residential properties with large outdoor areas such as acreage, farms, or multi-building sites
Technical Specifications
| Specification |
Detail |
| Model |
VIGI C540S (4mm) |
| Resolution |
4MP (2560 × 1440) |
| Lens |
4mm fixed focal length |
| Night Vision |
ColourPro (full-colour ultra-low light, no IR) |
| Pan / Tilt Range |
360° pan / 90° tilt |
| AI Features |
Human & Vehicle Classification, Face Recognition, People & Vehicle Analytics, Auto Tracking, Intrusion Detection, Line Crossing |
| Active Defence |
Built-in siren and strobe light |
| Audio |
Two-way audio (built-in mic & speaker) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| WDR |
True WDR |
| Power |
PoE (IEEE 802.3af/at) |
| Weatherproofing |
IP66 |
| Local Storage |
MicroSD up to 256GB |
| Network Storage |
NVR / NAS compatible |
| Patrol Routes |
Up to 8 preset points per route |
| Barcode (EAN) |
4895252503098 |
| SKU |
VIGI C540S(4mm) |
Downloads
Frequently Asked Questions
Does the VIGI C540S work in complete darkness?
Yes. ColourPro Night Vision is designed for ultra-low light environments and produces full-colour images without any supplemental lighting. It outperforms both standard IR cameras (which produce black-and-white images) and conventional full-colour cameras (which require bright spotlights) in low-light conditions.
What PoE standard does the C540S require?
The camera is powered via PoE (IEEE 802.3af/at). A compatible PoE switch or PoE injector is required. For high-wattage PoE injectors, see the TP-Link TL-POE170S available in our store.
Can I use this camera without an NVR?
Yes. The C540S supports onboard microSD storage (up to 256GB) and can be managed directly via the VIGI app or VIGI Security Manager software on a PC — no NVR is required for standalone deployments.
How does automatic tracking work?
When a person or vehicle enters the camera's field of view, the AI tracking algorithm locks onto the subject and moves the pan tilt mechanism to follow them across the scene, maintaining continuous footage without manual intervention.
Is face recognition available out of the box?
Face recognition requires configuration through the VIGI NVR or VIGI Security Manager software, where you build and manage the face library. It is not enabled by default and requires initial setup by an installer or IT administrator.
What is the IP66 rating?
IP66 means the camera is fully protected against dust ingress and powerful water jets from any direction. It is suitable for exposed outdoor installations in Australian conditions including rain, humidity, and dust.
