Description

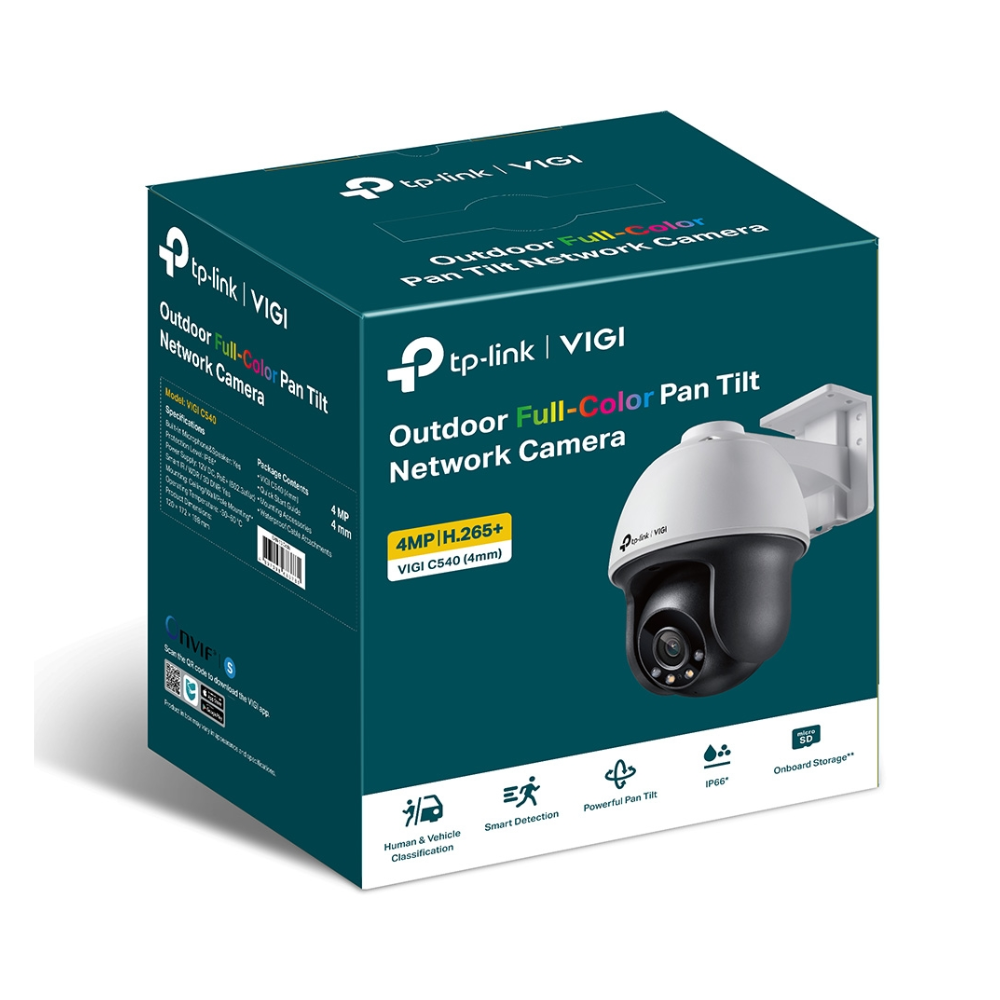

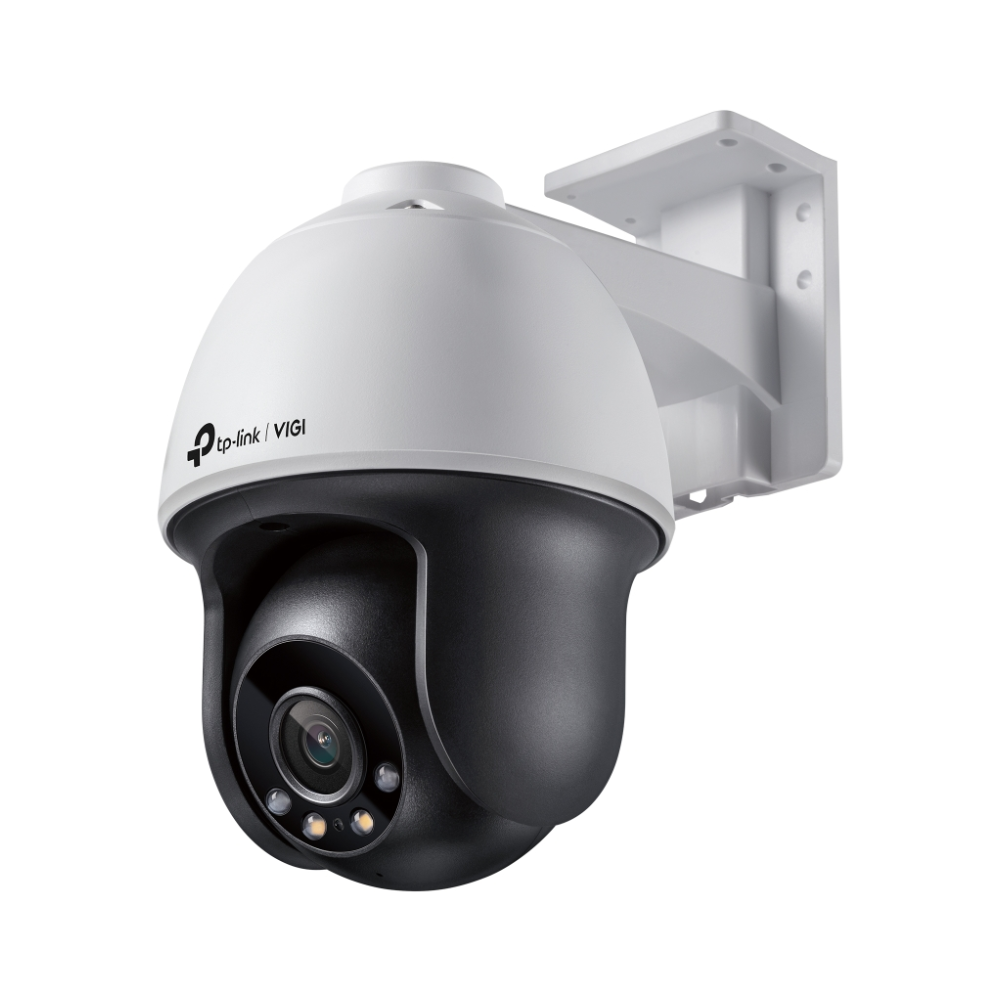

TP-Link VIGI C540 4MP Outdoor Full-Colour Pan Tilt Network Camera
The TP-Link VIGI C540 is a professional-grade 4MP outdoor pan tilt network camera engineered for round-the-clock colour surveillance. Whether you're securing a commercial property, warehouse, or residential perimeter, the C540 delivers sharp, detailed footage day and night — without switching to black-and-white.

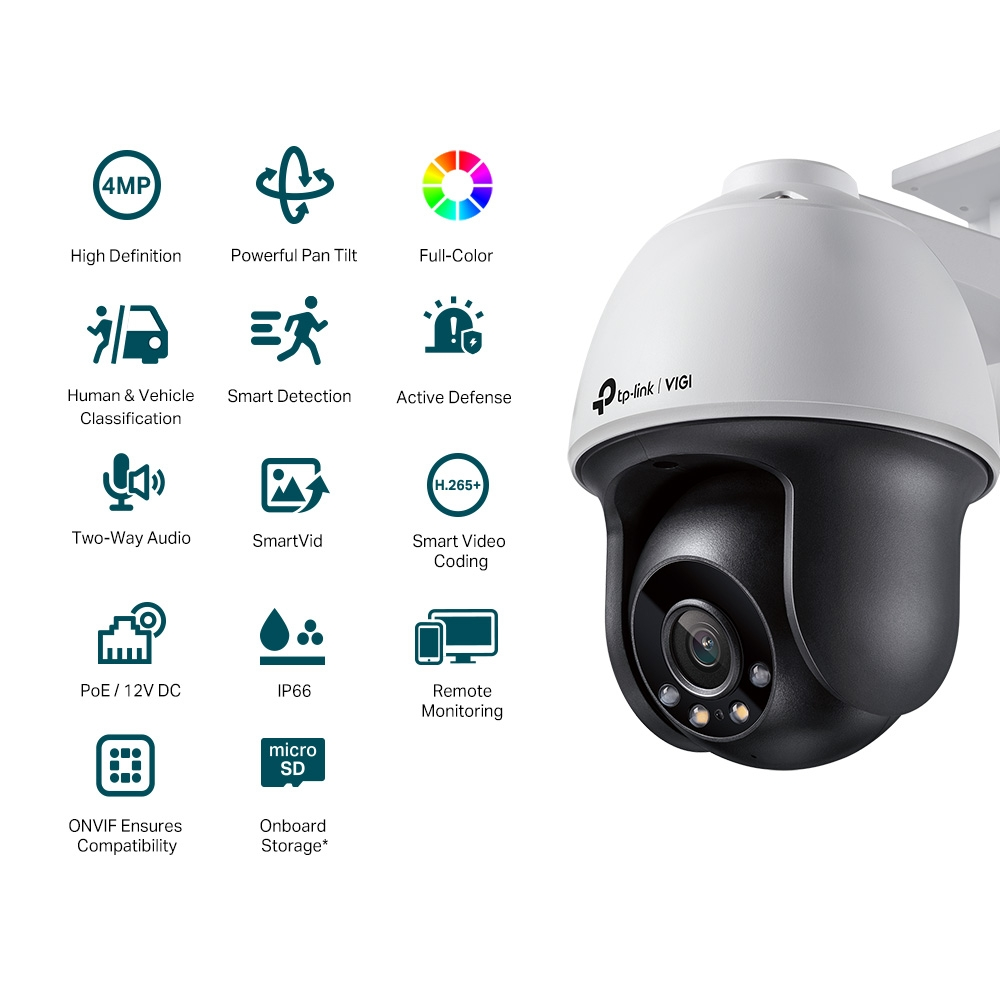

Key Features
-
4MP Full HD Resolution — Captures crisp 2560×1440 footage with fine detail for reliable identification.
-
24/7 Full-Colour Night Vision — High-sensitivity sensor combined with built-in spotlight LEDs delivers vivid colour footage even in complete darkness.
-
Pan & Tilt with Auto-Tracking — Motorised pan/tilt with customisable patrol routes and intelligent auto-tracking keeps moving subjects in frame automatically.
-
Smart Detection — Supports human detection, motion detection, area intrusion, line-crossing, and video tampering alerts to reduce false alarms.
-
H.265+ Compression — Reduces bandwidth and storage requirements without compromising image quality.
-
IP66 Weatherproof — Rated for dust and heavy rain, built for reliable Australian outdoor conditions.
-
Flexible Power Options — Supports both PoE (802.3af) and 12V DC power supply for versatile installation.
-
VIGI App & NVR Compatible — Manage live feeds, playback, and alerts remotely via the free VIGI mobile app or integrate with a VIGI NVR.
Use Cases
- Commercial car parks and loading docks requiring wide-area pan/tilt coverage
- Retail stores and warehouses needing full-colour after-hours monitoring
- Residential driveways, backyards, and side paths
- School grounds and community facilities
- Construction sites and remote properties
Technical Specifications
| Specification |
Detail |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Resolution |
4MP (2560 × 1440) |
| Lens |
4mm Fixed |
| Night Vision |
Full-Colour (Spotlight LEDs) |
| Pan Range |
0° – 355° |
| Tilt Range |
-15° – 65° |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Smart Detection |
Human, Motion, Area Intrusion, Line-Crossing, Video Tampering |
| Weather Rating |
IP66 |
| Power Supply |
PoE (802.3af) / 12V DC |
| Power Consumption |
Max 12W |
| Operating Temperature |
-30°C to 60°C |
| Network Interface |
RJ45 10/100 Mbps Ethernet |
| Local Storage |
MicroSD (up to 256GB) |
| Audio |
Built-in Microphone |
| Dimensions |
113.8 × 113.8 × 155.4 mm |
| Weight |
Approx. 1.02 kg |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link VIGI NVR — Centralise recording and management for multi-camera installations.
-
PoE Network Switch — Simplify cabling by powering cameras over a single Ethernet run.
-
MicroSD Card (Class 10 / U3, up to 256GB) — Enable on-camera local recording without an NVR.
-
Junction Box / Wall Mount Bracket — Provides a clean, weatherproof cable entry point for outdoor installations.
Frequently Asked Questions
Does the VIGI C540 work without an NVR?
Yes. The C540 supports local recording to a MicroSD card (up to 256GB) and can be managed directly via the VIGI app, making it suitable for standalone installations.
Is the C540 compatible with third-party NVRs?
The C540 supports ONVIF Profile S, allowing basic integration with compatible third-party NVRs. For full smart detection and PTZ control, a TP-Link VIGI NVR is recommended.
Can I use PoE to power this camera?
Yes. The C540 supports IEEE 802.3af PoE, so a single Ethernet cable handles both data and power — ideal for clean, cost-effective installations.
How far can the camera pan and tilt?
The C540 pans 355° and tilts from -15° to 65°, providing near-full-sphere coverage from a single mounting point.
Is this camera suitable for Australian outdoor conditions?
Yes. The IP66 rating protects against dust ingress and heavy rain, and the operating temperature range of -30°C to 60°C covers all Australian climates.
Does it support two-way audio?
The C540 includes a built-in microphone for one-way audio monitoring. Two-way audio requires an external speaker connected to a compatible NVR.
