Description

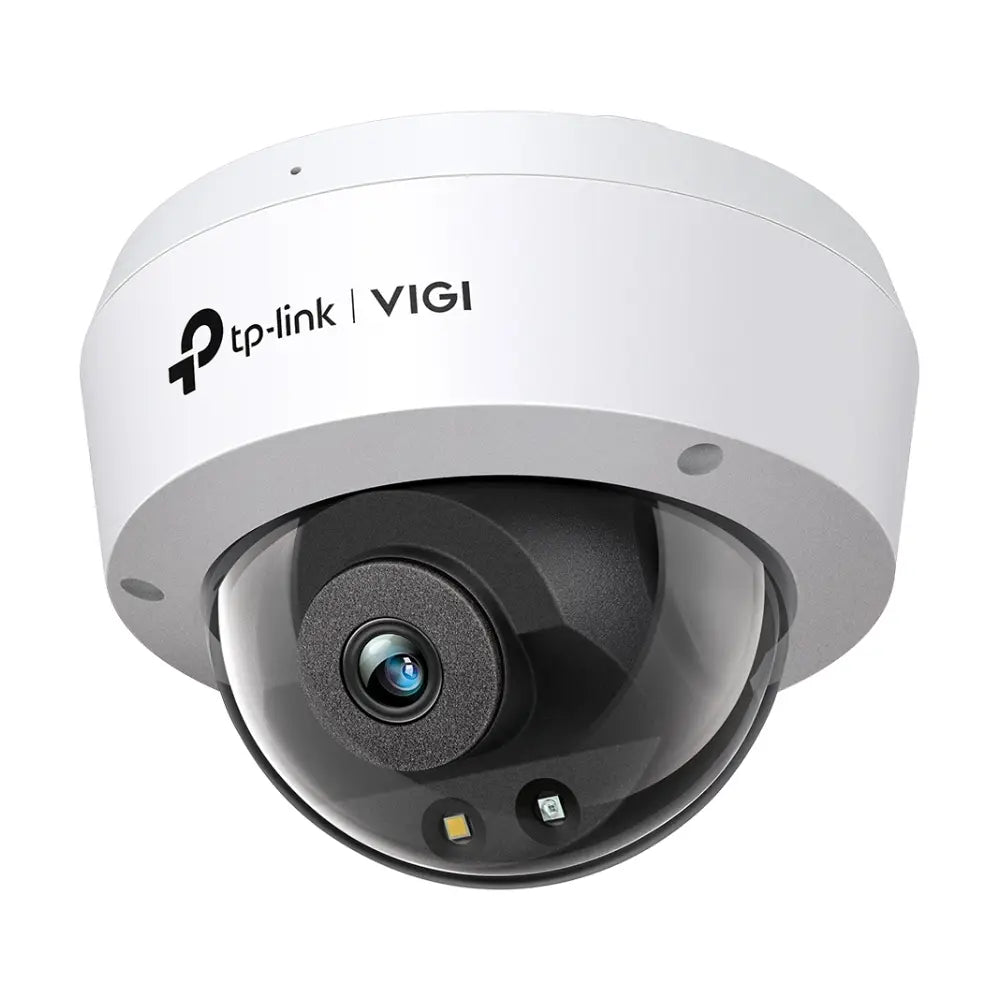

TP-Link VIGI C240 4MP Full-Colour Dome Network Camera (4mm Lens)
24-Hour Full-Colour Surveillance with AI Smart Detection
The TP-Link VIGI C240 is a 4MP full-colour dome network camera that delivers vivid, colour footage around the clock — even in complete darkness. Equipped with a large-aperture lens, high-sensitivity sensor, and supplemental white light, it captures colour detail that standard IR cameras miss at night. Add AI-powered human and vehicle classification, smart detection, IK10 vandal-proof and IP67 weatherproof construction, a built-in microphone, and onboard SD card storage, and the C240 is a comprehensive surveillance solution for Australian businesses and commercial installations.

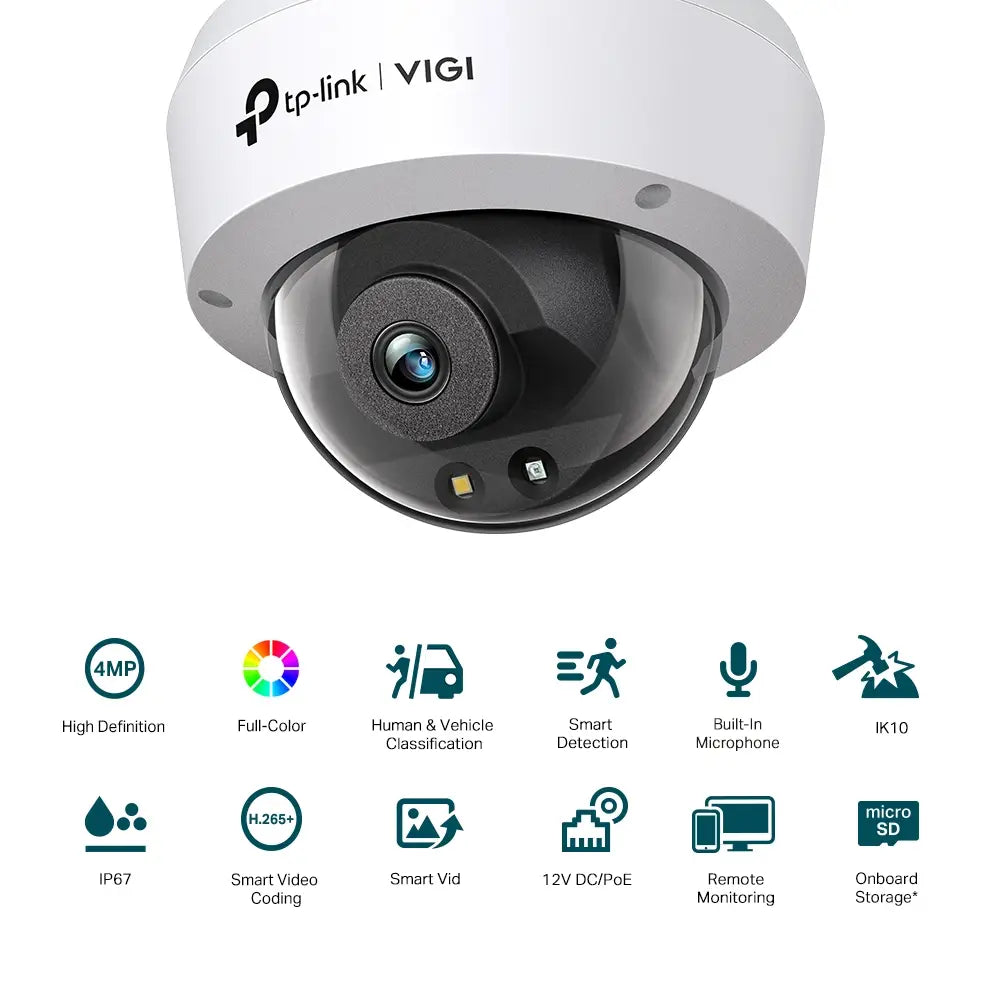

Key Features
- 4MP Super-HD resolution — sharp, detailed footage for reliable identification
- 24-hour full-colour night vision — large-aperture lens, high-sensitivity sensor, and supplemental white light deliver colour footage in pitch-black conditions
- AI Human & Vehicle Classification — reduces false alarms by distinguishing people and vehicles from other motion triggers
- Smart Detection — line crossing, intrusion detection, object removal/abandonment, and camera obstruction alerts
- Built-in microphone — records audio within approximately 4.5 m radius for enhanced situational awareness
- IK10 vandal-proof housing — resists physical impact for high-risk or public-facing installations
- IP67 weatherproof — fully protected against dust and heavy rain for outdoor deployment
- H.265+ compression — reduces storage and bandwidth without sacrificing image quality
- WDR, 3D DNR, Smart IR — professional video enhancement for challenging lighting conditions
- PoE (802.3af) or 12V DC power — flexible installation options
- Onboard SD card slot — local storage up to 256 GB (card not included)
- Side cable outlet — enables clean installation into dropped ceilings without drilling
- Managed via web UI, NVR UI, VIGI app, and VIGI Security Manager
Use Cases
-
Car Parks & Driveways: Full-colour night vision captures vehicle colours and number plate details that IR-only cameras miss in low light.
-
Building Entrances & Lobbies: AI human detection and smart intrusion alerts provide real-time notifications of unauthorised access, with audio recording for added context.
-
Retail Stores & Warehouses: IK10 vandal-proof housing protects the camera in high-traffic environments; full-colour footage aids in incident investigation.
-
Outdoor Perimeters: IP67 weatherproofing ensures reliable operation in Australian outdoor conditions including rain, dust, and heat.
-
Commercial CCTV Systems: Integrates with VIGI NVRs (NVR1004H-4P, NVR1008H-8MP, NVR1016H) for centralised recording, playback, and management.
Specifications
| Specification |
Detail |
| Model |
VIGI C240 (4mm) |
| Resolution |
4MP (2560 × 1440) |
| Lens |
4mm fixed focal length, large aperture |
| Night Vision |
24-hour full-colour — supplemental white light + high-sensitivity sensor |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| AI Classification |
Human & vehicle detection |
| Smart Detection |
Line crossing, intrusion, object removal/abandonment, camera obstruction |
| Audio |
Built-in microphone (~4.5 m radius) |
| Image Enhancement |
WDR, 3D DNR, Smart IR |
| Ingress Protection |
IP67 (weatherproof) + IK10 (vandal-proof) |
| Power Supply |
PoE (802.3af) or 12V DC |
| Local Storage |
SD card slot — up to 256 GB (card not included) |
| Management |
Web UI, NVR UI, VIGI App, VIGI Security Manager |
| ONVIF |
Supported |
| Weight |
0.54 kg |
Downloads
VIGI C240 Datasheet (PDF)
Frequently Asked Questions
What is the difference between the VIGI C240 and the VIGI C240I?
The VIGI C240 features 24-hour full-colour night vision using supplemental white light, delivering colour footage even in complete darkness. The VIGI C240I uses traditional infrared (IR) night vision, which produces black-and-white footage in low light. Choose the C240 where colour detail at night is important (e.g., vehicle colour, clothing colour); choose the C240I where you prefer discreet, low-visibility night illumination.
Does the full-colour mode activate automatically at night?
Yes. The camera automatically activates its supplemental white light and switches to full-colour mode when ambient light drops below a set threshold. This can be configured via the VIGI app or web UI.
Can I power the camera without a PoE switch?
Yes. The C240 supports both PoE (802.3af) and 12V DC power. If you don’t have a PoE switch, you can use a standard 12V DC power adapter (sold separately) to power the camera directly.
Does the built-in microphone record audio continuously?
Yes, when audio recording is enabled in the camera settings, the built-in microphone records audio continuously alongside the video stream. Audio recording can be enabled or disabled via the web UI or VIGI app.
Is the C240 compatible with non-VIGI NVRs?
Yes. The C240 is ONVIF-compliant and can be added to any ONVIF-compatible NVR. AI smart detection features such as human/vehicle classification and smart event alerts are fully supported only when used with a VIGI NVR or the VIGI app.
How much local storage can I add?
The C240 has an onboard SD card slot supporting cards up to 256 GB. This allows continuous or event-triggered local recording directly on the camera, independent of an NVR.
