TP-Link VIGI 10 × 8MP Camera Kit + 16-Channel PoE+ NVR

Description

TP-LINK VIGI · Camera & recorder kit

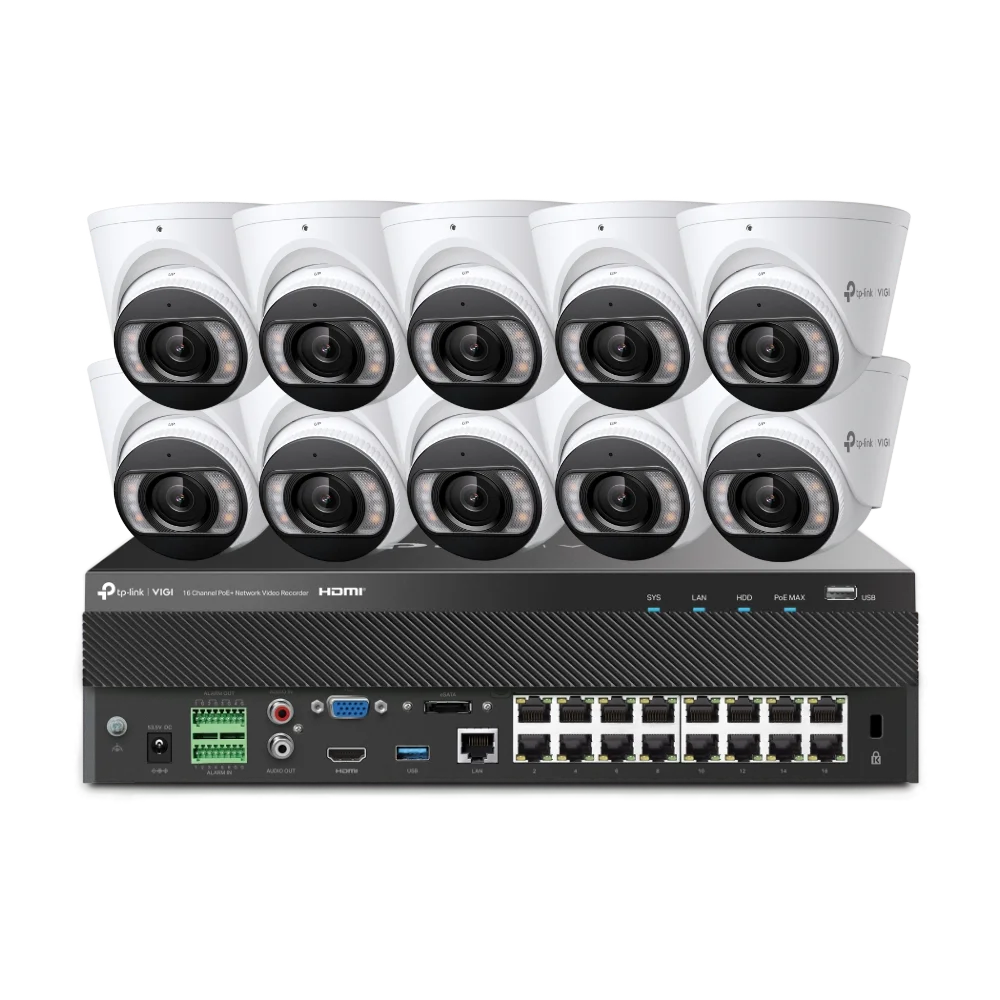

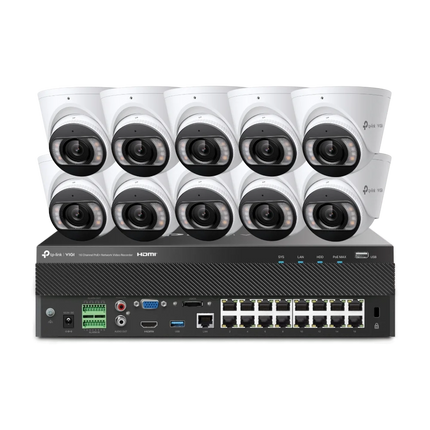

TP-Link VIGI 10 × 8MP Camera Kit + 16-Channel PoE+ NVR

Combine 10 full-colour cameras with the VIGI NVR2016H-16MP for centralised monitoring and recording. See the component and storage details below before choosing your installation.

Cameras
10 × 8MP

10 × 8MP is the listed capacity or connection for this model. Plan the connected cameras and network equipment around this specification.

Recorder
16 channels

16 channels is the listed capacity or connection for this model. Plan the connected cameras and network equipment around this specification.

Power budget
140W PoE+

The listed PoE power budget is 140W PoE+. Add the maximum power requirements of all connected cameras and keep the combined load within the recorder’s total and per-port limits.

Storage
See inclusions

The listed storage configuration is See inclusions. Required retention depends on camera count, bitrate and recording schedule; check drive compatibility before purchase.

Designed for your installation

A coordinated camera system

Full-colour cameras capture colour detail using available light and supplemental white lighting where needed.

Plan a separate view for each important entrance or activity area rather than pointing every camera at the same scene. Check each channel after installation and name it by location to make playback easier to navigate.

Power and data together

Built-in PoE+ ports connect compatible cameras with one Ethernet cable each. Total connected load must remain within the recorder power budget.

Check both the per-port power limit and the total PoE budget of the connected equipment. Use suitable Ethernet cabling, label both ends and test every camera before completing the installation.

Room to plan

6 channels remain available after connecting the supplied cameras. Additional cameras must meet bandwidth and PoE limits.

Map the included cameras to recorder channels and document any spare capacity. When expanding later, check camera compatibility, total bandwidth, available power and storage needs together.

Choose suitable mounting locations

Position cameras for the required scene and weatherproof cable joints. Keep the NVR indoors in a ventilated location.

Check the view at the intended height before drilling, including glare and obstructions at night. Leave room to service connections and route exposed cabling so it can be properly secured and protected.

Technical specifications

Package SKU

GR-VG-108MP16CH

Camera components

10 × VIGI InSight S485 (2.8mm) 8MP full-colour turret cameras

Recorder

1 × VIGI NVR2016H-16MP

Camera resolution

8MP per camera

Recorder channels

16

Built-in PoE+ ports

16

Total PoE budget

140W

Hard drive

HDD not included; add compatible surveillance hard drives.

Network cabling

Not included; select suitable cables for the installation

Camera environment

IP67 cameras; weatherproof the cable connections

Before you install

  • HDD not included; add compatible surveillance hard drives.
  • Network cabling, display, internet connection and installation labour are separate.
  • Recording time depends on capacity, bitrate, frame rate and recording schedule.
  • Check hardware revision, firmware and drive compatibility before changing storage.

Questions answered

Is a hard drive included?

HDD not included; add compatible surveillance hard drives.

Can I add more cameras?

6 channels remain available after connecting the supplied cameras. Additional cameras must meet bandwidth and PoE limits.

Are the cameras suitable outdoors?

IP67 cameras; weatherproof the cable connections

Specifications checked against TP-Link NVR2016H-16MP, TP-Link InSight S485. Features and storage compatibility can vary by hardware revision and firmware; check the supplied unit when planning a system.

Official videos & downloads

Use the official resources below to plan installation and configure your system. Select the hardware version printed on the device before downloading firmware or applying version-specific instructions.

How to Upgrade NVR Firmware

Open this official video on YouTube
VIGI NVR2016H-16MP(UN) V2 DatasheetVIGI NVR2016H-16MP V2 Installation GuideVIGI App User GuideNVR2016H-16MP manuals, firmware & all downloadsInSight S485(UN B) V1 DatasheetInSight S485(UN) V1 Installation GuideINSIGHT-S485 manuals, firmware & all downloads
