Description
TP-Link UH720 – USB 3.0 7-Port Hub with 2 Smart Charging Ports
Run out of USB ports on your desktop or laptop? The TP-Link UH720 adds seven high-speed USB 3.0 data ports and two dedicated smart charging ports to any workstation — no driver installation required. Whether you’re a systems installer setting up a workbench or an end user juggling peripherals, the UH720 keeps everything connected and charged.
Key Features
-

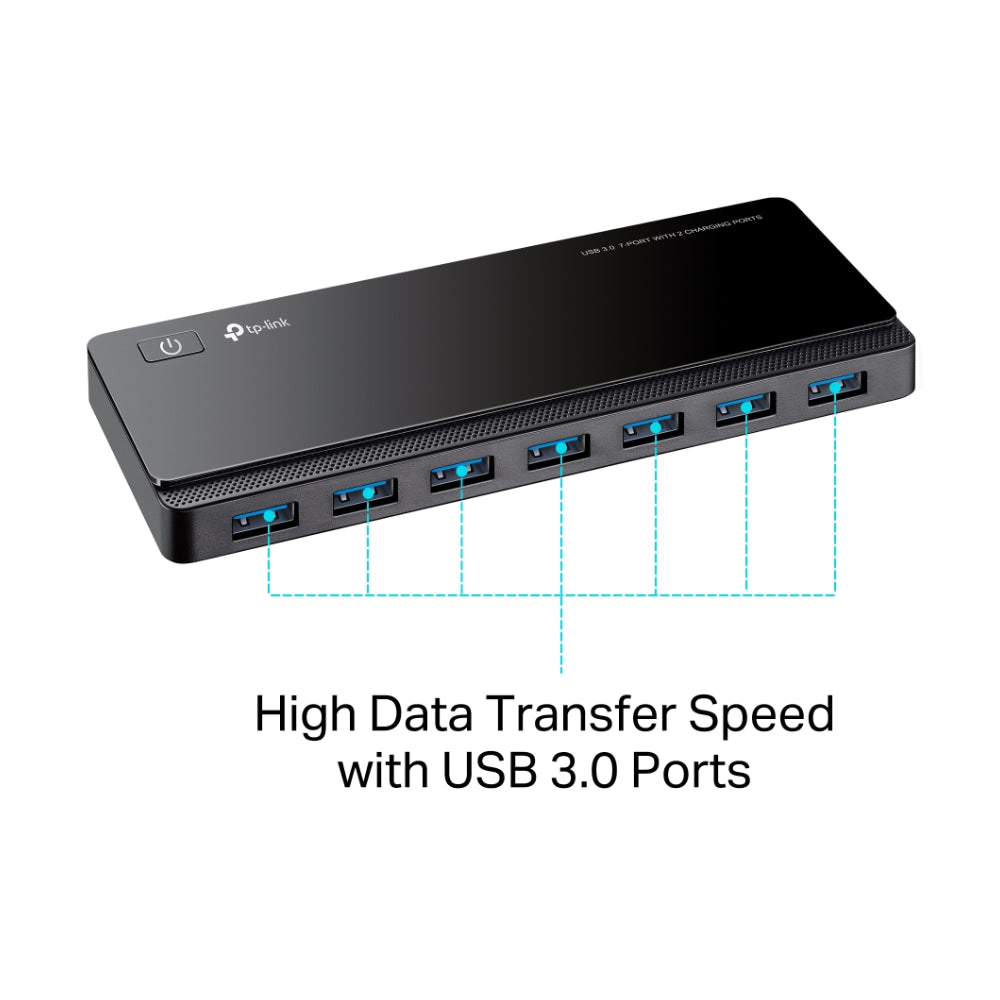

7 × USB 3.0 Data Ports: Transfer files at up to 5Gbps — 10 times faster than USB 2.0 — across all seven ports simultaneously.
-

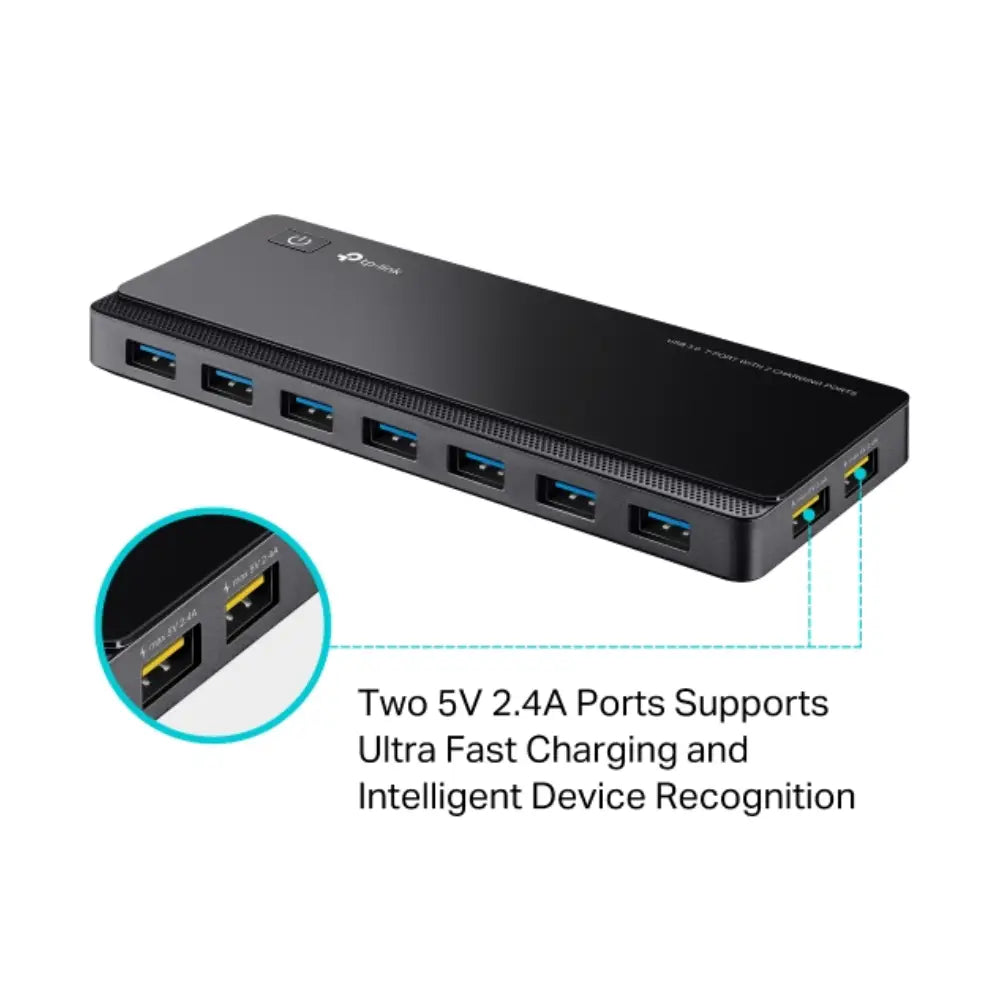

2 × Dedicated Charging Ports (5V/2.4A): TP-Link Smart Charging Technology automatically detects and optimally charges iOS and Android devices at full speed.
-
Driver-Free Setup: Plug and play on Windows 10/8.1/8/7/Vista/XP, macOS X, and Linux — no software installation needed.
-
Backward Compatible: Works with USB 2.0 and USB 1.1 devices; actual speeds are limited by the connected device.
-
VIA VL812 Chipset: Latest firmware for stable, reliable data throughput across all ports.
-
Powered Hub: Includes a 12V/4A power adapter to ensure consistent power delivery to all connected devices.
-
Compact, Desk-Friendly Design: Low-profile form factor with a 1-metre USB 3.0 cable for flexible placement.
Ideal Use Cases

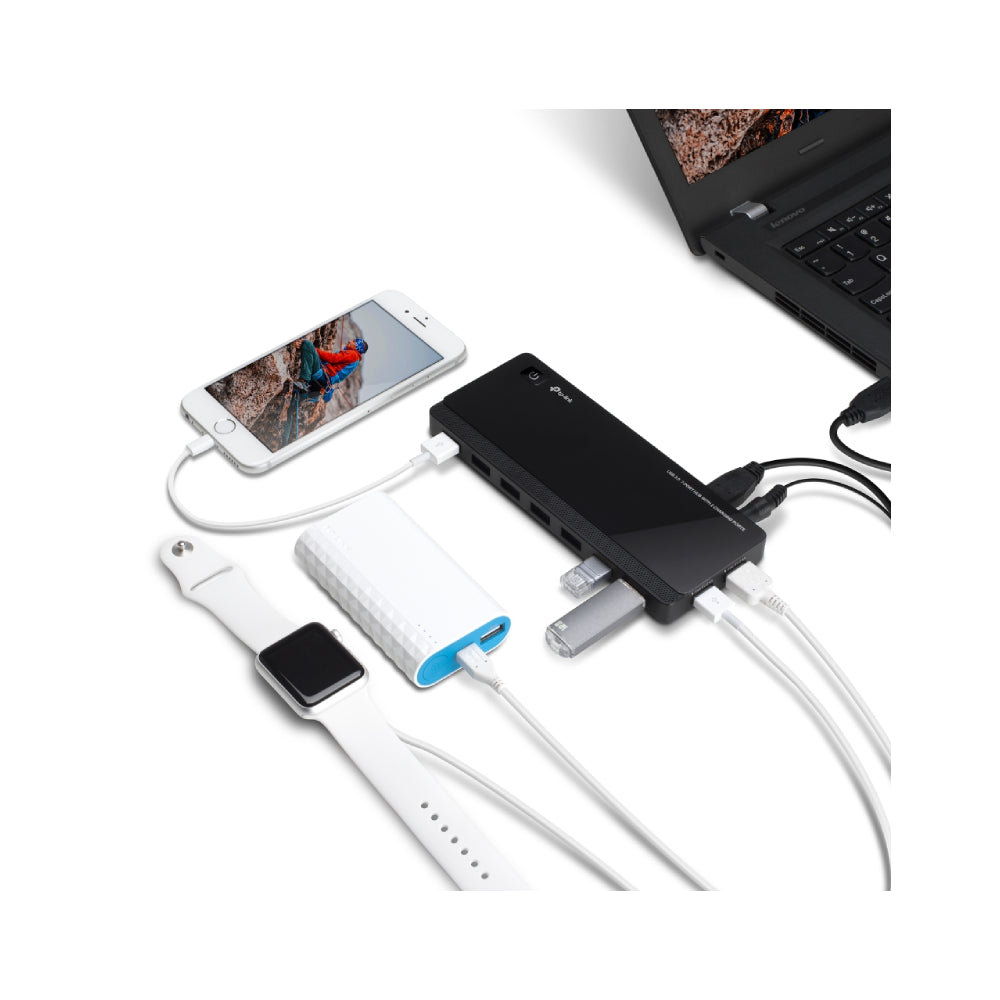

- Expanding USB connectivity on desktops, laptops, and all-in-one PCs with limited ports.
- Workbench setups for IT technicians and security system installers needing multiple simultaneous connections.
- Connecting USB storage drives, keyboards, mice, card readers, and other peripherals at once.
- Charging smartphones and tablets at a workstation without occupying data ports.
- Home offices and small businesses requiring a tidy, centralised USB hub solution.
Technical Specifications
| Specification |
Detail |
| Model |
TL-UH720 (UH720) |
| Data Ports |
7 × USB 3.0 Standard-A |
| Charging Ports |
2 × 5V/2.4A Smart Charging |
| Input Interface |
1 × USB 3.0 Micro-B |
| Data Transfer Speed |
Up to 5Gbps (USB 3.0) |
| Chipset |
VIA VL812 (Latest Firmware) |
| Power Adapter |
12V / 4A (included) |
| Cable Length |
1 metre (USB 3.0) |
| Dimensions |
165 × 65.5 × 17.5 mm |
| Compatible OS |
Windows 10/8.1/8/7/Vista/XP, macOS X, Linux |
| Backward Compatibility |
USB 2.0 / USB 1.1 |
| Barcode (EAN) |
6935364010041 |
| SKU |
UH720 |

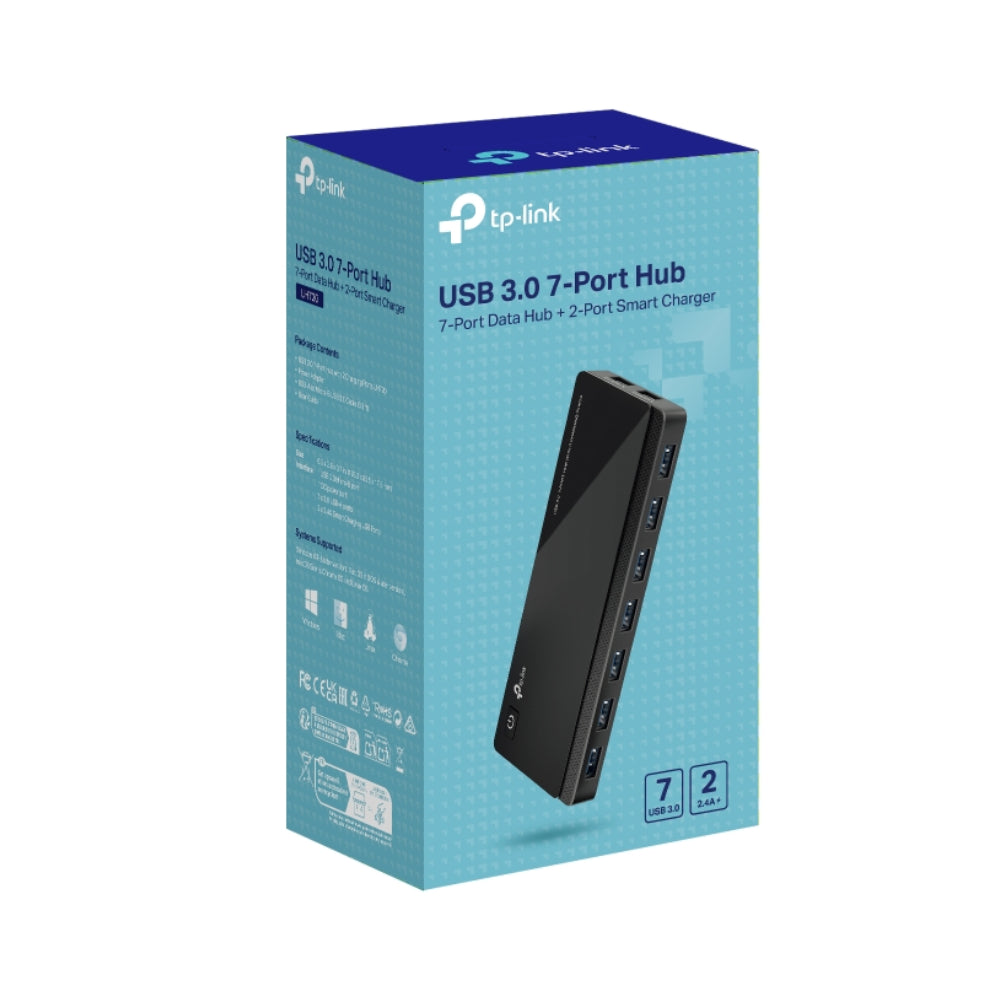

What’s in the Box
- 1 × UH720 USB 3.0 7-Port Hub
- 1 × 12V/4A Power Adapter
- 1 × 1-Metre USB 3.0 Cable
- Quick Installation Guide
Frequently Asked Questions
Do I need to install drivers to use the UH720?
No. The UH720 is plug-and-play on Windows (XP through 10), macOS X, and Linux. Simply connect it to your computer and it’s ready to use.
Can I use all 7 data ports and 2 charging ports at the same time?
Yes. The included 12V/4A power adapter provides sufficient power for all nine ports to operate simultaneously.
Will my USB 2.0 devices work with this hub?
Yes. The UH720 is backward compatible with USB 2.0 and USB 1.1 devices, though data transfer speeds will be limited to the device’s maximum rated speed.
Can the charging ports charge iPads or Android tablets?
Yes. The 5V/2.4A smart charging ports use TP-Link’s Smart Charging Technology to detect and deliver the optimal charge current for both iOS and Android devices, including tablets.
Is this hub suitable for use with external hard drives?
Yes. The powered design ensures external hard drives receive adequate power through the USB 3.0 data ports without relying on bus power from your computer.
Does it work with macOS Ventura or later?
TP-Link lists macOS X compatibility. For the latest macOS versions, the hub functions as a standard USB 3.0 device and should work without drivers, though we recommend checking TP-Link’s support page for the most current OS compatibility information.
