Description
Extend Fast Wired and Wireless Internet Using Your Existing Electrical Wiring

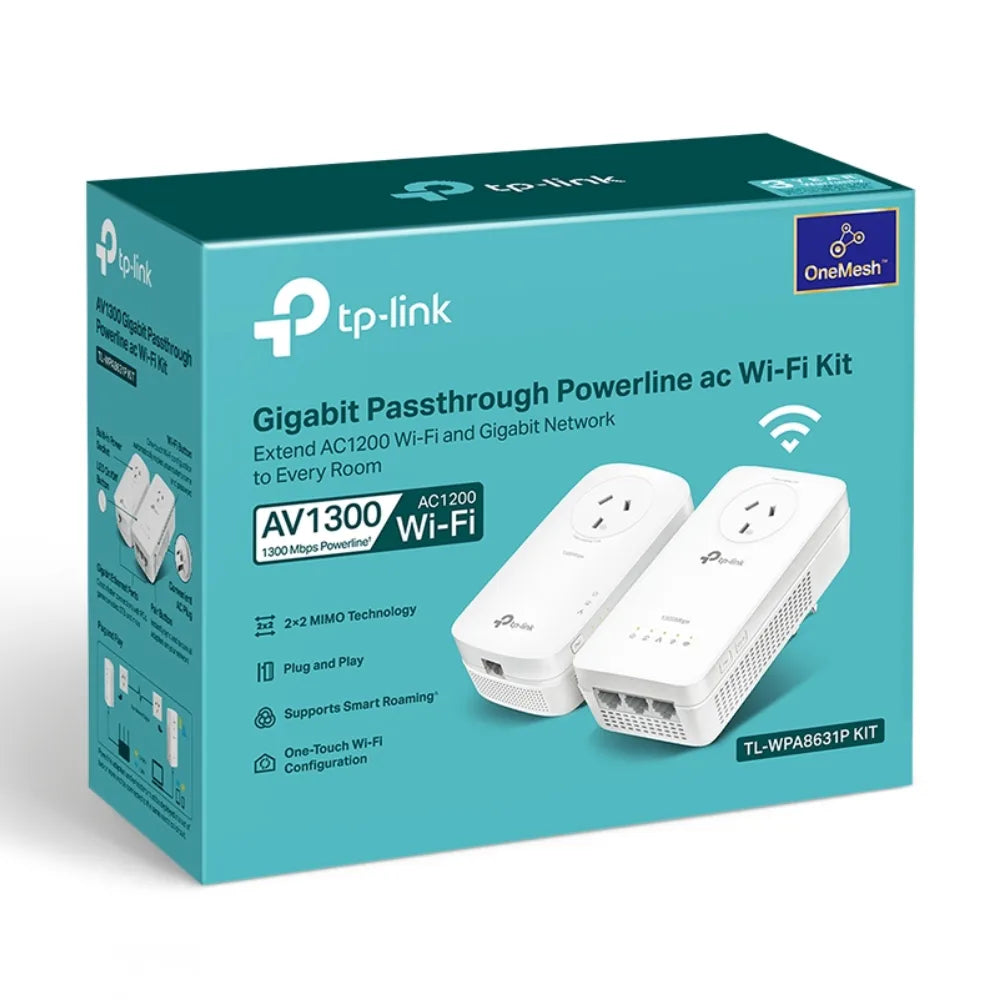

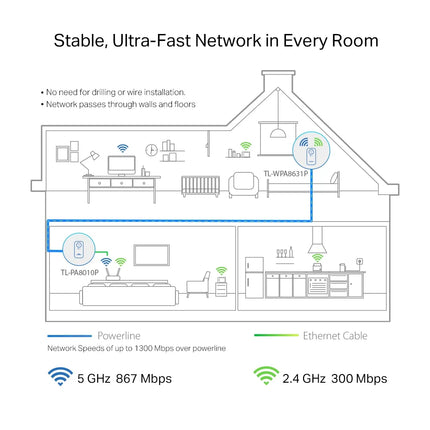

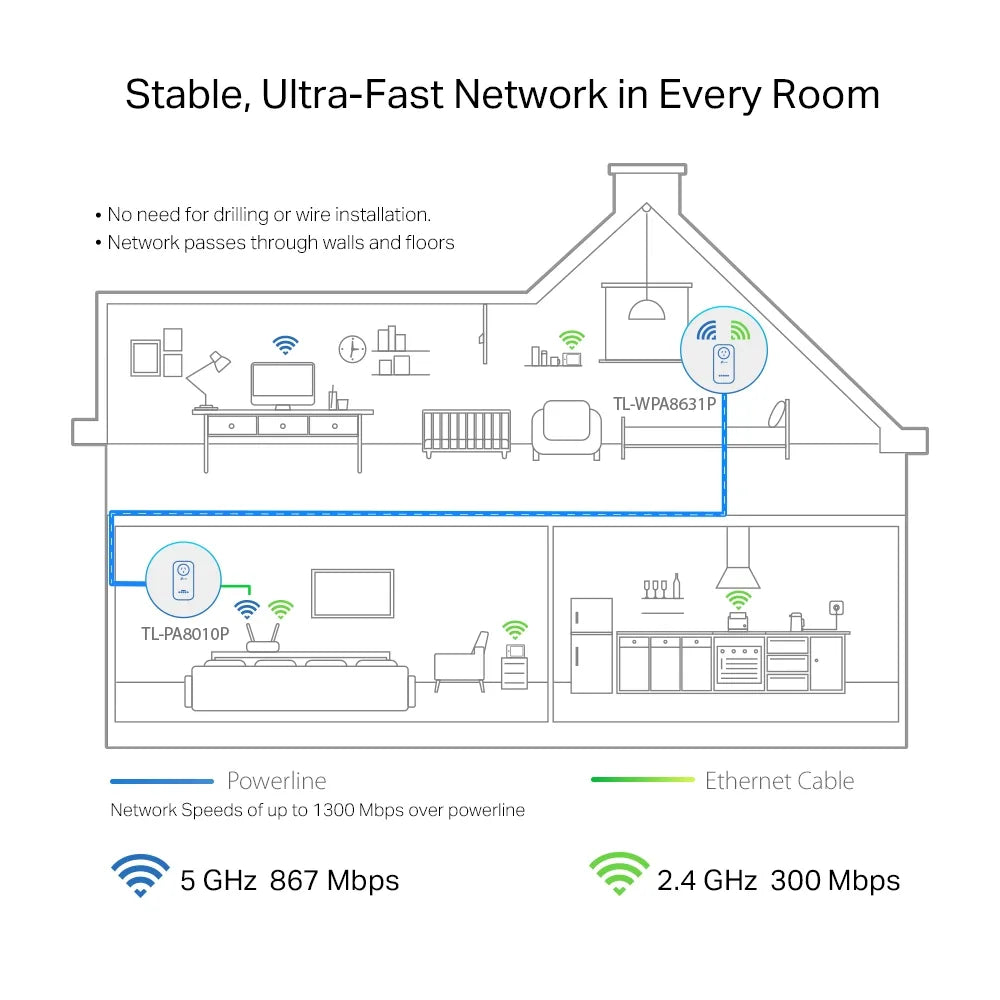

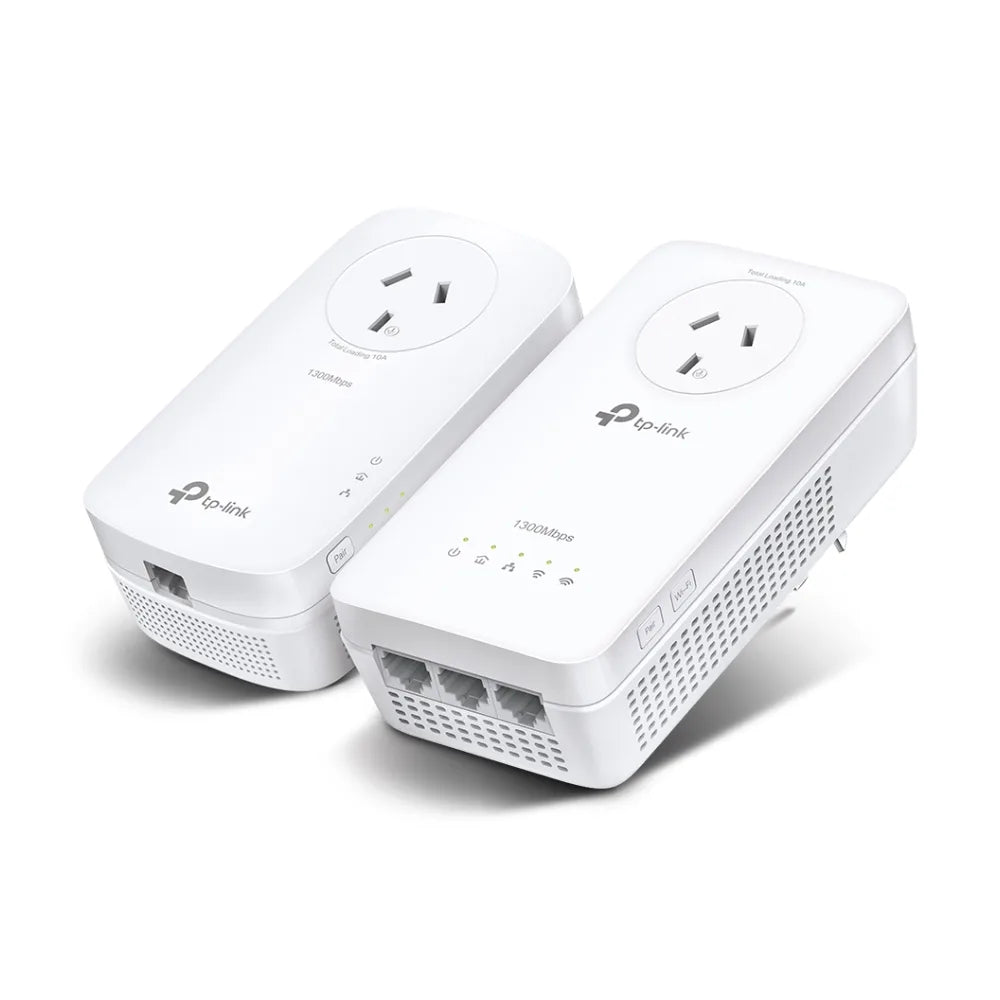

The TP-Link TL-WPA8631P KIT is an AV1300 HomePlug AV2 powerline Wi-Fi kit that uses your home’s existing electrical wiring to deliver fast, stable internet to any room — no new cables required. The kit includes a sender adapter that connects to your router and a Wi-Fi extender adapter that plugs in anywhere in the home, providing AC1200 dual-band Wi-Fi, three Gigabit Ethernet ports, and a passthrough power socket. With a range of up to 300 metres over electrical wiring, it’s ideal for Australian homes where Wi-Fi struggles to reach.
Key Features
-
AV1300 HomePlug AV2 Powerline — up to 1300Mbps over existing electrical wiring for fast, stable wired-equivalent speeds
-
AC1200 Dual-Band Wi-Fi — 867Mbps on 5GHz and 300Mbps on 2.4GHz for wireless devices in the extended room
-
3× Gigabit Ethernet Ports — connect smart TVs, gaming consoles, NVRs, or desktop PCs via wired connection
-
Passthrough Power Socket — integrated outlet so you don’t lose the wall socket
-
OneMesh Compatible — works with compatible TP-Link OneMesh routers to create a unified mesh network with seamless roaming
-
One-Touch Wi-Fi Configuration — copies your router’s SSID and password with a single button press
-
Wi-Fi Auto-Sync — automatically syncs SSID, password, and schedules across all powerline extenders on the network
-
Up to 300m Range — covers large homes over existing electrical wiring
-

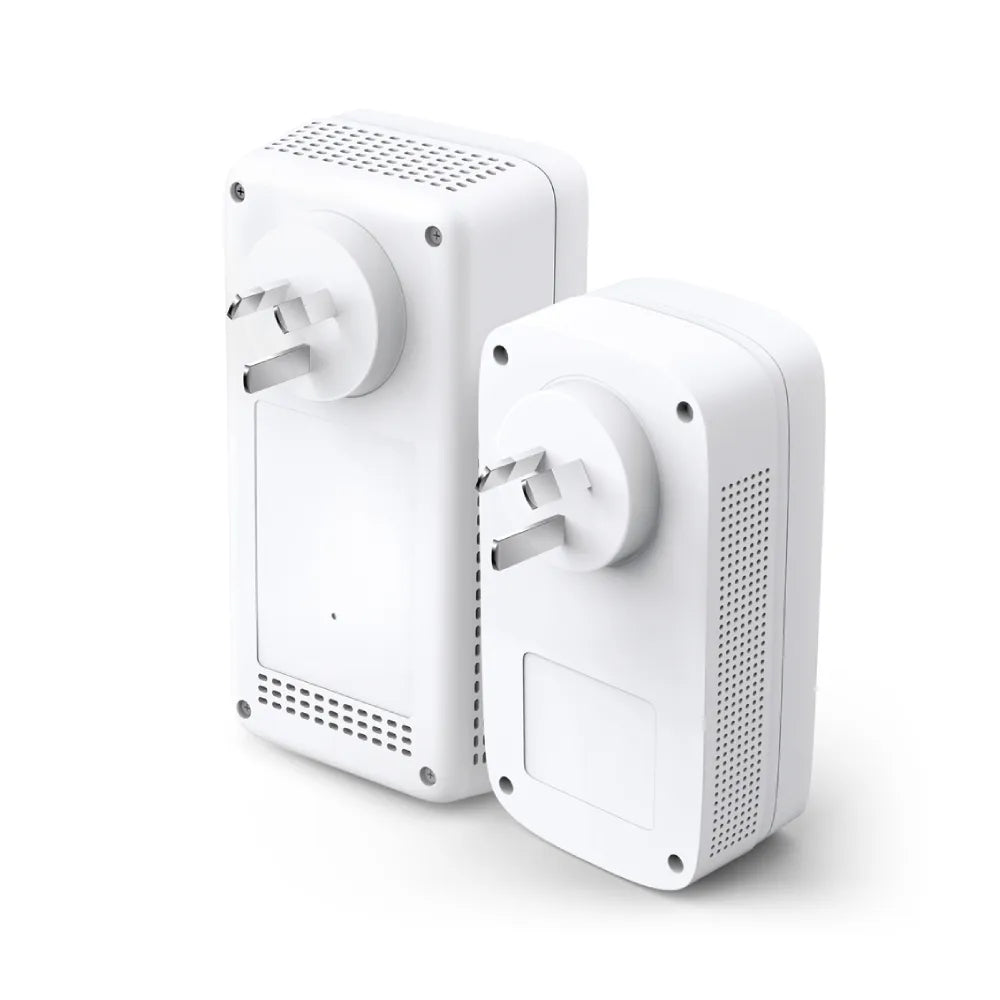

Australian Plug Type — designed for Australian standard power outlets
-
Plug and Play — no configuration software required; set up in minutes
Typical Use Cases
- Extending fast internet to rooms where Wi-Fi signal is weak or unreliable
- Providing wired Gigabit connections to smart TVs, gaming consoles, or NVRs in remote rooms
- Multi-storey homes where Wi-Fi struggles to penetrate floors and ceilings
- Homes with thick concrete or brick walls that block wireless signals
- Adding reliable internet to a garage, home office, or back bedroom without running new cables
Technical Specifications
| Specification |
Detail |
| Model |
TL-WPA8631P KIT (TL-WPA8631P + TL-PA8010P) |
| Powerline Standard |
HomePlug AV2, IEEE 1901 |
| Powerline Speed |
Up to 1300Mbps |
| Wi-Fi Standard |
IEEE 802.11ac/n/a (5GHz), IEEE 802.11n/b/g (2.4GHz) |
| Wi-Fi Speed |
AC1200: 867Mbps (5GHz) + 300Mbps (2.4GHz) |
| Ethernet Ports |
3× Gigabit (10/100/1000Mbps) on TL-WPA8631P |
| Passthrough Socket |
Yes (on TL-WPA8631P) |
| Range |
Up to 300m over electrical wiring |
| Plug Type |
Australian (Type I) |
| Compatibility |
HomePlug AV and HomePlug AV2 standard adapters |
| Dimensions – TL-WPA8631P |
75 × 42 × 152 mm |
| Dimensions – TL-PA8010P |
72 × 42 × 131 mm |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years |
Frequently Asked Questions
- Does powerline networking work in Australian homes?
- Yes. Powerline adapters work with standard Australian 240V electrical wiring. Performance is best when both adapters are on the same electrical circuit (i.e., the same switchboard). Adapters on different circuits or connected via a power board may experience reduced speeds.
- Do I need to run any new cables?
- No. The TL-WPA8631P KIT uses your existing electrical wiring to carry the network signal. Simply plug the sender adapter near your router, connect it via Ethernet, and plug the extender adapter into any power outlet in the room you want to extend.
- Can I add more powerline adapters to extend coverage further?
- Yes. Additional compatible HomePlug AV2 adapters can be added to the same powerline network. The Wi-Fi Auto-Sync feature will automatically apply your SSID and password settings to new extenders.
- What is OneMesh and do I need a special router?
- OneMesh is TP-Link’s mesh networking technology that allows compatible TP-Link routers and extenders to form a unified network with a single SSID and seamless roaming. The TL-WPA8631P KIT works as a standard powerline Wi-Fi kit with any router, but OneMesh features require a compatible TP-Link OneMesh router.
- Will the passthrough socket affect powerline performance?
- No. The integrated passthrough socket is designed to maintain powerline signal quality. However, avoid plugging power boards or devices with large power supplies (such as UPS units) into the passthrough socket, as these can introduce electrical noise that may reduce powerline speeds.
