Description

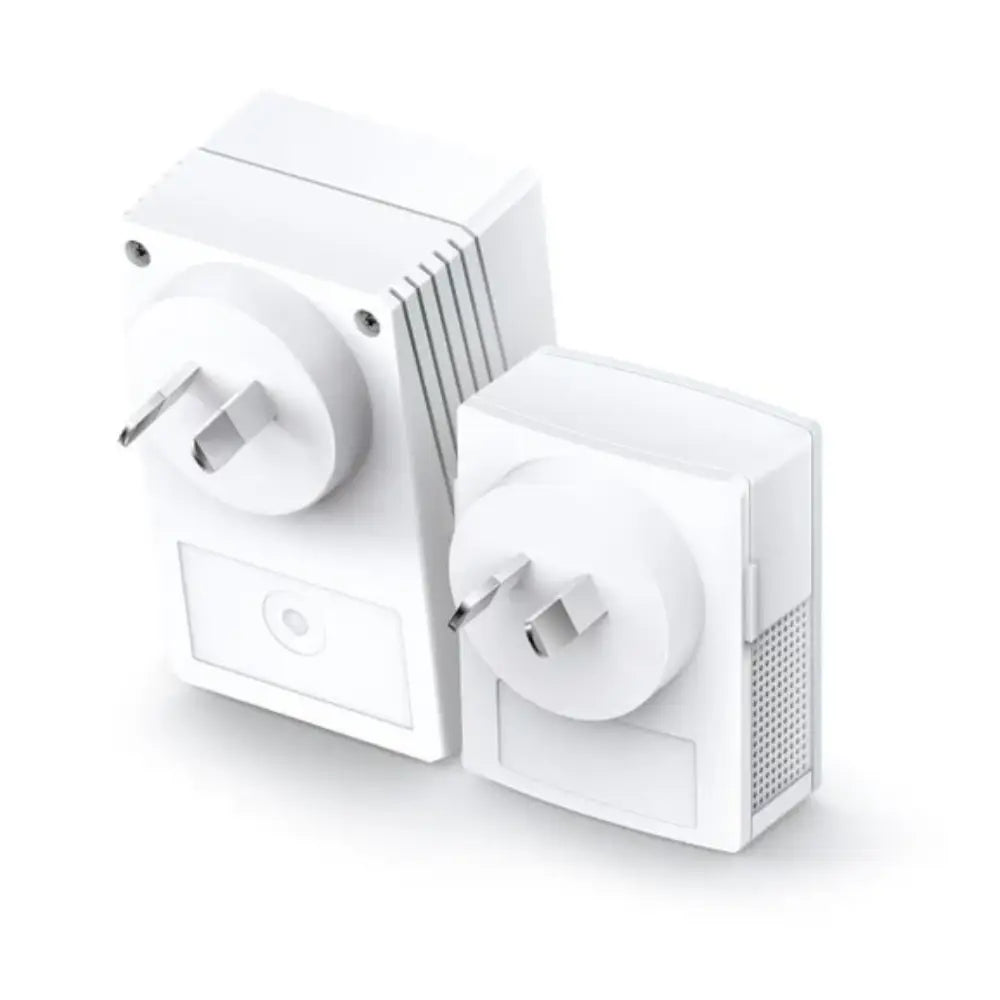

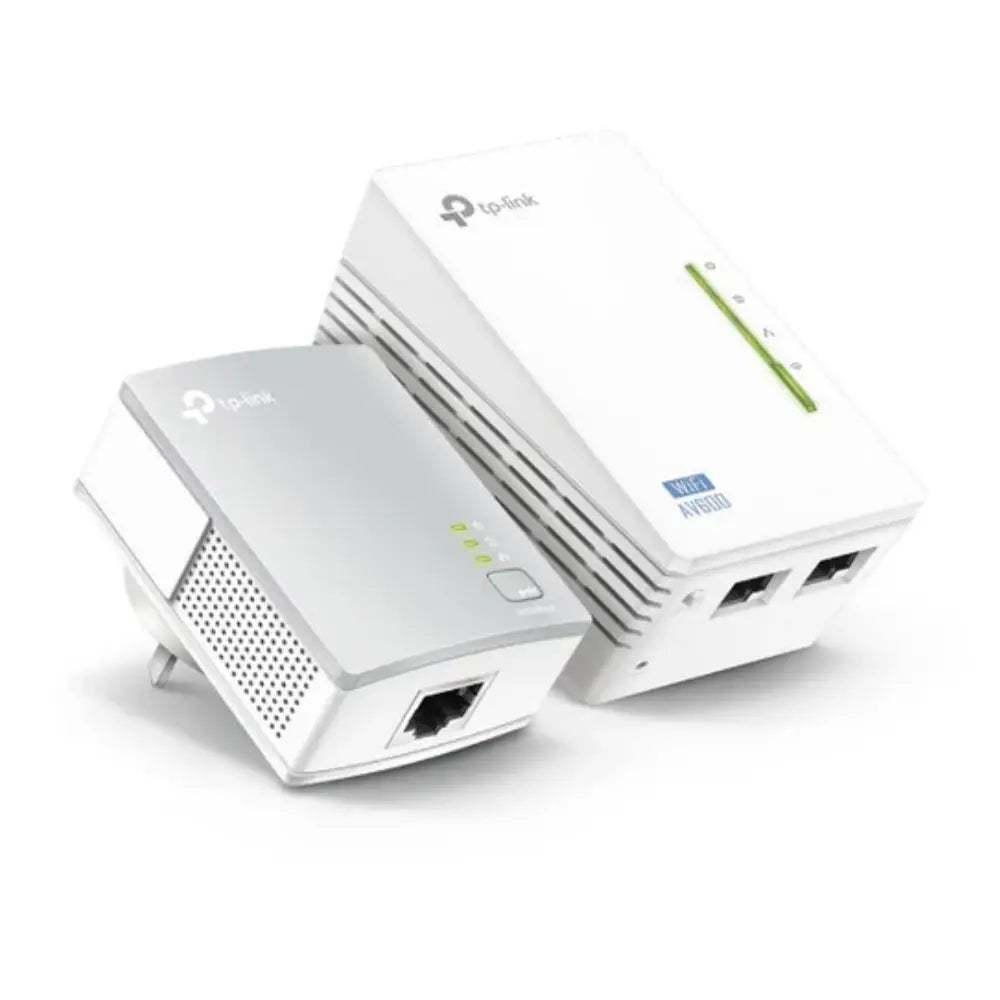

TP-Link TL-WPA4220KIT – AV600 Wi-Fi Powerline Extender Starter Kit
Eliminate Wi-Fi dead zones without running new cables. The TP-Link TL-WPA4220KIT uses your home or office's existing electrical wiring to deliver a fast, stable network connection to any room — ideal for HD video streaming, online gaming, IP cameras, and smart home devices.
Key Features
-
AV600 Powerline Speed: Up to 600Mbps data transmission over existing electrical wiring via HomePlug AV standard.
-
300Mbps Wireless: 2.4GHz 802.11b/g/n Wi-Fi extends your network to hard-to-reach areas.
-
Wi-Fi Auto-Sync (Wi-Fi Clone): Press the Wi-Fi Clone button to instantly copy your router's SSID and password — no manual configuration required.
-
Wi-Fi Move: Automatically synchronises any Wi-Fi setting changes across all adapters in the network.
-
Plug, Pair and Play: Simple three-step setup — no technical expertise needed.
-
2 × Fast Ethernet Ports: Two 10/100Mbps LAN ports on the Wi-Fi extender for wired device connections.
-
tpPLC App & Utility: Manage your powerline network, set Wi-Fi schedules, and control LED indicators from iOS or Android.
-
Secure Connection: 128-bit AES encryption for a private, protected powerline network.
Ideal Use Cases
- Extending Wi-Fi to garages, sheds, or back rooms where router signal is weak.
- Providing a stable wired or wireless connection for IP cameras and NVRs.
- Lag-free HD and 4K video streaming in living rooms or bedrooms.
- Online gaming consoles requiring a reliable, low-latency connection.
- Home offices needing a dependable connection away from the router.
- Small business or retail environments with existing electrical infrastructure.
Technical Specifications
| Specification |
TL-PA4010 (Powerline Adapter) |
TL-WPA4220 (Wi-Fi Extender) |
| Powerline Standard |
HomePlug AV |
HomePlug AV |
| Powerline Speed |
Up to 600Mbps |
Up to 600Mbps |
| Wireless Standard |
N/A |
IEEE 802.11b/g/n |
| Wireless Speed |
N/A |
Up to 300Mbps (2.4GHz) |
| LAN Ports |
1 × 10/100Mbps |
2 × 10/100Mbps |
| Encryption |
128-bit AES |
128-bit AES |
| Operating Frequency |
2–68MHz |
2–68MHz |
| Operating Temperature |
0°C – 40°C |
0°C – 40°C |
| Power Consumption |
≤ 3.2W |
≤ 6.2W |
| Dimensions |
52 × 36 × 77mm |
52 × 36 × 77mm |
| SKU / Model |
TL-PA4010 |
TL-WPA4220 |
| Barcode (EAN) |
— |
6935364032883 |
What's in the Box
- 1 × TL-PA4010 Powerline Adapter
- 1 × TL-WPA4220 Wi-Fi Powerline Extender
- 2 × RJ45 Ethernet Cables
- Quick Installation Guide
Frequently Asked Questions
Does this kit work with any router?
Yes. The TL-WPA4220KIT is compatible with any router or modem that has a standard RJ45 Ethernet port. It works alongside your existing Wi-Fi network.
Can I expand the network with additional adapters?
Yes. You can add more TP-Link HomePlug AV-compatible adapters to extend coverage to additional rooms or floors.
Will it work across different power circuits or circuit breakers?
Powerline adapters generally work best on the same electrical circuit. Performance may vary if adapters are on different circuits or phases. A licensed electrician can advise on your specific setup.
Is it suitable for connecting IP cameras or NVRs?
Yes. The wired LAN ports on the TL-WPA4220 make it well-suited for connecting IP cameras, NVRs, or other security devices that require a stable, low-latency connection.
Does it support the Australian power standard?
Yes. This kit is supplied with Australian-standard plugs and is rated for 230V/50Hz operation.
What is the maximum distance between adapters?
TP-Link rates the TL-WPA4220KIT for up to 300 metres of electrical wiring between adapters, though real-world performance depends on wiring quality and electrical interference.
