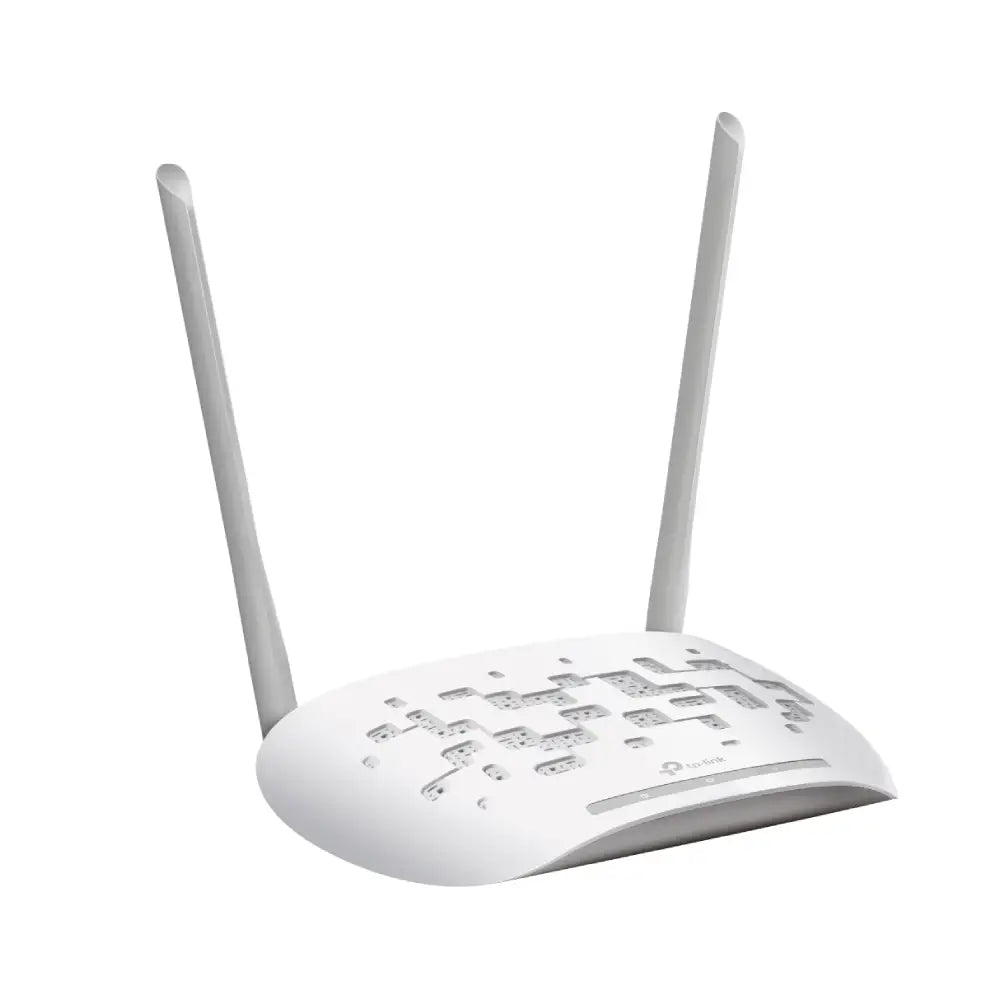

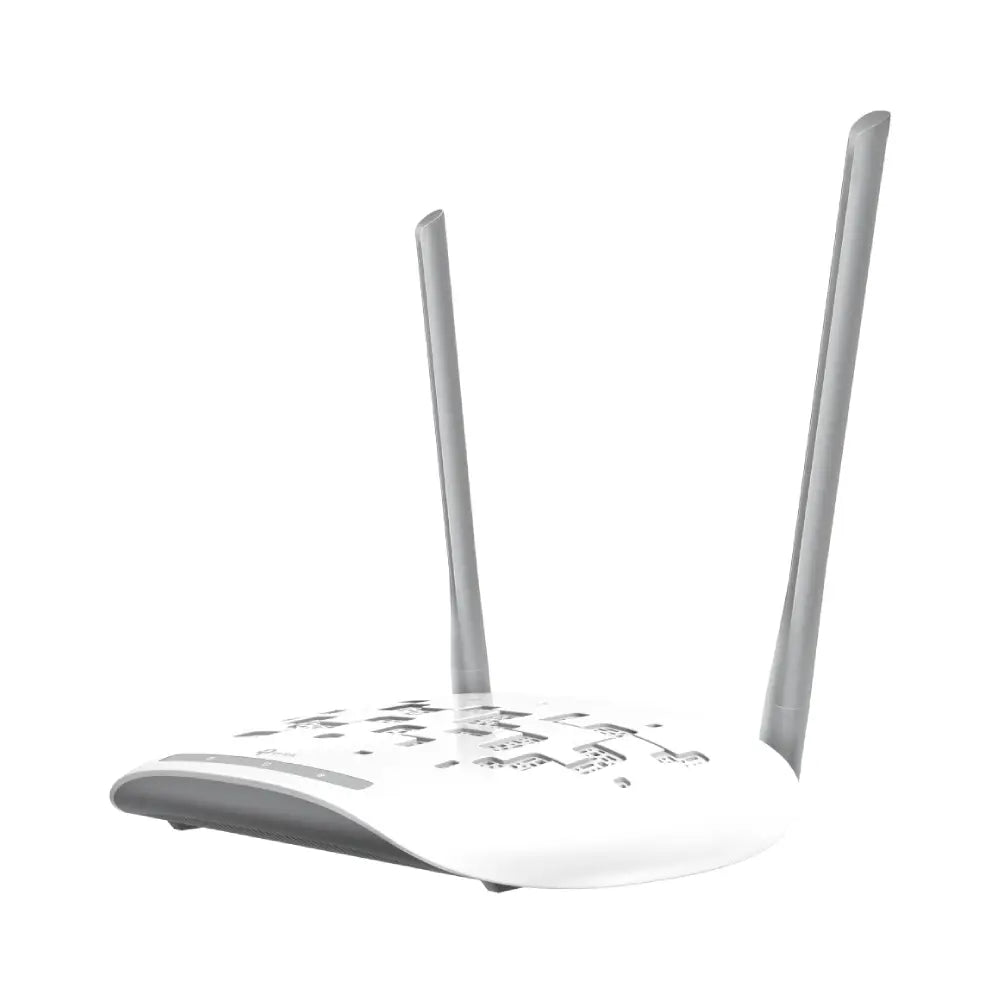

TP-Link TL-WA801N 300Mbps Wireless N Access Point
Flexible Wireless Coverage for Homes & Small Offices
The TP-Link TL-WA801N is a 300 Mbps 2.4 GHz wireless N access point that delivers reliable Wi-Fi coverage in a compact, wall-mountable form factor. With four operating modes, a bundled passive PoE injector for cable-free power runs up to 30 metres, and WPA2 security, it's a practical and affordable choice for extending wireless coverage in homes, small offices, and light commercial installations across Australia.
Key Features
- 300 Mbps wireless speed on 2.4 GHz — suitable for HD video streaming, voice calls, and general browsing
- Four operating modes: Access Point, Multi-SSID, Client, and Range Extender
- Passive PoE injector included — deploy up to 30 metres from the nearest power point
- 2 fixed omni-directional antennas for broad, stable coverage
- WPA/WPA2 and WPA-PSK/WPA2-PSK encryption for network security
- WPS push-button for quick wireless client connections
- WMM Quality of Service for prioritising latency-sensitive traffic
- SNMP management support for network administrators
- Wall-mountable design for discreet, permanent installation
Operating Modes
-
Access Point Mode: Connect to a wired router or switch via Ethernet to create a wireless network in areas without existing Wi-Fi.
-
Multi-SSID Mode: Broadcast up to four separate SSIDs from a single unit — useful for separating guest and staff networks.
-
Client Mode: Connect a wired device (e.g., a smart TV or desktop PC) to an existing wireless network without a built-in Wi-Fi adapter.
-
Range Extender Mode: Boost and extend the coverage of an existing wireless network to eliminate dead zones.
Use Cases
-
Home Wi-Fi Extension: Add wireless coverage to garages, granny flats, or rooms far from the main router.
-
Small Office Networks: Deploy as a dedicated access point on a wired network for clean, managed wireless coverage.
-
CCTV & Security Installations: Use Client Mode to wirelessly bridge a wired IP camera or NVR to an existing network.
-
Hospitality & Retail: Multi-SSID mode allows separate guest and internal networks from a single device.
Specifications
| Specification |
Detail |
| Model |
TL-WA801N |
| Wireless Standard |
IEEE 802.11n / 802.11g / 802.11b |
| Frequency |
2.4 GHz |
| Wireless Speed |
Up to 300 Mbps |
| Antennas |
2 × fixed omni-directional |

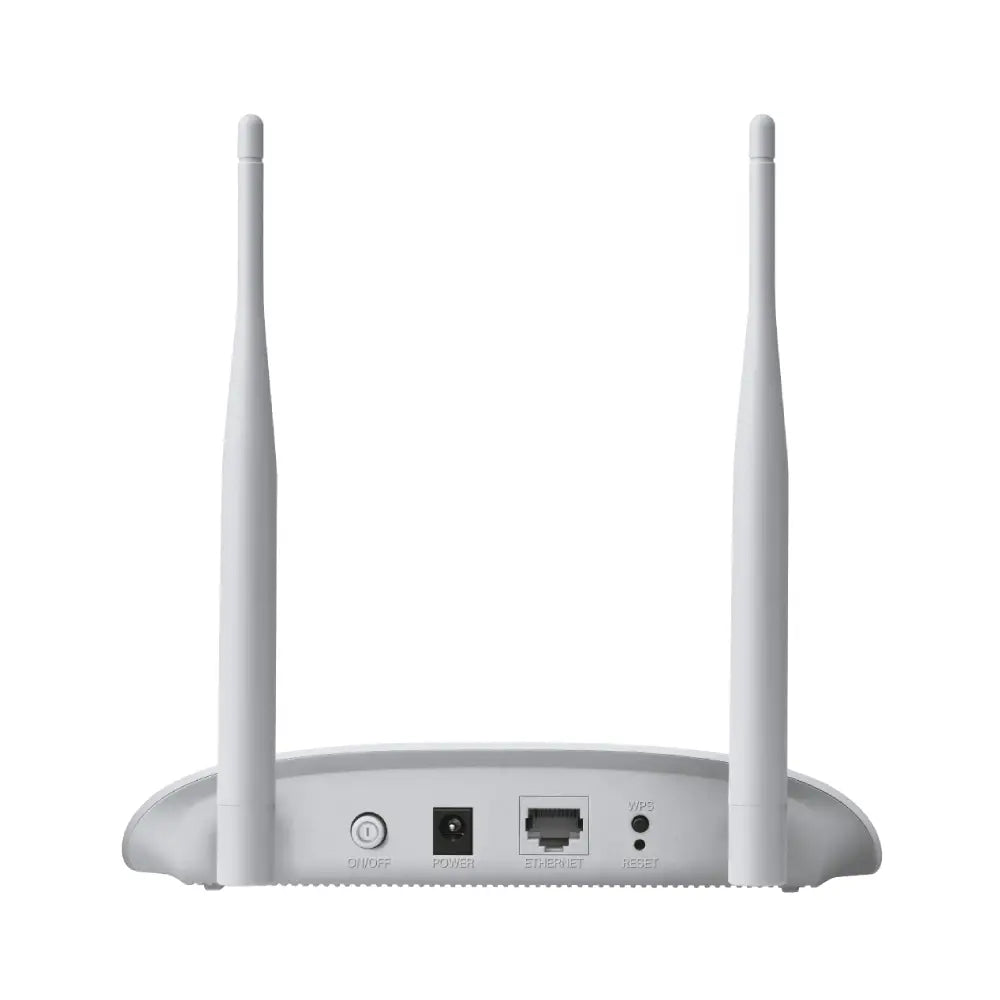

| Ethernet Port |
1 × 10/100 Mbps RJ45 |
| PoE Support |
Passive PoE (injector included, up to 30 m) |
| Power Supply |
9 V DC / 0.6 A |
| Operating Modes |
Access Point, Multi-SSID, Client, Range Extender |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Management |
Web UI, SNMP |
| Dimensions (W × D × H) |
181.6 × 129.5 × 36.2 mm |
| Operating Temperature |
0°C – 40°C |
| Certifications |
CE, FCC, RoHS |
| Weight |
0.67 kg |
| Package Contents |
TL-WA801N access point, power adapter, passive PoE injector, RJ45 Ethernet cable, quick installation guide |
Frequently Asked Questions
What is the difference between Access Point mode and Range Extender mode?
In Access Point mode, the TL-WA801N connects to your router or switch via Ethernet and creates a new wireless network — this gives the best performance and is the recommended mode for permanent installations. Range Extender mode connects wirelessly to your existing router and rebroadcasts the signal, which is useful when running a cable isn’t practical, though speeds may be reduced.
Does the TL-WA801N support 802.3af standard PoE switches?
No. The TL-WA801N uses passive PoE, which is not compatible with 802.3af/at standard PoE switches. Use the included passive PoE injector, or a compatible passive PoE injector, to power the unit over Ethernet cable runs up to 30 metres.
Can I use this as a wireless bridge for a wired device?
Yes. In Client mode, the TL-WA801N connects to an existing wireless network and provides a wired Ethernet port, allowing you to connect a device such as a smart TV, NVR, or desktop PC to your Wi-Fi network via cable.
How do I access the management interface?
Connect a device to the TL-WA801N via Ethernet or Wi-Fi and open a web browser. Navigate to 192.168.0.254 (default) and log in with your credentials to access the web-based management interface.
Is the TL-WA801N suitable for outdoor use?
No. The TL-WA801N is designed for indoor use only. For outdoor wireless coverage, consider a dedicated outdoor access point with an appropriate IP weatherproof rating.
How many SSIDs can I broadcast in Multi-SSID mode?
The TL-WA801N supports up to four SSIDs simultaneously in Multi-SSID mode, allowing you to segment traffic for different user groups — for example, a private network and a guest network — from a single device.
