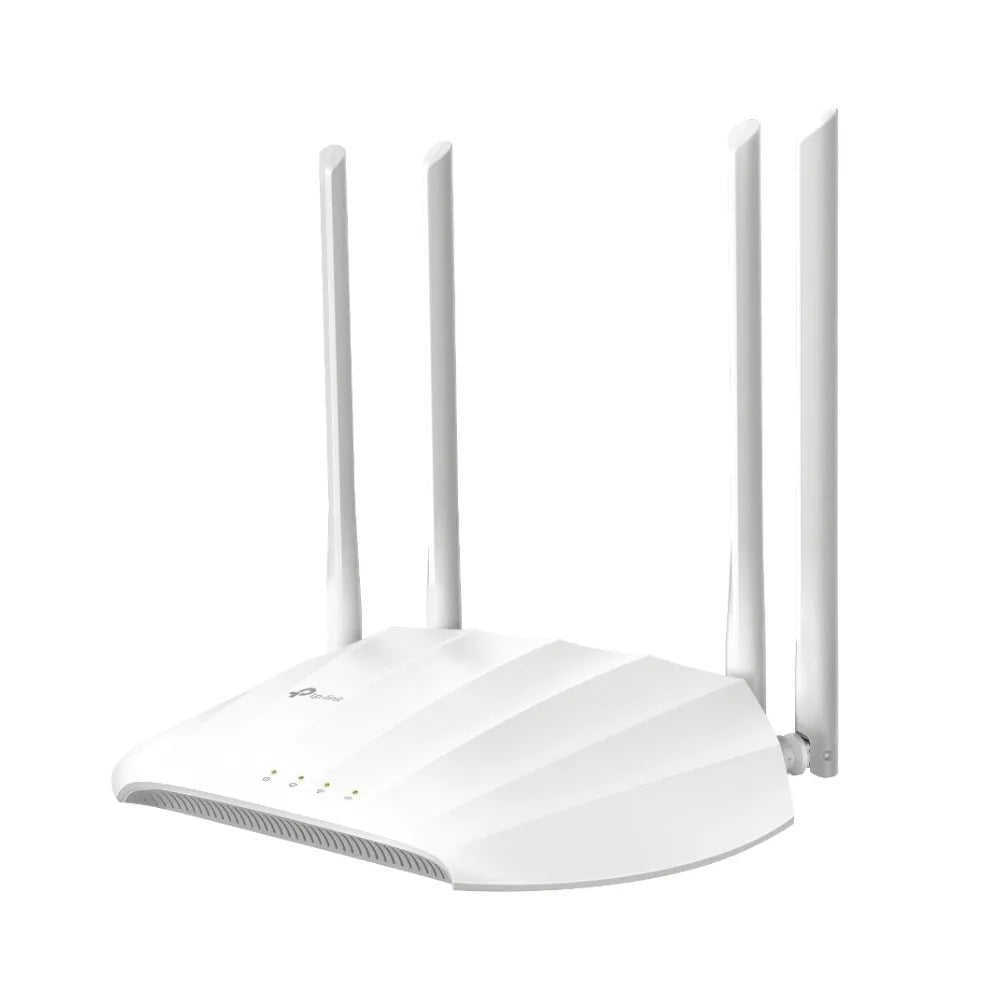

TP-Link TL-WA1201 AC1200 Dual-Band Wireless Access Point
The TP-Link TL-WA1201 is a versatile AC1200 dual-band wireless access point designed for homes, small businesses, and commercial installations across Australia. With combined speeds of up to 1200 Mbps, Passive PoE support, and multiple operating modes, it delivers reliable, high-performance Wi-Fi coverage wherever you need it.
Key Features
-
AC1200 Dual-Band Wi-Fi – 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for fast, flexible connectivity
-
Passive PoE Support – Powers the unit over a single Ethernet cable, reducing cable clutter and simplifying installation
-
Multiple Operating Modes – Access Point, Range Extender, Client, and Multi-SSID modes to suit any network topology
-
MU-MIMO Technology – Simultaneously serves multiple devices for up to 2× faster throughput
-
Beamforming with 4 Fixed Antennas – Concentrates and extends Wi-Fi signal for broader, more reliable coverage
-
Captive Portal – Built-in portal page for guest access management and marketing use cases
-
WPA/WPA2 Security – 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
Use Cases
- Extending Wi-Fi coverage in offices, warehouses, retail spaces, and hospitality venues
- Providing guest Wi-Fi with Captive Portal in cafés, hotels, and waiting rooms
- Supplementing existing CCTV and IP camera networks with reliable wireless backhaul
- Bridging wired and wireless network segments in multi-floor buildings
Technical Specifications
| Standards |
IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11ac/n/a (5 GHz) |
| Wi-Fi Speed |
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz) = 1200 Mbps |

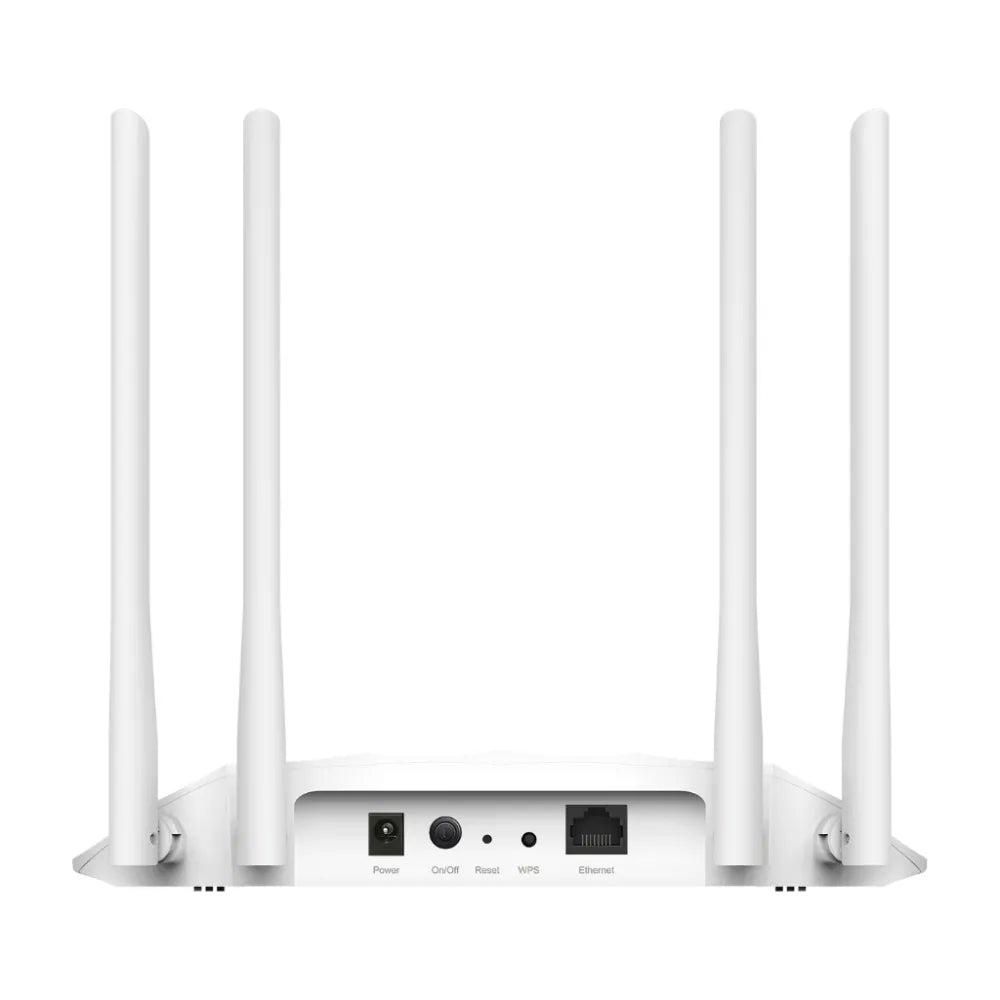

| Ethernet Port |
1× 10/100/1000 Mbps (Supports Passive PoE) |
| Antennas |
4× Fixed High-Performance Antennas with Beamforming |
| Operating Modes |
Access Point, Range Extender, Client, Multi-SSID |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Power Supply |
12V / 1.5A external adapter or Passive PoE |
| Dimensions (W×D×H) |
225 × 145.5 × 37 mm |
| Certifications |
CE, FCC, RoHS |
| QoS |
WMM |
| Advanced Features |
Captive Portal, WDS Bridge, DHCP Server, Access Control, Wireless Multicast Forwarding |
Frequently Asked Questions
Does the TL-WA1201 require a separate power adapter?
No — the TL-WA1201 supports Passive PoE, so it can be powered directly through a compatible Ethernet cable. A 12V/1.5A power adapter is also included for installations where PoE is not available.
What is the difference between Access Point mode and Range Extender mode?
In Access Point mode, the unit connects to your router via Ethernet and creates a new wireless network. In Range Extender mode, it wirelessly repeats an existing Wi-Fi signal to expand coverage — no Ethernet run required.
Can I use the TL-WA1201 with my existing IP cameras or CCTV system?
Yes. The TL-WA1201 can provide wireless network access for IP cameras and NVRs, or act as a wireless bridge between network segments in a CCTV installation.
How many SSIDs can the TL-WA1201 broadcast?
In Multi-SSID mode, the TL-WA1201 can broadcast multiple SSIDs simultaneously, allowing you to segment guest and private networks from a single device.
Is the TL-WA1201 suitable for outdoor use?
No — the TL-WA1201 is designed for indoor use only. For outdoor wireless coverage, consider a weatherproof outdoor access point.
