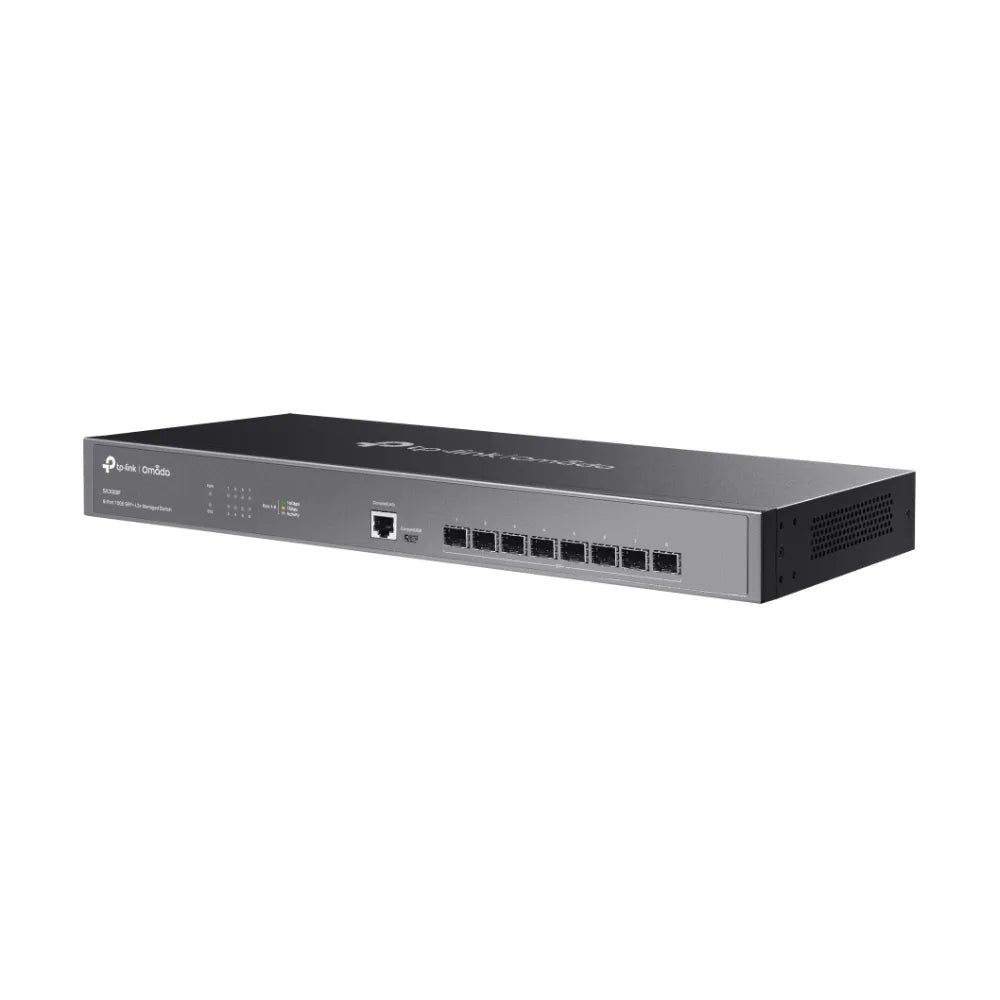

TP-Link TL-SX3008F JetStream 8-Port 10GE SFP+ L2+ Managed Switch

Description

10 Gigabit SFP+ Managed Switching with Omada SDN for Demanding Networks

The TP-Link TL-SX3008F is an 8-port 10 Gigabit SFP+ L2+ managed switch designed for high-performance network backbones, data centres, and enterprise edge deployments. With a 160 Gbps non-blocking switching capacity, fanless silent operation, and full Omada SDN integration, it delivers the speed, control, and reliability required by professional installers and network engineers.

Key Features

  • 8× 10GE SFP+ Slots — full 10 Gigabit fibre or DAC connectivity on every port
  • 160 Gbps Switching Capacity — non-blocking performance at 119.04 Mpps forwarding rate
  • Omada SDN Integration — Zero-Touch Provisioning, centralised cloud management, and intelligent monitoring
  • Static Routing — inter-VLAN routing and basic L3 forwarding without a dedicated router
  • L2/L3/L4 QoS — 8 priority queues with 802.1p CoS/DSCP, SP/WRR/SP+WRR scheduling for voice and video optimisation
  • IGMP Snooping — efficient multicast traffic management for video surveillance and streaming
  • Robust Security — ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, RADIUS authentication
  • Link Aggregation — up to 8 LAG groups with static and 802.3ad LACP support
  • Fanless Design — silent operation, suitable for noise-sensitive environments
  • Standalone Management — Web GUI, CLI, SNMP, RMON, and Dual Image support
  • Rack-Mountable — standard 1U 19-inch rack form factor

Typical Use Cases

  • 10G network backbone aggregation in enterprise and campus environments
  • High-speed uplink for IP camera systems and NVR servers requiring 10G throughput
  • Data centre top-of-rack switching with fibre or DAC cable connections
  • Aggregation layer in multi-site Omada SDN deployments
  • High-density server interconnect for virtualisation and storage networks

Technical Specifications

Specification Detail
Model TL-SX3008F
SFP+ Ports 8× 10GE SFP+
Console Ports 1× RJ45, 1× Micro-USB
Switching Capacity 160 Gbps
Packet Forwarding Rate 119.04 Mpps
MAC Address Table 32K
Jumbo Frame 9 KB
QoS L2/L3/L4, 8 priority queues, 802.1p CoS/DSCP, SP/WRR/SP+WRR
Link Aggregation Up to 8 groups, static + 802.3ad LACP
Routing Static Routing, inter-VLAN routing
Management Web GUI, CLI, SNMP v1/v2c/v3, RMON, Omada SDN, Dual Image
Security ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, RADIUS
Fan Fanless

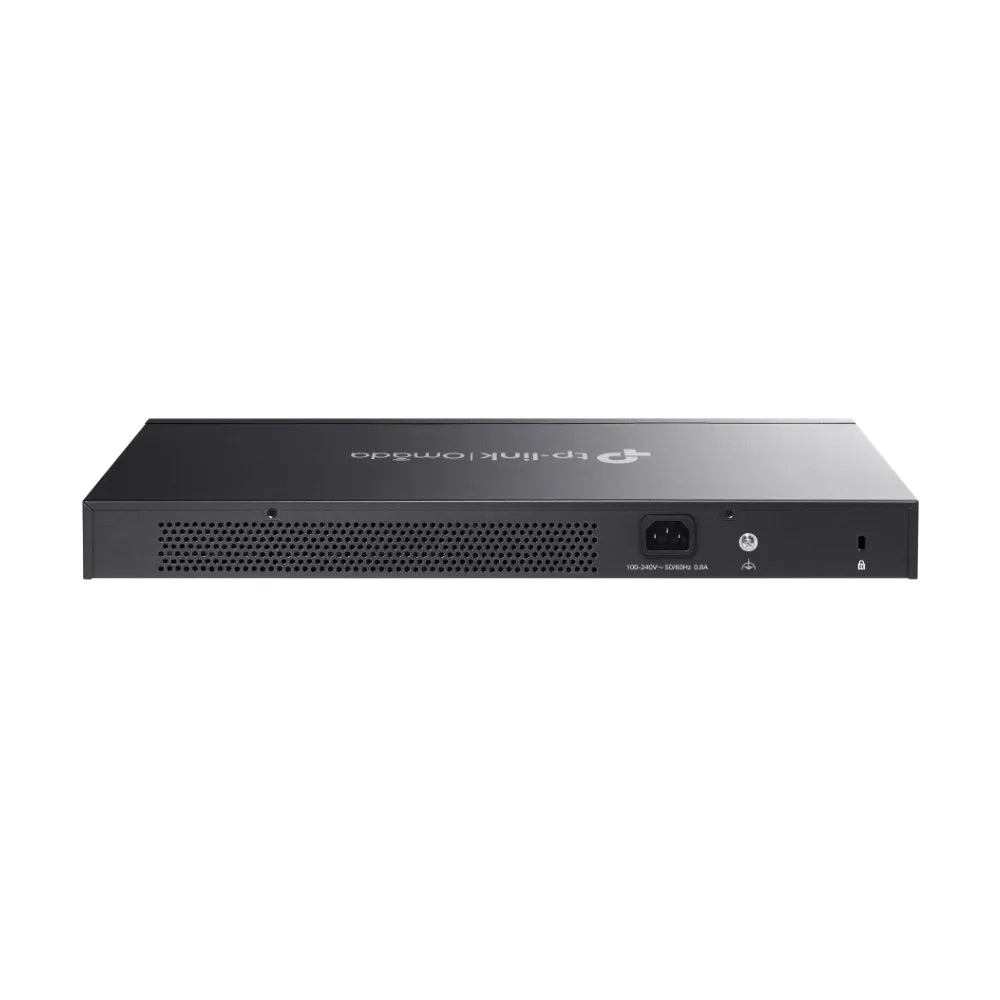

Power Supply 100–240V AC, 50/60Hz
Max Power Consumption 15.46W
Dimensions (W×D×H) 440 × 180 × 44 mm (1U rack)
Mounting Rack-mountable (19-inch, 1U)
Warranty 5 Years

Frequently Asked Questions

What type of transceivers are compatible with the TL-SX3008F?
The TL-SX3008F uses standard SFP+ slots and is compatible with TP-Link SFP+ modules (including 10GBase-SR, 10GBase-LR, and 10GBase-ER transceivers) as well as DAC (Direct Attach Copper) cables. Third-party SFP+ modules may also work but are not officially supported.
Does the TL-SX3008F support PoE?
No. The TL-SX3008F is a fibre/SFP+ switch and does not support Power over Ethernet. For PoE switching, consider the TP-Link TL-SG3428MP or TL-SG2428P from the JetStream range.
Can it be managed without an Omada controller?
Yes. The TL-SX3008F supports standalone management via Web GUI, CLI (console or SSH), and SNMP. An Omada controller is optional and only required for centralised multi-device management.
Is the TL-SX3008F suitable for IP camera backbone networks?
Yes. Its 10G SFP+ uplinks, IGMP snooping, and L2/L3/L4 QoS make it well-suited as a backbone or aggregation switch in large IP camera installations where high-bandwidth video streams need to be prioritised.
Does it support VLAN configuration?
Yes. The TL-SX3008F supports 802.1Q VLAN, voice VLAN, and inter-VLAN routing via static routing, allowing network segmentation for security cameras, management traffic, and user networks on the same switch.
