Description

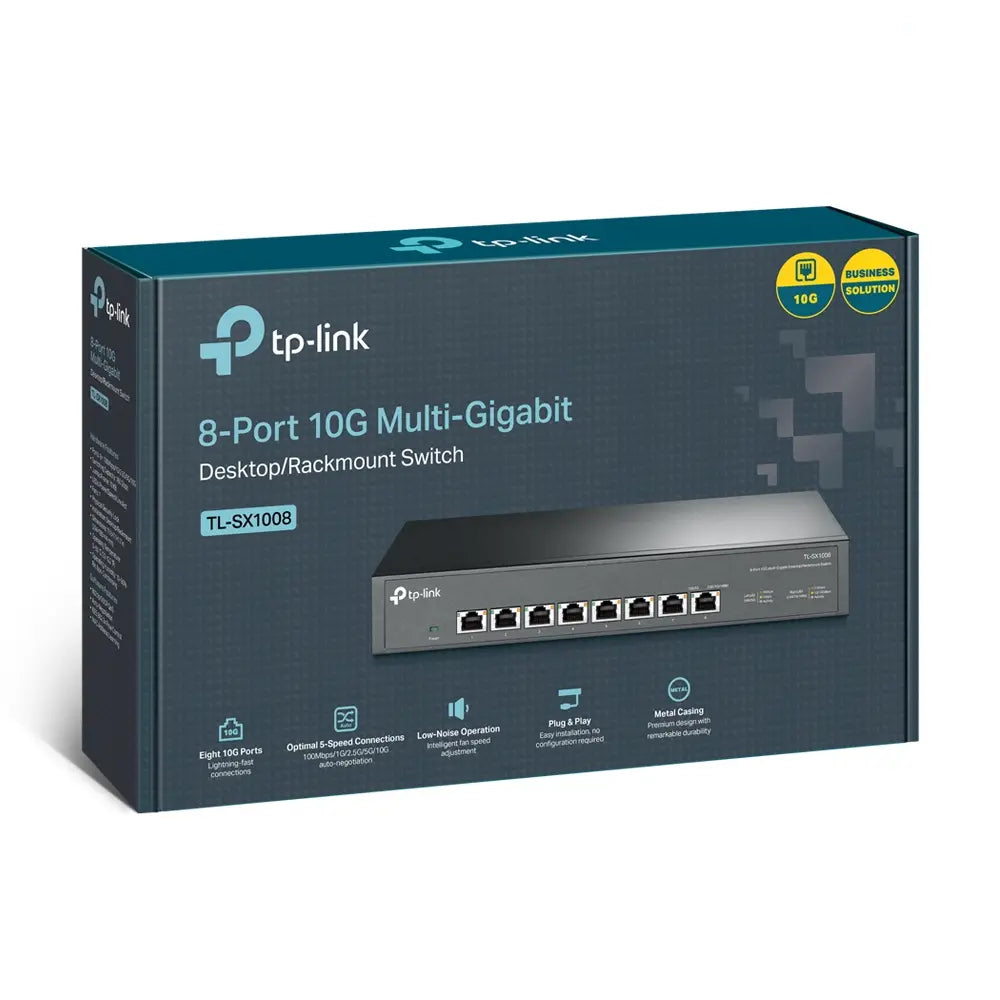

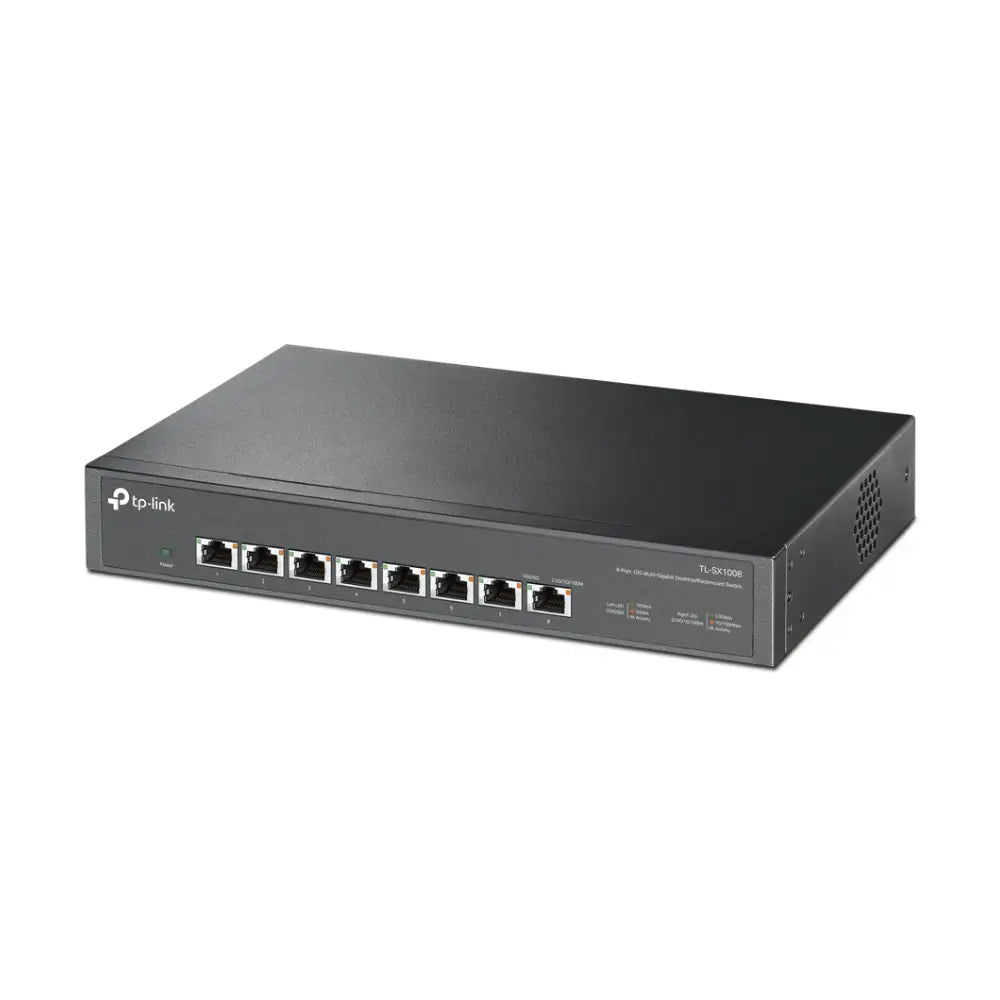

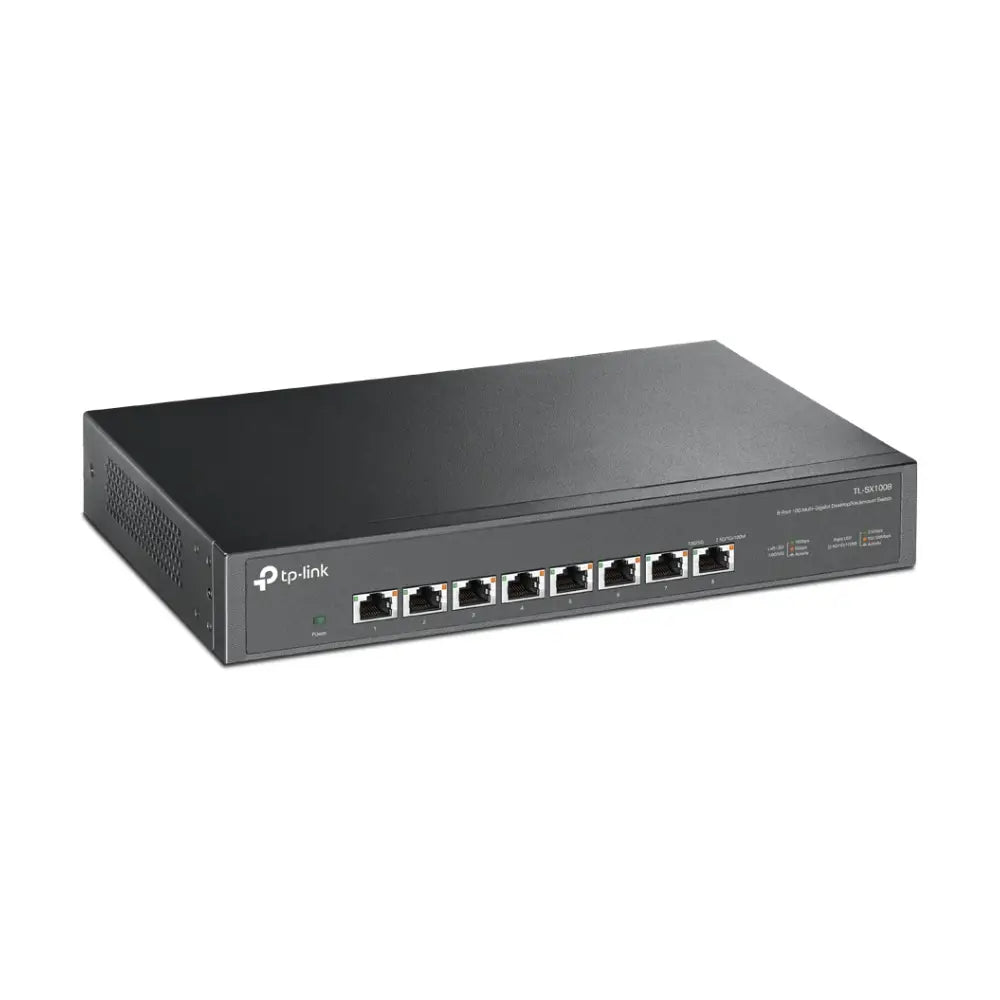

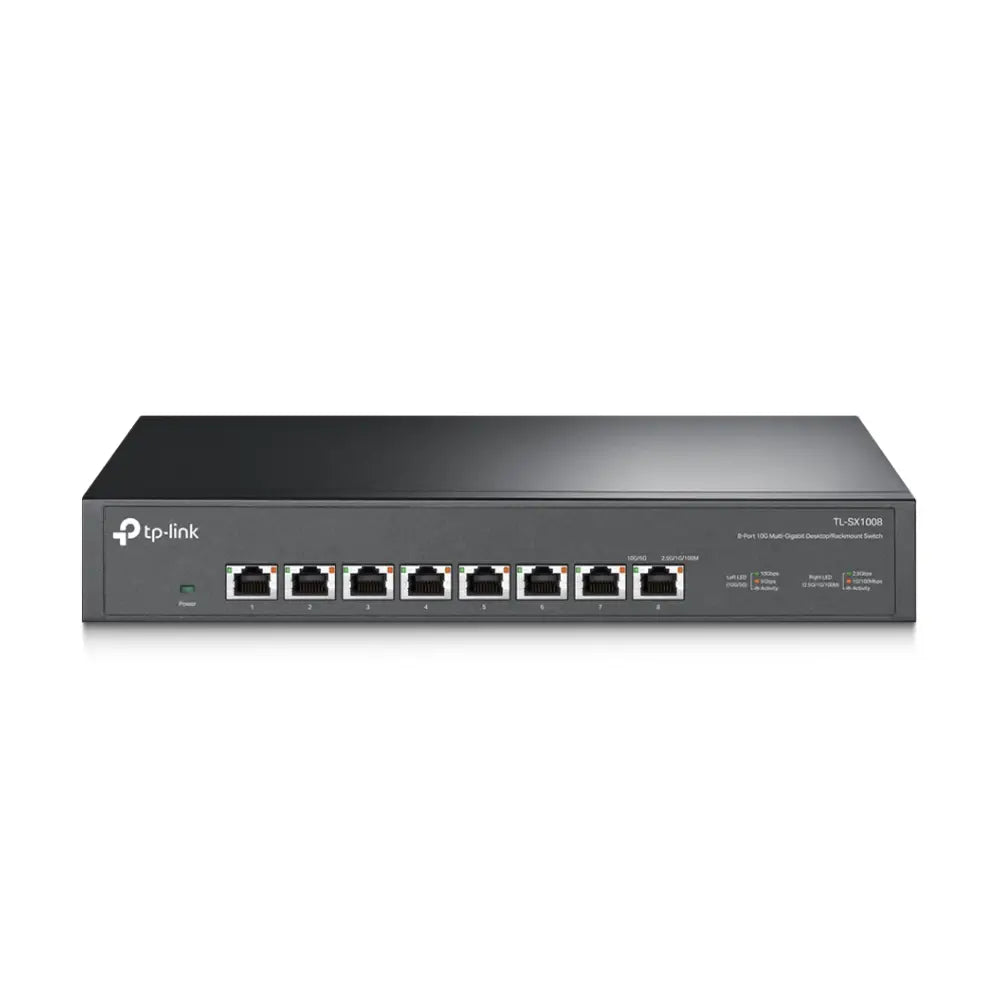

TP-Link TL-SX1008 — 8-Port 10G Multi-Gigabit Unmanaged Switch
The TP-Link TL-SX1008 delivers true 10 Gigabit connectivity across all 8 ports in a compact, plug-and-play package. Whether you’re building a high-speed NAS network, connecting 10G workstations, or upgrading a small server room, the TL-SX1008 provides 160 Gbps of non-blocking switching capacity with zero configuration required. Backwards compatible with existing Cat5e/Cat6 cabling at lower speeds, and rack or desktop mountable, it’s a straightforward 10G upgrade for Australian businesses, installers, and power users.
Key Features
-
8× 10G Multi-Gigabit Ports: Each port auto-negotiates at 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps — fully backwards compatible with existing Cat5e/Cat6 cabling.
-
160 Gbps Non-Blocking Switching: Full wire-speed performance across all 8 ports simultaneously, with a 119 Mpps forwarding rate and 10 KB jumbo frame support.
-
Plug and Play: No configuration, no software, no management interface required — connect and go in seconds.
-
Intelligent Fan Speed Adjustment: The single built-in fan automatically adjusts speed based on operating temperature, reducing noise during light workloads.
-
Desktop & 1U Rack Mountable: Compact 1U form factor (294 × 180 × 44 mm) with included rackmount kit and rubber feet for flexible deployment.
-
All-Metal Construction: Durable metal casing aids heat dissipation and long-term reliability in demanding environments.
-
802.1p/DSCP QoS: Basic traffic prioritisation ensures latency-sensitive applications like video and VoIP perform reliably.
-
802.3X Flow Control: Prevents packet loss during traffic bursts between connected devices.
Use Cases
-
NAS & Storage Networks: Maximise throughput between 10G NAS devices and workstations for fast file transfers, backups, and media streaming.
-
Server Rooms & Small Data Centres: Connect multiple servers at 10G speeds without the overhead of a managed switch.
-
High-Performance Workstations: Ideal for video editors, 3D rendering, and content creators who need fast local network transfers.
-
Wi-Fi 6/6E Backhaul: Provide a 10G wired backbone for 2.5G, 5G, or 10G wireless access points to eliminate backhaul bottlenecks.
-
LAN Gaming & Home Entertainment: Low-latency 10G connectivity for gaming rigs, 8K video streaming, and home media servers.
-
Business Office Upgrades: Upgrade legacy Gigabit infrastructure to 10G without complex managed switch configuration.
Specifications
| Model |
TL-SX1008 |
| Ports |
8 × 100M/1G/2.5G/5G/10G RJ45 (Auto-Negotiation, Auto-MDI/MDIX) |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
| Switching Capacity |
160 Gbps |
| Forwarding Rate |
119.0 Mpps |
| MAC Address Table |
32K entries |
| Packet Buffer Memory |
2 Mb |
| Jumbo Frame |
10 KB |
| Transfer Method |
Store and Forward |
| QoS |
802.1p / DSCP |
| Flow Control |
802.3X |
| Fan |
1 × (intelligent speed adjustment) |
| Power Supply |
100–240V AC, 50/60 Hz, 0.8A |
| Max Power Consumption |
31.2W |
| Dimensions (W × D × H) |
294 × 180 × 44 mm |
| Weight |
2.1 kg |
| Operating Temperature |
0–50°C |
| Operating Humidity |
10–90% RH (non-condensing) |
| Certifications |
CE, FCC, RoHS |
| In the Box |
Switch, power cord, rackmount kit, rubber feet, installation guide |
Frequently Asked Questions
Does the TL-SX1008 require any configuration or software?
No. The TL-SX1008 is a fully unmanaged plug-and-play switch. Simply connect your devices and it works immediately — no web interface, no app, and no management software required.
Is the TL-SX1008 backwards compatible with Gigabit devices?
Yes. Each port auto-negotiates at 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps, so you can mix legacy Gigabit devices with 10G devices on the same switch without any issues.
What cabling does 10G require?
For 10 Gbps speeds, Cat6A cabling is recommended for runs up to 100 metres. Cat6 can support 10G up to approximately 55 metres depending on cable quality and environment. Cat5e is not recommended for 10G.
Can the TL-SX1008 be rack mounted?
Yes. A rackmount kit is included in the box, allowing the switch to be installed in a standard 19-inch rack in a 1U slot. Rubber feet are also included for desktop use.
How loud is the fan?
The TL-SX1008 features intelligent fan speed adjustment — the fan runs slower and quieter during light workloads and ramps up only when temperatures rise. It is suitable for office environments but may not be ideal for silent home theatre setups under heavy load.
Is the TL-SX1008 suitable for connecting to a 10G NAS?
Yes. This is one of the most common use cases. The TL-SX1008 provides full 10G connectivity between a NAS and multiple workstations simultaneously, eliminating the Gigabit bottleneck for large file transfers, video editing, and backup workflows.
