Description
Power and Connect Up to 24 IP Cameras or PoE Devices — No Configuration Required

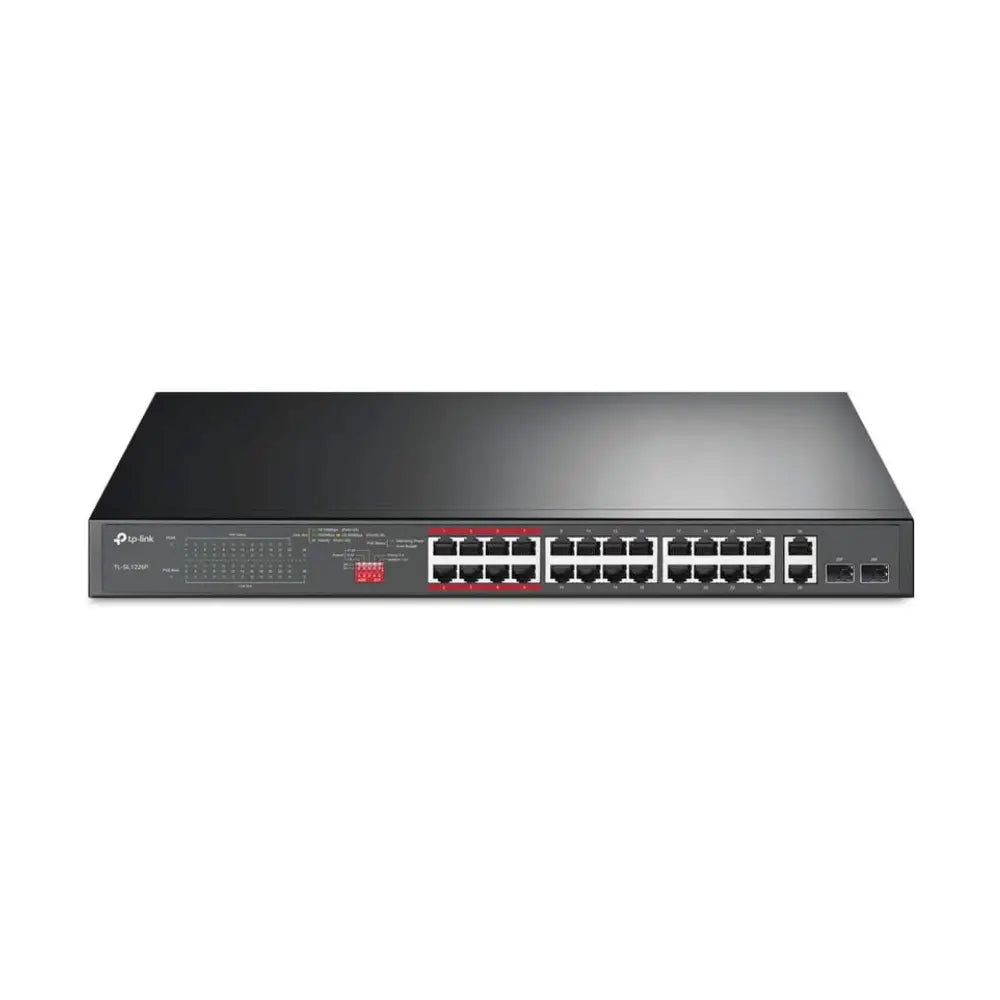

The TP-Link TL-SL1226P is a rack-mountable 24-port PoE+ unmanaged switch built for security installers and network professionals who need reliable, high-power PoE delivery without the complexity of managed switching. With a 250W PoE budget, 250m Extend Mode, and plug-and-play operation, it's one of the most practical switches for IP camera deployments across Australian commercial and residential installations.
Key Features
-
24× PoE+ Ports (802.3at/af) — Power and connect IP cameras, VoIP phones, and wireless access points over a single Cat5e/6 cable, up to 30W per port.
-
250W Total PoE Budget — Sufficient headroom to simultaneously power a full deployment of standard IP cameras or mixed PoE devices.
-
Extend Mode (up to 250m) — Transmit data and power up to 250 metres at 10 Mbps — ideal for large sites where cameras are positioned far from the switch.
-
Priority Mode — Ports 1–8 are automatically assigned high priority, ensuring video streams from critical cameras are never starved of bandwidth.
-
Isolation Mode — One-click client traffic separation improves network security and performance in multi-tenant or shared environments.
-
2× Gigabit RJ45 Uplinks + 2× Combo SFP Slots — Flexible uplink options for connecting to your core network switch or fibre backbone.
-
Plug and Play — No software, no login, no configuration. Unbox, rack, and connect.
-

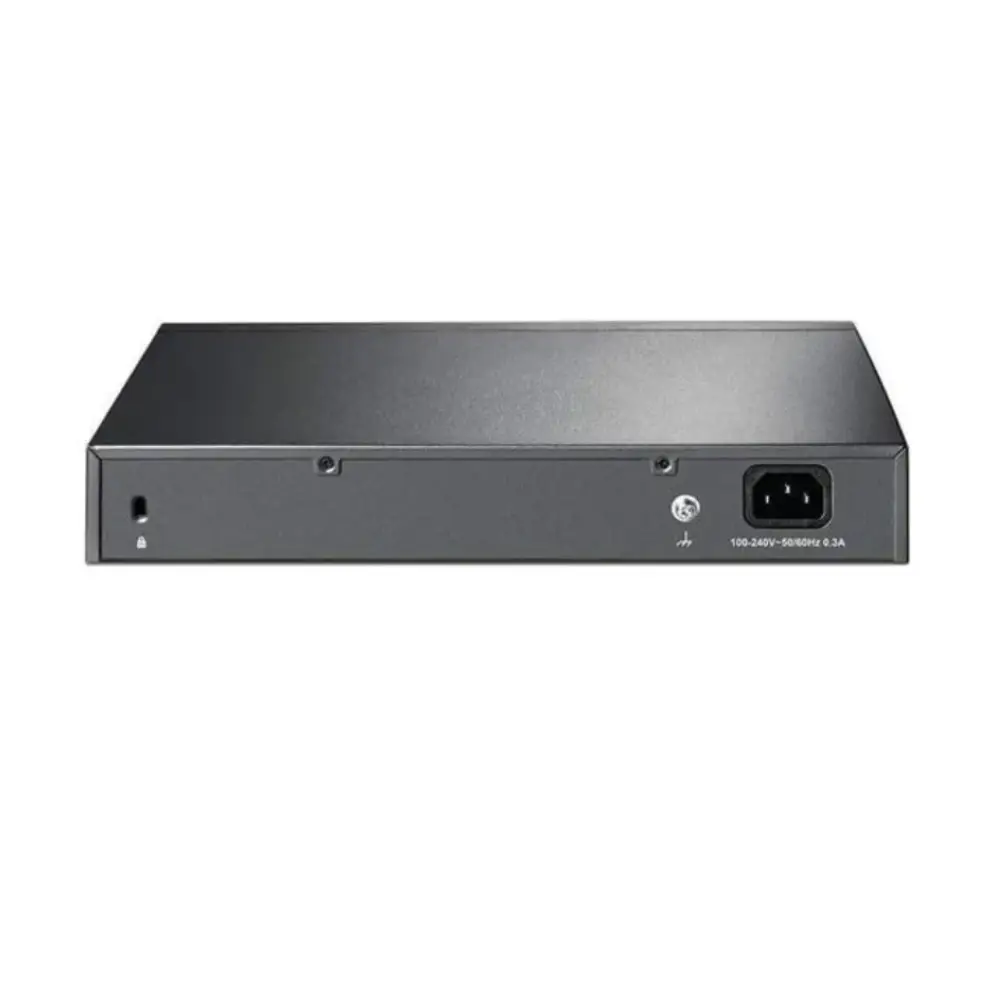

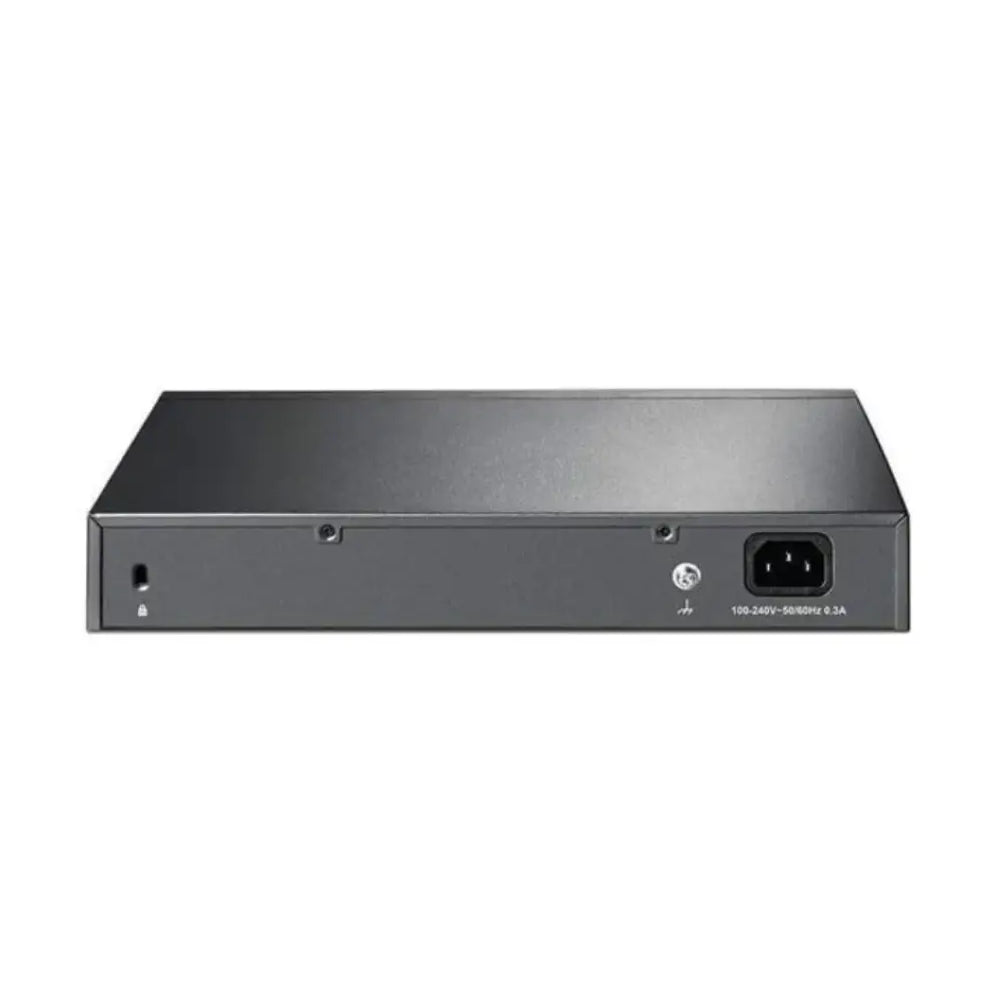

Physical Security Lock — Prevents accidental disconnection of the power cable in rack environments.
Use Cases
-
IP CCTV Installations — Power and connect up to 24 IP cameras from a single switch in commercial or multi-site surveillance deployments.
-
VoIP Phone Systems — Deliver power and data to desk phones across an office floor without separate power adaptors.
-
Wireless Access Point Deployments — Power ceiling-mounted APs throughout a building from a central comms room.
-
Large-Site Surveillance (Extend Mode) — Reach cameras in car parks, warehouses, or perimeter locations up to 250m away without a media converter.
-
Education & Hospitality — Isolation Mode makes it suitable for guest networks or student lab environments requiring traffic separation.
Technical Specifications
| Specification |
Detail |
| Model |
TL-SL1226P |
| PoE Ports |
24× 10/100 Mbps RJ45 (PoE+, 802.3at/af) |
| Uplink Ports |
2× Gigabit RJ45 + 2× Combo Gigabit SFP |
| PoE Power Budget |
250W total / up to 30W per port |
| Switching Capacity |
8.8 Gbps |
| MAC Address Table |
8K |
| Extend Mode Range |
Up to 250m at 10 Mbps |
| Dimensions (W×D×H) |
440 × 180 × 44 mm (1U Rack) |
| Power Supply |
100–240V AC, 50/60 Hz |
| Max Power Consumption |
18.32W (no PD) / 294W (250W PD load) |
| Cooling |
2× Internal Fans |
| Physical Security Lock |
Yes |
| Network Media |
Cat3/4/5 (10BASE-T), Cat5/5e (100BASE-TX), Cat5e/6+ (1000BASE-T), MMF/SMF (1000BASE-X) |
| Certifications |
FCC, CE, RoHS |
Frequently Asked Questions
How many IP cameras can this switch power simultaneously?
With a 250W PoE budget and up to 30W per port, the TL-SL1226P can power up to 24 cameras. In practice, the number depends on each camera's power draw. Most standard IP cameras consume 5–15W, so you can typically run a full 24-camera deployment comfortably within the budget.
What is Extend Mode and when should I use it?
Extend Mode reduces the port speed to 10 Mbps and extends the PoE transmission range from the standard 100m up to 250m. Use it when cameras are located far from the switch — such as in car parks, warehouses, or along building perimeters — to avoid running additional cable or installing a media converter.
Does this switch require any software or configuration?
No. The TL-SL1226P is fully unmanaged and plug-and-play. Simply connect your devices and it operates automatically. Extend Mode, Priority Mode, and Isolation Mode are toggled via physical DIP switches on the unit — no login or software required.
Can I connect this to a fibre uplink?
Yes. The two combo Gigabit SFP slots accept standard SFP modules (sold separately), allowing you to connect to a fibre backbone or a core managed switch in your comms room.
Is this switch rack-mountable?
Yes. The TL-SL1226P is a 1U rack-mount unit (440mm wide) and includes rack-mount hardware in the box, making it suitable for standard 19-inch equipment racks.
What's the difference between Priority Mode and Isolation Mode?
Priority Mode assigns higher bandwidth priority to ports 1–8, ensuring video streams from critical cameras are not disrupted by other traffic. Isolation Mode prevents connected devices from communicating directly with each other through the switch, improving security and reducing broadcast traffic — useful in multi-tenant or guest network scenarios.
