Description

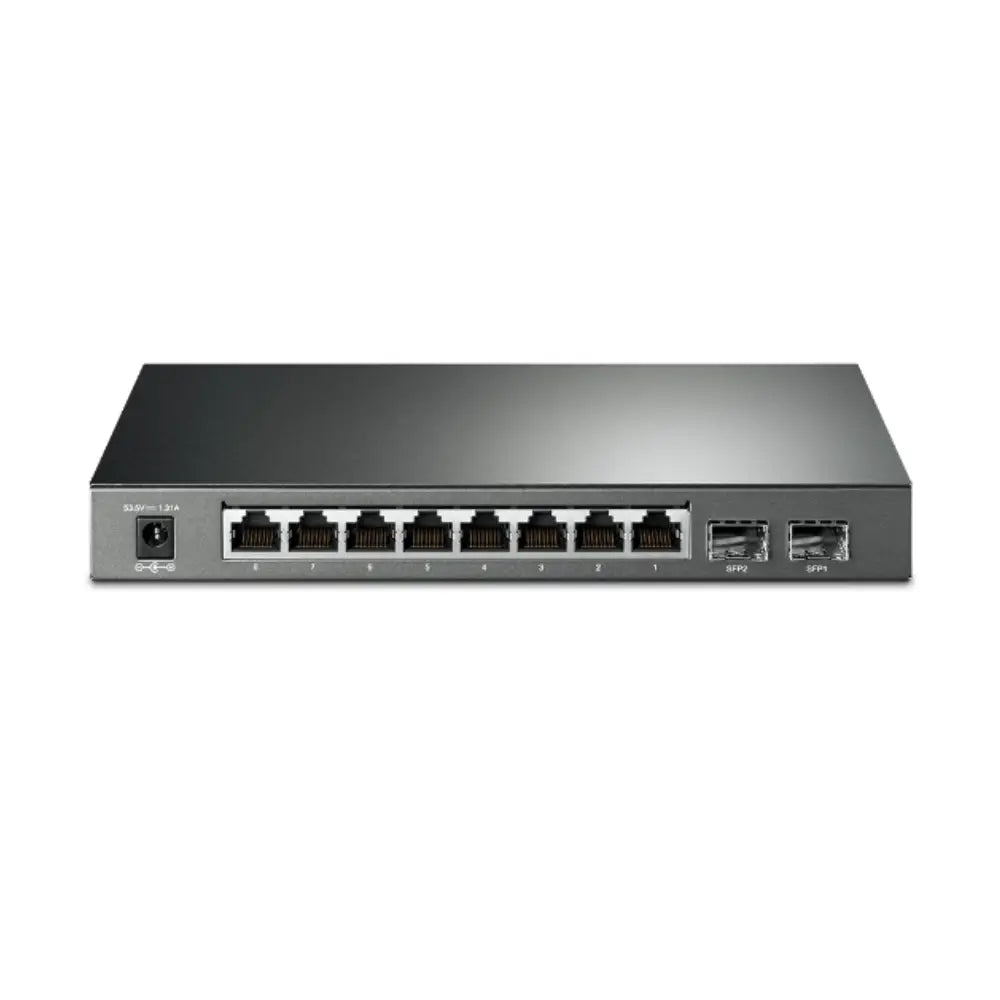

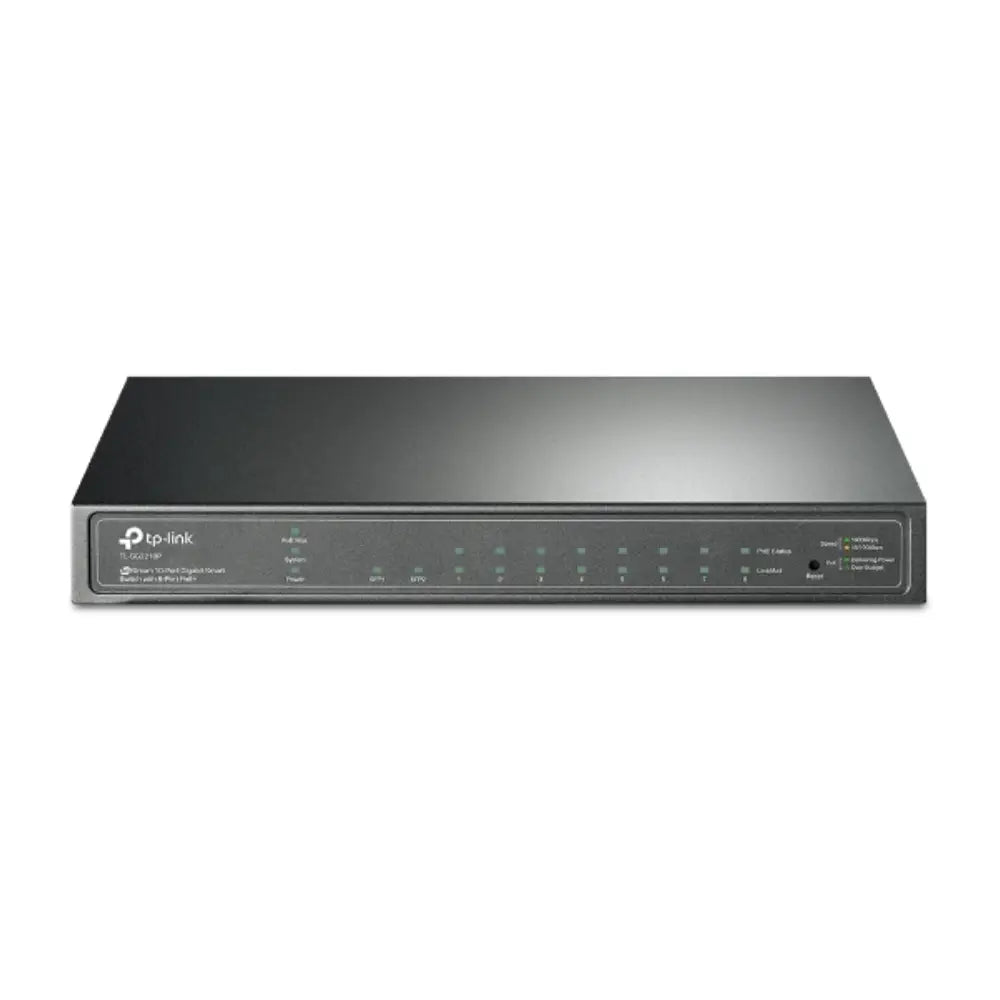

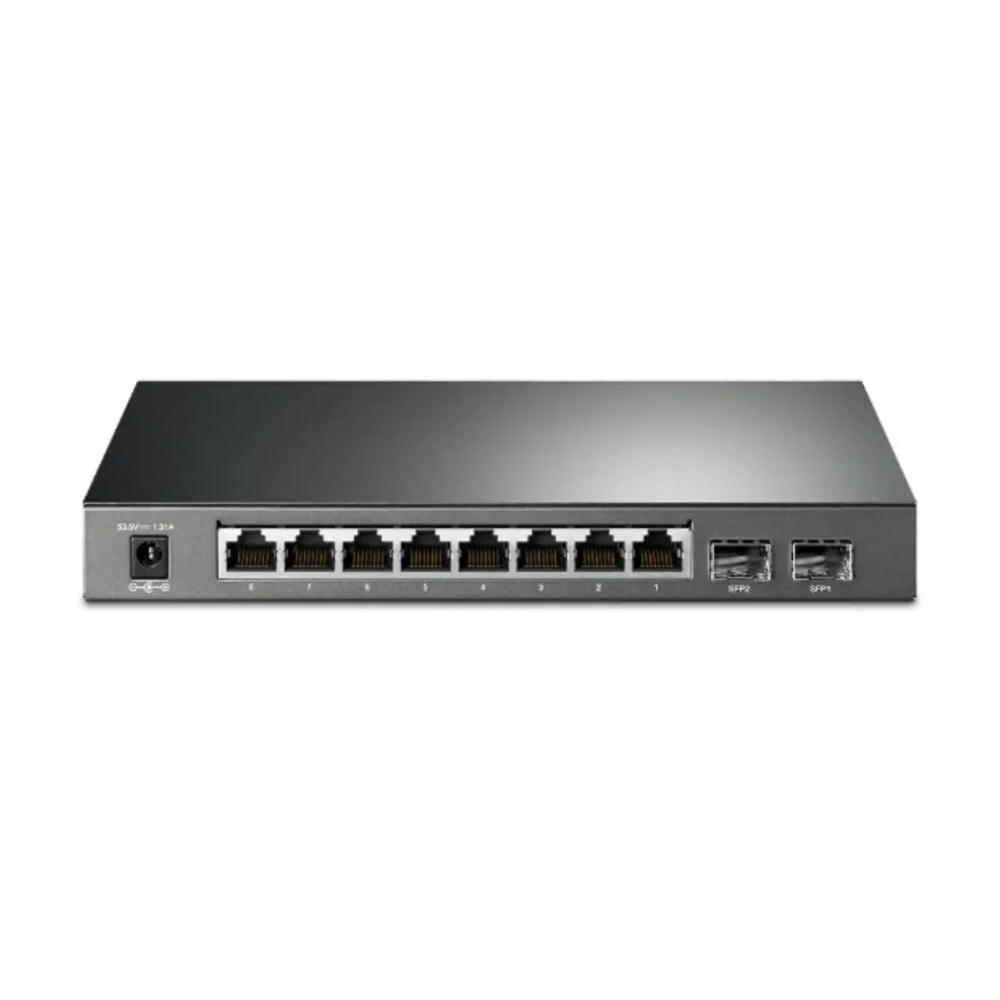

8-Port Gigabit PoE Smart Switch with SFP Uplinks for Professional Network Deployments
The TP-Link TL-SG2210P (T1500G-10PS) is a JetStream 8-port Gigabit smart PoE switch built for small to medium business networks, IP surveillance installations, and access control deployments. With a 53W PoE budget across all eight ports, two SFP uplink slots, advanced Layer 2 security features, and a fanless design, it delivers reliable, manageable network infrastructure in a compact, silent form factor.
Description
All eight RJ45 ports support 802.3af PoE, allowing you to power IP cameras, VoIP phones, wireless access points, and access control readers directly from the switch — no separate power injectors required. The two SFP slots provide Gigabit fibre uplink options for connecting to a core switch or extending the network over fibre. Web-based management, CLI access, SNMP, and RMON give network administrators full visibility and control. Dual firmware image support improves network uptime during firmware updates.
Key Features
- 8 × 10/100/1000Mbps PoE RJ45 ports (802.3af compliant)
- 53W total PoE power budget

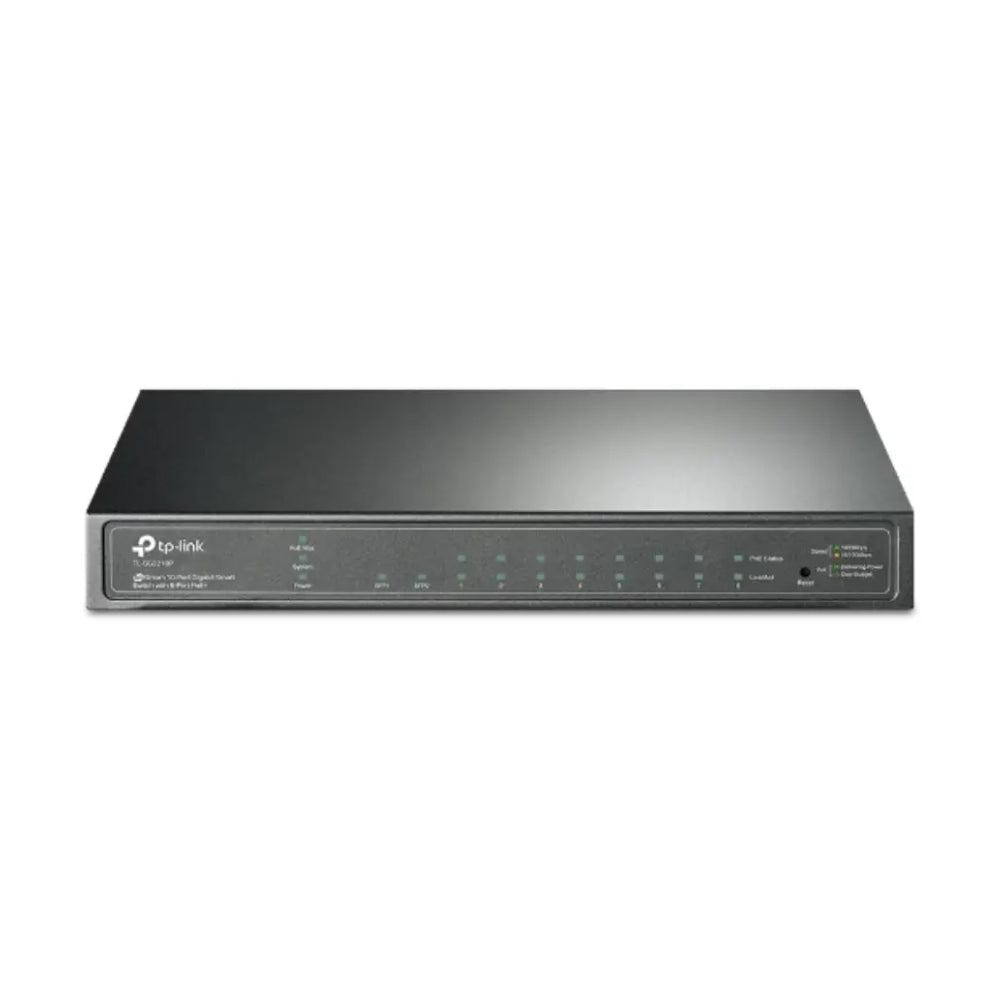

- 2 × SFP Gigabit uplink slots
- Fanless design — silent operation, suitable for office and retail environments
- 20Gbps switching backplane, 14.9Mpps forwarding rate
- Advanced security: IP-MAC-Port Binding, ACL, Port Security, DoS Defence, Storm Control, DHCP Snooping, 802.1X, RADIUS Authentication
- L2/L3/L4 QoS and IGMP snooping for voice and video optimisation
- Web GUI, CLI, SNMP, and RMON management
- Dual firmware image for improved reliability and uptime
- 8K MAC address table, 9KB jumbo frame support
- 100–240V AC input — compatible with Australian mains power
Use Cases
-
IP surveillance systems — power and connect up to 8 PoE IP cameras without separate injectors; use SFP uplinks to connect to a core NVR switch over fibre
-
Access control installations — power PoE-enabled door controllers, intercoms, and card readers from a single managed switch
-
Small business networks — deploy as an edge switch with Gigabit connectivity, VLAN segmentation, and QoS for VoIP and video
-
Wireless access point deployments — power multiple 802.3af APs across a floor or building from one central switch
-
Quiet environments — fanless operation makes it ideal for offices, reception areas, classrooms, and retail spaces
-
VoIP phone systems — L3/L4 QoS prioritises voice traffic for clear, uninterrupted calls
Specifications
| Specification |
Detail |
| Model |
TL-SG2210P (T1500G-10PS) |
| RJ45 Ports |
8 × 10/100/1000Mbps (Auto-Negotiation, Auto MDI/MDIX) |
| SFP Slots |
2 × Gigabit SFP |
| PoE Standard |
IEEE 802.3af |
| PoE Ports |
8 (all RJ45 ports) |
| PoE Budget |
53W total |
| Switching Backplane |
20Gbps |
| Forwarding Rate |
14.9Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
9KB |
| Fan |
Fanless |
| Power Supply |
100–240V AC, 50/60Hz (external adapter: 48VDC/1.25A) |
| Max Power (PoE on) |
64.9W |
| Max Power (PoE off) |
9.9W |
| Dimensions |
209 × 126 × 26 mm |
| Weight |
1.38 kg |
| Network Media |
10BASE-T: Cat3/4/5 (max 100m); 100BASE-TX/1000BASE-T: Cat5/5e or above (max 100m) |
| Standards |
IEEE 802.3i/u/ab/z/ad/x/af, 802.1d/s/w/q/x/p |
| Management |
Web GUI, CLI, SNMP, RMON |
| SKU |
TL-SG2210P |
| Barcode |
6935364030698 |
| Vendor |
TP-Link |
Frequently Asked Questions
- How many PoE devices can the TL-SG2210P power simultaneously?
- All 8 RJ45 ports support 802.3af PoE. The total PoE budget is 53W, so the number of devices powered simultaneously depends on each device's power draw. For example, eight 6W cameras can all be powered at once, while fewer high-draw devices may be supported.
- What PoE standard does the switch support?
- The TL-SG2210P supports IEEE 802.3af PoE, which provides up to 15.4W per port. It does not support 802.3at (PoE+) or 802.3bt (PoE++).
- Can I use the SFP slots for fibre uplinks?
- Yes. The two SFP slots accept Gigabit SFP modules (such as the TP-Link TL-SM311LM for multi-mode fibre or TL-SM311LS for single-mode fibre) for fibre uplink connections to a core switch or router.
- Is the switch noisy? Does it have a fan?
- No. The TL-SG2210P is completely fanless, making it silent in operation — ideal for offices, classrooms, and other noise-sensitive environments.
- How do I manage the switch?
- The TL-SG2210P supports web-based GUI management, CLI (command line interface), SNMP v1/v2c/v3, and RMON for comprehensive network monitoring and control.
- Does the switch support VLANs?
- Yes. The TL-SG2210P supports 802.1Q VLAN tagging, allowing you to segment your network into separate logical networks for security and traffic management.
- Is this switch compatible with Australian 240V mains power?
- Yes. The TL-SG2210P accepts 100–240V AC 50/60Hz input via its external power adapter, making it fully compatible with Australian mains power.
