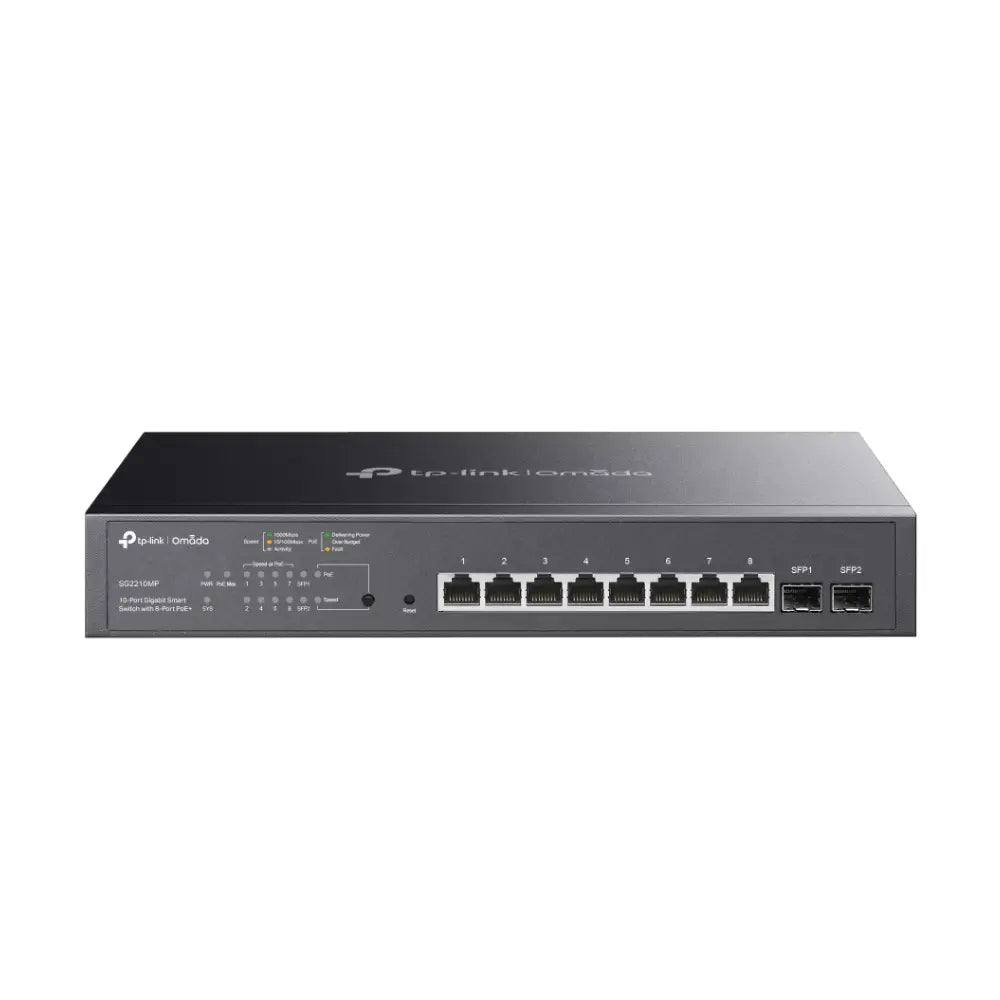

TP-Link TL-SG2210MP 10-Port Gigabit Smart Switch with 8-Port PoE+
Power and Connect Your IP Devices with a Single Cable
The TP-Link TL-SG2210MP is a 10-port Gigabit smart switch with 8 IEEE 802.3at/af PoE+ ports and a total PoE power budget of 150 W. Designed for small to medium business and commercial installations, it delivers both data and power over a single Ethernet cable to IP cameras, wireless access points, VoIP phones, and other PoE-compatible devices. With Omada SDN integration, 2 SFP uplink slots, and advanced security features, it's a capable and cost-effective choice for Australian network installers and IT teams.
Key Features
- 8 × 802.3at/af PoE+ ports with a total power budget of 150 W
- 2 × 100/1000 Mbps SFP slots for fibre or Gigabit uplinks
- Omada SDN integration — centralised cloud management and intelligent monitoring
- 20 Gbps switching capacity with 14.9 Mpps packet forwarding rate
- L2/L3/L4 QoS and IGMP Snooping for optimised voice and video traffic
- Advanced security: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, RADIUS Authentication
- Web UI and CLI management, plus SNMP and RMON support
- Rack-mountable or desktop deployment — flexible installation options
- Physical security lock to prevent unauthorised access
Use Cases
-
IP Surveillance: Power and connect up to 8 PoE IP cameras or NVRs without separate power supplies — ideal for small to medium CCTV installations.
-
Wireless Access Points: Deploy PoE-powered Omada or third-party access points throughout an office, warehouse, or retail space from a single switch.
-
VoIP Deployments: Power IP phones across a small office network with QoS ensuring call quality is prioritised over other traffic.
-
Small Business Networks: VLAN segmentation, 802.1X authentication, and Omada SDN make it easy to manage a secure, scalable network from the cloud.
-
Hospitality & Retail: Separate guest, staff, and POS traffic with VLAN support while powering access points and cameras from a single device.
Specifications
| Specification |
Detail |
| Model |
TL-SG2210MP |
| RJ45 Ports |
8 × 10/100/1000 Mbps (all PoE+) |
| SFP Slots |
2 × 100/1000 Mbps |
| PoE Standard |
IEEE 802.3at / 802.3af |
| Total PoE Budget |
150 W |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.9 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| Max Power Consumption |
173.9 W (with 150 W PoE load) |
| Cooling |
1 × fan |
| Dimensions (W × D × H) |
294 × 180 × 44 mm |
| Mounting |
Rack-mountable or desktop |
| Management |
Web UI, CLI, SNMP, RMON, Omada SDN |
| Physical Security |
Security lock slot |
| Weight |
2.2 kg |
Frequently Asked Questions
How many PoE devices can the TL-SG2210MP power simultaneously?
All 8 RJ45 ports support PoE+, but the total power budget is 150 W. The number of devices you can power simultaneously depends on each device's power draw. For example, 8 cameras drawing 15 W each would use 120 W — well within budget. Higher-draw devices like PTZ cameras (up to 30 W) will reduce the number of simultaneous powered ports.
Does the TL-SG2210MP require the Omada controller?
No. It can be managed in standalone mode via the web UI or CLI without any controller. Omada SDN integration is optional and enables centralised cloud or hardware controller management for multi-site or larger deployments.
Can I use the SFP slots for fibre connections?
Yes. The 2 SFP slots support 100 Mbps and 1000 Mbps SFP transceivers, including multimode and single-mode fibre modules, making them suitable for uplinks to core switches or inter-building fibre runs.
Is the TL-SG2210MP compatible with non-TP-Link PoE devices?
Yes. The switch is compliant with the IEEE 802.3at (PoE+) and 802.3af (PoE) standards, so it will power any standards-compliant PoE device regardless of brand — including IP cameras, access points, and VoIP phones from other manufacturers.
What is the difference between PoE and PoE+?
Standard PoE (802.3af) delivers up to 15.4 W per port, while PoE+ (802.3at) delivers up to 30 W per port. The TL-SG2210MP supports PoE+, making it compatible with higher-power devices such as PTZ cameras, dual-radio access points, and video door intercoms.
Can I mount the TL-SG2210MP in a rack?
Yes. The switch supports both rack-mount and desktop installation. Rack-mount brackets are included in the box for standard 19-inch rack deployment.
