Description

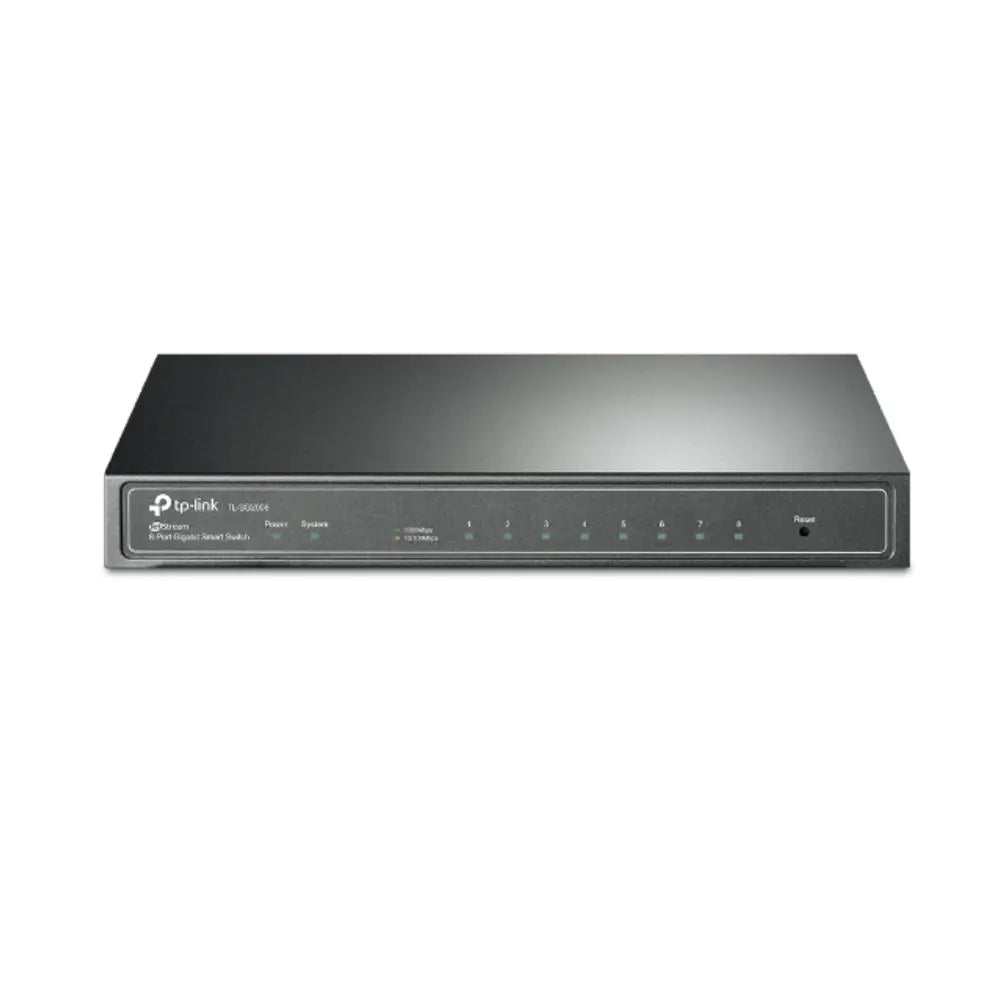

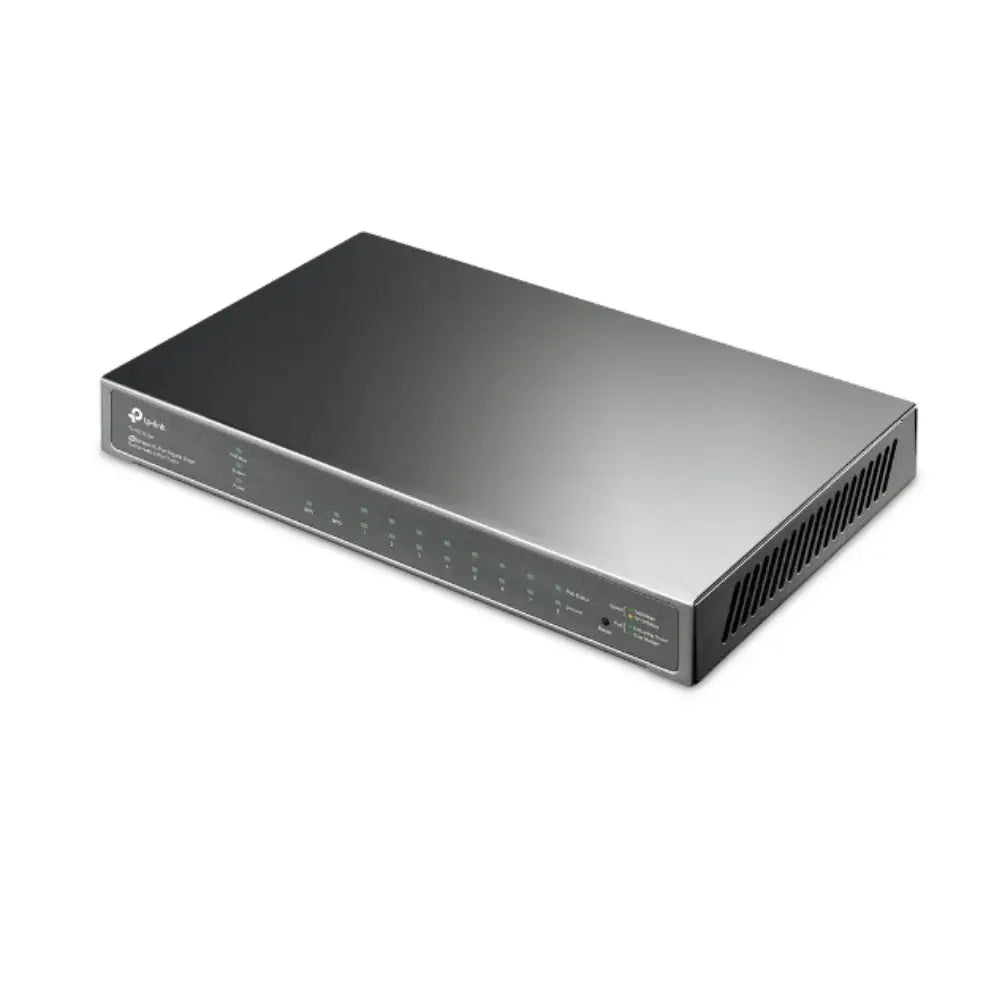

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch
The TP-Link TL-SG2008 is an 8-port Gigabit smart switch built for small businesses and professional installers who need more than a basic unmanaged switch — without the complexity of a full enterprise platform. With Omada SDN integration, VLAN segmentation, QoS, static routing, and cloud management via the Omada app, it delivers enterprise-grade control in a compact, fanless desktop steel case.
Key Features
- 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports with Auto MDI/MDIX
- 1 x PoE IN port — the switch itself can be powered by a PoE source (no power adapter required)
- Omada SDN integration — Zero-Touch Provisioning (ZTP), centralised cloud management, and intelligent monitoring
- Omada app and web interface — manage from anywhere via cloud or local access
- 802.1Q VLAN, ACL, Port Security, and Storm Control for robust network segmentation and security
- L2/L3/L4 QoS with 8 priority queues — optimise voice, video, and data traffic
- IGMP Snooping — efficient multicast traffic management
- Static routing support
- WEB, CLI, SNMP, and RMON management modes
- 16Gbps switching capacity, 11.9Mpps packet forwarding rate
- 8K MAC address table, 9KB jumbo frame support
- Fanless design — silent operation
- Desktop steel case — durable and compact
Use Cases
-
Small business networks — segment staff, guest, and IoT devices using VLANs without a full enterprise switch
-
IP camera and NVR installations — isolate camera traffic on a dedicated VLAN, prioritise video streams with QoS, and manage remotely via Omada cloud
-
Access control and security systems — apply ACLs and port security to lock down sensitive network segments
-
Multi-site Omada deployments — integrate with Omada EAPs and routers for a unified, centrally managed network across multiple locations
-
PoE-powered deployments — the PoE IN port allows the switch to be powered directly from an upstream PoE switch, simplifying cable runs in tight spaces
Specifications
| Specification |
Detail |
| Model |
TL-SG2008 |
| Ports |
8 x 10/100/1000Mbps RJ45 (Auto-Negotiation / Auto MDI/MDIX) |
| PoE IN Port |
1 x PoE IN (switch can be powered by upstream PoE source) |
| Switching Capacity |
16Gbps |
| Packet Forwarding Rate |
11.9Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
9KB |
| Standards |
IEEE 802.3i/u/ab/ad/x, 802.1d/s/w/q/p/x |
| QoS |
802.1p CoS/DSCP, 8 priority queues, SP & WRR scheduling, bandwidth control, storm control |
| VLAN |
802.1Q VLAN |
| Security |
ACL, Port Security, Storm Control, 802.1x |
| Multicast |
IGMP Snooping |
| Routing |
Static Routing |
| Management |
Web GUI, CLI, SNMP, RMON, Omada app, Cloud |
| SDN Platform |
Omada SDN (Zero-Touch Provisioning supported) |
| Fan |
Fanless |
| Enclosure |
Desktop steel case |
| Power Supply |
12VDC / 1A external adapter or PoE IN |
| Max. Power Consumption |
6.4W (220V / 50Hz) |
| Dimensions (W × D × H) |
209 × 126 × 26mm |
| Weight |
0.9kg |
| Network Media |
10BASE-T: Cat3/4/5 (max 100m); 100BASE-TX / 1000BASE-T: Cat5/5e or above (max 100m) |
| SKU / Barcode |
TL-SG2008 / 6935364010546 |
Frequently Asked Questions
What is the difference between a smart switch and an unmanaged switch?
An unmanaged switch is plug-and-play with no configuration options. A smart switch like the TL-SG2008 adds features such as VLAN segmentation, QoS traffic prioritisation, ACL security policies, and remote management — giving you control over how your network behaves without the full complexity of an enterprise managed switch.
Does the TL-SG2008 supply PoE to connected devices?
No. The TL-SG2008 does not output PoE to connected devices. However, it has a PoE IN port that allows the switch itself to be powered by an upstream PoE switch — useful for eliminating a power adapter in tight or remote installations.
What is Omada SDN and do I need a controller?
Omada SDN is TP-Link’s software-defined networking platform that allows centralised management of compatible switches, access points, and routers. The TL-SG2008 supports Zero-Touch Provisioning (ZTP) and can be managed via the Omada cloud or a local Omada controller. For standalone use, it can also be managed directly via its web interface or CLI without any controller.
Can I create VLANs on this switch?
Yes. The TL-SG2008 supports 802.1Q VLANs, allowing you to segment your network into isolated groups — for example, separating IP camera traffic from office LAN traffic on the same physical switch.
Is it rack-mountable?
The TL-SG2008 is a desktop unit and is not designed for direct rack mounting. It is suited to desktop, shelf, or wall-adjacent placement in small installations.
Does it ship Australia-wide?
Yes. CCTV Guru ships the TL-SG2008 Australia-wide from local stock.
