Description
16-Port Gigabit PoE+ Switch Built for CCTV and SMB Networks

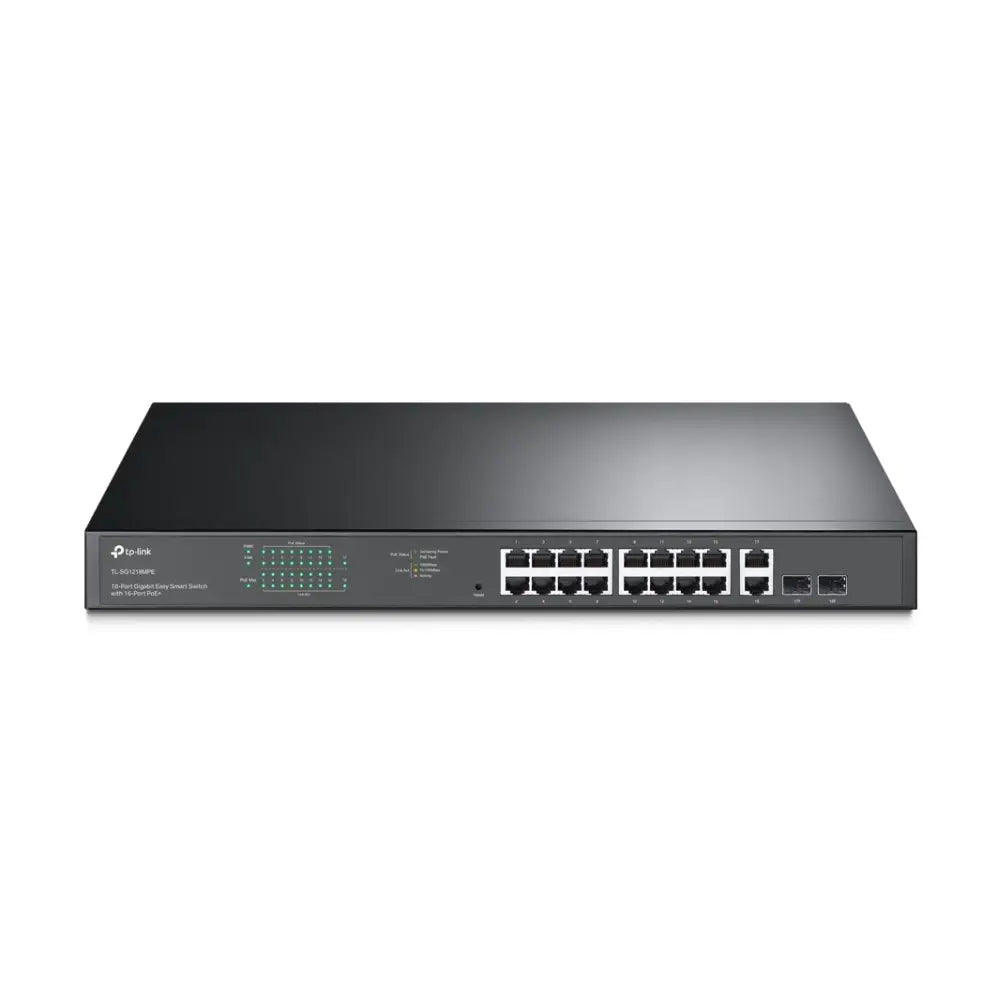

The TP-Link TL-SG1218MPE is a JetStream Easy Smart switch that combines 16 Gigabit PoE+ ports, a 192W power budget, and intelligent traffic management in a rack-mountable 1U chassis. Designed for small to medium business surveillance systems, wireless deployments, and IP phone networks, it delivers the performance and control of a managed switch with the simplicity of easy smart configuration — no advanced networking expertise required.
Key Features
-
16× Gigabit PoE+ Ports (802.3at/af): Power and connect IP cameras, wireless access points, VoIP phones, and other PoE/PoE+ devices across all 16 ports simultaneously.
-
192W Total PoE Budget: One of the highest PoE budgets in its class — supports a full deployment of 16 standard PoE cameras or a mixed load of PoE+ devices.
-
2× SFP Fibre Uplink Ports: Connect to fibre backbone switches or extend your network over long distances using single-mode or multi-mode fibre.
-
QoS (Quality of Service): Prioritises video and voice traffic to ensure smooth, uninterrupted camera feeds and VoIP calls even under heavy network load.
-
IGMP Snooping: Optimises multicast traffic for IPTV and IP camera streams, reducing unnecessary bandwidth consumption across the network.
-
Port Priority: Assign priority to specific ports to guarantee performance for latency-sensitive devices such as IP cameras and NVRs.
-
Intelligent PoE Power Management: Automatically monitors and manages PoE power distribution to protect against overload.
-
802.1Q VLAN Support: Segment your network for improved security and traffic isolation between cameras, staff devices, and guest networks.
-

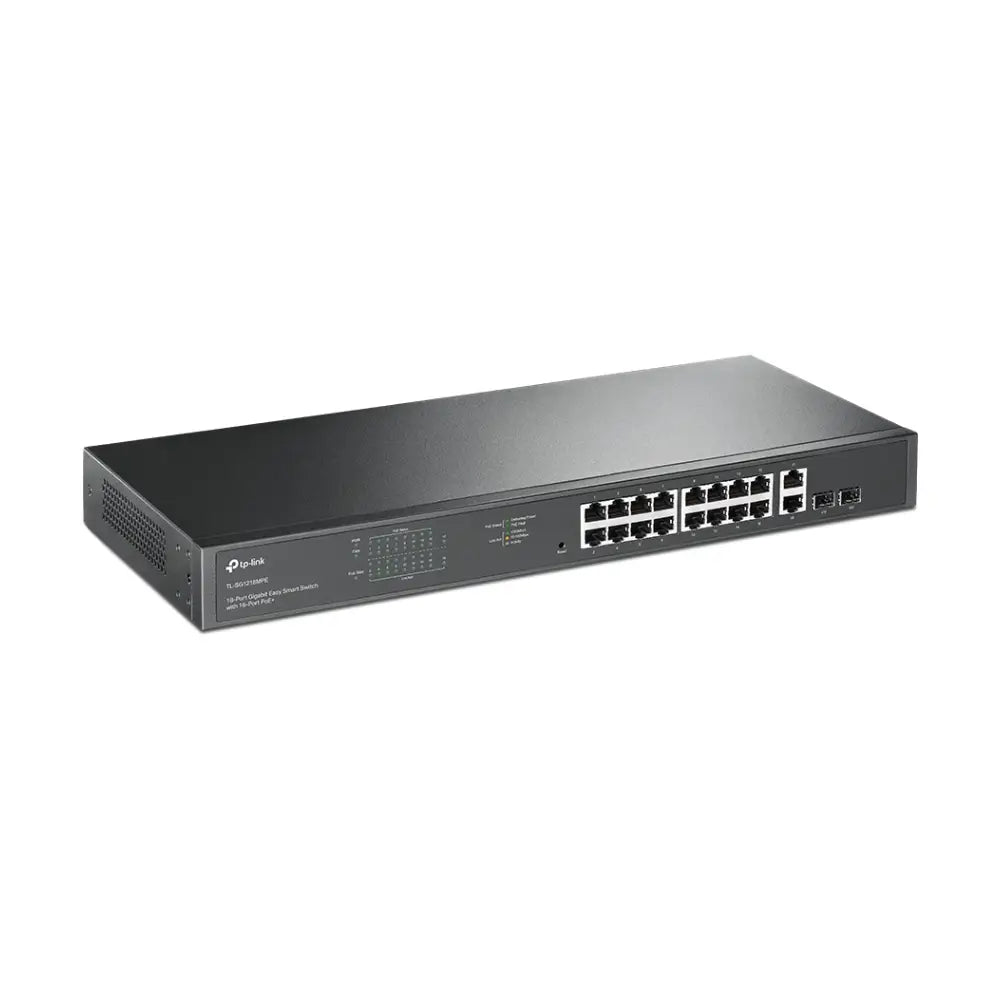

Rack Mountable (1U): Standard 19-inch rack form factor (440 × 180 × 44mm) for clean, professional installations in comms cabinets and server rooms.
-
36 Gbps Switching Capacity: Non-blocking switching fabric handles high-bandwidth video streams from multiple cameras without bottlenecks.
Common Use Cases
- 16-camera IP CCTV systems for retail, warehouses, and commercial buildings
- Multi-access-point Wi-Fi deployments in offices, schools, and hospitality venues
- VoIP phone networks for small to medium businesses
- Mixed PoE/PoE+ deployments requiring high total power budgets
- Network segmentation with VLAN for security-conscious installations
- Fibre uplink to a core switch in multi-floor or multi-building networks
Technical Specifications
| Model |
TL-SG1218MPE |
| RJ45 Ports |
16× 10/100/1000Mbps (all PoE+) |
| SFP Ports |
2× Gigabit SFP (fibre uplink) |
| PoE Standard |
IEEE 802.3at (PoE+) / 802.3af (PoE) |
| Total PoE Budget |
192W |
| Switching Capacity |
36 Gbps |
| Packet Forwarding Rate |
23.8 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9KB |
| VLAN |
802.1Q VLAN |
| QoS |
Yes (802.1p) |
| IGMP Snooping |
Yes |
| Fans |
2× (active cooling) |
| Physical Security Lock |
Yes |
| Mounting |
Rack mountable (19″, 1U) |
| Dimensions (W × D × H) |
440 × 180 × 44mm |
| Power Supply |
100–240V AC, 50/60Hz (internal) |
| Max Power Consumption |
18.73W (no PD) / 217.22W (full PoE load) |
| Standards |
IEEE 802.3/802.3u/802.3ab/802.3x/802.3af/802.3at/802.1q/802.1p |
| Management |
Easy Smart (web UI) |
Frequently Asked Questions
What is an “Easy Smart” switch?
Easy Smart is TP-Link's simplified management tier — it provides a web-based interface for configuring features like VLANs, QoS, port priority, and IGMP Snooping without the complexity of a fully managed switch. It's ideal for installers and IT staff who need more control than an unmanaged switch but don't require enterprise-level CLI management.
Does the TL-SG1218MPE support PoE+ (802.3at)?
Yes. All 16 RJ45 ports support both IEEE 802.3af (PoE, up to 15.4W) and IEEE 802.3at (PoE+, up to 30W per port), subject to the 192W total power budget shared across all ports.
How many cameras can I connect?
Up to 16 IP cameras can be connected via the PoE+ ports. For standard 802.3af cameras drawing around 10–12W each, the 192W budget comfortably supports a full 16-camera deployment. For higher-power PTZ or PoE+ cameras, calculate your total load to stay within the 192W budget.
What are the SFP ports used for?
The two SFP ports accept Gigabit fibre modules (single-mode or multi-mode) for uplink connections to a core switch or to extend your network over long distances — useful in multi-building or multi-floor installations where copper Ethernet is impractical.
Can I set up VLANs on this switch?
Yes. The TL-SG1218MPE supports 802.1Q VLAN configuration via its web-based Easy Smart interface, allowing you to segment camera traffic, staff devices, and guest networks onto separate logical networks for improved security and performance.
Is it rack mountable?
Yes. The TL-SG1218MPE is a standard 1U rack-mountable switch (440mm wide) and includes rack mounting brackets. It fits any standard 19-inch equipment rack or comms cabinet.
