Description

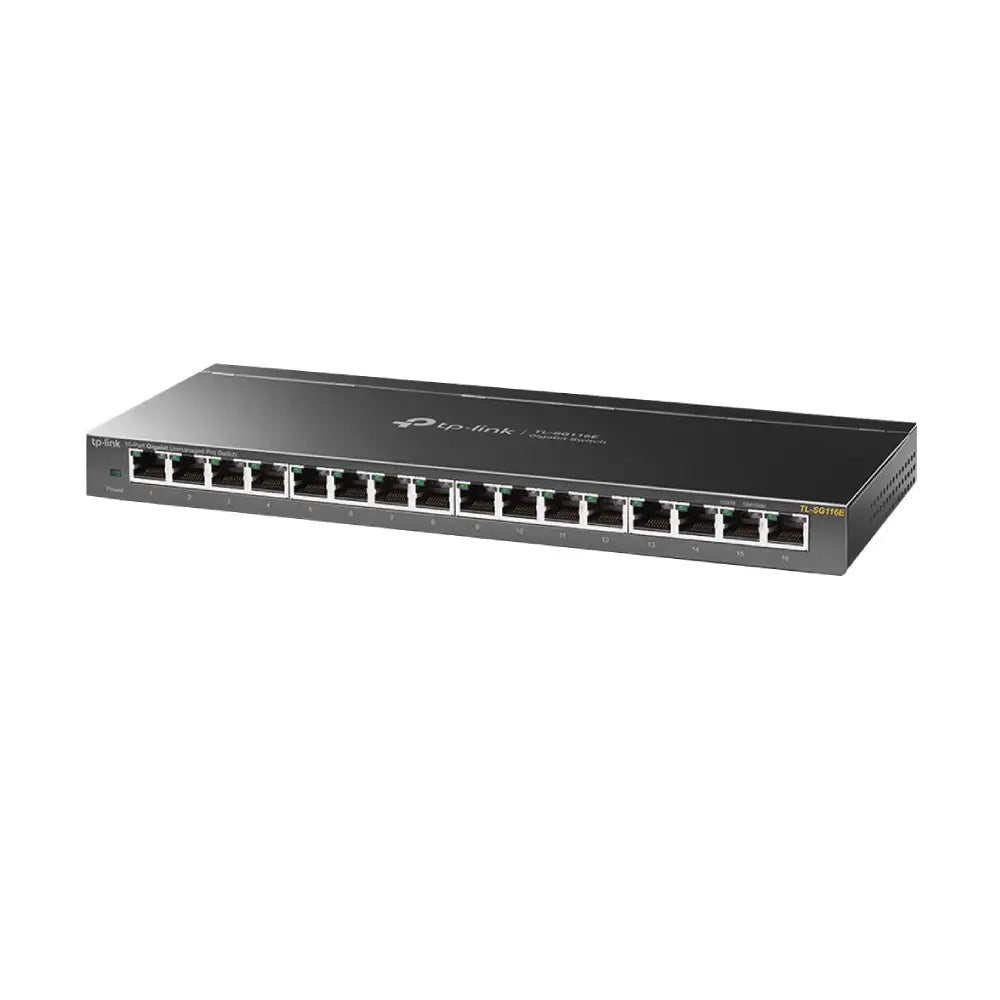

TP-Link TL-SG116E – 16-Port Gigabit Easy Smart Switch
The TP-Link TL-SG116E bridges the gap between a basic unmanaged switch and a full managed switch. Sixteen Gigabit ports, a fanless silent design, and a metal enclosure make it a solid foundation for small business, surveillance, and home lab networks — while web-based management and a downloadable utility unlock L2 features including VLANs, QoS, IGMP snooping, port mirroring, and loop prevention, without the complexity or cost of a fully managed switch.
Key Features
-
16 × Gigabit RJ45 Ports: Full 10/100/1000Mbps auto-negotiation on all ports with Auto MDI/MDIX — no crossover cables required.
-
Easy Smart Management: Web UI and downloadable utility provide access to L2 features without requiring CLI or complex managed switch configuration.
-
VLAN Support: Up to 32 active VLANs simultaneously (from a 4K VLAN ID pool) via MTU, Port-based, or 802.1Q Tag VLAN for network segmentation.
-
QoS — 4 Priority Queues: Port-based, 802.1p, and DSCP priority with rate limiting and storm control for traffic management.
-
IGMP Snooping V1/V2/V3: Optimises multicast traffic — essential for IP camera streams and IPTV deployments.
-
Static Link Aggregation: Bond multiple ports for increased bandwidth between switches or servers.
-
Port Mirroring: Mirror traffic from one port to another for network monitoring and troubleshooting.
-
Loop Prevention: Automatically detects and prevents network loops without requiring STP configuration.
-
Cable Diagnostics: Built-in tool to test and diagnose Ethernet cable faults from the management interface.
-
Fanless Silent Operation: No moving parts — completely silent, suitable for offices, reception areas, and noise-sensitive environments.
-
Durable Metal Casing: Professional-grade metal enclosure for long-term reliability in commercial installations.
-
Green Technology: Automatically adjusts power consumption based on cable length and link status to reduce energy use.
Ideal Use Cases
- Small business networks requiring VLAN segmentation between staff, guest, and IoT/camera traffic without a full managed switch.
- IP camera and NVR installations where IGMP snooping optimises multicast video streams across the network.
- Home lab and prosumer environments needing L2 features at an accessible price point.
- Silent office or reception deployments where fan noise is unacceptable.
- Desktop or wall-mounted installations requiring a compact, metal-cased 16-port switch.
- Network upgrades from basic unmanaged switches where VLAN and QoS control is now required.
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG116E |
| Ports |
16 × 10/100/1000Mbps RJ45 (Auto MDI/MDIX) |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| Switching Capacity |
32Gbps |
| Packet Forwarding Rate |
23.81Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1Mb |
| Jumbo Frame |
9KB |
| VLAN |
Up to 32 active VLANs (4K VLAN IDs); MTU / Port / 802.1Q Tag VLAN |
| QoS |
Port-based / 802.1p / DSCP; 4 priority queues; rate limiting; storm control |
| IGMP Snooping |
V1 / V2 / V3 |
| Link Aggregation |
Static (up to 4 groups, 4 ports per group) |
| Port Mirroring |
Yes |
| Loop Prevention |
Yes |
| Cable Diagnostics |
Yes |
| Transmission Method |
Store-and-Forward |
| Management |
Web UI & downloadable utility |
| Fan |
Fanless (silent) |
| Power Supply |
External adapter (9VDC / 0.6A) |
| Power Consumption (Max) |
9.27W @ 220V/50Hz |
| Mounting |
Desktop / Wall |
| Dimensions |
286 × 111.7 × 25.4 mm |
| Enclosure |
Metal |
| Warranty |
5 Years |
| SKU |
TL-SG116E |
| Barcode (EAN) |
1210002617000 |
Frequently Asked Questions
What is the difference between the TL-SG116E and a standard unmanaged switch?
Unlike a basic unmanaged switch, the TL-SG116E provides web-based management and a downloadable utility that unlock L2 features including VLANs, QoS, IGMP snooping, port mirroring, loop prevention, and cable diagnostics. It offers meaningful network control without the cost or complexity of a fully managed switch.
Does the TL-SG116E support PoE?
No. The TL-SG116E does not support Power over Ethernet. If you need PoE for IP cameras, access points, or VoIP phones, consider the TP-Link TL-SG116P, which provides PoE+ on all 16 ports with a 120W budget.
How many VLANs can I configure?
The TL-SG116E supports up to 32 active VLANs simultaneously, drawn from a pool of 4096 VLAN IDs. VLANs can be configured as MTU, Port-based, or 802.1Q Tag VLANs via the web interface.
Is it completely silent?
Yes. The TL-SG116E is fanless with no moving parts, making it completely silent in operation. It’s well-suited for offices, reception areas, classrooms, and any environment where fan noise is undesirable.
Can it be wall-mounted?
Yes. The TL-SG116E supports both desktop and wall-mounting. Wall-mount hardware is included in the box.
Is IGMP snooping useful for IP camera networks?
Yes. IGMP snooping prevents multicast video streams from being flooded to all ports on the switch, directing camera streams only to the ports that have requested them. This reduces unnecessary traffic and improves overall network performance in surveillance deployments.
What warranty does the TL-SG116E carry?
The TL-SG116E is backed by a 5-year warranty.
