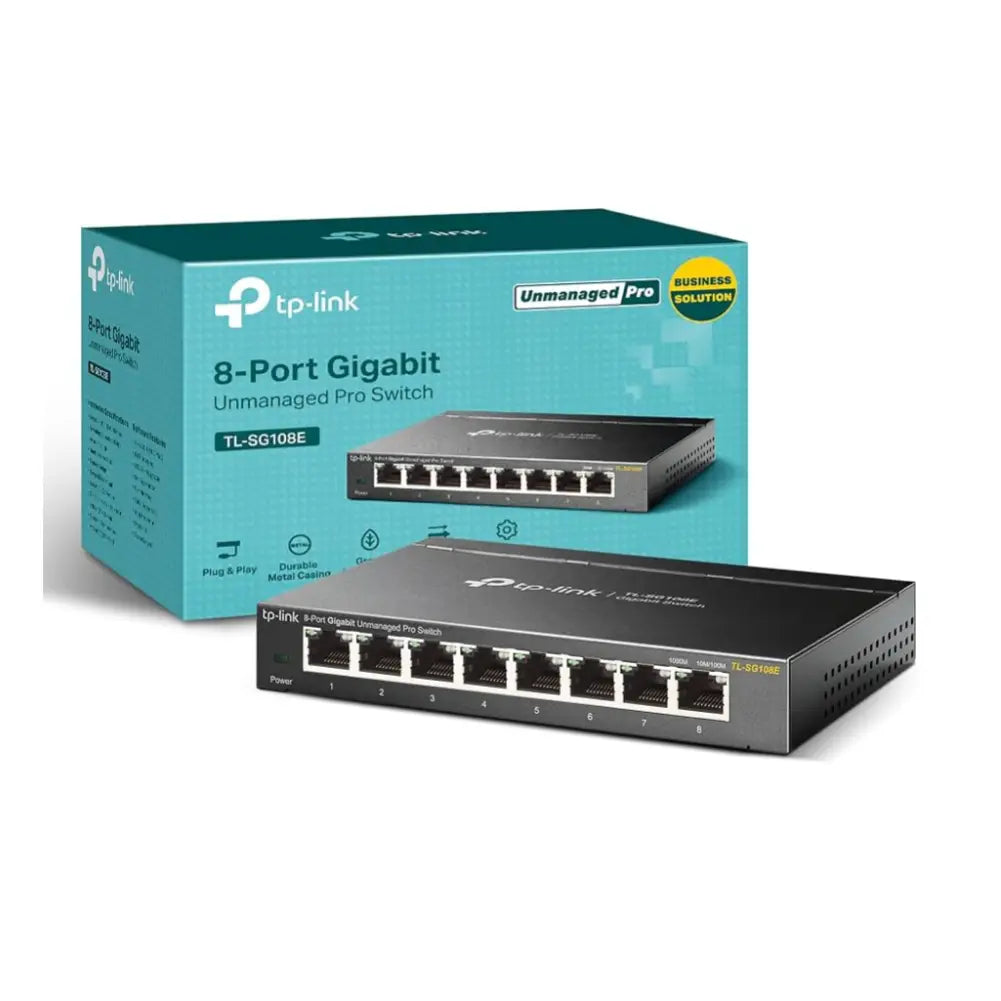

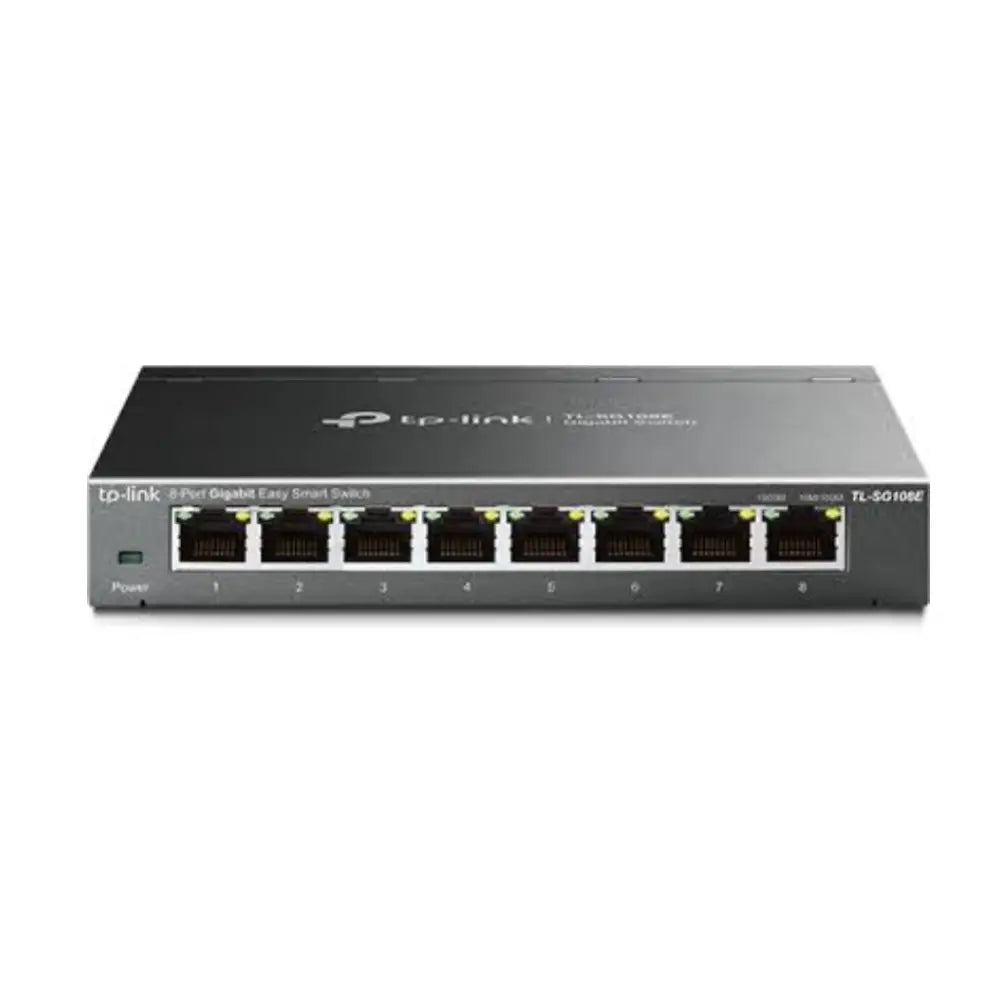

TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch
Smart switching for small networks, without the complexity. The TP-Link TL-SG108E is a compact, fanless 8-port Gigabit Easy Smart switch that adds essential Layer 2 management features — VLAN, QoS, IGMP Snooping, Port Mirroring, and Loop Prevention — to a desktop form factor. Managed via a clean web interface or the Easy Smart Configuration Utility, it’s the ideal step up from an unmanaged switch for home offices, small businesses, and IP camera networks that need traffic control without a full managed solution.
Key Features
- 8 × 10/100/1000Mbps Auto-Negotiation RJ45 ports for full Gigabit connectivity
- 16K Jumbo Frame support for high-throughput large file transfers
- Port and tag-based 802.1Q VLAN for traffic segmentation and improved network security
- Port and tag-based QoS for smooth handling of latency-sensitive traffic (VoIP, video surveillance)
- IGMP Snooping v1/v2 for efficient multicast traffic management
- IEEE 802.3x flow control for reliable, error-free data transfer
- Port Mirroring, Loop Prevention, and Cable Diagnostics for effective network monitoring
- Energy-efficient technology reduces power consumption by up to 80%
- Fanless design — completely silent operation, ideal for office and home environments
- Web-based management interface and Easy Smart Configuration Utility
- Centrally manage all Easy Smart Switches from a single application
Use Cases
- Home office or small business networks requiring basic traffic segmentation via VLAN
- IP camera and NVR networks where isolating camera traffic from the main LAN is important
- Environments with VoIP phones needing QoS prioritisation for call quality
- Multicast-heavy setups such as IPTV or video surveillance requiring IGMP Snooping
- Replacing an unmanaged switch where network monitoring and loop prevention are needed
Specifications
| Specification |
Detail |
| Model |
TL-SG108E |
| Ports |
8 × 10/100/1000Mbps RJ45 |
| Jumbo Frame |
16K bytes |
| VLAN |
802.1Q Tag VLAN, Port-based VLAN |
| QoS |
Port-based and 802.1p tag-based |
| IGMP Snooping |
v1 / v2 |
| Flow Control |
IEEE 802.3x |
| Network Monitoring |
Port Mirroring, Loop Prevention, Cable Diagnostics |
| Management |
Web UI, Easy Smart Configuration Utility |
| Energy Saving |
Up to 80% power reduction |
| Fan |
Fanless (silent) |
| Form Factor |
Desktop |
| Weight |
660 g |
| SKU |
TL-SG108E |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch — compact alternative for smaller deployments
- TP-Link TL-SG1008P 8-Port Gigabit PoE Switch — add PoE capability for IP cameras and access points
- Cat6 Ethernet patch cables — for reliable Gigabit connections throughout your installation
Frequently Asked Questions
What is the difference between the TL-SG108E and an unmanaged switch like the TL-SG1008D?
An unmanaged switch is plug-and-play with no configuration options. The TL-SG108E adds web-based management with VLAN, QoS, IGMP Snooping, Port Mirroring, and Loop Prevention — giving you meaningful control over your network traffic without the cost or complexity of a fully managed switch.
How do I access the management interface?
Connect the TL-SG108E to your network, then open a web browser and navigate to the switch’s IP address (default: 192.168.0.1). Alternatively, use the free TP-Link Easy Smart Configuration Utility to discover and manage the switch from your PC.
Does the TL-SG108E support PoE?
No. The TL-SG108E does not support Power over Ethernet. If you need PoE for IP cameras or wireless access points, consider the TP-Link TL-SG1008P (unmanaged PoE) or a managed PoE switch.
Is the TL-SG108E suitable for IP camera and CCTV networks?
Yes. VLAN support lets you isolate camera traffic from your main network for improved security, and IGMP Snooping efficiently manages multicast video streams. It’s a strong choice for small surveillance network infrastructure where basic traffic control is needed.
Does CCTV Guru ship Australia-wide?
Yes. We ship to all states and territories across Australia. Orders are dispatched promptly from our local warehouse.
