Description

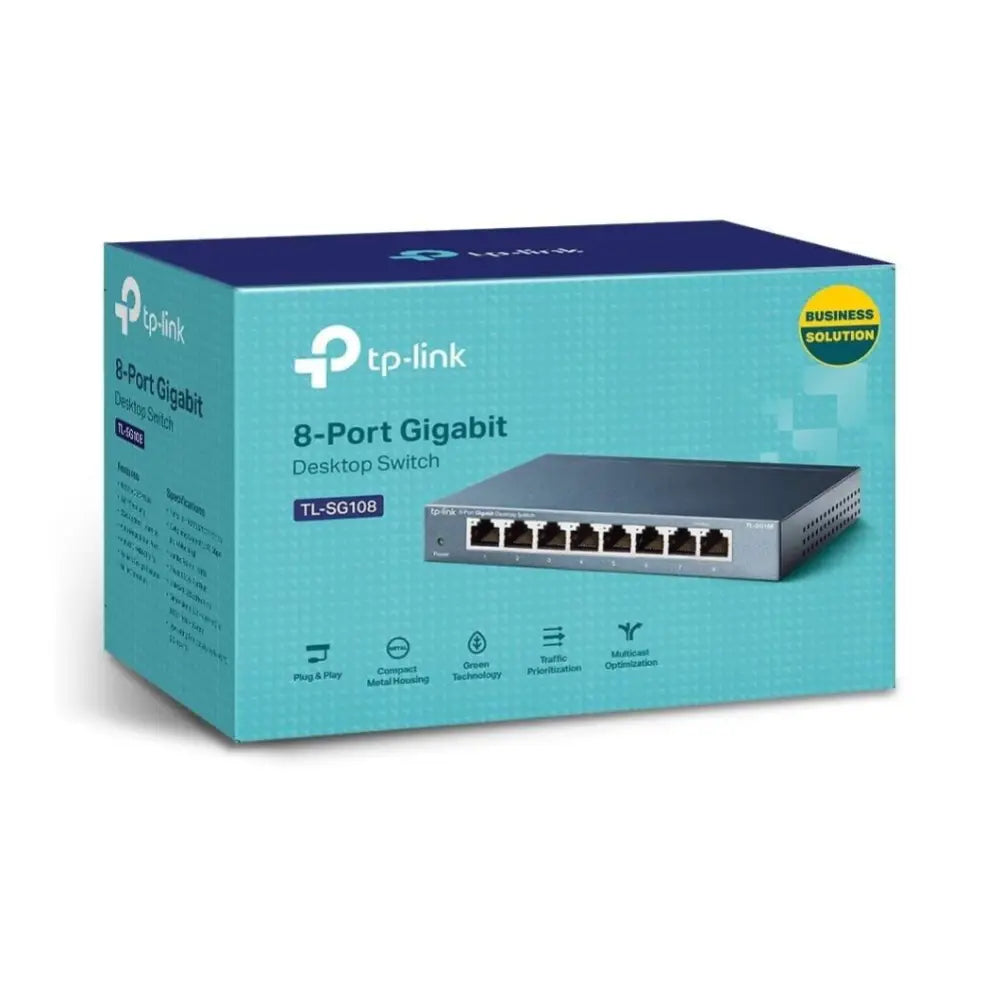

TP-Link TL-SG108 8-Port Gigabit Desktop Network Switch
Overview
The TP-Link TL-SG108 is a reliable, no-fuss 8-port gigabit switch built for home offices, small businesses, and security system installations. With a robust steel casing, fanless operation, and true plug-and-play setup, it delivers fast, stable network connectivity without the noise or complexity.
Key Features
- 8 x 10/100/1000Mbps auto-negotiation RJ45 ports
- Fanless, silent operation — ideal for quiet environments
- Energy-efficient design saves up to 72% power consumption
- Non-blocking switching architecture at 16Gbps switching capacity
- 11.9Mpps forwarding rate for maximum throughput
- Supports QoS (IEEE 802.1p / DSCP) for traffic prioritisation
- Supports IGMP Snooping for efficient multicast management
- 12K Jumbo Frame support for large data transfers
- Auto-MDI/MDIX — no crossover cables required
- IEEE 802.3x Flow Control (Full Duplex) and backpressure (Half Duplex)
- MAC address auto-learning and auto-aging
- Desktop or wall-mount installation options
- Plug and play — no software or configuration required
Use Cases
-
CCTV & IP Camera Networks: Expand your NVR or DVR network with reliable gigabit ports to support multiple IP cameras without bottlenecks.
-
Home & Small Office Networks: Connect computers, NAS drives, printers, and smart devices on a fast, stable wired network.
-
Access Control Systems: Provide a dedicated network backbone for door controllers, intercoms, and access readers.
-
AV & Media Streaming: Jumbo frame support ensures smooth, uninterrupted high-definition media streaming across your network.
Specifications
| Specification |
Detail |
| Model |
TL-SG108 |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1p |
| Ports |
8 x 10/100/1000Mbps RJ45 |
| Switching Capacity |
16Gbps |
| Forwarding Rate |
11.9Mpps |
| MAC Address Table |
4K |
| Jumbo Frame |
12K |
| QoS |
IEEE 802.1p / DSCP |
| IGMP Snooping |
Yes |
| Power Consumption (Max) |
4.7W |
| Casing |
Steel |
| Mounting |
Desktop / Wall-mount |
| Fan |
Fanless (silent) |
| Weight |
0.52 kg |
| Dimensions |
158 × 101 × 25 mm |
| Operating Temperature |
0°C – 40°C |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
- Does the TL-SG108 require any software or configuration?
- No. It is a fully unmanaged switch — simply plug in your devices and it works straight away. No drivers, apps, or login required.
- Can I use this switch with my CCTV or NVR system?
- Yes. The TL-SG108 is well-suited for IP camera networks. Connect your NVR and IP cameras directly to the switch for a fast, dedicated network segment.
- Is it noisy?
- Not at all. The fanless design means completely silent operation, making it ideal for offices, reception areas, and home installations.
- Can it be wall-mounted?
- Yes. The TL-SG108 supports both desktop and wall-mount installation. Mounting hardware is included.
- Does it support PoE (Power over Ethernet)?
- No. The TL-SG108 does not support PoE. If you need to power IP cameras or access points via the network cable, consider a PoE switch instead.
- What is the warranty on this product in Australia?
- TP-Link products sold in Australia are covered by a standard manufacturer's warranty. Please refer to the TP-Link Australia warranty policy or contact us for details.
