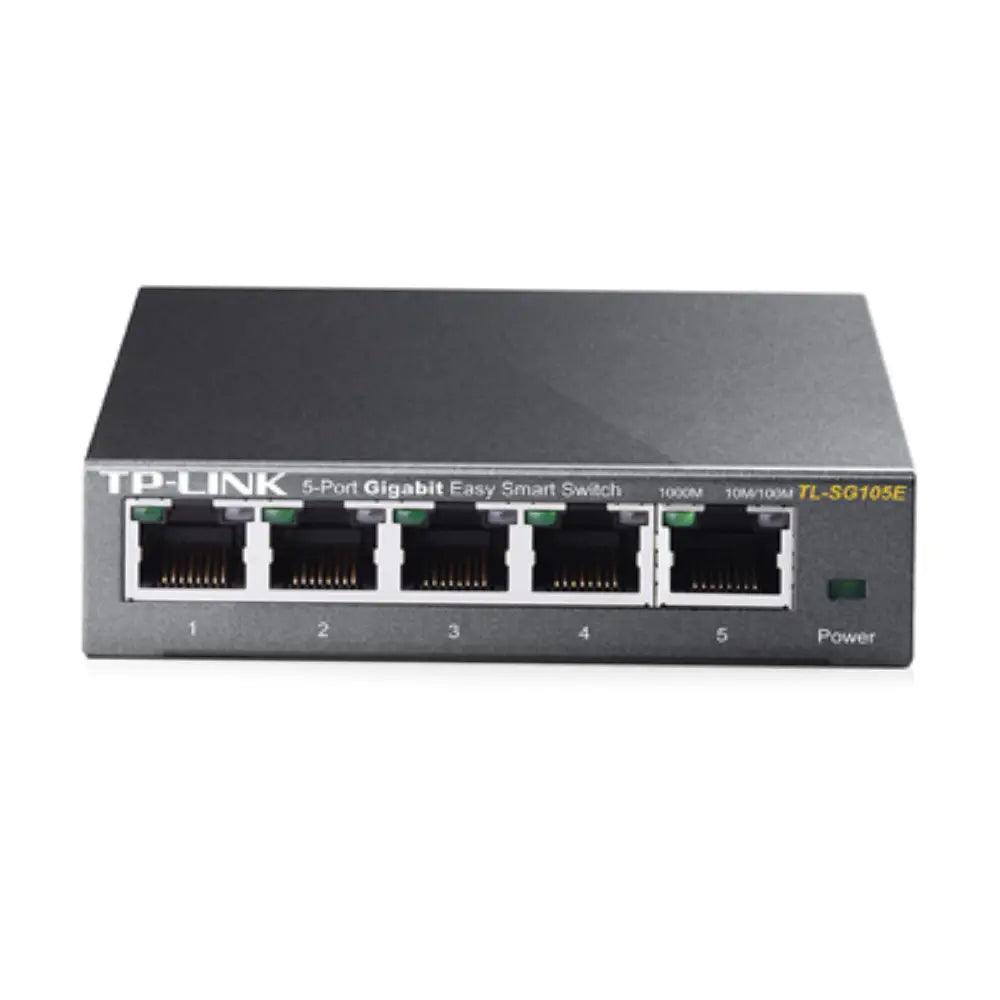

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch with VLAN & QoS

Description

Smarter Switching Without the Complexity

The TP-Link TL-SG105E is a 5-port Gigabit Easy Smart Switch that bridges the gap between basic unmanaged switches and full managed switches. It delivers essential network management features — VLAN segmentation, QoS traffic prioritisation, and IGMP Snooping — through a straightforward web interface and the free Easy Smart Configuration Utility. Ideal for installers and IT-savvy users who need more control without enterprise-level complexity.

Key Features

  • 5 × 10/100/1000Mbps Auto-Negotiation RJ45 ports — full Gigabit on every port
  • MTU, Port-based, and 802.1Q Tag-based VLAN support for network segmentation
  • QoS (Quality of Service) for traffic prioritisation — ideal for VoIP, CCTV, and streaming
  • IGMP Snooping v1/v2 for efficient multicast traffic management
  • Energy-efficient technology reduces power consumption by up to 75%
  • Centrally manage multiple Easy Smart Switches via the free Easy Smart Configuration Utility
  • Plug-and-play with optional web-based management — no CLI required
  • Compact desktop form factor, fanless silent operation

Use Cases

  • IP camera & NVR networks — isolate CCTV traffic on a dedicated VLAN, away from general LAN traffic
  • Small office networking — separate guest, staff, and management traffic without a full managed switch
  • VoIP deployments — use QoS to prioritise voice traffic and eliminate call quality issues
  • Home lab & prosumer setups — experiment with VLANs and multicast without enterprise hardware costs
  • AV & media distribution — IGMP Snooping ensures multicast streams reach only intended devices

Technical Specifications

Specification Detail
Model TL-SG105E
Ports 5 × 10/100/1000Mbps RJ45
Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1Q
Switching Capacity 10 Gbps
Forwarding Rate 7.44 Mpps
MAC Address Table 2K
VLAN MTU VLAN, Port-based VLAN, 802.1Q Tag-based VLAN (up to 32 VLANs)
QoS Port-based & 802.1p-based priority queues
IGMP Snooping v1 / v2
Flow Control IEEE 802.3x (Full Duplex), Backpressure (Half Duplex)
Management Web UI, Easy Smart Configuration Utility (Windows)
Power Consumption Max ~4.0W (up to 75% savings with Green Ethernet)
Enclosure Plastic, desktop
Fanless Yes (silent operation)
Operating Temp 0°C – 40°C
Storage Temp -40°C – 70°C
Operating Humidity 10% – 90% (non-condensing)
Certifications CE, FCC, RoHS
SKU TL-SG105E
Barcode (EAN) 1210002616836

Frequently Asked Questions

What is the difference between the TL-SG105E and the TL-SG1005D?
The TL-SG1005D is a basic unmanaged switch — plug-and-play with no configuration options. The TL-SG105E is an Easy Smart Switch that adds VLAN, QoS, and IGMP Snooping management features via a web interface, making it suitable for more structured network environments.
Do I need to configure the TL-SG105E to use it?
No — it works as a standard plug-and-play switch out of the box. The management features are optional and accessed via a web browser or the Easy Smart Configuration Utility when needed.
Can I use VLANs to separate my CCTV cameras from my main network?
Yes. The TL-SG105E supports Port-based and 802.1Q Tag-based VLANs, making it straightforward to isolate IP camera traffic from your general LAN — a common requirement in security installations.
Is the Easy Smart Configuration Utility free?
Yes — it is a free Windows utility available from the TP-Link website. It allows you to discover and centrally manage multiple Easy Smart Switches on the same network from a single interface.
Does the TL-SG105E support PoE?
No — this model does not supply Power over Ethernet. If you need to power IP cameras or wireless access points directly from the switch, consider the TP-Link TL-SG105P or TL-SG1005P PoE variants.

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch with VLAN & QoS

Product form

SKU: TL-SG105E

Smarter Switching Without the Complexity The TP-Link TL-SG105E is a 5-port Gigabit Easy Smart Switch that bridges the gap between... Read more

$48.30  $30.80 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Dispatch today? Order within: Jun 24, 2026 14:00:00 +1000
    • Warranty: 60 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Smarter Switching Without the Complexity

    The TP-Link TL-SG105E is a 5-port Gigabit Easy Smart Switch that bridges the gap between basic unmanaged switches and full managed switches. It delivers essential network management features — VLAN segmentation, QoS traffic prioritisation, and IGMP Snooping — through a straightforward web interface and the free Easy Smart Configuration Utility. Ideal for installers and IT-savvy users who need more control without enterprise-level complexity.

    Key Features

    • 5 × 10/100/1000Mbps Auto-Negotiation RJ45 ports — full Gigabit on every port
    • MTU, Port-based, and 802.1Q Tag-based VLAN support for network segmentation
    • QoS (Quality of Service) for traffic prioritisation — ideal for VoIP, CCTV, and streaming
    • IGMP Snooping v1/v2 for efficient multicast traffic management
    • Energy-efficient technology reduces power consumption by up to 75%
    • Centrally manage multiple Easy Smart Switches via the free Easy Smart Configuration Utility
    • Plug-and-play with optional web-based management — no CLI required
    • Compact desktop form factor, fanless silent operation

    Use Cases

    • IP camera & NVR networks — isolate CCTV traffic on a dedicated VLAN, away from general LAN traffic
    • Small office networking — separate guest, staff, and management traffic without a full managed switch
    • VoIP deployments — use QoS to prioritise voice traffic and eliminate call quality issues
    • Home lab & prosumer setups — experiment with VLANs and multicast without enterprise hardware costs
    • AV & media distribution — IGMP Snooping ensures multicast streams reach only intended devices

    Technical Specifications

    Specification Detail
    Model TL-SG105E
    Ports 5 × 10/100/1000Mbps RJ45
    Standards IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1Q
    Switching Capacity 10 Gbps
    Forwarding Rate 7.44 Mpps
    MAC Address Table 2K
    VLAN MTU VLAN, Port-based VLAN, 802.1Q Tag-based VLAN (up to 32 VLANs)
    QoS Port-based & 802.1p-based priority queues
    IGMP Snooping v1 / v2
    Flow Control IEEE 802.3x (Full Duplex), Backpressure (Half Duplex)
    Management Web UI, Easy Smart Configuration Utility (Windows)
    Power Consumption Max ~4.0W (up to 75% savings with Green Ethernet)
    Enclosure Plastic, desktop
    Fanless Yes (silent operation)
    Operating Temp 0°C – 40°C
    Storage Temp -40°C – 70°C
    Operating Humidity 10% – 90% (non-condensing)
    Certifications CE, FCC, RoHS
    SKU TL-SG105E
    Barcode (EAN) 1210002616836

    Frequently Asked Questions

    What is the difference between the TL-SG105E and the TL-SG1005D?
    The TL-SG1005D is a basic unmanaged switch — plug-and-play with no configuration options. The TL-SG105E is an Easy Smart Switch that adds VLAN, QoS, and IGMP Snooping management features via a web interface, making it suitable for more structured network environments.
    Do I need to configure the TL-SG105E to use it?
    No — it works as a standard plug-and-play switch out of the box. The management features are optional and accessed via a web browser or the Easy Smart Configuration Utility when needed.
    Can I use VLANs to separate my CCTV cameras from my main network?
    Yes. The TL-SG105E supports Port-based and 802.1Q Tag-based VLANs, making it straightforward to isolate IP camera traffic from your general LAN — a common requirement in security installations.
    Is the Easy Smart Configuration Utility free?
    Yes — it is a free Windows utility available from the TP-Link website. It allows you to discover and centrally manage multiple Easy Smart Switches on the same network from a single interface.
    Does the TL-SG105E support PoE?
    No — this model does not supply Power over Ethernet. If you need to power IP cameras or wireless access points directly from the switch, consider the TP-Link TL-SG105P or TL-SG1005P PoE variants.
