Description

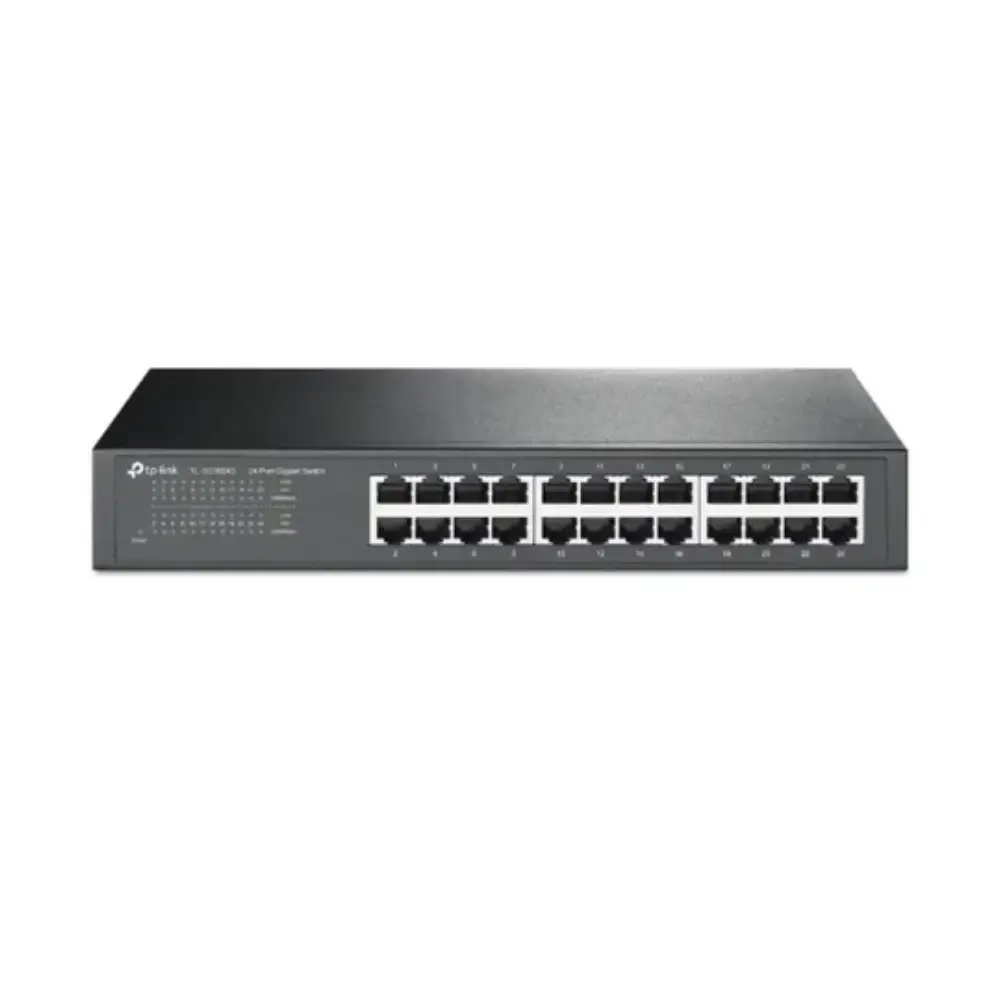

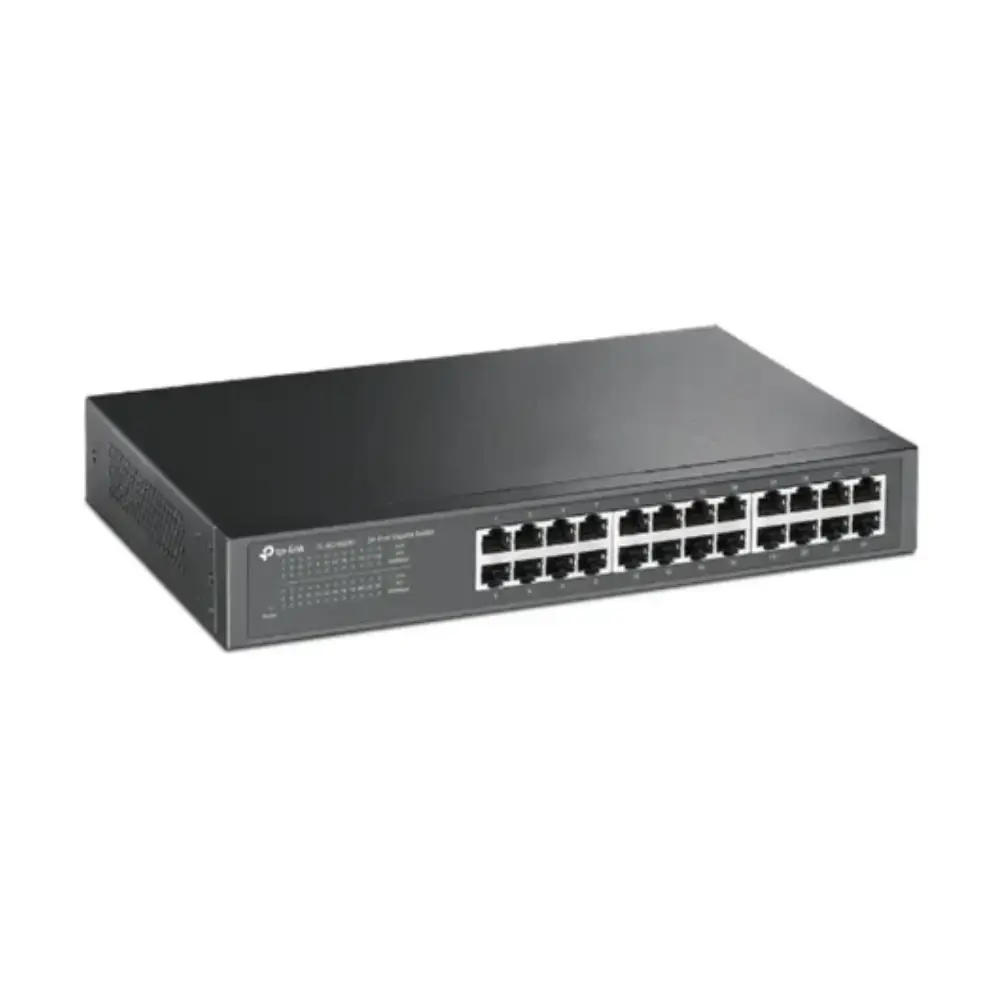

TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch
Step up from an unmanaged switch without the complexity of a full managed solution. The TP-Link TL-SG1024DE gives small and medium-sized businesses 24 Gigabit ports with essential Layer 2 smart features — VLAN, QoS, IGMP Snooping, and more — all managed through a simple web interface or the Easy Smart Configuration Utility. It mounts on a desktop or in a standard rack, making it a versatile fit for server rooms, comms cabinets, and office environments alike.
Key Features
- 24 × 10/100/1000Mbps Auto-Negotiation RJ45 ports for full Gigabit connectivity
- 48Gbps switching capacity with a 35.7Mpps packet forwarding rate
- 10K Jumbo Frame support for high-throughput large file transfers
- Port and tag-based 802.1Q VLAN (up to 128 VLANs) for traffic segmentation and improved security
- Port and tag-based QoS for smooth handling of latency-sensitive traffic (VoIP, video)
- IGMP Snooping v1/v2 for efficient multicast traffic management
- IEEE 802.3x flow control for reliable, error-free data transfer
- Port Mirroring, Loop Prevention, and Cable Diagnostics for effective network monitoring
- Energy-efficient technology reduces power consumption by up to 40%
- Desktop and rackmount form factor — flexible installation options
- Centrally manage all Easy Smart Switches via the Easy Smart Configuration Utility
Use Cases
- Small to medium business (SMB) core or access layer switching
- IP camera and NVR network infrastructure requiring VLAN segmentation
- Office environments with VoIP phones needing QoS prioritisation
- Server room or comms cabinet deployments requiring rackmount flexibility
- Multicast-heavy environments such as IPTV or video surveillance networks
Specifications
| Specification |
Detail |
| Model |
TL-SG1024DE |
| Ports |
24 × 10/100/1000Mbps RJ45 |
| Switching Capacity |
48 Gbps |
| Packet Forwarding Rate |
35.7 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10K bytes |
| VLAN |
802.1Q Tag VLAN, Port-based VLAN (up to 128) |
| QoS |
Port-based and 802.1p tag-based |
| IGMP Snooping |
v1 / v2 |
| Flow Control |
IEEE 802.3x |
| Management |
Web UI, Easy Smart Configuration Utility |
| Mounting |
Desktop / Rackmount (19-inch) |
| Energy Saving |
Up to 40% power reduction |
| Weight |
1.83 kg |
| SKU |
TL-SG1024DE |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SG1008P 8-Port Gigabit PoE Switch — add PoE to edge devices on the same network
- TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch — cost-effective alternative without management features
- Cat6 Ethernet patch cables — for reliable Gigabit connections between switch and devices
- 19-inch rack cabinet or wall-mount bracket — for rackmount installations
Frequently Asked Questions
What is the difference between the TL-SG1024D and the TL-SG1024DE?
The TL-SG1024D is a fully unmanaged switch with no configuration options. The TL-SG1024DE is an Easy Smart switch, adding web-based management with VLAN, QoS, IGMP Snooping, Port Mirroring, and Loop Prevention — making it significantly more capable for business and security network deployments.
Can the TL-SG1024DE be rack-mounted?
Yes. The TL-SG1024DE supports both desktop and 19-inch rackmount installation. Rack ears are typically included in the box — confirm with the product packaging or contact us if you need a replacement set.
How do I manage the TL-SG1024DE?
You can manage it via its built-in web interface using a browser, or through the free TP-Link Easy Smart Configuration Utility, which allows you to discover and manage multiple Easy Smart switches from a single application.
Does this switch support PoE?
No. The TL-SG1024DE does not support Power over Ethernet. If you need PoE for IP cameras or access points, consider a TP-Link PoE switch such as the TL-SG1218P or TL-SG1008P.
Is the TL-SG1024DE suitable for IP camera and CCTV networks?
Yes. Its VLAN support allows you to isolate camera traffic from your main network, and IGMP Snooping helps manage multicast video streams efficiently. It is a strong choice for medium-sized surveillance network infrastructure.
