Description

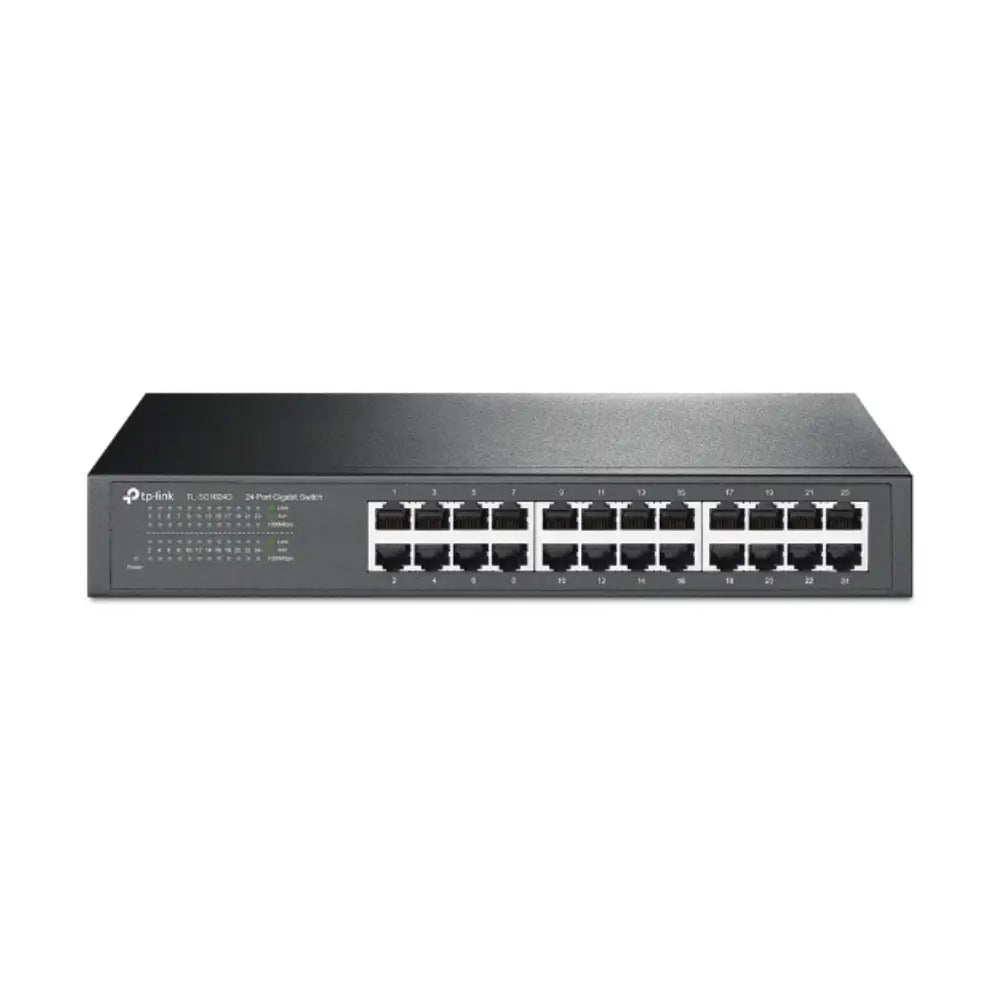

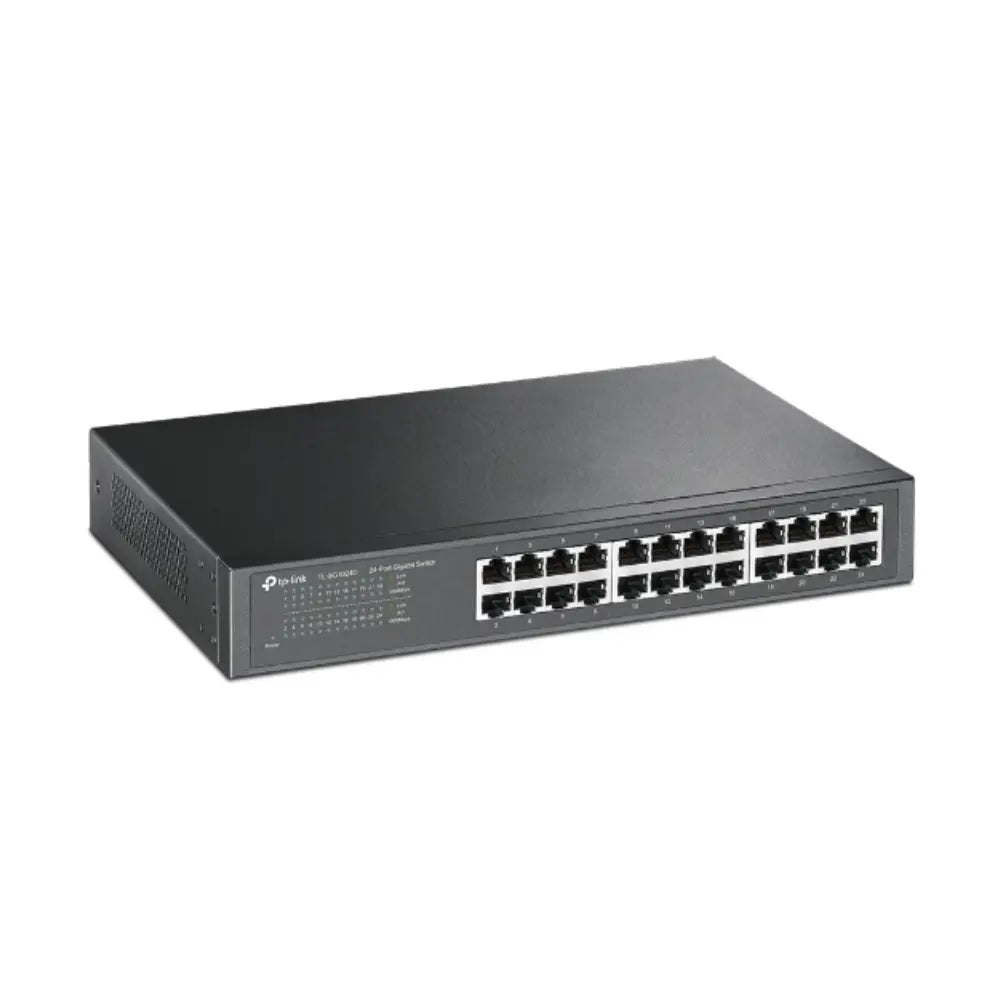

TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch
Reliable, no-fuss Gigabit switching for 24 devices. The TP-Link TL-SG1024D is a fully unmanaged, plug-and-play switch that delivers 48Gbps of switching capacity across 24 Gigabit ports — with zero configuration required. Its fanless design keeps things quiet, and its compact rackmount chassis fits neatly into server rooms, comms cabinets, or on a desktop.
Key Features
- 24 × 10/100/1000Mbps Auto-Negotiation RJ45 ports for full Gigabit connectivity
- 48Gbps switching capacity with a 35.7Mpps packet forwarding rate
- 10K Jumbo Frame support for high-throughput large file transfers
- Store-and-forward switching for reliable, error-free data delivery
- IEEE 802.3x flow control for congestion management
- Auto MDI/MDIX on all ports — no crossover cables needed
- MAC address self-learning with an 8K MAC address table
- Fanless design — silent operation, ideal for office and retail environments
- Energy-efficient Green Technology reduces power consumption automatically
- Plug and play — no software, no login, no configuration required
- Desktop and 19-inch rackmount form factor for flexible installation
Use Cases
- Expanding wired network capacity in small to medium offices
- IP camera and NVR network infrastructure where management features are not required
- Server room or comms cabinet deployments needing a simple, high-port-count switch
- Retail, hospitality, and education environments requiring quiet, reliable switching
- Replacing ageing 10/100 switches with a full Gigabit upgrade
Specifications
| Specification |
Detail |
| Model |
TL-SG1024D |
| Ports |
24 × 10/100/1000Mbps RJ45 |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x |
| Switching Capacity |
48 Gbps |
| Packet Forwarding Rate |
35.7 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10K bytes |
| Transfer Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Fan |
Fanless (silent) |
| Power Supply |
100–240V AC, 50/60Hz |
| Max Power Consumption |
13.62W (220V/50Hz) |
| Max Heat Dissipation |
46.44 BTU/h |
| Dimensions (W × D × H) |
294 × 180 × 44 mm |
| Mounting |
Desktop / Rackmount (19-inch) |
| Weight |
2 kg |
| SKU |
TL-SG1024D |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SG1024DE Easy Smart Switch — upgrade option with VLAN, QoS, and web management
- TP-Link TL-SG1008P 8-Port Gigabit PoE Switch — add PoE capability to your network edge
- Cat6 Ethernet patch cables — for reliable Gigabit connections throughout your installation
- 19-inch rack cabinet or patch panel — for structured cabling in comms cabinets
Frequently Asked Questions
What is the difference between the TL-SG1024D and the TL-SG1024DE?
The TL-SG1024D is a fully unmanaged switch — plug in and go, with no configuration options. The TL-SG1024DE adds web-based management with VLAN, QoS, IGMP Snooping, and Port Mirroring. If you need traffic segmentation or network monitoring, choose the TL-SG1024DE.
Does the TL-SG1024D require any configuration?
No. It is completely plug-and-play. Connect your Ethernet cables and the switch operates immediately with no software, login, or setup required.
Can the TL-SG1024D be rack-mounted?
Yes. The TL-SG1024D supports both desktop placement and 19-inch rackmount installation. Rack ears are typically included in the box.
Does this switch support PoE?
No. The TL-SG1024D does not support Power over Ethernet. If you need PoE for IP cameras or wireless access points, consider a TP-Link PoE switch such as the TL-SG1008P or TL-SG1218P.
Is the TL-SG1024D suitable for CCTV and IP camera networks?
Yes, for installations where VLAN isolation is not required. It provides reliable Gigabit connectivity for IP cameras and NVRs. For larger or more security-conscious deployments, the TL-SG1024DE with VLAN support is recommended.
