Description

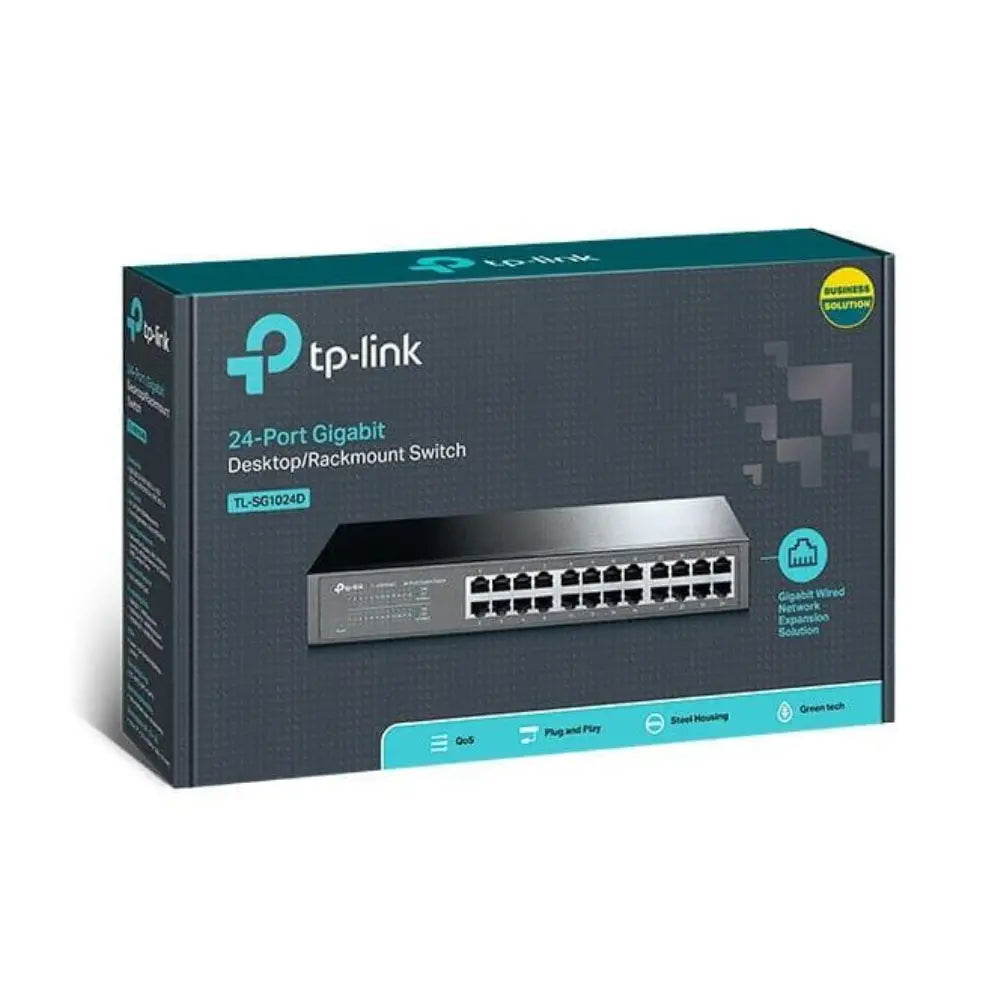

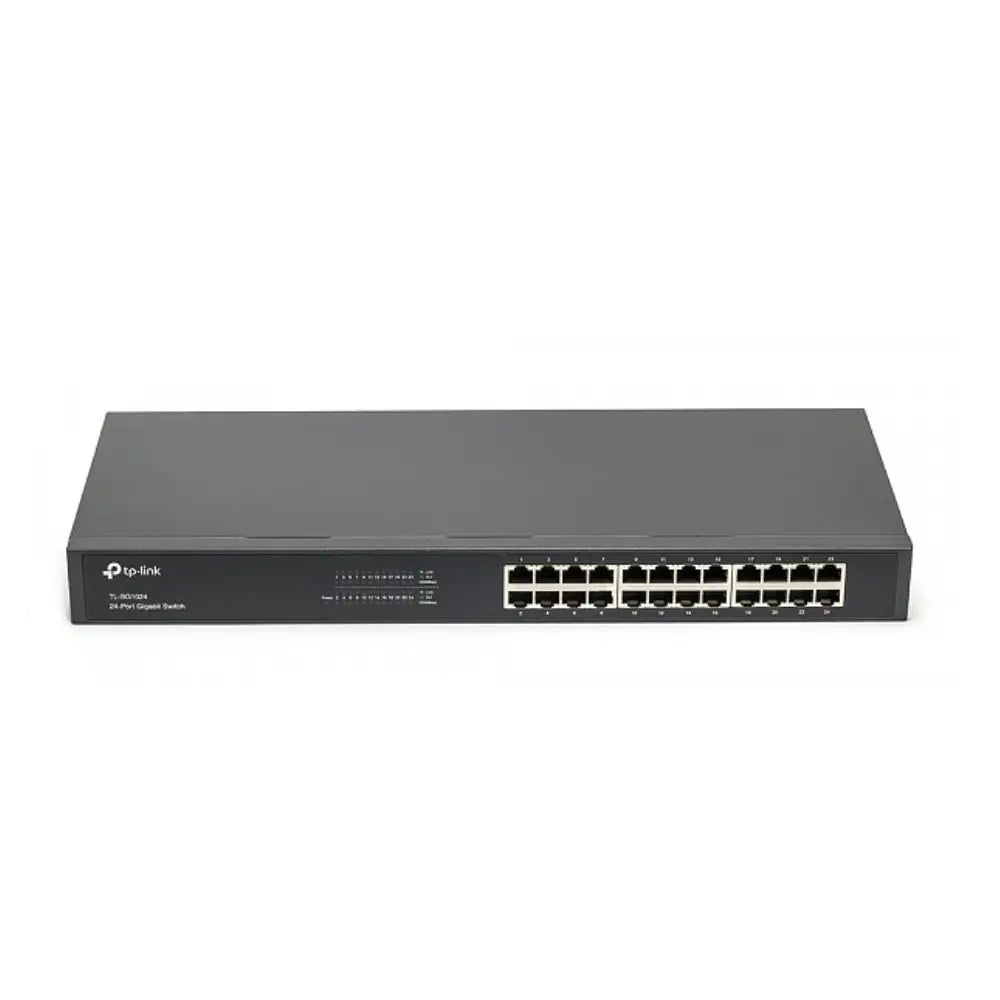

TP-Link TL-SG1024 24-Port Gigabit Unmanaged Network Switch
Overview
The TP-Link TL-SG1024 is a 24-port gigabit unmanaged switch designed for small-to-medium business networks, security installations, and server rooms. With a 48Gbps non-blocking switching capacity and energy-efficient chipset, it delivers reliable, wire-speed performance straight out of the box — no configuration required.
Key Features
- 24 × 10/100/1000Mbps RJ45 ports for full gigabit connectivity
- 48Gbps non-blocking switching capacity for maximum throughput
- 100% data filtering rate — eliminates all error packets
- Energy-efficient technology reduces power consumption by up to 25%
- Supports IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex)
- Auto-MDI/MDIX on all ports — no crossover cables needed
- MAC address auto-learning and auto-aging
- Store-and-Forward switching with N-Way Auto-Negotiation per port
- Plug-and-play — no software or configuration required
- 19" rackmountable, compact desktop-friendly form factor
Use Cases
-
CCTV & IP Camera Networks: Expand your NVR or DVR network with dedicated gigabit ports for high-bandwidth IP cameras
-
Small Business Networks: Connect workstations, printers, and servers in a single, reliable switch
-
Server Rooms & Comms Cabinets: Rackmount in a 19" cabinet for a clean, professional installation
-
Access Control Systems: Provide network backbone for IP-based access control panels and readers
-
Home Lab & AV Installations: Ideal for structured cabling projects requiring multiple gigabit drops
Specifications
| Specification |
Detail |
| Model |
TL-SG1024 |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x |
| Ports |
24 × 10/100/1000Mbps RJ45 |
| Switching Capacity |
48Gbps |
| Packet Forwarding Rate |
35.7Mpps |
| MAC Address Table |
8K |
| Switching Method |
Store and Forward |
| Flow Control |
IEEE 802.3x (Full Duplex), Backpressure (Half Duplex) |
| Form Factor |
19" Rackmountable / Desktop |
| Weight |
2.34 kg |
| Vendor |
TP-Link |
| SKU |
TL-SG1024 |
Recommended Accessories
- Cat6 Patch Cables — for clean, high-speed port connections
- 19" Rack Cabinet or Wall-Mount Enclosure — for rackmount installations
- TP-Link Gigabit PoE Switch — if powering IP cameras or access control devices
- Cable Management Panel — for tidy comms cabinet builds
Frequently Asked Questions
- Is the TL-SG1024 managed or unmanaged?
- It is an unmanaged switch — plug it in and it works immediately with no configuration, login, or software required.
- Can I use this switch for IP cameras?
- Yes. The 24 gigabit ports and 48Gbps switching capacity make it well-suited for IP camera networks connected to an NVR. Note: this switch does not supply PoE power — cameras will require a separate PoE switch or injectors.
- Does it support VLANs?
- No. As an unmanaged switch, VLAN configuration is not supported. For VLAN support, consider a managed gigabit switch.
- Is it rackmountable?
- Yes. The TL-SG1024 fits a standard 19" rack and includes rack-mount ears.
- What is the warranty on this product?
- TP-Link products sold through CCTV Guru are covered by the manufacturer's Australian warranty. Please refer to the TP-Link Australia warranty policy for full terms.
