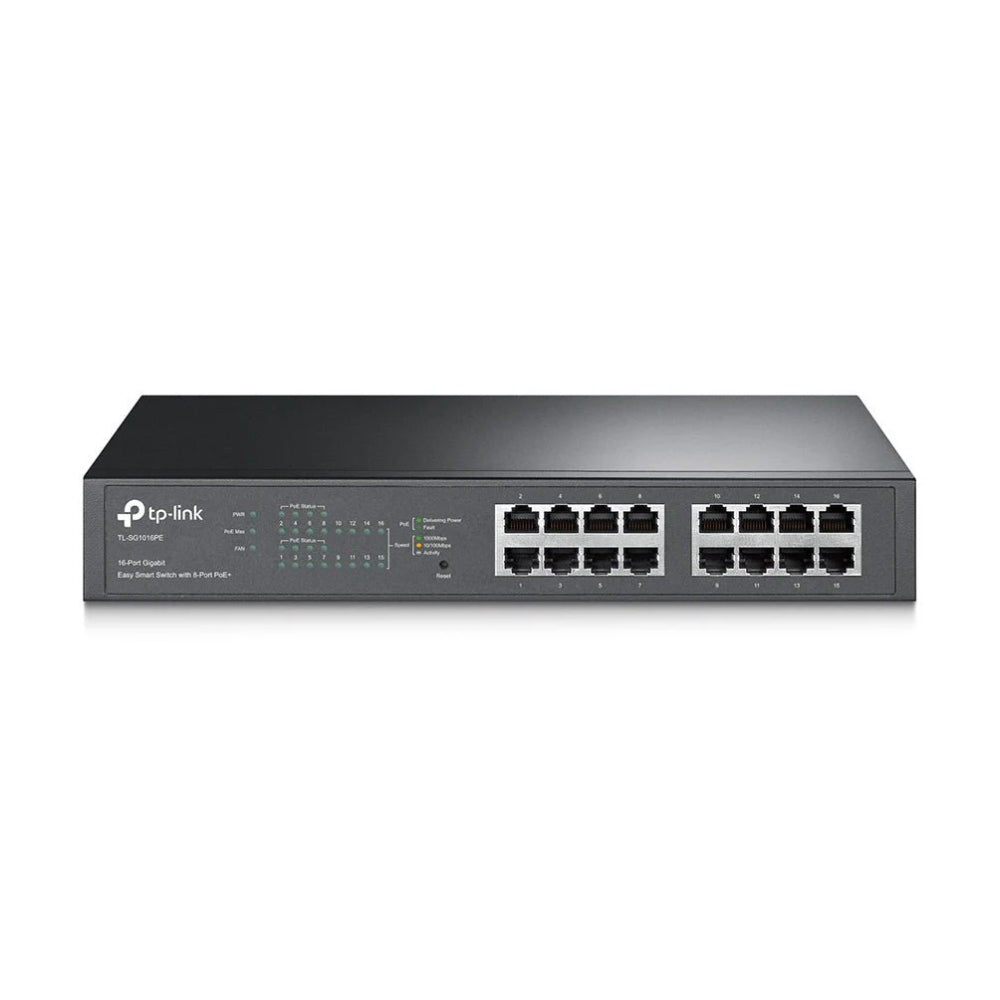

TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Switch
Overview
The TP-Link TL-SG1016PE is a reliable 16-port Gigabit desktop and rackmount switch designed for small-to-medium business networks and professional security installations. With 8 IEEE 802.3af/at compliant PoE+ ports and a 32Gbps backplane, it delivers both data and power over a single cable — ideal for IP cameras, access points, and VoIP phones across Australian commercial and residential sites.
Key Features
- 16 x 10/100/1000Mbps RJ45 ports with Auto Negotiation and Auto MDI/MDIX
- 8 x PoE+ ports (IEEE 802.3af/at) — power IP cameras, APs, and VoIP devices without separate power adapters
- 32Gbps non-blocking backplane bandwidth for high-throughput environments
- 8K MAC address table with auto-learning and auto-aging
- Store-and-forward switching for reliable, error-free data transfer
- IEEE 802.3x flow control (full-duplex) and backpressure (half-duplex)
- Energy-efficient design — reduces power output by up to 75% on inactive ports
- Plug-and-play — no software configuration required
- Desktop or 1U rackmount installation flexibility
- Includes rackmount kit and rubber feet
Use Cases
-
CCTV & IP Camera Systems: Power and connect up to 8 PoE IP cameras directly from a single switch — no separate injectors needed.
-
Small Business Networks: Expand office connectivity with Gigabit speeds across all 16 ports.
-
Wireless Access Points: Deploy PoE-powered APs throughout a building without running additional power cabling.
-
VoIP Deployments: Connect PoE-compatible IP phones alongside standard network devices on the same switch.
-
Retail & Hospitality: Centralise network and power distribution in a compact 1U rackmount form factor.
Specifications
| Specification |
Detail |
| Total Ports |
16 x 10/100/1000Mbps RJ45 |
| PoE+ Ports |
8 (IEEE 802.3af/at) |
| Backplane Bandwidth |
32 Gbps |
| MAC Address Table |
8K |
| Buffer Size |
1.5 Mbits |
| Transfer Method |
Store-and-Forward |
| Power Supply |
100–240VAC, 50/60Hz |
| Max Power Consumption (PoE on) |
124.4W (220V/50Hz) |
| Max Power Consumption (PoE off) |
14.4W (220V/50Hz) |
| Fan |
1 x internal fan |
| Dimensions (W × D × H) |
294 × 180 × 44 mm |
| Operating Temperature |
0°C – 40°C |
| Storage Temperature |
-40°C – 70°C |
| Operating Humidity |
10% – 90% (non-condensing) |
| Certifications |
FCC, CE, RoHS |
| SKU |
TL-SG1016PE |
| Mounting |
Desktop / 1U Rackmount |
In the Box
- TL-SG1016PE Switch
- Power cord
- Rackmount kit
- Rubber feet
- Installation guide
Frequently Asked Questions
How many PoE devices can I connect to the TL-SG1016PE?
Up to 8 PoE or PoE+ devices can be powered simultaneously via the dedicated PoE+ ports. The total PoE power budget is 110W, so ensure the combined power draw of connected devices does not exceed this limit.
Does this switch require any software configuration?
No. The TL-SG1016PE is a plug-and-play unmanaged switch. Simply connect your devices and cables — no login, software, or configuration is required.
Can I rackmount this switch?
Yes. The package includes a rackmount kit for standard 1U rack installation, as well as rubber feet for desktop use.
Is this switch compatible with all PoE IP cameras?
It is compatible with any IEEE 802.3af or 802.3at compliant PoE device, which covers the vast majority of IP cameras, wireless access points, and VoIP phones available in Australia.
What cable type is required?
For Gigabit speeds, use Cat 5e, Cat 6, or above UTP/STP cable up to 100 metres per run. Cat 3 or Cat 5 cable is sufficient for 10/100Mbps connections.
