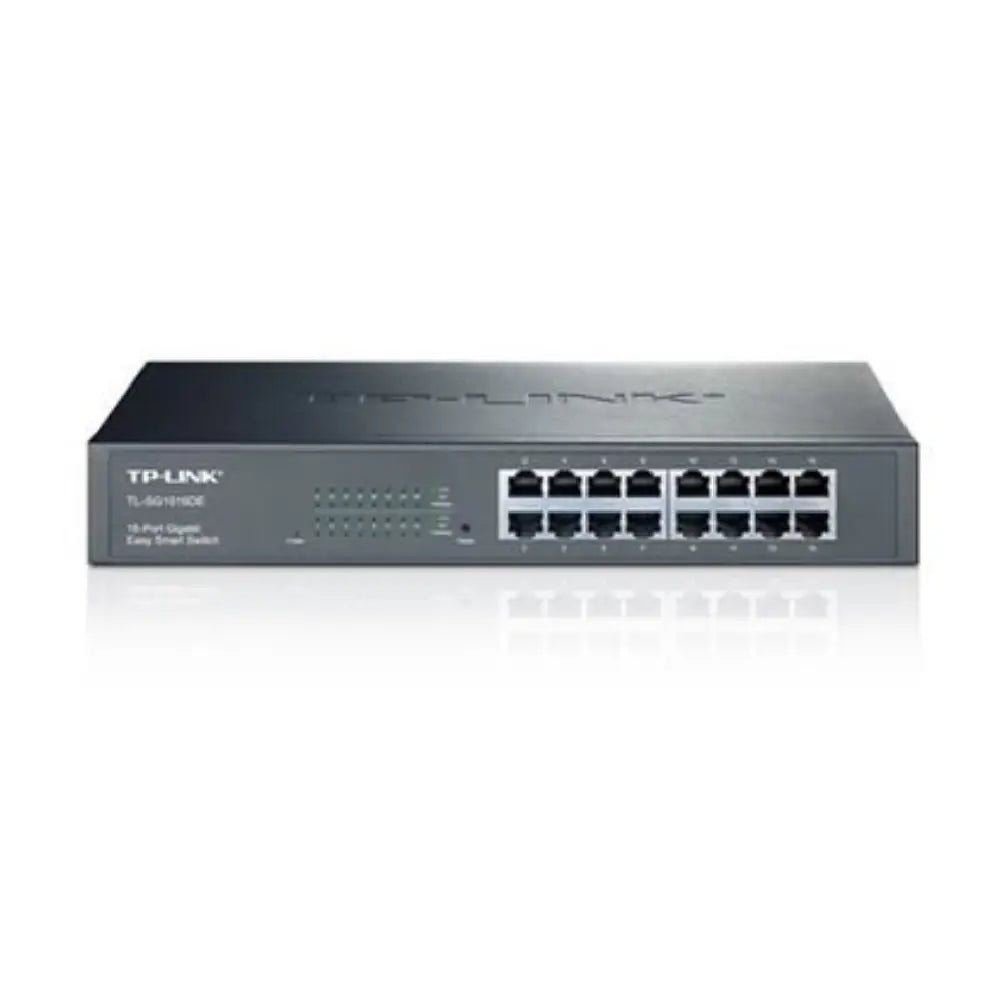

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch
More control than an unmanaged switch, without the complexity of a full managed solution. The TP-Link TL-SG1016DE delivers 16 Gigabit ports with essential Layer 2 smart features — VLAN, QoS, IGMP Snooping, Port Mirroring, and Loop Prevention — all accessible through a clean web interface or the Easy Smart Configuration Utility. It suits small to medium businesses, IP camera networks, and any environment where traffic segmentation and monitoring matter.
Key Features
- 16 × 10/100/1000Mbps Auto-Negotiation RJ45 ports for full Gigabit connectivity
- 32Gbps switching capacity with a 23.8Mpps packet forwarding rate
- 10K Jumbo Frame support for high-throughput large file transfers
- Port and tag-based 802.1Q VLAN for traffic segmentation and improved network security
- Port and tag-based QoS for smooth handling of latency-sensitive traffic (VoIP, video surveillance)
- IGMP Snooping v1/v2 for efficient multicast traffic management
- IEEE 802.3x flow control for reliable, error-free data transfer
- Port Mirroring, Loop Prevention, and Cable Diagnostics for effective network monitoring
- Energy-efficient technology reduces power consumption by up to 40%
- Desktop and 19-inch rackmount form factor — flexible installation options
- Centrally manage all Easy Smart Switches via the Easy Smart Configuration Utility
Use Cases
- Small to medium business (SMB) core or access layer switching
- IP camera and NVR network infrastructure requiring VLAN segmentation
- Office environments with VoIP phones needing QoS prioritisation
- Server room or comms cabinet deployments requiring rackmount flexibility
- Multicast-heavy environments such as IPTV or video surveillance networks
Specifications
| Specification |
Detail |
| Model |
TL-SG1016DE |
| Ports |
16 × 10/100/1000Mbps RJ45 |
| Switching Capacity |
32 Gbps |
| Packet Forwarding Rate |
23.8 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10K bytes |
| VLAN |
802.1Q Tag VLAN, Port-based VLAN |
| QoS |
Port-based and 802.1p tag-based |
| IGMP Snooping |
v1 / v2 |
| Flow Control |
IEEE 802.3x |
| Network Monitoring |
Port Mirroring, Loop Prevention, Cable Diagnostics |
| Management |
Web UI, Easy Smart Configuration Utility |
| Mounting |
Desktop / Rackmount (19-inch) |
| Energy Saving |
Up to 40% power reduction |
| Weight |
1.94 kg |
| SKU |
TL-SG1016DE |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SG1016D 16-Port Gigabit Unmanaged Switch — cost-effective alternative without management features
- TP-Link TL-SG1008P 8-Port Gigabit PoE Switch — add PoE capability to your network edge
- Cat6 Ethernet patch cables — for reliable Gigabit connections throughout your installation
- 19-inch rack cabinet or patch panel — for structured cabling in comms cabinets
Frequently Asked Questions
What is the difference between the TL-SG1016D and the TL-SG1016DE?
The TL-SG1016D is a fully unmanaged switch with no configuration options. The TL-SG1016DE adds web-based management with VLAN, QoS, IGMP Snooping, Port Mirroring, and Loop Prevention — making it significantly more capable for business and security network deployments.
How do I manage the TL-SG1016DE?
You can manage it via its built-in web interface using any browser, or through the free TP-Link Easy Smart Configuration Utility, which lets you discover and configure multiple Easy Smart switches from a single application.
Can the TL-SG1016DE be rack-mounted?
Yes. It supports both desktop placement and 19-inch rackmount installation. Rack ears are typically included in the box.
Does this switch support PoE?
No. The TL-SG1016DE does not support Power over Ethernet. If you need PoE for IP cameras or wireless access points, consider a TP-Link PoE switch such as the TL-SG1008P or TL-SG1218P.
Is the TL-SG1016DE suitable for IP camera and CCTV networks?
Yes. VLAN support lets you isolate camera traffic from your main network, and IGMP Snooping efficiently manages multicast video streams. It is a strong choice for medium-sized surveillance network infrastructure where traffic control is important.
