Description

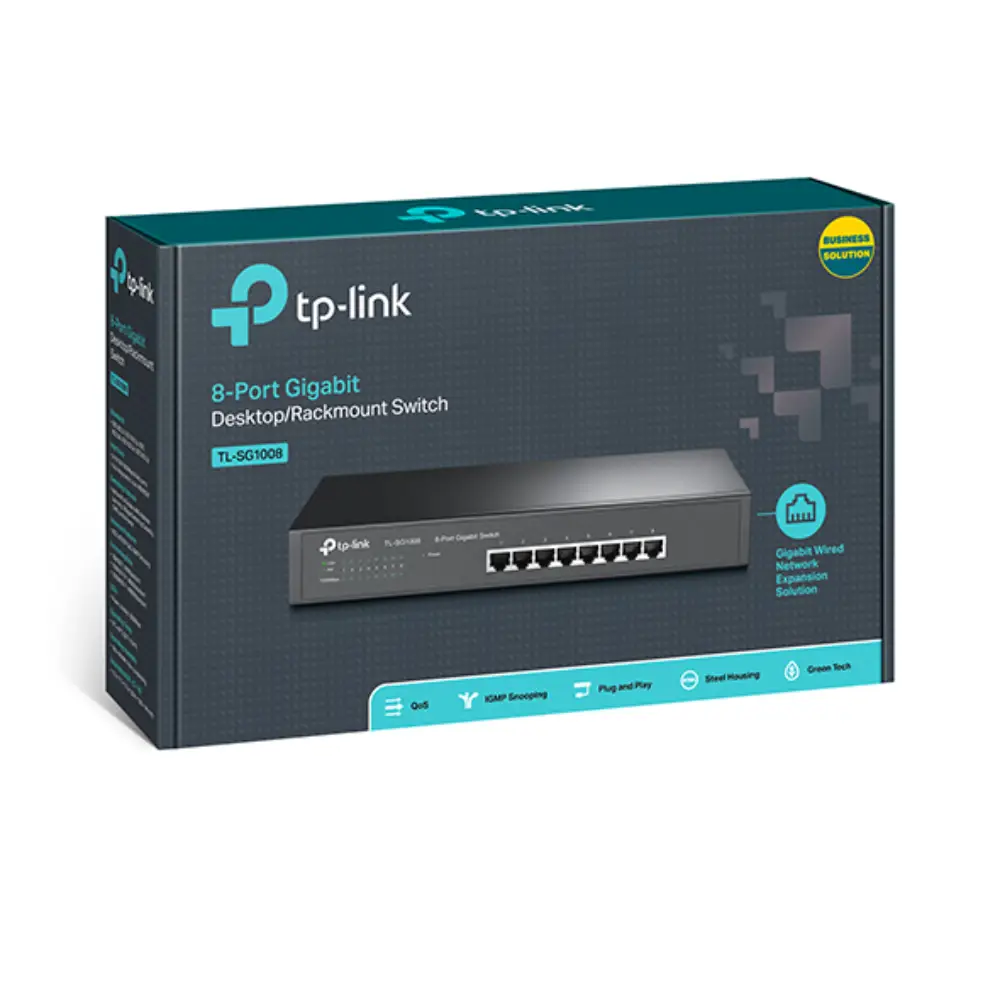

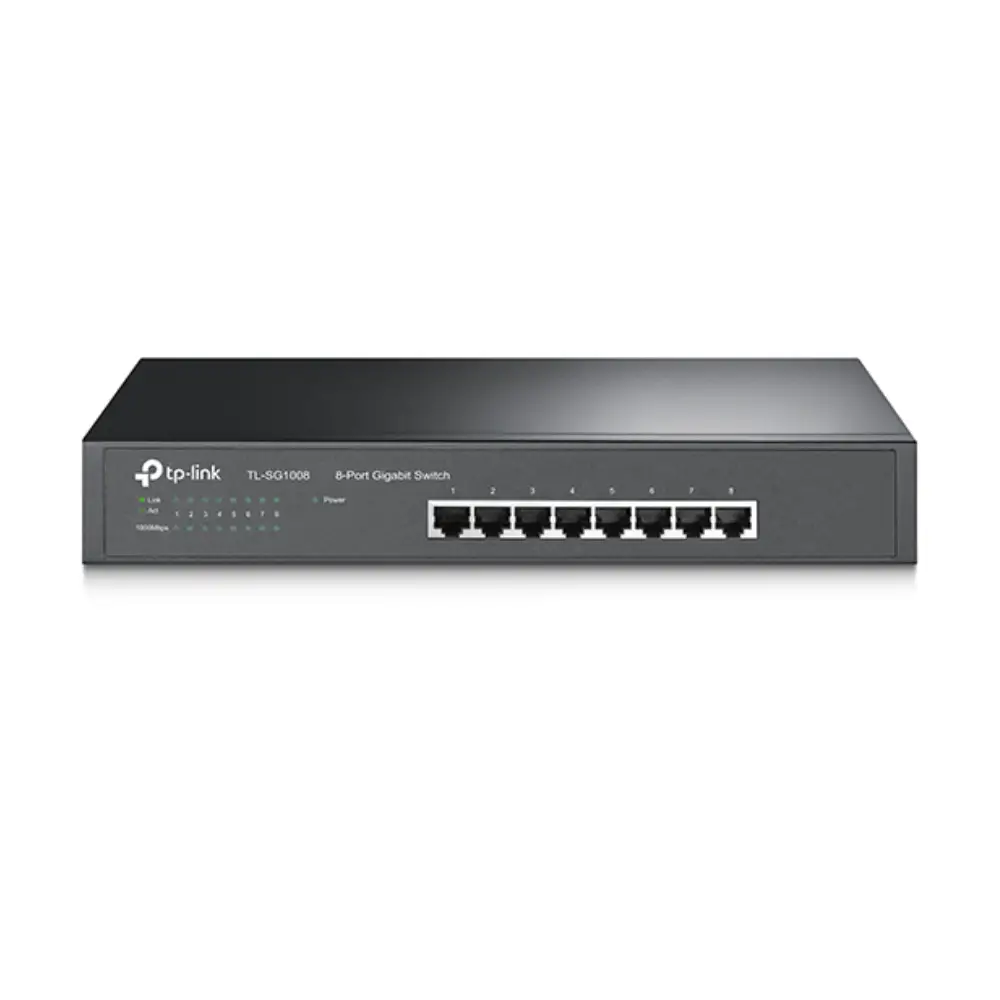

TP-Link TL-SG1008 — 8-Port Gigabit Unmanaged Switch
The TP-Link TL-SG1008 is a reliable, plug-and-play gigabit switch designed for small offices, home networks, and security system installations. With eight gigabit ports, a fanless steel chassis, and support for both desktop and 19-inch rack mounting, it delivers fast, quiet, and flexible connectivity right out of the box.
Key Features
- 8 × 10/100/1000Mbps RJ45 ports for full gigabit connectivity
- 16 Gbps switching capacity with non-blocking architecture
- Fanless design — completely silent operation
- Plug and play — no configuration or software required
- Desktop and 19-inch rackmount compatible (1U)
- Energy-efficient technology reduces power consumption by up to 60%
- Auto-MDI/MDIX — no crossover cables needed
- IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex)
- MAC address auto-learning and auto-aging
- 100% data filtering — eliminates error packets
- Compact steel case for durability in professional environments
Use Cases
-
CCTV & IP Camera Systems: Expand network ports for NVRs and IP cameras without complex configuration
-
Small Office Networks: Connect workstations, printers, and NAS devices on a single gigabit network
-
Home Networks: Extend wired connections from a router or modem to multiple devices
-
Server Rooms & Comms Cabinets: Rackmount in a 19-inch cabinet for a clean, professional installation
-
Retail & POS Environments: Reliable wired connectivity for point-of-sale terminals and peripherals
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG1008 |
| Ports |
8 × 10/100/1000Mbps RJ45 |
| Switching Capacity |
16 Gbps |
| Forwarding Mode |
Store and Forward |
| MAC Address Table |
4K |
| Flow Control |
IEEE 802.3x (Full Duplex), Backpressure (Half Duplex) |
| Mounting |
Desktop / 19-inch Rack (1U) |
| Cooling |
Fanless (passive) |
| Chassis |
Steel |
| Power Saving |
Up to 60% energy reduction |
| Standards |
IEEE 802.3i, 802.3u, 802.3ab, 802.3x |
| SKU |
TL-SG1008 |
Frequently Asked Questions
Does the TL-SG1008 require any software or configuration?
No. The TL-SG1008 is a fully unmanaged switch — simply plug in your network cables and it works immediately. There is no software, web interface, or configuration required.
Can it be rackmounted?
Yes. The TL-SG1008 supports both desktop placement and 19-inch rack mounting (1U). Rack mount brackets are included in the box.
Is it suitable for use with IP cameras and NVRs?
Absolutely. The TL-SG1008 is a popular choice for CCTV and IP camera installations. It provides eight gigabit ports to connect IP cameras, NVRs, and other network devices without any configuration overhead.
Is the fan noisy?
The TL-SG1008 is completely fanless, meaning it operates in total silence. This makes it ideal for office environments, home installations, and anywhere noise is a concern.
Does it support PoE (Power over Ethernet)?
No. The TL-SG1008 does not support PoE. If you need to power IP cameras or access points directly from the switch, consider a TP-Link PoE switch from our range.
Is this product in stock and available in Australia?
Yes. The TL-SG1008 is stocked locally and ships Australia-wide from CCTV Guru. Orders are dispatched promptly from our Australian warehouse.
