Description
Compact Gigabit PoE++ Power for Desktops, Workbenches & Small Installations
The TP-Link TL-SG1006PP is a plug-and-play 6-port gigabit desktop switch that delivers both data and power over a single Ethernet cable. With one 60W PoE++ port and three 30W PoE+ ports, it's purpose-built for powering high-demand devices like PTZ cameras, wireless access points, and VoIP phones — all from a compact, fanless desktop unit. Ideal for small offices, retail counters, and on-site security installations across Australia.
Key Features
-
1× PoE++ Port (802.3bt) — Up to 60W — Power high-demand devices such as PTZ cameras, multi-radio access points, or thin clients from a single port.
-
3× PoE+ Ports (802.3at/af) — Up to 30W Each — Power standard IP cameras, VoIP phones, and wireless APs without separate power adaptors.
-
64W Total PoE Budget — Sufficient for a mixed deployment of PoE and PoE++ devices in a small installation.
-

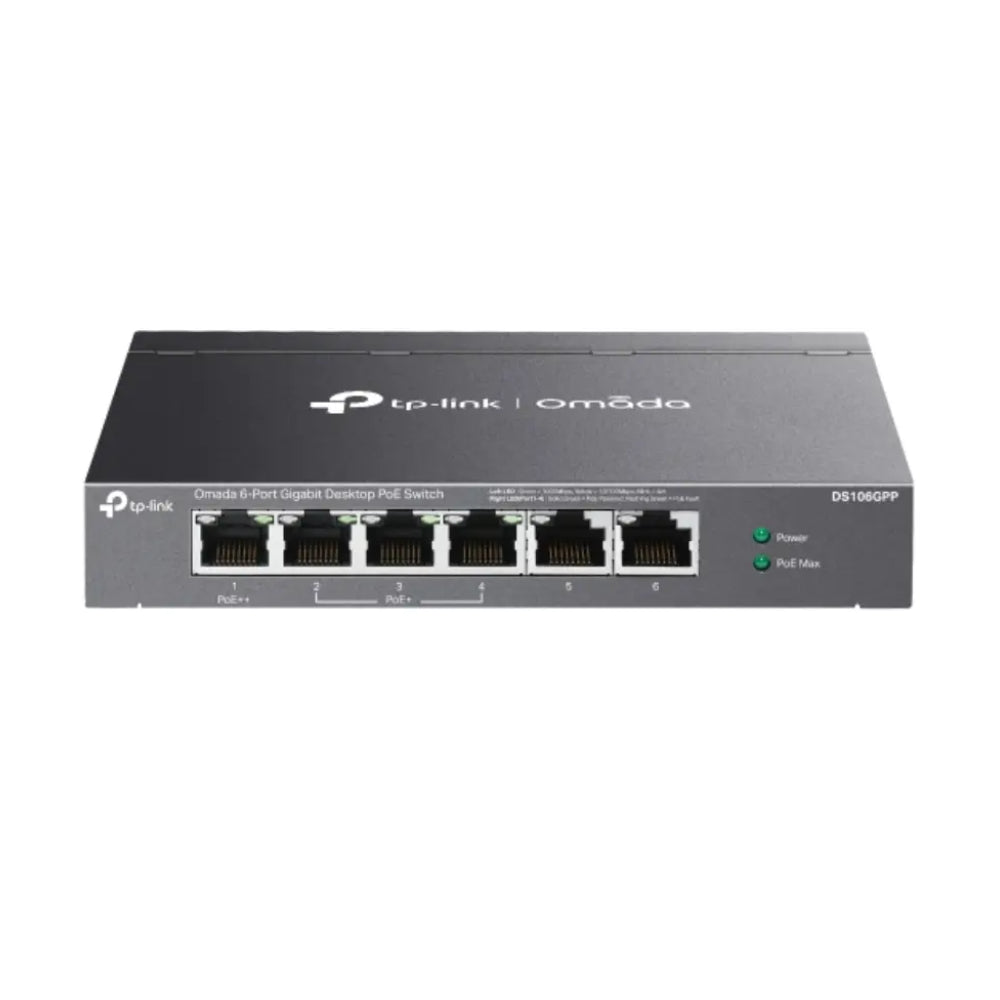

6× Gigabit RJ45 Ports — Full gigabit speeds across all ports for fast, low-latency data transfer.
-
Extend Mode (up to 250m) — Extend PoE data and power transmission up to 250 metres at 10 Mbps — useful for cameras positioned far from the switch.
-
PoE Auto Recovery — Automatically detects and reboots unresponsive PoE devices, reducing the need for manual intervention on-site.
-
802.1p/DSCP QoS — Prioritises latency-sensitive traffic such as video streams and VoIP calls for smoother performance.
-
Plug and Play — No configuration, no software, no login. Connect and go.
-
Desktop Form Factor — Compact and fanless design suits desktops, shelves, and small comms enclosures.
Use Cases
-
PTZ Camera Power — The 60W PoE++ port can power demanding PTZ cameras that exceed standard PoE+ limits.
-
Small CCTV Installations — Power up to 3 standard IP cameras and one high-power device from a single compact switch.
-
Small Office Networking — Connect workstations, a VoIP phone, and a wireless AP from one desktop unit without a rack.
-
Retail & Hospitality — Discreet desktop placement behind a counter to power a camera, EFTPOS terminal hub, and AP simultaneously.
-
Remote or Extended Runs — Use Extend Mode to reach cameras or APs up to 250m away without additional hardware.
-
IT Technicians On-Site — Portable plug-and-play switch for temporary deployments, testing, or staged rollouts.
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG1006PP |
| Total Ports |
6× 10/100/1000 Mbps RJ45 |
| PoE++ Port |
1× Port (802.3bt) — up to 60W |
| PoE+ Ports |
3× Ports (802.3at/af) — up to 30W each |
| Total PoE Budget |
64W |
| PoE Standards |
IEEE 802.3af / 802.3at / 802.3bt |
| QoS |
802.1p / DSCP |
| Extend Mode Range |
Up to 250m at 10 Mbps |
| PoE Auto Recovery |
Yes |
| Form Factor |
Desktop (fanless) |
| Weight |
860g |
| Vendor |
TP-Link |
Downloads
📄 Download TL-SG1006PP Datasheet (PDF)
Frequently Asked Questions
What is the difference between PoE, PoE+, and PoE++?
PoE (802.3af) delivers up to 15.4W per port, PoE+ (802.3at) delivers up to 30W, and PoE++ (802.3bt) delivers up to 60W or 90W depending on the type. The TL-SG1006PP includes one 60W PoE++ port and three 30W PoE+ ports, making it suitable for both standard and high-power devices.
Can I power a PTZ camera from this switch?
Yes. PTZ cameras typically require 25–50W depending on the model. The 60W PoE++ port on the TL-SG1006PP can comfortably power most PTZ cameras. Check your camera's power specification before connecting.
Does the 64W PoE budget cover all 4 PoE ports simultaneously?
The total PoE budget is 64W shared across all PoE ports. If you connect a 60W device to the PoE++ port, the remaining 4W is available for the PoE+ ports. Plan your device power draw accordingly to avoid exceeding the budget.
Does this switch require any configuration?

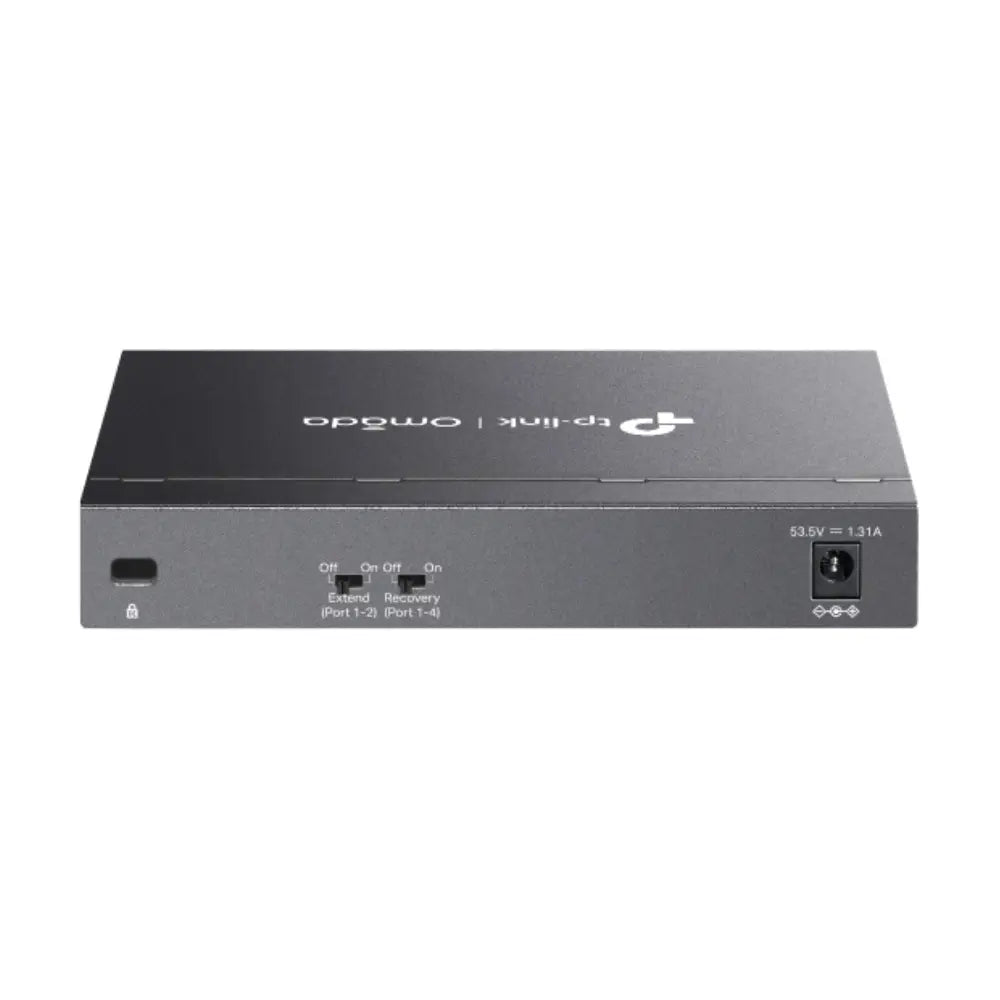

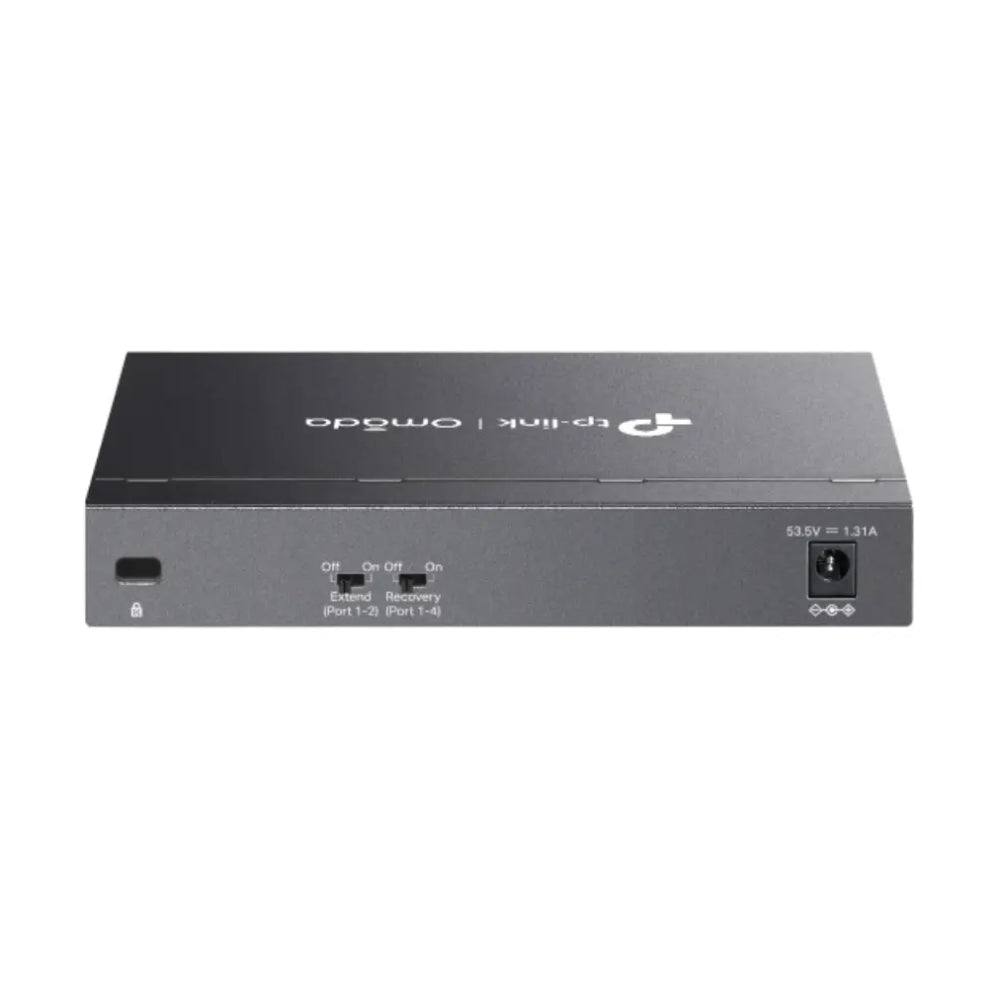

No. The TL-SG1006PP is fully unmanaged and plug-and-play. Extend Mode and other hardware features are toggled via physical DIP switches on the unit — no software or login required.
What is PoE Auto Recovery and why does it matter?
PoE Auto Recovery monitors connected PoE devices and automatically power-cycles any that become unresponsive. This is particularly useful for IP cameras and wireless APs that may occasionally freeze, eliminating the need for a manual site visit to reboot the device.
Is this switch suitable for outdoor use?
No. The TL-SG1006PP is designed for indoor desktop use. For outdoor or harsh-environment installations, use a weatherproof enclosure or choose a switch rated for outdoor deployment.
