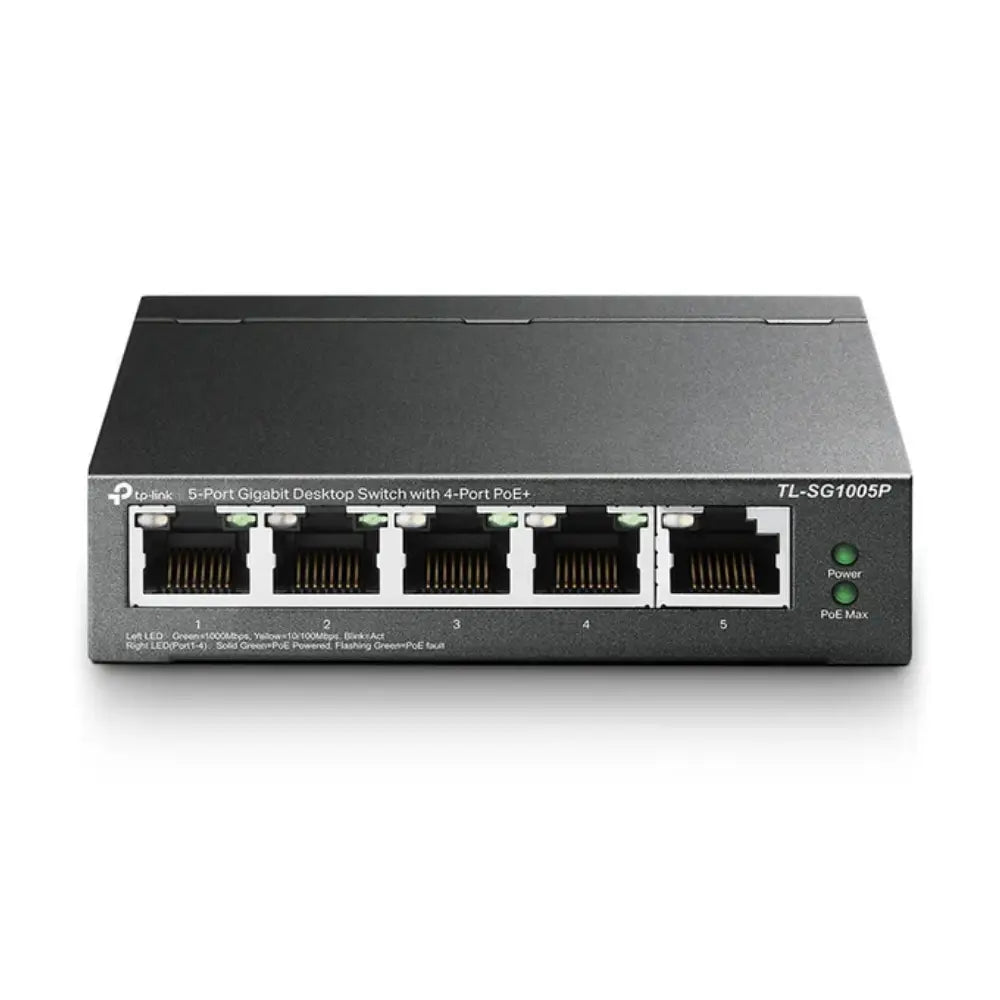

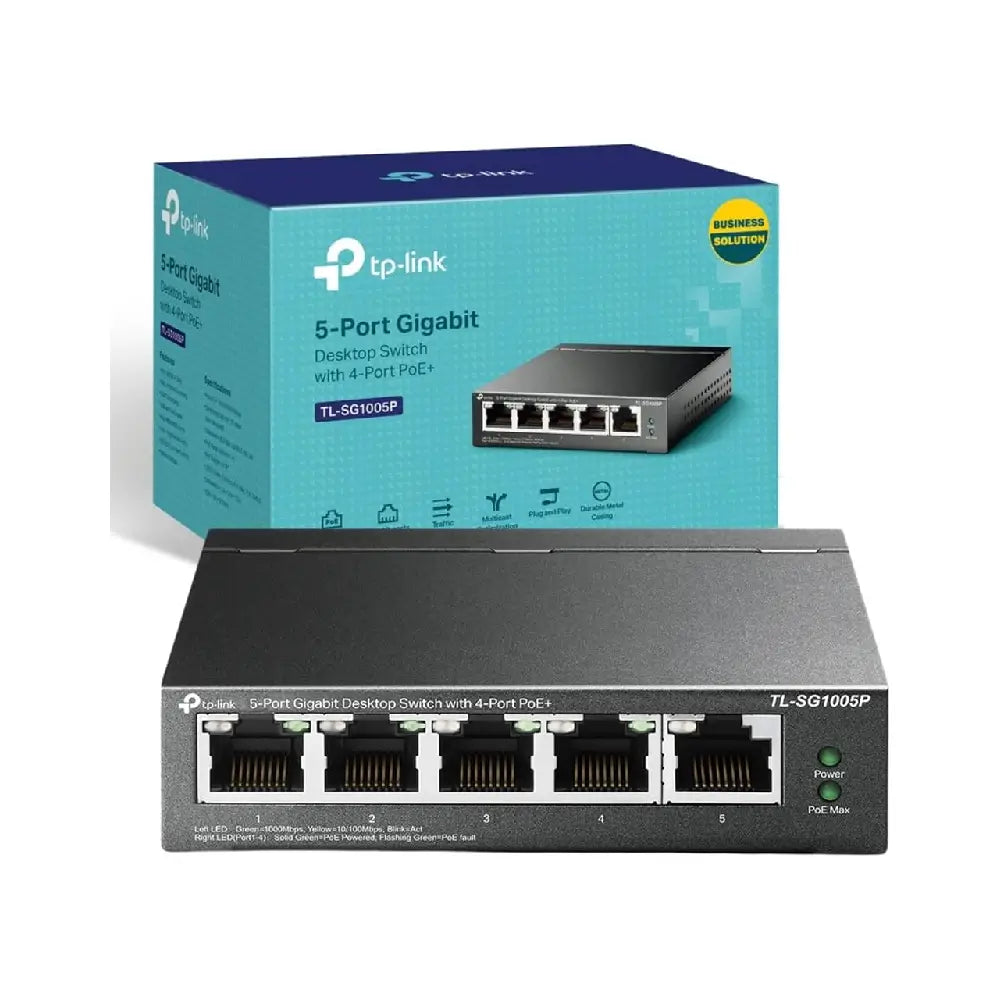

TP-Link TL-SG1005P 5-Port Gigabit PoE Switch (4-Port PoE, 56W)
Power and Connect Your Network Devices — Without the Clutter
The TP-Link TL-SG1005P is a compact, plug-and-play Gigabit switch designed for small offices, home networks, and security installations. With four PoE-enabled ports delivering up to 56W total, it powers IP cameras, VoIP phones, and wireless access points directly over a single Ethernet cable — no separate power adapters required.
Key Features
- 5 × Gigabit RJ45 ports (10/100/1000Mbps) with auto-negotiation and auto MDI/MDIX
- 4 × PoE ports compliant with IEEE 802.3af/at — up to 15.4W per port
- 56W total PoE power budget across all ports
- 802.1p/DSCP QoS for smooth handling of latency-sensitive traffic
- IGMP Snooping for efficient multicast management
- Fanless, silent operation — ideal for office and residential environments
- Plug-and-play setup — no configuration or software required
- Compact desktop form factor (99.8 × 98 × 25 mm)
Typical Use Cases
-
IP Camera Systems: Power and connect up to 4 PoE IP cameras from a single switch — perfect for small CCTV installations.
-
VoIP Phones: Deliver power and data to desk phones without additional power supplies.
-
Wireless Access Points: Extend Wi-Fi coverage by powering PoE-capable APs directly.
-
Small Office Networks: Expand wired connectivity for workstations, printers, and NAS devices.
-
Home Networks: Tidy up your home setup with a single cable run to each device.
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG1005P |
| Ports |
5 × 10/100/1000Mbps RJ45 |
| PoE Ports |
Ports 1–4 (IEEE 802.3af/at) |
| PoE Per Port |
Up to 15.4W |
| Total PoE Budget |
56W |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2K |
| Jumbo Frame |
16 KB |
| Dimensions (W × D × H) |
99.8 × 98 × 25 mm |
| Weight |
0.78 kg |
| Power Supply |
External adapter — 53.5 VDC / 1.31A |
| Max Power Consumption |
4.29W (no PD) / 74.24W (full PoE load) |
| Cooling |
Fanless |
| Network Media |
Cat 3/4/5 (10M), Cat 5/5e (100M), Cat 5/5e/6+ (1000M) — max 100m |
| QoS |
802.1p / DSCP |
| IGMP Snooping |
Supported |
| Flow Control |
IEEE 802.3x |
| Barcode |
6935364083212 |
Frequently Asked Questions
How many IP cameras can the TL-SG1005P power?
Up to 4 PoE-powered devices can be connected on ports 1–4. The total PoE budget is 56W, so the number of cameras depends on each camera's power draw. Most standard IP cameras consume 5–12W, allowing you to run 4 cameras simultaneously with headroom to spare.
Does this switch require any configuration?
No. The TL-SG1005P is fully plug-and-play. Simply connect your devices and power on — no software, login, or setup is needed.
Is it compatible with all PoE devices?
It is compatible with IEEE 802.3af and 802.3at compliant powered devices (PDs). Always verify your device's PoE standard before connecting.
Can I use it with non-PoE devices?
Yes. All 5 ports support standard Gigabit data. Non-PoE devices connected to ports 1–4 will receive data only — no power will be supplied unless the device negotiates PoE.
Is the TL-SG1005P suitable for outdoor use?
No. This is a desktop switch designed for indoor use. For outdoor or harsh-environment installations, consider a ruggedised or weatherproof PoE switch.
What is the warranty on this product in Australia?
TP-Link products sold in Australia are covered by a standard manufacturer's warranty. Please refer to the TP-Link Australia warranty policy or contact us for details.
