Description

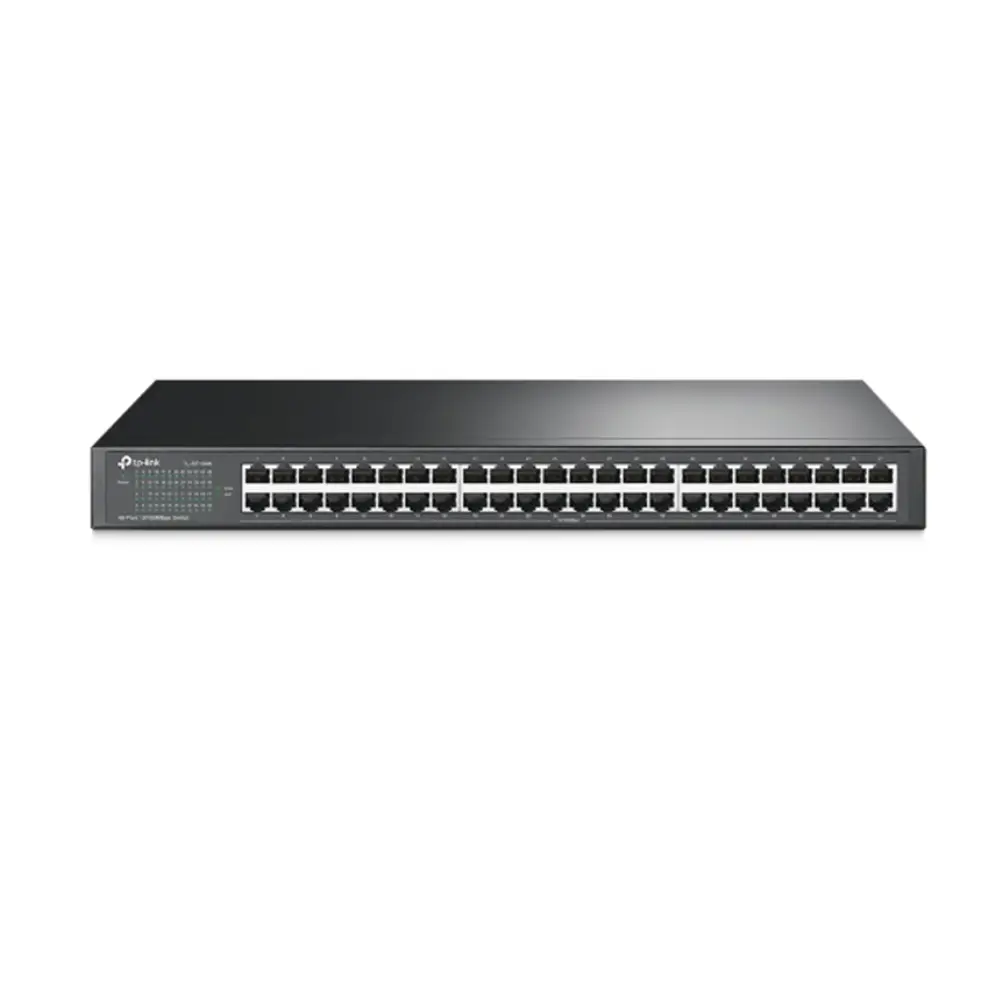

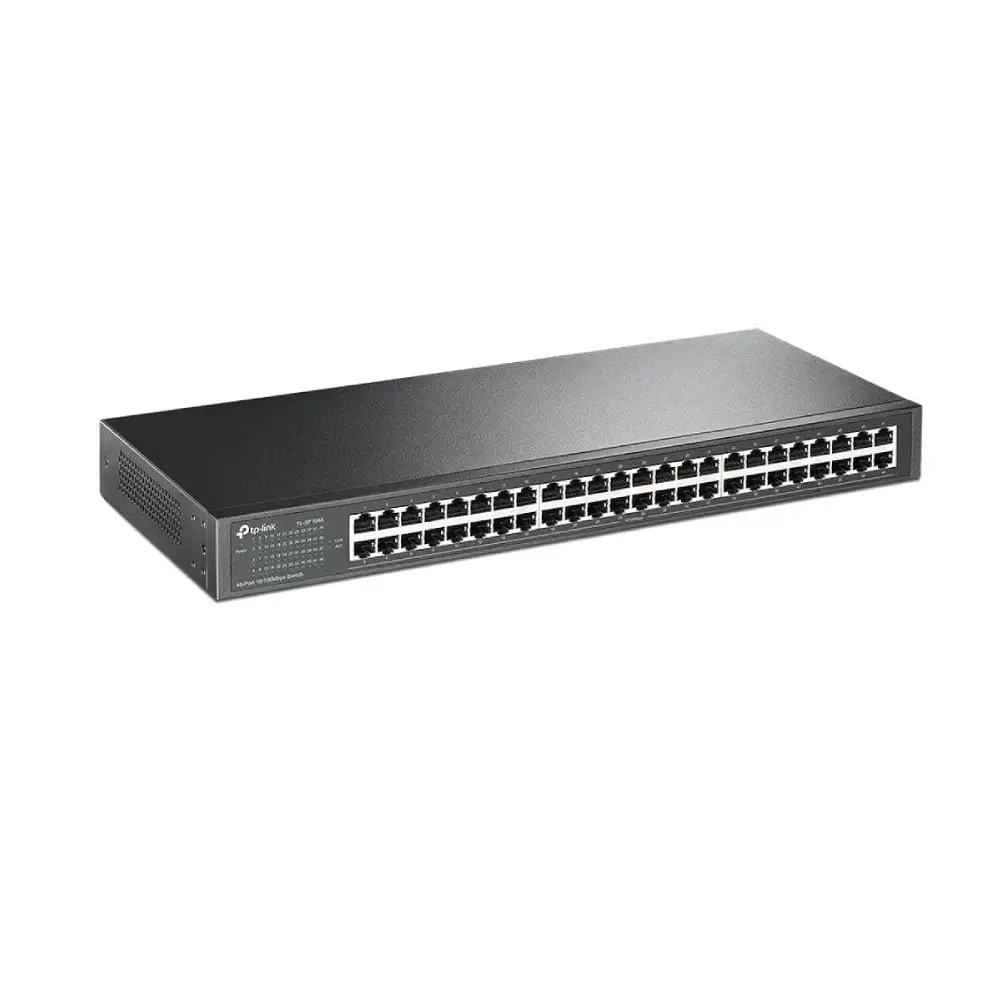

TP-Link TL-SF1048 48-Port 10/100Mbps Rackmount Switch
The TP-Link TL-SF1048 is a reliable, plug-and-play 48-port Fast Ethernet rackmount switch designed for small to medium-sized business networks. With a compact 19-inch rack-mountable steel chassis and energy-efficient design, it delivers consistent wired connectivity without the complexity of managed switches.
Key Features
- 48 x 10/100Mbps RJ45 ports for high-density wired connections
- 9.6Gbps non-blocking switching capacity for maximum throughput
- Energy-efficient technology reduces power consumption by up to 50%
- 100% data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex)
- Auto-MDI/MDIX on all ports — no crossover cables required
- MAC address auto-learning and auto-aging
- N-Way Auto-Negotiation and Store-and-Forward switching
- 19-inch rack-mountable steel case — fits standard server racks
- Plug-and-play — no software or configuration required
Use Cases
-
Small to medium business offices — expand wired network ports without managed switch complexity
-
Security and surveillance installations — connect IP cameras, NVRs, and access control devices on a dedicated network segment
-
Server rooms and comms racks — rack-mount alongside patch panels and other 19-inch equipment
-
Education and hospitality — cost-effective high-port-count switching for classrooms, hotels, and venues
Specifications
| Specification |
Detail |
| Model |
TL-SF1048 |
| Ports |
48 x 10/100Mbps RJ45 |
| Switching Capacity |
9.6Gbps |
| Switching Method |
Store and Forward |
| MAC Address Table |
Auto-learning and auto-aging |
| Flow Control |
IEEE 802.3x (Full Duplex), Backpressure (Half Duplex) |
| MDI/MDIX |
Auto on all ports |
| Form Factor |
19-inch Rackmount, 1U |
| Enclosure |
Steel |
| Weight |
2.58 kg |
| SKU / Barcode |
TL-SF1048 / 6935364021702 |
| Energy Saving |
Up to 50% power reduction |
| Management |
Unmanaged (Plug and Play) |
Frequently Asked Questions
Is the TL-SF1048 a managed or unmanaged switch?
It is an unmanaged switch. There is no web interface, CLI, or software required — simply plug in your cables and it works immediately.
Can I rack-mount the TL-SF1048?
Yes. The TL-SF1048 fits a standard 19-inch equipment rack and occupies 1U of rack space. Rack-mount brackets are included.
Does it support VLANs or QoS?
No. As an unmanaged switch, it does not support VLANs, QoS, or port mirroring. For those features, consider a managed switch from the TP-Link TL-SG series.
Is it suitable for IP camera networks?
Yes. The TL-SF1048 is well-suited for connecting IP cameras and NVRs on a dedicated Fast Ethernet segment, particularly in installations where PoE is provided by a separate injector or PoE switch upstream.
Does it ship Australia-wide?
Yes. CCTV Guru ships the TL-SF1048 Australia-wide from local stock.
