Description

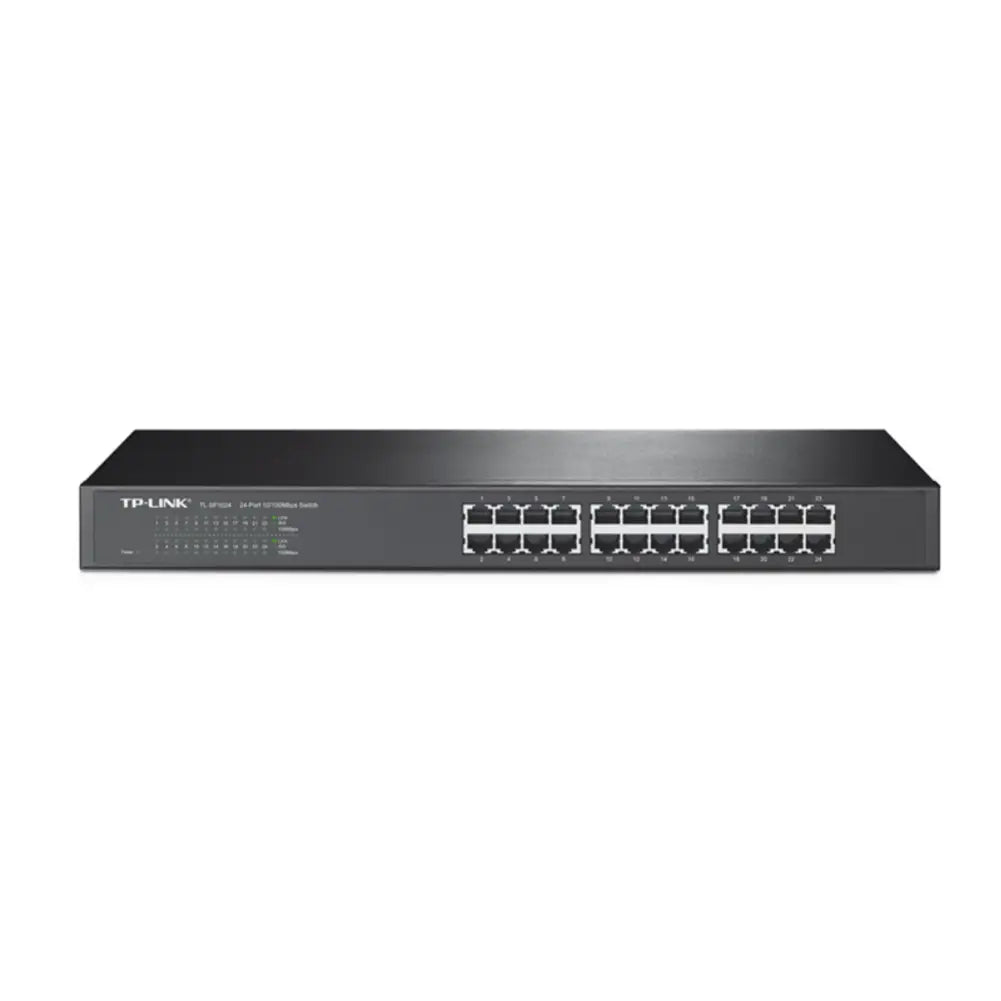

TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Unmanaged Switch
A cost-effective, high-port-count Fast Ethernet switch built for the rack. The TP-Link TL-SF1024 delivers 24 ports of 10/100Mbps connectivity in a standard 19-inch, 1U steel rackmount chassis — complete with a rackmount kit included in the box. With plug-and-play simplicity, fanless silent operation, and Green Technology saving up to 75% power, it’s a reliable, low-maintenance choice for comms cabinets, server rooms, and small business network infrastructure.
Key Features
- 24 × 10/100Mbps Auto-Negotiation RJ45 ports for reliable Fast Ethernet connectivity
- Auto MDI/MDIX on all ports — no crossover cables required
- 4.8Gbps switching capacity with a 3.57Mpps packet forwarding rate
- 8K MAC address table with auto-learning
- 2Mb buffer memory for handling traffic bursts
- Store-and-forward switching for error-free packet delivery
- IEEE 802.3x flow control for reliable, congestion-free data transfer
- Green Technology — saves up to 75% power by adjusting consumption based on link status and cable length
- Fanless design — completely silent operation
- Standard 19-inch, 1U steel rackmount case — rackmount kit and rubber feet included
- Internal power supply (100–240V AC) — no external adapter required
- FCC, CE, and RoHS certified
- Plug and play — no configuration or software required
Use Cases
- Comms cabinet or server room deployments requiring a high-port-count Fast Ethernet switch
- Expanding wired network capacity in small to medium offices or retail environments
- Upgrading legacy 10Mbps networks to Fast Ethernet (100Mbps)
- Connecting up to 24 wired devices in a cost-effective, unmanaged rack setup
- Energy-conscious deployments where low power draw and silent operation are priorities
Specifications
| Specification |
Detail |
| Model |
TL-SF1024 |
| Ports |
24 × 10/100Mbps RJ45 |
| Standards |
IEEE 802.3i, 802.3u, 802.3x |
| Switching Capacity |
4.8 Gbps |
| Packet Forwarding Rate |
3.57 Mpps |
| MAC Address Table |
8K |
| Buffer Memory |
2Mb |
| Transfer Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Energy Saving |
Up to 75% (Green Technology) |
| Fan |
Fanless (silent) |
| Power Supply |
Internal — 100–240V AC, 50/60Hz |
| Max Power Consumption |
3.53W (220V/50Hz) |
| Mounting |
19-inch rackmount, 1U (kit included) |
| Case |
Steel |
| Dimensions (W × D × H) |
440 × 180 × 44 mm |
| Operating Temperature |
0°C – 40°C |
| Certifications |
FCC, CE, RoHS |
| Weight |
2.26 kg |
| In the Box |
Switch, power cord, rackmount kit, rubber feet, installation guide |
| SKU |
TL-SF1024 |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch — upgrade option for full Gigabit speeds in the same form factor
- TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch — adds VLAN, QoS, and web management
- Cat5e Ethernet patch cables — for reliable 100Mbps connections throughout your installation
- 19-inch rack cabinet or patch panel — for structured cabling in comms cabinets
Frequently Asked Questions
Does the TL-SF1024 require any configuration?
No. It is a fully unmanaged, plug-and-play switch. Connect your Ethernet cables and it works immediately — no software, login, or setup required.
Does the rackmount kit come included?
Yes. The TL-SF1024 includes a rackmount kit, power cord, rubber feet, and installation guide in the box. No additional accessories are required for standard 19-inch rack installation.
What is the difference between the TL-SF1024 and the TL-SG1024D?
The TL-SF1024 supports 10/100Mbps (Fast Ethernet). The TL-SG1024D supports 10/100/1000Mbps (Gigabit Ethernet), offering up to 10× faster throughput. If your devices and cabling support Gigabit, the TL-SG1024D is the better long-term investment at a similar price point.
Is the TL-SF1024 suitable for CCTV and IP camera networks?
Yes, for installations where 100Mbps bandwidth is sufficient per camera. For higher-resolution IP cameras or NVR systems requiring more bandwidth, a Gigabit switch such as the TL-SG1024D is recommended.
Does CCTV Guru ship Australia-wide?
Yes. We ship to all states and territories across Australia. Orders are dispatched promptly from our local warehouse.
