Description

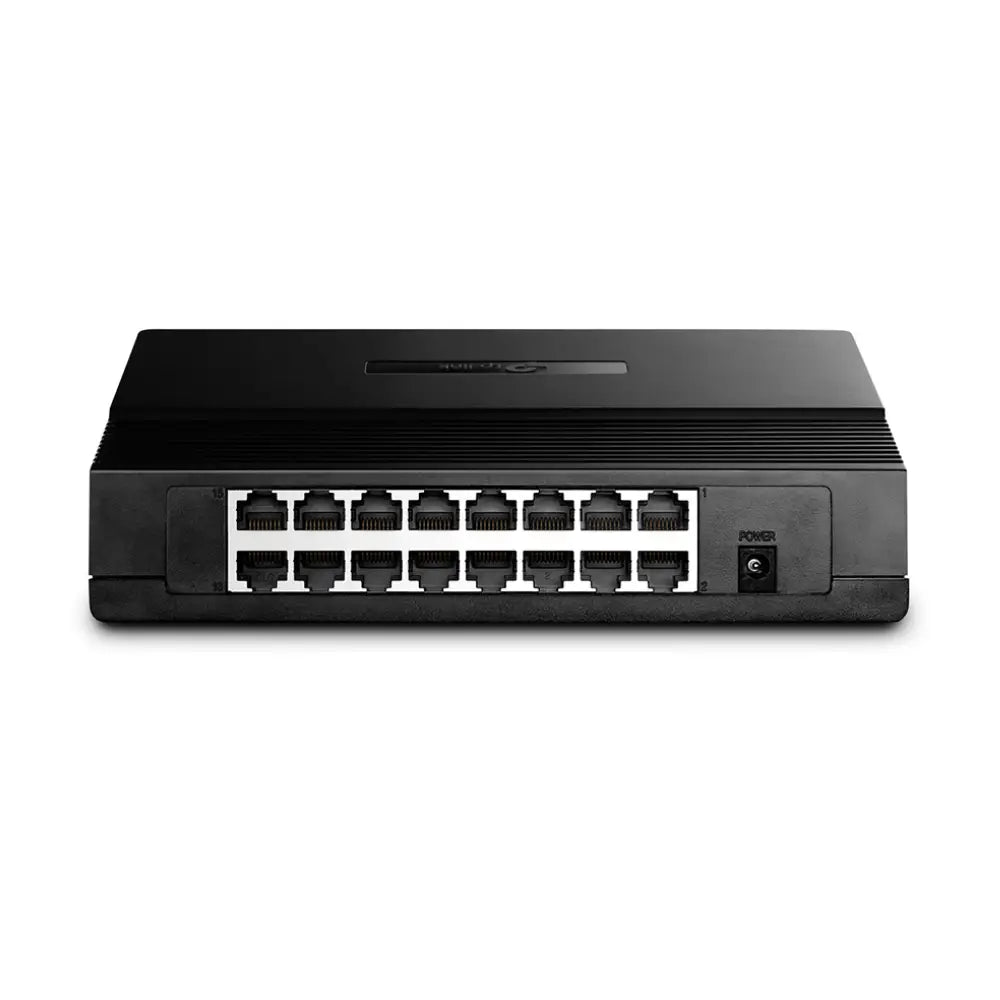

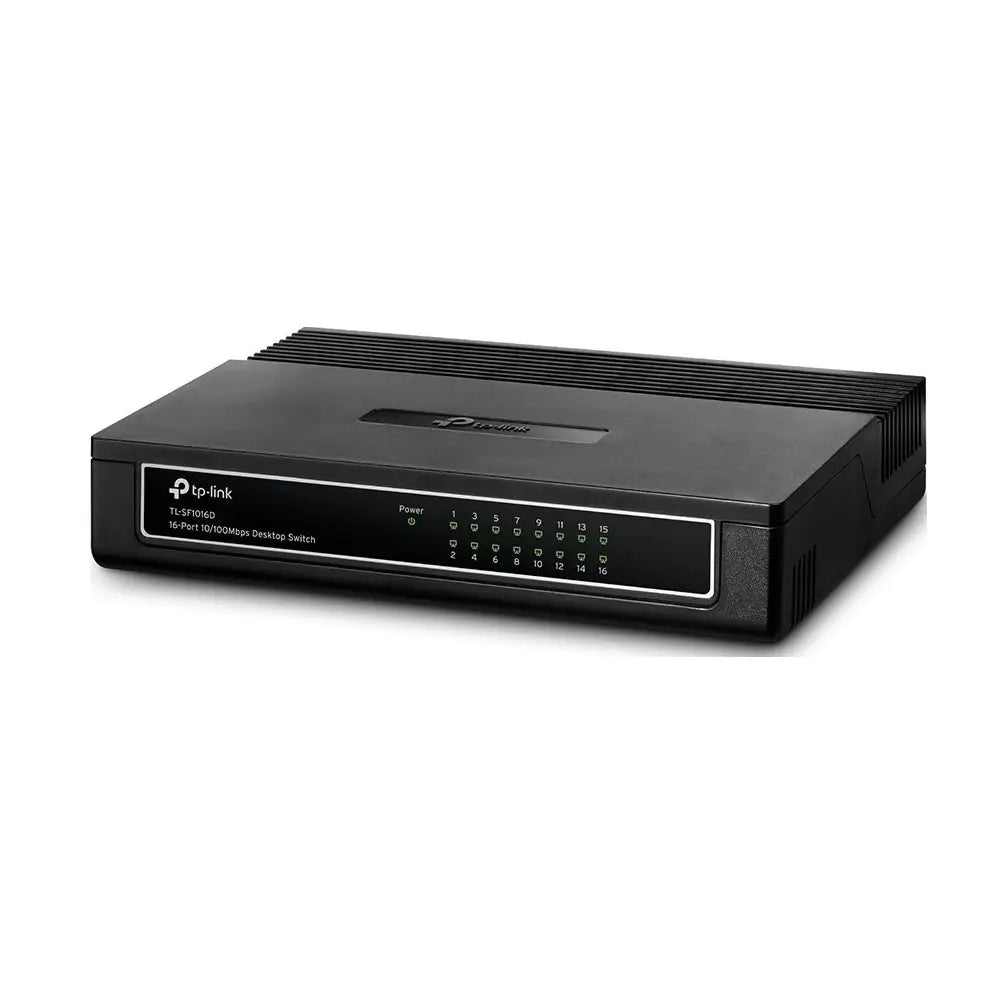

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop/Wall-Mount Switch
Simple, silent, and energy-efficient wired networking for 16 devices. The TP-Link TL-SF1016D is a compact, fanless 10/100Mbps switch in a plastic desktop case that also supports wall mounting — giving you flexible placement options in offices, retail spaces, or home environments. With plug-and-play operation and Green Ethernet technology saving up to 80% power, it’s a low-maintenance, cost-effective choice for expanding a wired network.
Key Features
- 16 × 10/100Mbps Auto-Negotiation RJ45 ports for reliable Fast Ethernet connectivity
- Auto MDI/MDIX on all ports — no crossover cables required
- Green Ethernet technology — saves up to 80% power by adjusting consumption based on link status and cable length
- IEEE 802.3x flow control for reliable, congestion-free data transfer
- Store-and-forward switching for error-free packet delivery
- 2K MAC address table with auto-learning
- Fanless design — completely silent operation
- Plastic desktop case with wall-mount support — flexible installation options
- External power adapter (5V/0.6A) — ultra-low max power consumption of 3.23W
- Plug and play — no configuration or software required
- FCC, CE, and RoHS certified
Use Cases
- Expanding wired connectivity in small offices, home offices, or retail counters
- Wall-mounting in comms rooms or behind desks for a tidy, space-saving installation
- Connecting up to 16 wired devices without the need for managed features
- Energy-conscious deployments where low power draw is a priority
- Replacing ageing 10Mbps hubs with a modern Fast Ethernet switch
Specifications
| Specification |
Detail |
| Model |
TL-SF1016D |
| Ports |
16 × 10/100Mbps RJ45 |
| Switching Capacity |
3.2 Gbps |
| MAC Address Table |
2K |
| Auto-Negotiation / MDI/MDIX |
Yes (all ports) |
| Transfer Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x |
| Energy Saving |
Up to 80% (Green Ethernet) |
| Fan |
Fanless (silent) |
| Power Supply |
External adapter — 5.0V DC / 0.6A |
| Max Power Consumption |
3.23W (220V/50Hz) |
| Max Heat Dissipation |
11.01 BTU/h |
| Mounting |
Desktop or wall-mount |
| Case |
Plastic |
| Dimensions (W × D × H) |
200 × 142 × 40 mm |
| Certifications |
FCC, CE, RoHS |
| Weight |
600 g |
| SKU |
TL-SF1016D |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SF1005D 5-Port Fast Ethernet Switch — compact companion for smaller sub-networks
- TP-Link TL-SG1016D 16-Port Gigabit Switch — upgrade option for full Gigabit speeds
- Cat5e Ethernet patch cables — for reliable 100Mbps connections throughout your installation
Frequently Asked Questions
Does the TL-SF1016D require any configuration?
No. It is a fully unmanaged, plug-and-play switch. Connect your Ethernet cables and it works immediately — no software, login, or setup required.
Can the TL-SF1016D be wall-mounted?
Yes. The plastic case includes wall-mount support, making it easy to mount behind a desk, in a comms room, or on any flat surface for a tidy, space-saving installation.
What is the difference between the TL-SF1016D and the TL-SF1016DS?
The TL-SF1016D is a plastic desktop/wall-mount switch with an external power adapter. The TL-SF1016DS features a 13-inch steel rackmount case with an internal power supply, making it better suited to rack-based comms cabinet deployments.
What is the difference between the TL-SF1016D and the TL-SG1016D?
The TL-SF1016D supports 10/100Mbps (Fast Ethernet). The TL-SG1016D supports 10/100/1000Mbps (Gigabit Ethernet), offering up to 10× faster throughput. If your devices and cabling support Gigabit, the TL-SG1016D is the better long-term investment.
