Power and Connect Your Devices with the TP-Link TL-SF1006P

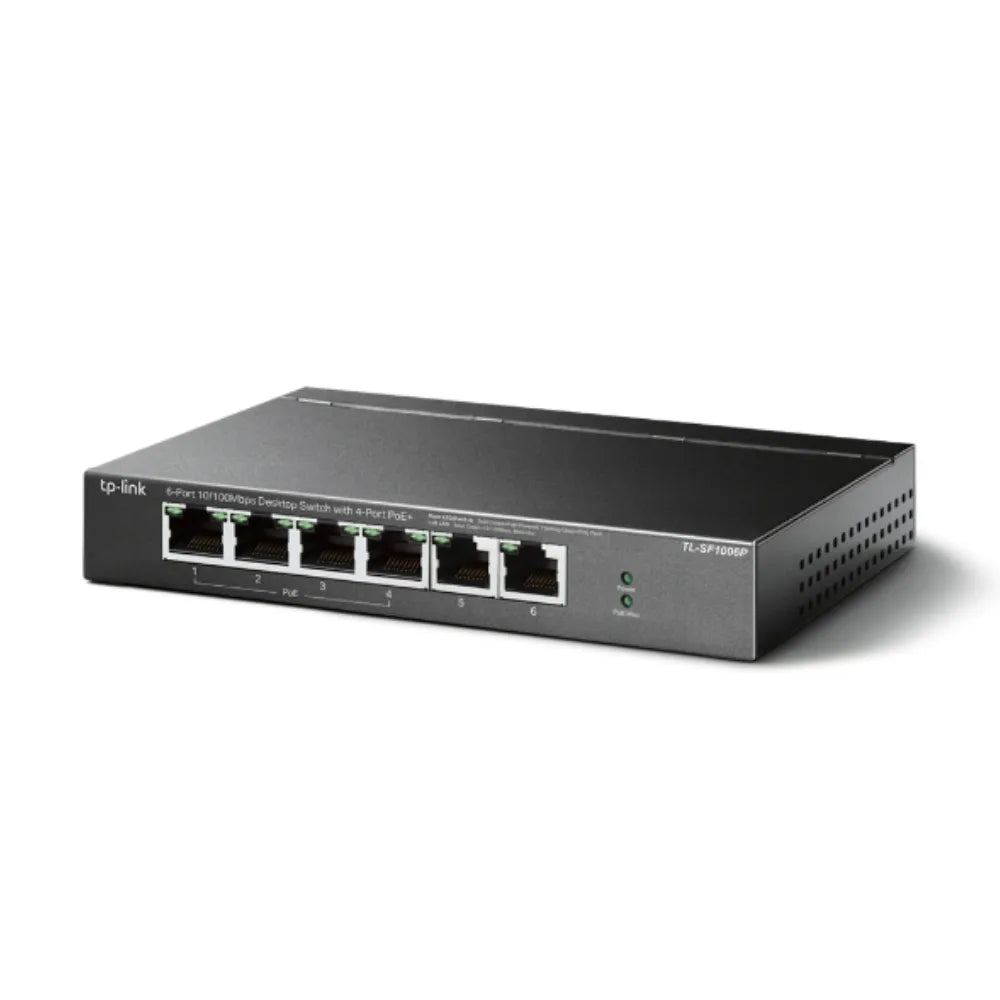

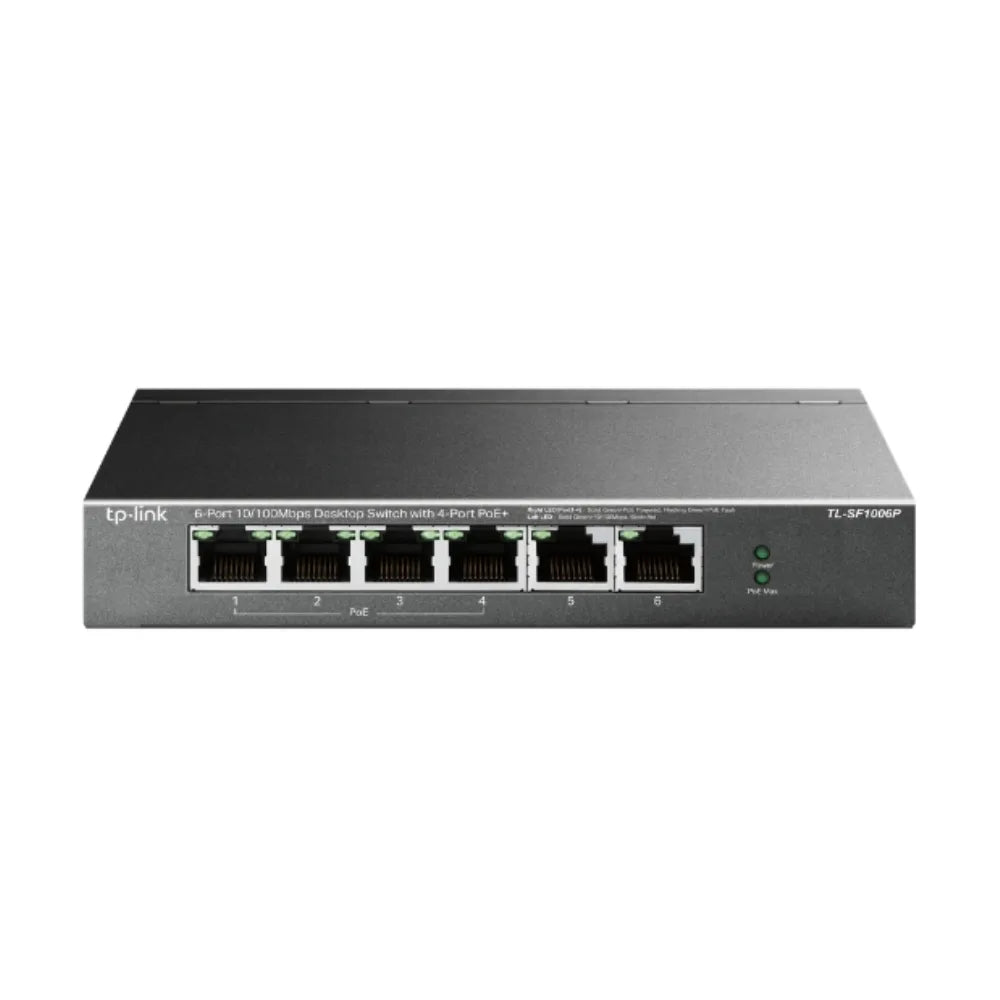

The TP-Link TL-SF1006P is a compact 6-port Fast Ethernet desktop switch designed for small offices, home networks, and security installations. With four built-in PoE+ ports, it delivers both data and power over a single cable — eliminating the need for separate power adapters for IP cameras, VoIP phones, and wireless access points.
Key Features
-
6× 10/100 Mbps RJ45 Ports — reliable Fast Ethernet connectivity for everyday networking
-
4× PoE+ Ports (802.3af/at) — power IP cameras, access points, and VoIP phones without extra cabling
-
67W Total PoE Budget — up to 30W per port to support demanding PoE+ devices
-
Extend Mode — transmit data and power up to 250m on ports 1–4 for long-distance runs
-
Priority Mode — ports 1–2 get traffic priority for latency-sensitive applications like VoIP and IP cameras
-
Fanless Design — silent operation, ideal for office and home environments
-
Plug and Play — no configuration required; simply connect and go
-
Physical Security Lock — prevents accidental disconnection
Typical Use Cases
- Powering IP security cameras in small CCTV installations
- Connecting VoIP phones in small offices without separate power supplies
- Extending network reach to wireless access points in hard-to-wire locations
- Home office networking with mixed PoE and non-PoE devices
Technical Specifications
| Specification |
Detail |
| Ports |
6× 10/100 Mbps RJ45 (Ports 1–4 PoE+) |
| PoE Standard |
IEEE 802.3af/at |
| PoE Budget |
67W total / 30W per port |
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
0.8928 Mpps |
| MAC Address Table |
2K |
| Transmission Method |
Store-and-Forward |
| Extend Mode Range |
Up to 250m (Ports 1–4) |
| Fan |
Fanless |
| Power Supply |
External adapter (53.5V DC / 1.31A) |
| Max Power Consumption |
1.9W (no PD) / 74W (full PoE load) |
| Dimensions (W×D×H) |
158 × 101 × 25 mm |
| Operating Temperature |
0–40°C |
| Certifications |
FCC, CE, RoHS |
| Warranty |
5 Years |
What's in the Box
- TL-SF1006P Switch
- External Power Adapter
- Installation Guide
Frequently Asked Questions
- Can I use non-PoE devices on this switch?
- Yes. All 6 ports support standard Ethernet. Ports 5–6 are non-PoE data-only ports. Non-PoE devices connected to ports 1–4 will receive data but no power.
- What is Extend Mode and when should I use it?
- Extend Mode allows data and power transmission up to 250m on ports 1–4 by reducing the link speed to 10 Mbps. It's ideal for IP cameras located far from the switch, such as in car parks or large properties.
- What is Priority Mode?
- Priority Mode gives ports 1–2 higher traffic priority, ensuring consistent performance for latency-sensitive devices like IP cameras or VoIP phones even when the network is busy.
- Does this switch require any software or configuration?
- No. The TL-SF1006P is fully plug-and-play with no software, login, or configuration required.
- Is this switch rack-mountable?
- No. The TL-SF1006P is a desktop form factor switch and is not designed for rack mounting.
