Description

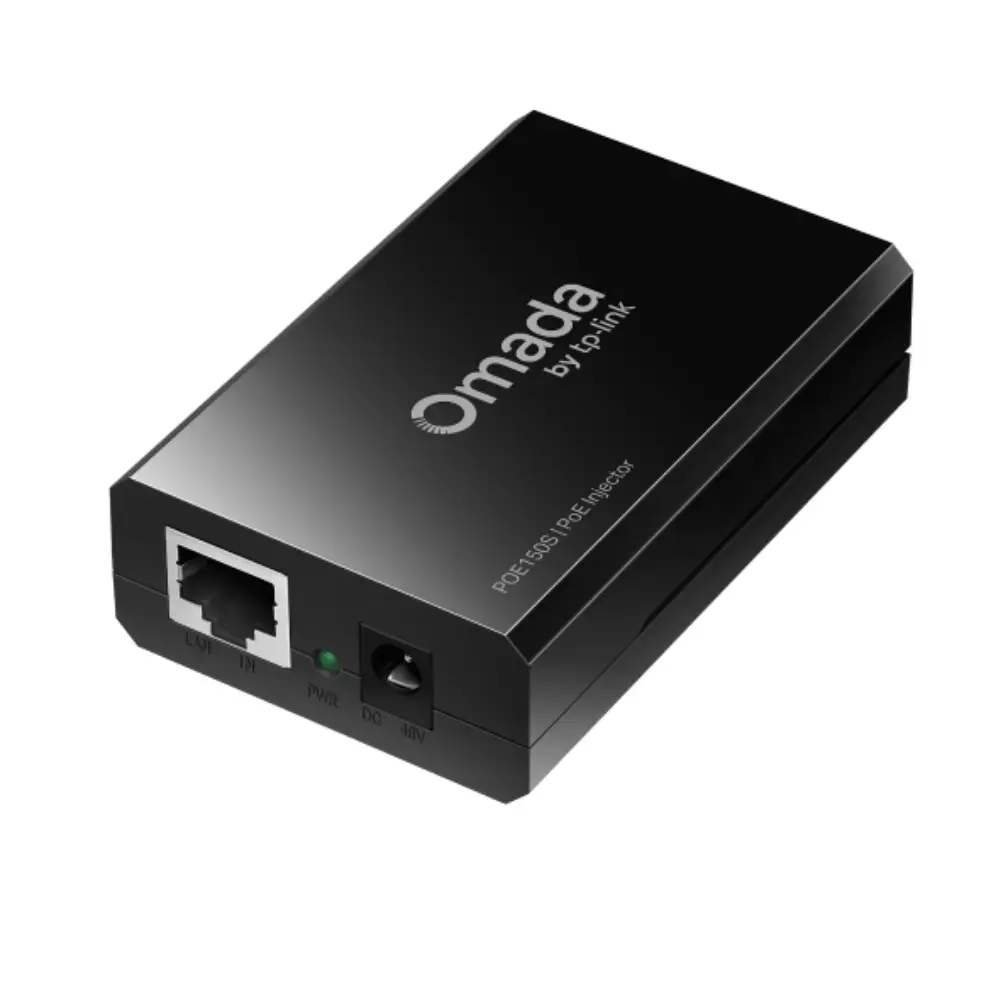

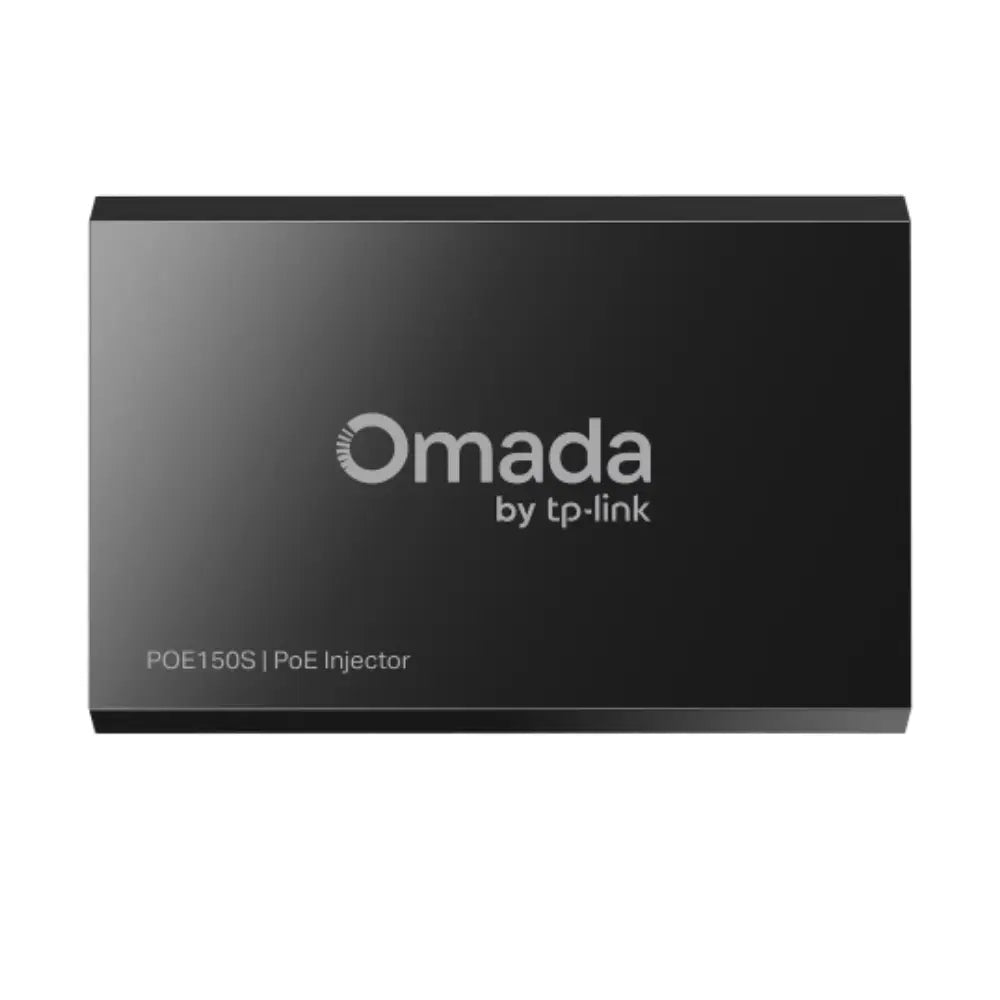

TP-Link TL-POE150S — Gigabit PoE Injector (802.3af)
The TP-Link TL-POE150S is a compact, plug-and-play PoE injector that adds Power over Ethernet capability to any standard non-PoE switch or router. It delivers both data and power to IEEE 802.3af-compliant devices over a single Cat5e/6 cable at distances up to 100 metres — no electrician, no extra power points, no fuss.
Key Features
- IEEE 802.3af compliant — works with IP cameras, access points, VoIP phones, and more
- 2 × Gigabit RJ45 ports for full-speed 1000Mbps data throughput
- Delivers power and data over a single cable up to 100m
- Auto-detects device power requirements — no manual configuration
- Plug-and-play — no software or drivers needed
- External power adapter included
Typical Use Cases
-
IP Camera Installations: Add PoE to an existing non-PoE switch to power a single IP camera without running a separate power cable
-
Wireless Access Points: Power a ceiling-mounted Wi-Fi access point from a nearby data cabinet
-
VoIP Phones: Supply power and network connectivity to a desk phone over one cable run
-
Access Control Devices: Power card readers or intercoms in locations without a nearby power outlet
-
Retrofit Installations: Upgrade an existing non-PoE network without replacing the switch
Technical Specifications
| Specification |
Detail |
| Model |
TL-POE150S |
| PoE Standard |
IEEE 802.3af |
| Ports |
2 × 10/100/1000Mbps RJ45 (Data In + PoE Out) |
| Max Cable Distance |
100m (Cat5e or better) |
| PoE Output Power |
Up to 15.4W (802.3af) |
| Power Detection |
Auto (no manual configuration required) |
| Power Supply |
External power adapter |
| Vendor |
TP-Link |
| SKU |
TL-POE150S |
| Configuration |
Plug-and-play, no software required |
Frequently Asked Questions
What is a PoE injector and do I need one?
A PoE injector adds Power over Ethernet to a single port on a non-PoE switch or router. If your switch doesn't support PoE and you need to power a device like an IP camera or access point without a nearby power outlet, a PoE injector is the most cost-effective solution.
Will the TL-POE150S work with my existing non-PoE switch?
Yes. The TL-POE150S sits between your existing switch and the PoE device. Your switch handles data as normal; the injector adds power to the cable before it reaches the end device.
Is this compatible with 802.3at (PoE+) devices?
The TL-POE150S supports IEEE 802.3af only, which provides up to 15.4W per port. Devices that require 802.3at (PoE+, up to 30W) — such as some PTZ cameras or dual-band access points — are not supported. Check your device's power requirements before purchasing.
What cable type do I need?
Cat5e or better is recommended for Gigabit speeds and reliable PoE delivery. Maximum cable run is 100 metres.
Does this ship Australia-wide?
Yes. CCTV Guru ships the TL-POE150S from local Australian stock to all states and territories.
