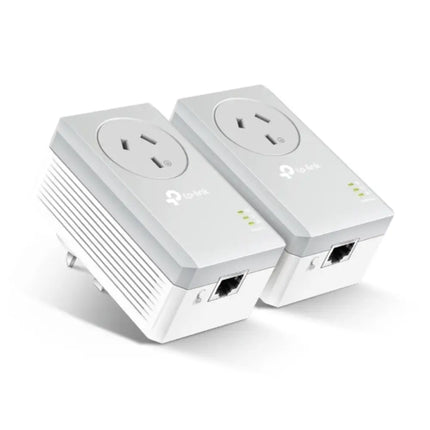

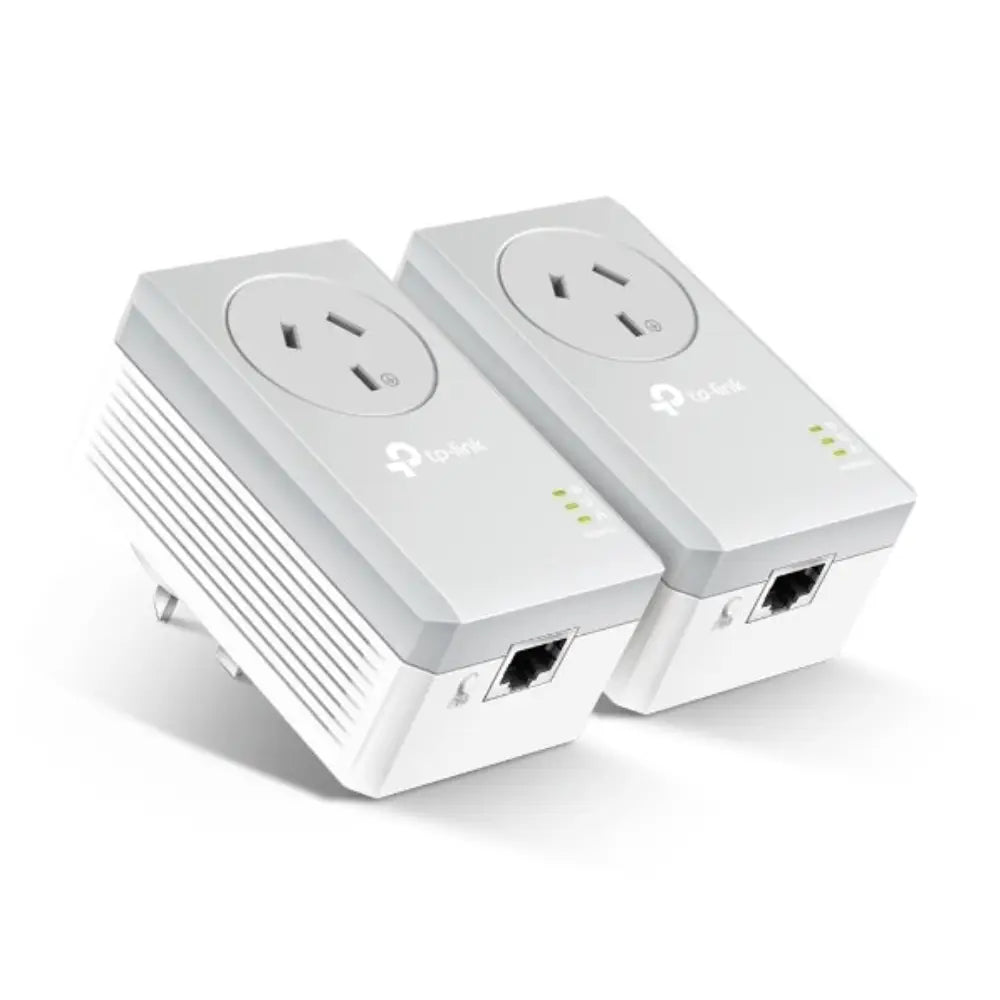

TP-Link TL-PA4010PKIT – AV600 Powerline Adapter Starter Kit with AC Pass Through
The TP-Link TL-PA4010PKIT extends your wired network through your home or office’s existing electrical wiring — no new cables required. Unlike standard powerline adapters, the TL-PA4010P includes an integrated AC pass-through socket so you don’t lose a power outlet when you plug it in. With up to 600Mbps HomePlug AV speeds and a 300-metre range, it’s a practical solution for HD video streaming, IP cameras, and reliable wired connectivity in any room.
Key Features
-
AV600 Powerline Speed: Up to 600Mbps data transmission over existing electrical wiring via HomePlug AV standard — ideal for HD and 4K video streaming.
-
AC Pass-Through Power Socket: Integrated power outlet on each adapter means you don’t sacrifice a wall socket to gain a network port.
-
300-Metre Range: Covers up to 300 metres of electrical wiring, suitable for most Australian homes and small commercial premises.
-
Plug and Play: No software or driver installation required — simply plug in and press the Pair button to create an encrypted network connection.
-
128-bit AES Encryption: Secure powerline network with push-button pairing for easy, private setup.
-
Power-Saving Mode: Automatically reduces power consumption by up to 85% when no data is being transmitted.
-

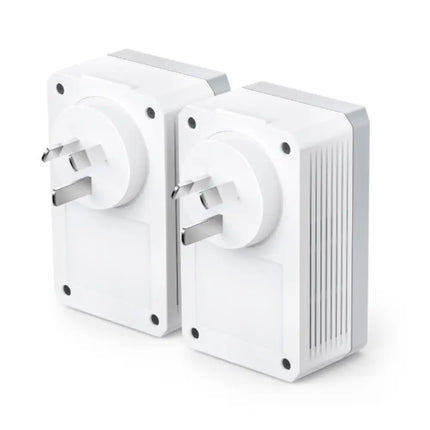

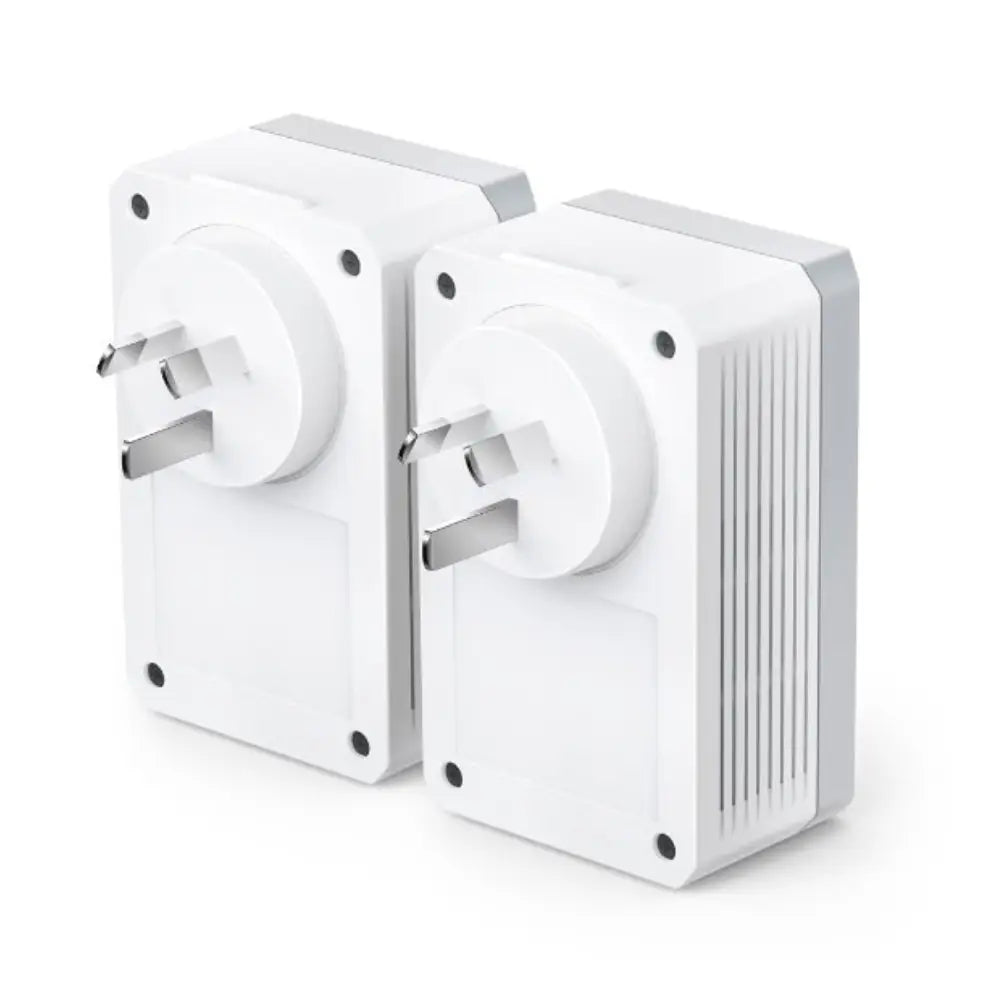

Australian Plug Type: Supplied with AU-standard plugs for direct compatibility with Australian power outlets.
-
3-Year Warranty: Backed by TP-Link’s limited 3-year warranty for peace of mind.
Ideal Use Cases
- Delivering a stable wired connection to smart TVs, media players, and gaming consoles in rooms with poor Wi-Fi coverage.
- Connecting IP cameras or NVRs to a network switch or router without running new Ethernet cable.
- Providing reliable internet access to home offices, bedrooms, or garages via existing power points.
- Installations where preserving wall socket availability is important, such as entertainment units or home theatre setups.
- Rental properties or heritage buildings where cable runs are impractical.
Technical Specifications
| Specification |
Detail |
| Model |
TL-PA4010PKIT (2 × TL-PA4010P) |
| Powerline Standard |
HomePlug AV, IEEE 802.3, IEEE 802.3u |
| Powerline Speed |
Up to 600Mbps |
| LAN Port |
1 × 10/100Mbps Ethernet (RJ45) |
| AC Pass-Through Socket |
Yes (integrated power outlet) |
| Plug Type |
AU (Australian standard) |
| Range |
Up to 300 metres (electrical wiring) |
| Encryption |
128-bit AES |
| Modulation |
OFDM |
| Power Consumption (Max) |
5.00W @ 220V/50Hz |
| Power Consumption (Typical) |
4.60W @ 220V/50Hz |
| Power Consumption (Standby) |
0.72W @ 220V/50Hz |
| Power Saving |
Up to 85% reduction in idle mode |
| Operating Temperature |
0°C – 40°C |
| Storage Temperature |
−40°C – 70°C |
| Operating Humidity |
10% – 90% (non-condensing) |
| Dimensions |
95 × 58 × 42 mm |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3-Year Limited |
| SKU |
TL-PA4010P KIT |
| Barcode (EAN) |
6935364032845 |
What’s in the Box
- 2 × TL-PA4010P Powerline Adapter with AC Pass Through
- 2 × RJ45 Ethernet Cables
- Quick Installation Guide
Frequently Asked Questions
What is the AC pass-through socket used for?
The integrated power socket on each adapter lets you plug another device (such as a lamp, phone charger, or appliance) directly into the adapter — so you don’t lose a wall outlet just to gain a network port.
Does the pass-through socket affect powerline performance?
TP-Link’s pass-through design includes filtering to minimise electrical noise from devices plugged into the socket, helping maintain consistent powerline speeds.
Do I need to install any software?
No. The TL-PA4010PKIT is plug and play. Plug one adapter into a power point near your router and connect it via Ethernet, then plug the second adapter wherever you need connectivity. Press the Pair buttons to encrypt the link and you’re done.
Can I add more adapters to expand the network?
Yes. Additional HomePlug AV-compatible TP-Link adapters can be added to extend coverage to more rooms or floors.
Will it work across different power circuits or switchboards?
Powerline adapters generally perform best on the same electrical circuit. Performance may degrade across different circuits or phases. Consult a licensed electrician if you’re unsure about your wiring configuration.
Is this kit compatible with Australian power outlets?
Yes. The TL-PA4010PKIT is supplied with Australian-standard (Type I) plugs and is rated for 220–240V/50Hz operation, making it fully compatible with Australian power points.
