Description

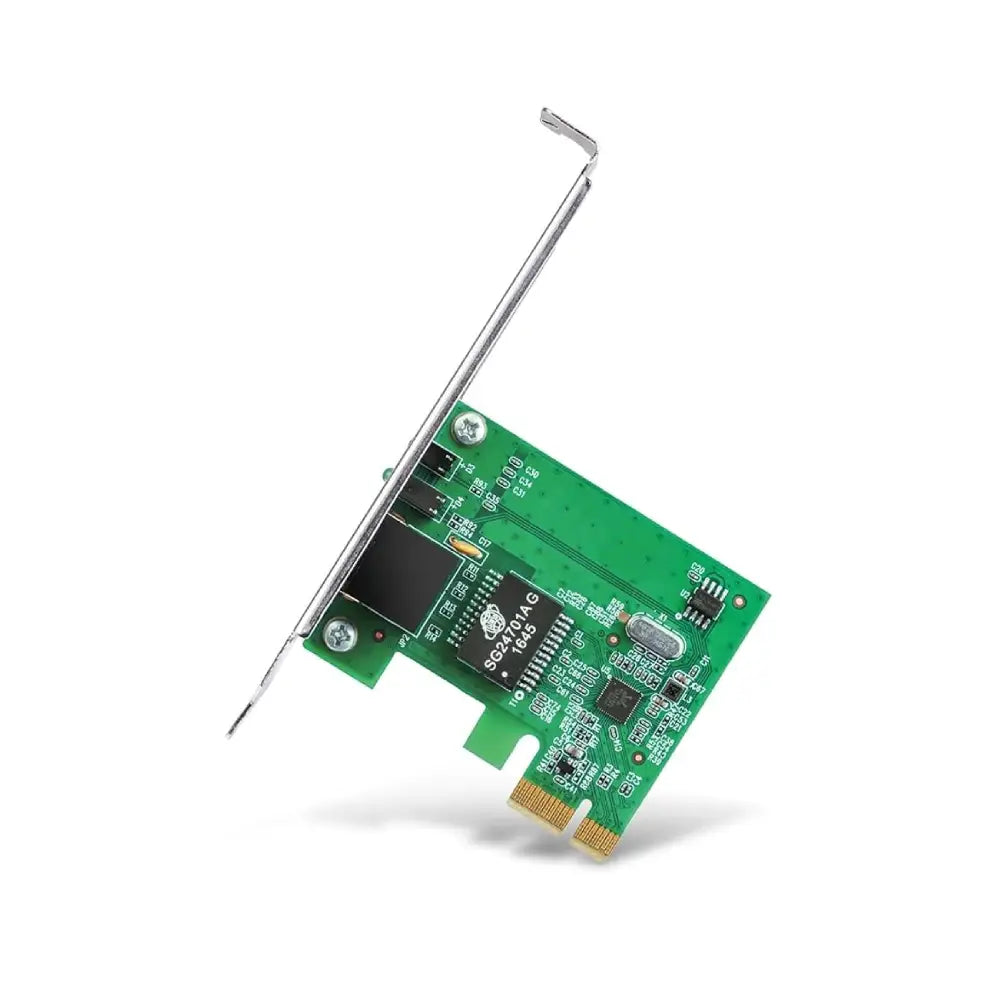

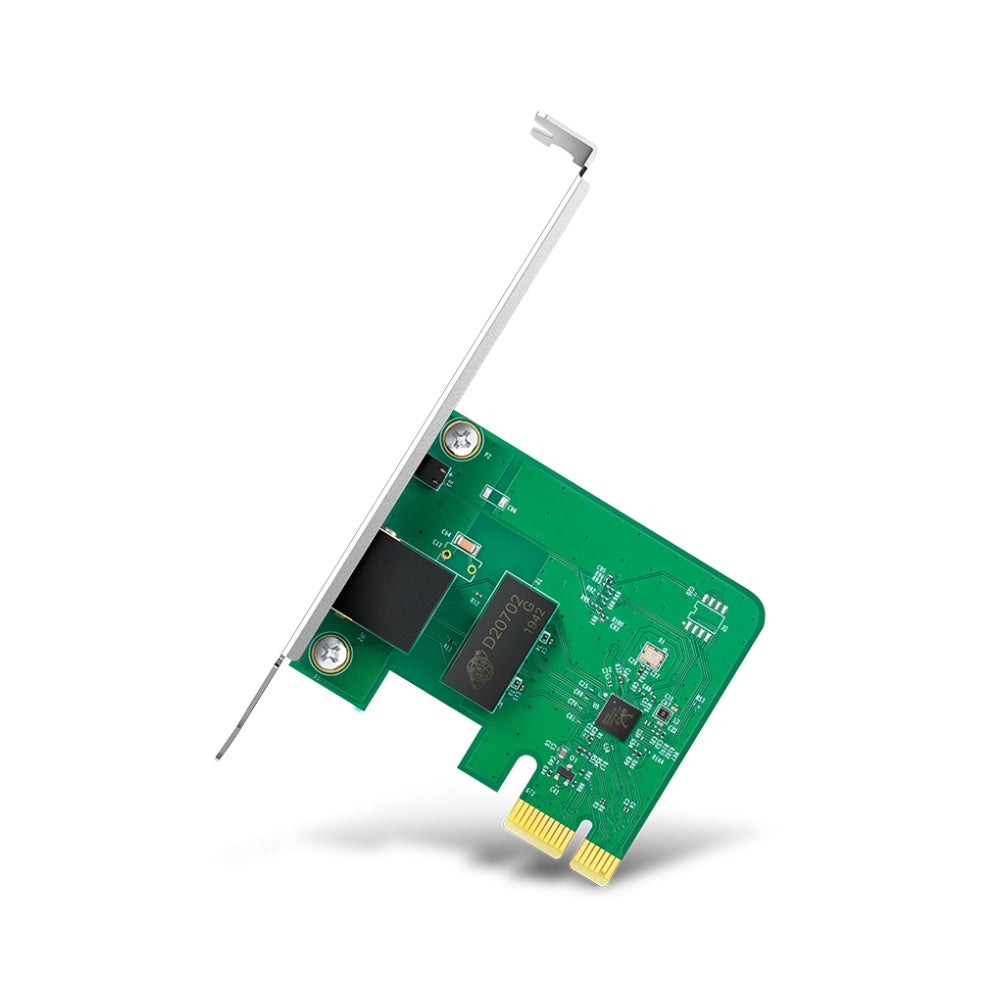

TP-Link TG-3468 Gigabit PCIe Network Adapter
The TP-Link TG-3468 is a straightforward, reliable way to add or restore Gigabit Ethernet to a desktop PC. Using a single 32-bit PCIe slot, it delivers 10/100/1000Mbps wired connectivity powered by a Realtek chipset — no bulky card, no fuss, just fast and stable network access.
Key Features
- Gigabit Ethernet speeds — 10/100/1000Mbps auto-negotiation
- 32-bit PCIe interface — compact form factor, minimal chassis space
- Realtek chipset — proven compatibility across Windows and Linux
- Wake-on-LAN (WoL) support — remotely power on your PC over the network
- Auto-MDI/MDIX — works with straight-through or crossover cables
- Plug-and-play installation — driver support via CD or download
Use Cases
-
Desktop PC upgrades — replace a failed onboard NIC or add a dedicated Gigabit port
-
Security and surveillance PCs — provide a stable, dedicated wired connection for NVR software or recording workstations
-
Remote management — Wake-on-LAN lets IT staff or installers power on machines without physical access
-
Legacy systems — upgrade older PCs with only 10/100 onboard NICs to full Gigabit speeds
Specifications
| Specification |
Detail |
| Model |
TG-3468 |
| Interface |
32-bit PCI Express (PCIe) |
| Network Speeds |
10/100/1000Mbps |
| Chipset |
Realtek |
| Port |
1 x RJ45 |
| Wake-on-LAN |
Supported |
| MDI/MDIX |
Auto on all ports |
| SKU / Barcode |
TG-3468 / 6935364001049 |
| Weight |
0.2 kg |
| Management |
Unmanaged / Plug and Play |
Frequently Asked Questions
Will the TG-3468 work with my motherboard?
The TG-3468 uses a standard 32-bit PCIe x1 slot, which is present on virtually all modern desktop motherboards. It is not compatible with older PCI (non-Express) slots.
What operating systems are supported?
The TG-3468 supports Windows (XP through to Windows 11) and Linux. Drivers are included on CD and are also available for download from the TP-Link website.
Does it support Wake-on-LAN?
Yes. Wake-on-LAN (WoL) is supported, allowing you to remotely power on your PC from another device on the same network — useful for IT management and remote access setups.
Can I use this in a server or NVR workstation?
Yes. The TG-3468 is a reliable choice for adding a dedicated Gigabit NIC to a recording workstation or NVR PC, keeping camera traffic on a separate, stable wired connection.
Does it ship Australia-wide?
Yes. CCTV Guru ships the TG-3468 Australia-wide from local stock.
