TAPO · SECURITY CAMERAS

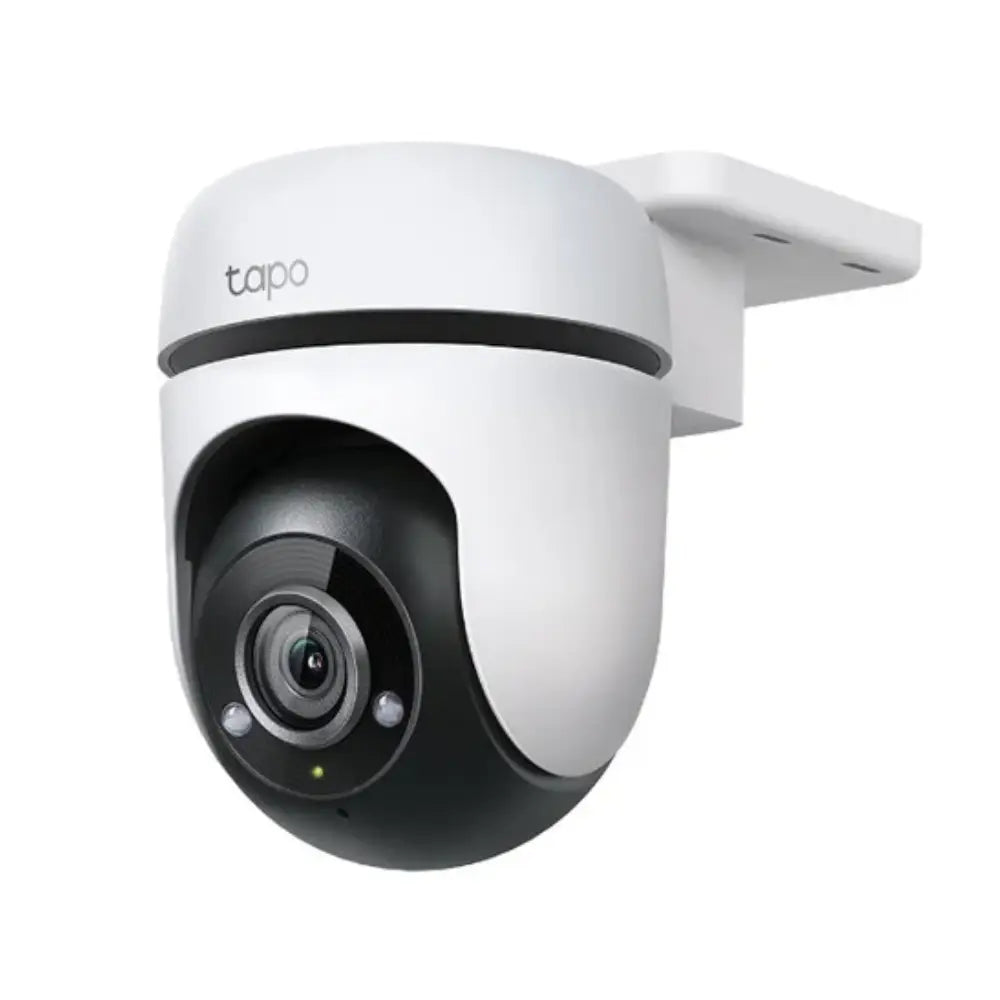

TP-Link Tapo TC40 — Outdoor Pan/Tilt Security Wi-Fi Camera
Keep an eye on the places that matter with the Tapo TC40. Check the viewing detail, connection and power requirements below, then use the official setup resources to plan its position and recording.
1920 x 1080pxFrame the important area carefully. Resolution helps show detail, while distance, lighting and subject movement affect what you can identify.
IP65Use this specification to compare the TC40 with the requirements of your intended location.
12V DC Power AdapterPlan around this power requirement. Check the installation guide and keep charging or power connections accessible for maintenance.
IEEE 802.11b/g/n, 2.4 GHz Wi-FiCheck compatibility and signal at the intended position before permanent installation. The connection type does not determine the power supply.
Designed for everyday use
Place the view where it counts
Test the live view at the intended mounting height before drilling. Check daytime and night-time visibility, keeping nearby reflective surfaces and strong glare out of the foreground. Set the camera angle around an entrance or activity area where useful detail matters most.
Connect power and network
A Wi-Fi connection carries data; the camera still needs its specified power supply. Test network coverage at the final position before mounting. Route the power cable securely and use the official guide for mounting and any outdoor connection protection.
Make recordings easy to find
Choose the supported local recording option and test playback after setup. Memory cards are separate unless explicitly included in your selected pack. Tapo Care cloud recording is an optional paid service where supported. Adjust notifications around useful activity so important events are easier to review.
Technical details
Specifications below follow TP-Link’s linked model page. Hardware revisions can differ; select the version printed on your device for firmware, capacity and compatibility details.

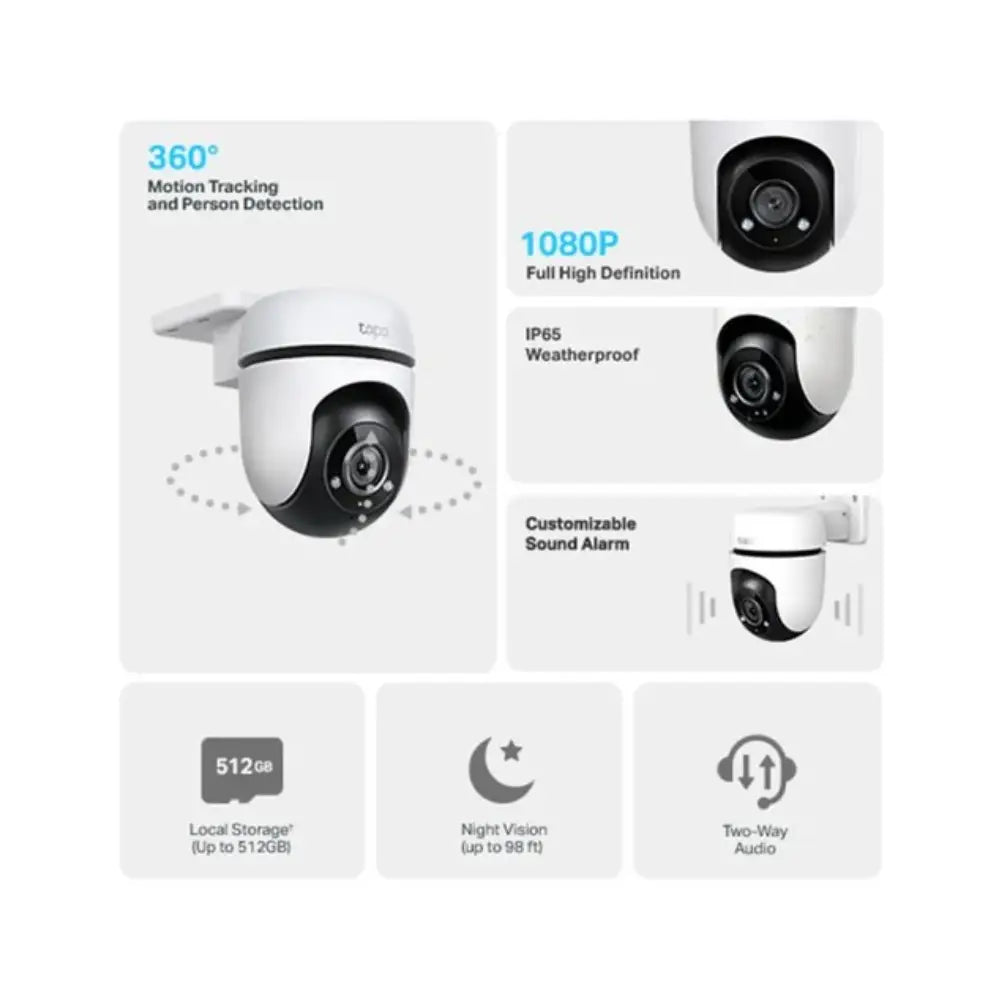

Night Vision850 nm IR LED (98 ft / 29.9 m), color night vision
Maximum Resolution1920 x 1080px
Audio CommunicationTwo-Way Audio with Noise Cancellation
Local StorageMicroSD Card Slot on Camera (Up to 512 GB)
Network ConnectivityConnect via Wi-Fi
Wireless ConnectivityIEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Power Source12V DC Power Adapter
Output Voltage9V, 0.85A (DC Power)
Before you order
Which version should I check?
Match the model, pack size and hardware version to your installation. Use the official model page and downloads below to check accessories, regional compatibility and any version-specific requirements. Contact CCTV Guru if you need help confirming the right combination.
