Extend Your Network Over Fibre with the TP-Link Omada MC420L

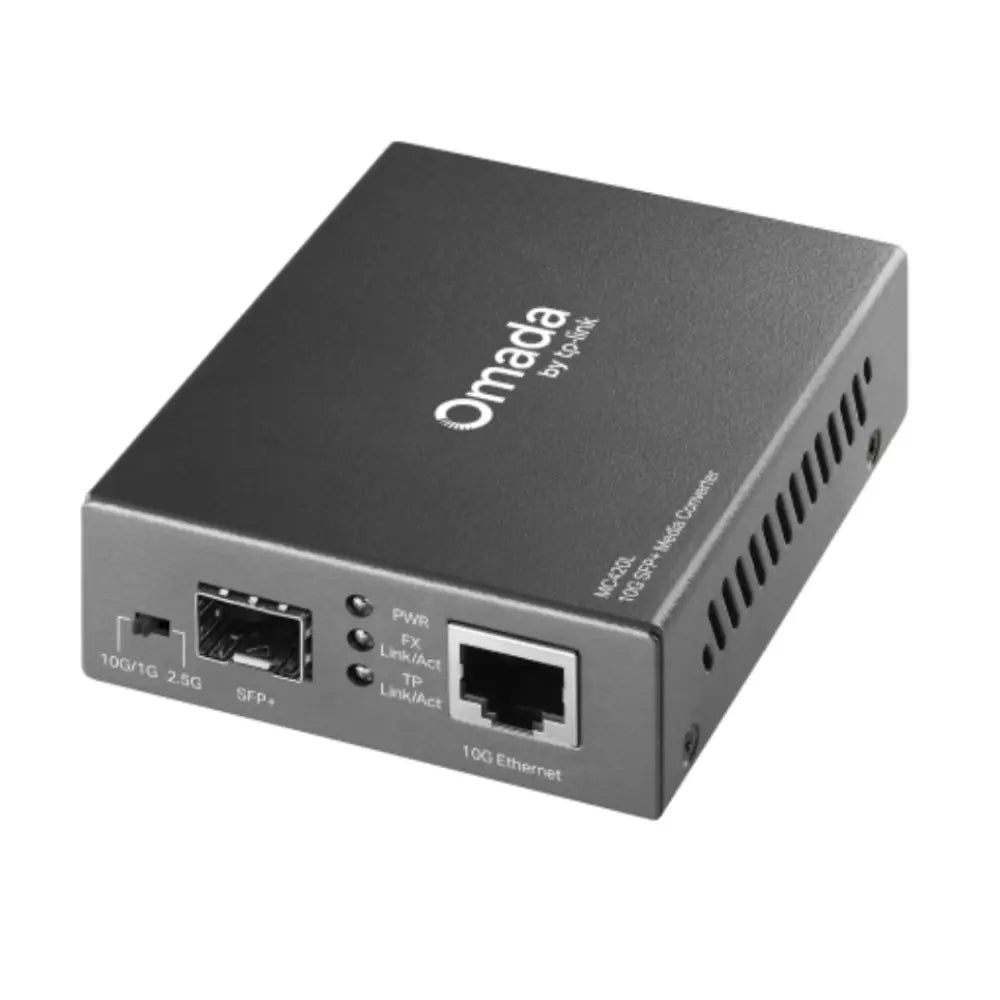

The TP-Link Omada MC420L is a Gigabit Ethernet to SFP media converter designed to seamlessly bridge copper and fibre networks. Whether you're extending a surveillance system across a large site or connecting buildings without signal degradation, the MC420L delivers reliable, high-speed conversion in a compact, plug-and-play form factor — ideal for Australian business, education, and security installations.
Key Features
- One 10/100/1000 Mbps RJ45 port and one open SFP slot for flexible fibre module selection
- Supports single-mode and multi-mode SFP modules (sold separately)
- Auto-negotiation and auto MDI/MDIX on the RJ45 port for hassle-free cabling
- Full-duplex and half-duplex operation on the RJ45 port
- IEEE 802.3x flow control for reliable data transmission
- Plug-and-play installation — no software or configuration required
- Compact desktop/wall-mount design with included power adapter
- LED indicators for quick link and activity status at a glance
Use Cases
-
CCTV & IP Camera Systems: Extend NVR or switch connections over fibre to remote camera locations across large properties or multi-building sites
-
Building-to-Building Links: Connect separate structures without the interference and distance limitations of copper cabling
-
Enterprise & SMB Networks: Integrate fibre uplinks into existing Gigabit Ethernet infrastructure with minimal disruption
-
Education & Government Campuses: Reliable long-distance connectivity for distributed network environments
Technical Specifications
| Specification |
Detail |
| RJ45 Port |
1 × 10/100/1000 Mbps |
| SFP Slot |
1 × 1000 Mbps SFP (open slot) |
| Fibre Type |
Single-mode / Multi-mode (module dependent) |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x |
| Switching Capacity |
4 Gbps |
| MAC Address Table |
2K |
| Jumbo Frame |
Up to 9216 bytes |
| Power Supply |
External power adapter (included) |
| Dimensions |
100 × 52 × 26 mm |
| Operating Temperature |
0–40°C |
| Certifications |
CE, FCC, RoHS |
Frequently Asked Questions
What SFP modules are compatible with the MC420L?
The MC420L features an open SFP slot compatible with standard 1000 Mbps SFP modules, including TP-Link's own TL-SM series single-mode and multi-mode transceivers. Always verify wavelength and fibre type match your cabling before purchasing a module.
Does the MC420L require any software configuration?
No. The MC420L is a plug-and-play device with no management interface. Simply connect your RJ45 and fibre cables, power it on, and it will begin converting traffic automatically.
Can I use the MC420L with my existing NVR or IP camera system?
Yes. The MC420L is well-suited for extending Gigabit Ethernet connections from an NVR or PoE switch to remote camera locations over fibre, making it a popular choice for large-site CCTV deployments.
Is the MC420L compatible with the Omada SDN controller?
The MC420L is an unmanaged media converter and does not integrate with the Omada SDN controller. It operates transparently on the network without requiring controller management.
What is the maximum fibre distance supported?
Maximum distance depends on the SFP module installed. Multi-mode modules typically support up to 550 m, while single-mode modules can reach 10 km, 20 km, or beyond depending on the specific transceiver selected.
