Description

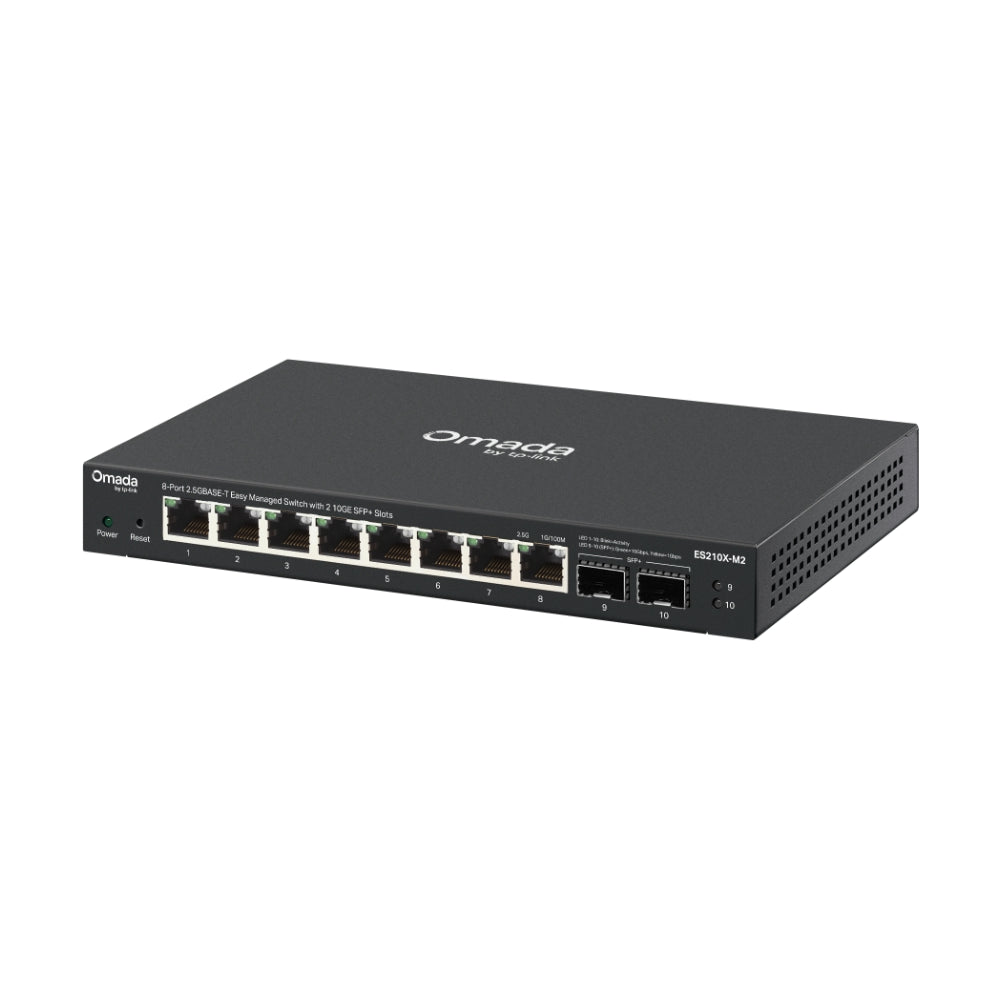

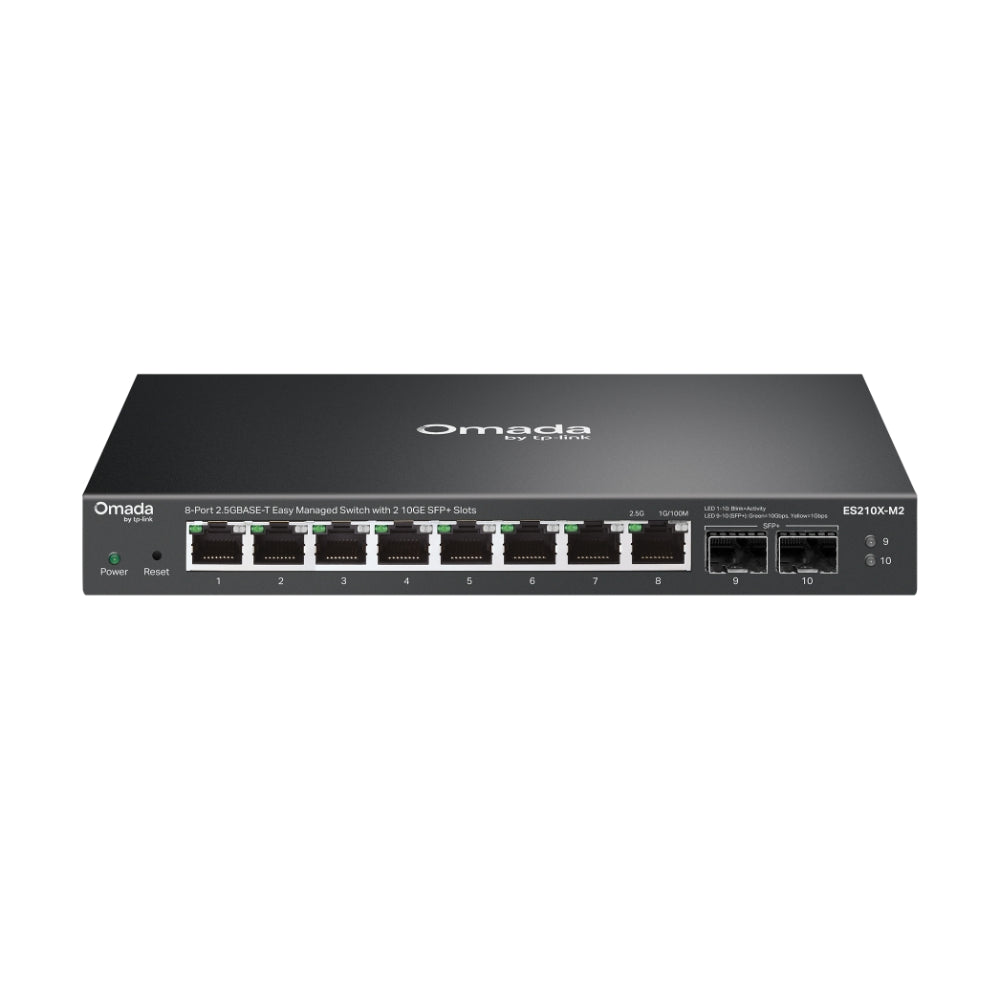

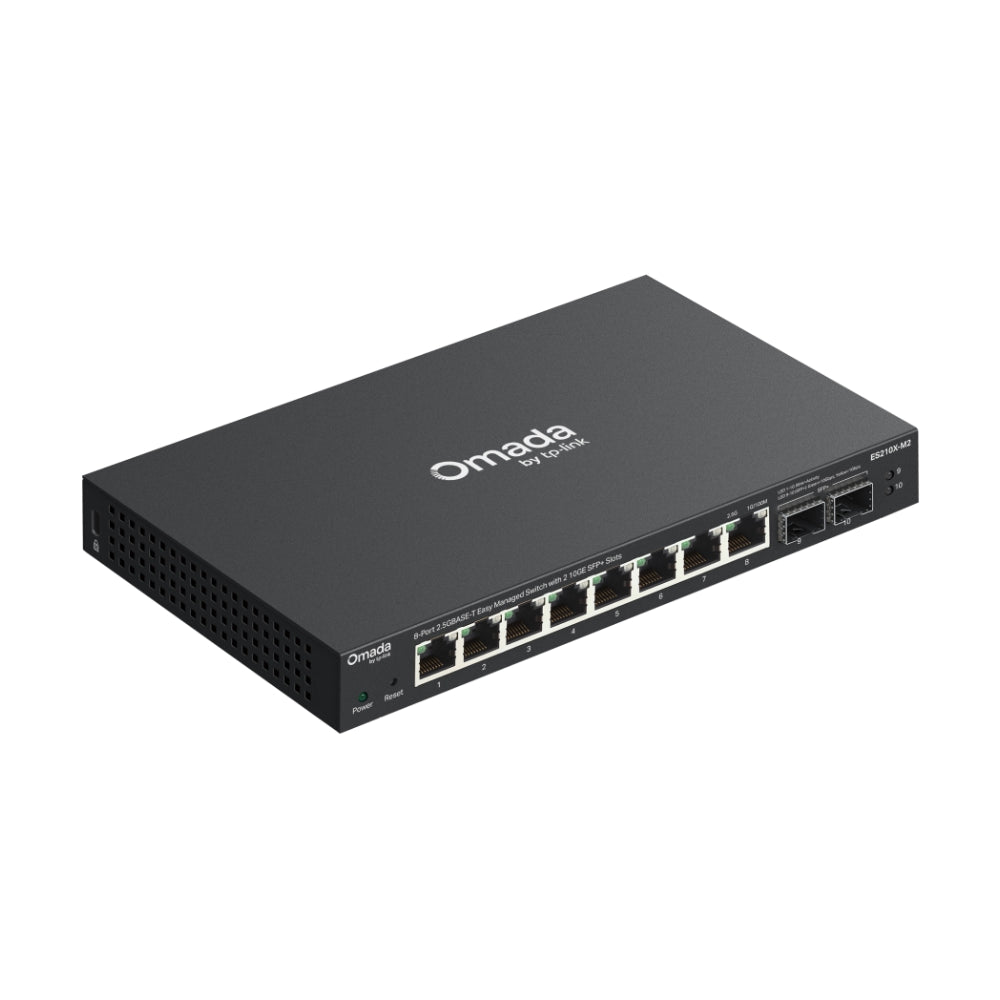

TP-Link Omada ES210X-M2 10-Port 2.5G Smart Managed Switch with 10G SFP+
Multi-Gigabit Switching for Modern Networks — Managed, Scalable, Omada-Ready
The TP-Link Omada ES210X-M2 is a 10-port 2.5G smart managed switch designed for businesses, prosumers, and IT professionals who need multi-gigabit wired performance without the cost of a full 10G infrastructure. With eight 2.5G RJ45 ports, two 10G SFP+ uplink slots, and full Omada SDN integration, the ES210X-M2 delivers the switching capacity to support Wi-Fi 6/6E/7 access points, NAS devices, high-performance workstations, and IP cameras — all managed from a single centralised controller or the Omada cloud.
Key Features
-
8× 2.5G RJ45 Ports — Multi-gigabit copper ports support 100 Mbps, 1 Gbps, and 2.5 Gbps speeds, making them ideal for Wi-Fi 6/6E/7 APs, NAS devices, and high-performance workstations over standard Cat5e or Cat6 cabling.
-
2× 10G SFP+ Uplink Slots — High-speed fibre or DAC uplinks for connection to core switches, routers, or NAS devices at full 10G wire speed.
-
Omada SDN Integration — Fully managed via the Omada Software Defined Networking platform — configure, monitor, and manage remotely through the Omada hardware controller, software controller, or Omada Cloud.
-
Advanced Layer 2+ Management — Supports 802.1Q VLAN, RSTP/MSTP, LACP (802.3ad), QoS (802.1p/DSCP), IGMP Snooping, and port mirroring for enterprise-grade network control.
-
Access Control Lists (ACL) — Granular traffic filtering and security policies at the port and VLAN level.
-
LLDP & LLDP-MED — Automatic device discovery and topology mapping for simplified network management.
-
Fanless Silent Operation — Passive cooling design for quiet deployment in offices, meeting rooms, and home lab environments.
-
Rack-Mountable — Standard 1U rack-mount form factor with included mounting hardware for data centre and server room installation.
-
IPv6 Support — Future-ready networking with full IPv6 management and data plane support.
Use Cases
-
Wi-Fi 6/6E/7 Access Point Aggregation — Provide 2.5G uplinks to Wi-Fi 6E and Wi-Fi 7 access points that exceed Gigabit throughput, eliminating the wired bottleneck that limits wireless performance.
-
NAS & Storage Networks — Connect NAS devices and workstations at 2.5G for significantly faster file transfers, backups, and media streaming compared to standard Gigabit.
-
SMB & Enterprise Edge Switching — Deploy as an edge or distribution switch in small-to-medium business networks with full VLAN segmentation, QoS, and centralised Omada SDN management.
-
IP Surveillance Networks — Aggregate multiple IP cameras and NVRs with VLAN isolation and IGMP Snooping for efficient multicast video traffic management.
-
Home Lab & Prosumer Networks — Build a high-performance home lab or prosumer network with multi-gigabit switching, 10G uplinks, and enterprise management features at an accessible price point.
Technical Specifications
| Specification |
Detail |
| Model |
ES210X-M2 |
| RJ45 Ports |
8× 2.5G (100M/1G/2.5G auto-negotiation) |
| SFP+ Uplink Slots |
2× 10G SFP+ |
| Switching Capacity |
40 Gbps |
| Forwarding Rate |
29.76 Mpps |
| MAC Address Table |
16K |
| Jumbo Frame |
9216 bytes |
| VLAN |
802.1Q VLAN, up to 4094 VLAN IDs |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
802.3ad LACP, up to 8 groups, 8 ports per group |
| QoS |
802.1p, DSCP, 8 queues per port |
| IGMP Snooping |
v1/v2/v3 |
| Management |
Omada SDN (cloud/hardware/software controller), Web GUI, CLI (SSH/Telnet), SNMP v1/v2c/v3 |
| Omada App |
iOS & Android |
| Cooling |
Fanless (passive cooling) |
| Form Factor |
1U rack-mountable (rack ears included) |
| Power Supply |
Internal, 100–240 V AC |
| Power Consumption |
Max 18.6 W |
| Operating Temperature |
0 °C to 45 °C |
| Certifications |
RCM (AU/NZ), CE, FCC, RoHS |
Recommended Accessories
-
TP-Link Omada OC300 Hardware Controller — Dedicated Omada SDN hardware controller for centralised management of the ES210X-M2 alongside Omada APs and routers without a cloud subscription.
-
TP-Link Omada EAP773 Wi-Fi 7 Access Point — Wi-Fi 7 AP with 2.5G uplink — pairs perfectly with the ES210X-M2’s 2.5G ports to eliminate the wired bottleneck on high-speed wireless deployments.
-
TP-Link TXS431-XS 10G SFP+ DAC Cable — Direct Attach Copper cable for short-distance 10G connections between the ES210X-M2 and a core switch or NAS.
-
TP-Link Omada ER8411 VPN Router — Multi-WAN enterprise VPN router for use as the gateway in an Omada SDN deployment with the ES210X-M2.
Downloads
Frequently Asked Questions
What is the difference between a 2.5G switch and a standard Gigabit switch?
A standard Gigabit switch maxes out at 1 Gbps per port. A 2.5G switch supports up to 2.5 Gbps per port — 2.5 times faster — over the same Cat5e or Cat6 cabling already installed in most buildings. This makes the ES210X-M2 ideal for connecting Wi-Fi 6E/7 access points and NAS devices that can exceed 1 Gbps throughput.
Does the ES210X-M2 require the Omada controller to function?
No. The ES210X-M2 can be managed standalone via its web GUI or CLI (SSH/Telnet) without any controller. The Omada SDN controller (hardware, software, or cloud) is optional but recommended for centralised management of multiple Omada devices.
What SFP+ modules are compatible with the ES210X-M2?
The ES210X-M2 supports standard 10G SFP+ modules including TP-Link’s own SFP+ transceivers (single-mode, multi-mode fibre) and DAC (Direct Attach Copper) cables. Third-party SFP+ modules may also be compatible — refer to the TP-Link Omada compatibility list for confirmed modules.
Does the ES210X-M2 support PoE?
No. The ES210X-M2 does not include PoE on its RJ45 ports. If you require PoE switching alongside 2.5G ports, consider the TP-Link Omada TL-SX3008F or a dedicated PoE switch in your network design.
Can I manage the ES210X-M2 from the Omada app on my phone?
Yes. When managed through an Omada controller (hardware, software, or cloud), the ES210X-M2 can be monitored and configured via the Omada app on iOS and Android.
