Description

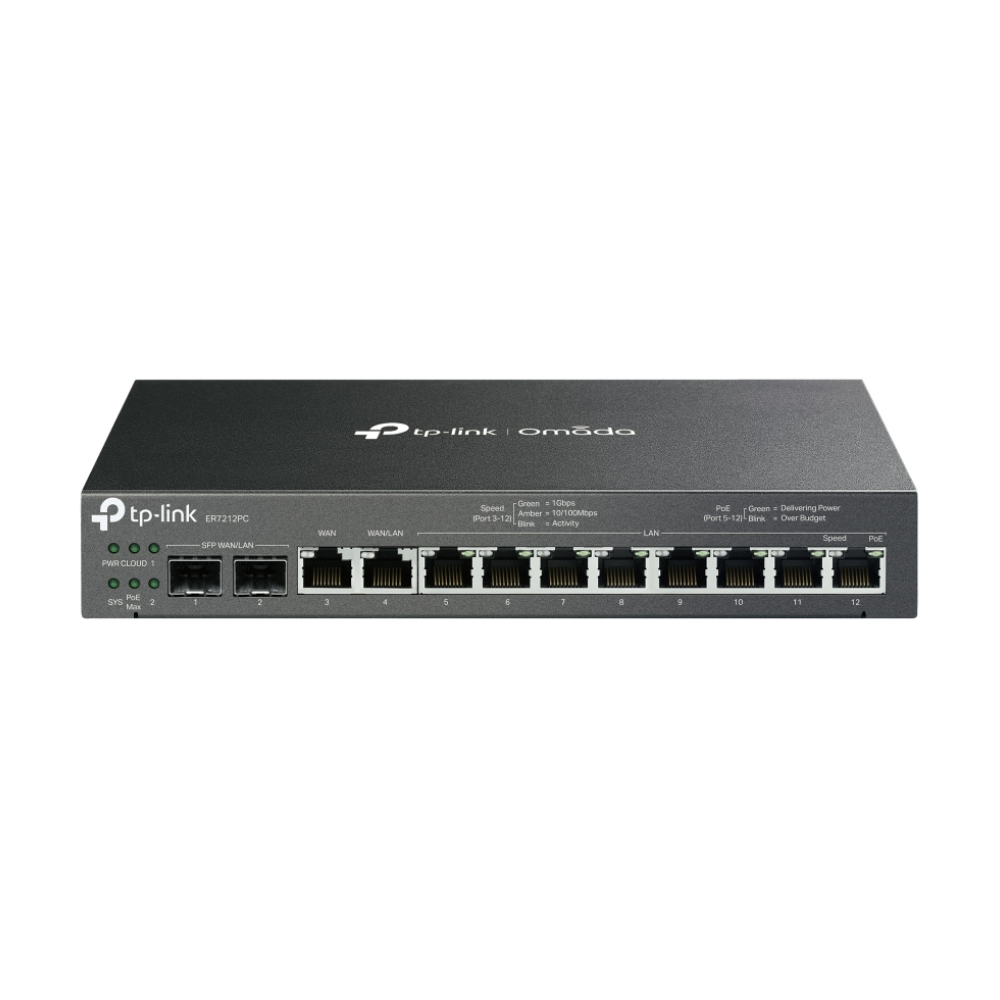

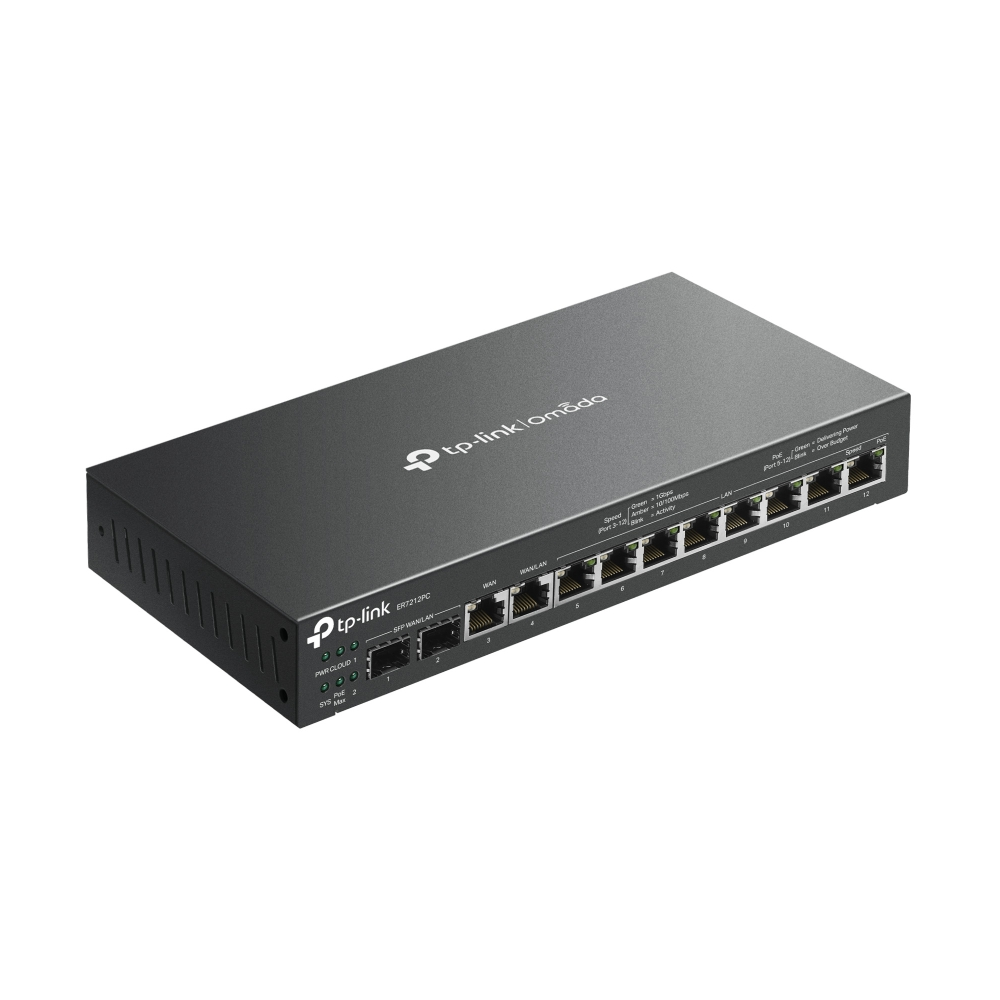

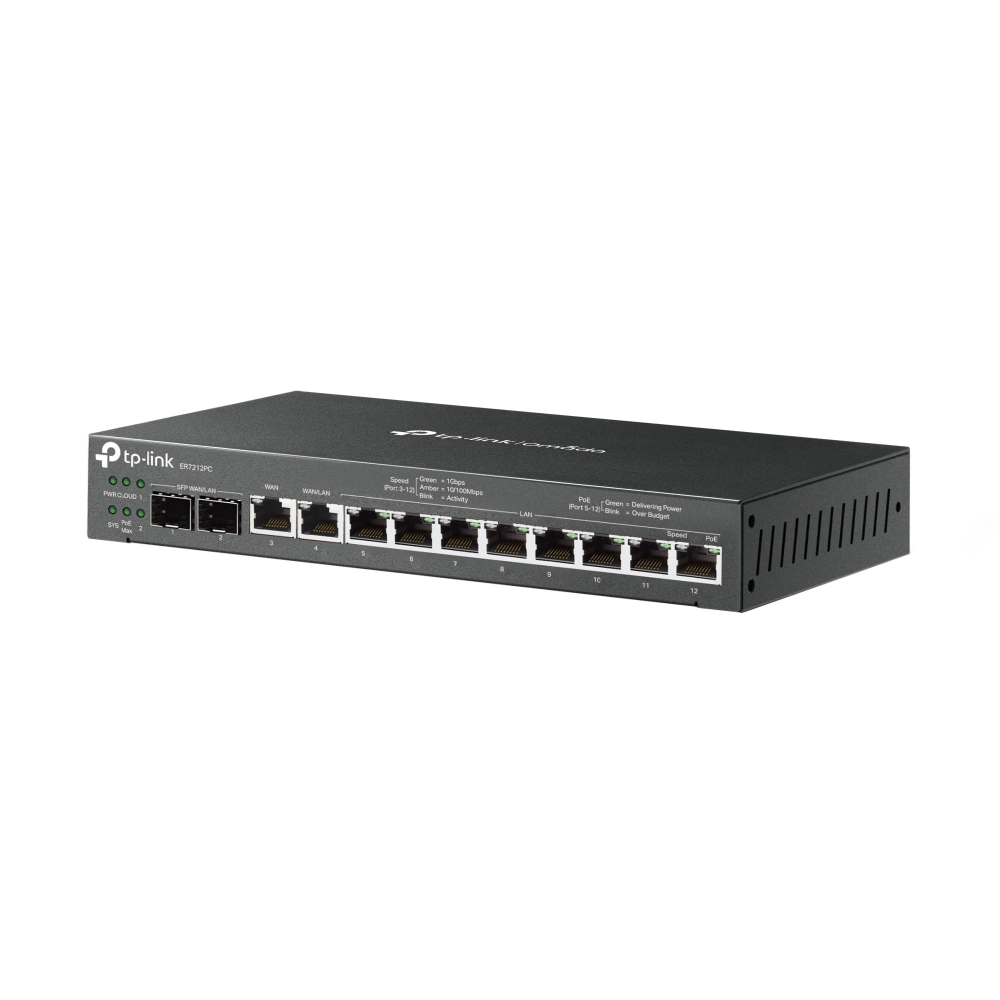

TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Router with PoE+ & Omada Controller
The TP-Link Omada ER7212PC is a professional 3-in-1 network appliance that combines a Gigabit VPN router, an 8-port PoE+ switch (110W), and a built-in Omada SDN hardware controller into a single compact, fanless device. Designed for small to medium businesses, retail chains, and multi-site deployments across Australia, it eliminates the need for separate router, PoE switch, and controller hardware — reducing rack space, cabling complexity, and total cost of ownership. With up to 4 WAN ports, multi-WAN load balancing, and support for IPsec, OpenVPN, L2TP, and PPTP VPN, it delivers enterprise-grade connectivity and security in a desktop or wall-mount form factor.
Key Features
-
3-in-1 Design — Combines a Gigabit VPN router, 8-port PoE+ switch, and Omada SDN hardware controller in a single device — managing up to 10 Omada EAPs without a separate controller appliance.
-
Up to 4 WAN Ports — 2 × Gigabit SFP WAN/LAN + 1 × Gigabit RJ45 WAN + 1 × Gigabit RJ45 WAN/LAN for multi-WAN load balancing and failover to maximise uptime and bandwidth utilisation.
-
8 × PoE+ LAN Ports (110W Total) — IEEE 802.3at/af compliant PoE+ on all 8 RJ45 LAN ports powers access points, IP cameras, VoIP phones, and other PoE devices directly from the router.
-
Built-in Omada SDN Controller — Centrally manage up to 10 Omada EAPs, configure SSIDs, VLANs, and guest portals, and monitor the entire network from the Omada app or web interface — no separate OC200 required.
-
Multi-WAN Load Balancing & Failover — Distributes traffic across multiple WAN connections proportionally and automatically fails over to a backup WAN if the primary connection drops.
-
High-Security VPN — Supports IPsec, OpenVPN, L2TP, and PPTP VPN in client/server mode; one-click auto IPsec VPN simplifies site-to-site and remote access VPN configuration.
-
Dual-Core CPU & 1GB DDR3 RAM — High-performance hardware handles routing, VPN, and PoE management simultaneously without throttling under load.
-
Fanless & Compact — Silent fanless operation in a compact form factor suitable for desktop or wall mounting in offices, comms rooms, and retail back-of-house environments.
-
Cloud & App Management — Manage remotely via the Omada cloud portal or Omada app (iOS & Android) for real-time monitoring and configuration from anywhere.
-
12 Gigabit Ports Total — 2 × SFP WAN/LAN + 2 × RJ45 WAN/WAN-LAN + 8 × RJ45 PoE+ LAN for comprehensive wired connectivity.
Use Cases
- Small to medium businesses replacing separate router, PoE switch, and Omada controller with a single appliance
- Retail stores and branch offices requiring multi-WAN failover for always-on internet connectivity
- Hotels and hospitality venues managing up to 10 Omada Wi-Fi 6 access points from a single built-in controller
- Remote workers and multi-site businesses requiring site-to-site IPsec VPN between branch locations
- Offices deploying PoE-powered IP cameras, access points, and VoIP phones without a separate PoE switch
- IT integrators and MSPs deploying a standardised, all-in-one network appliance across multiple client sites
Technical Specifications
| Specification |
Detail |
| Model |
ER7212PC |
| Device Type |
3-in-1: VPN Router + PoE+ Switch + Omada Controller |
| CPU |
Dual-Core |
| RAM |
1GB DDR3 |
| WAN Ports |
2 × Gigabit SFP WAN/LAN + 1 × Gigabit RJ45 WAN + 1 × Gigabit RJ45 WAN/LAN (up to 4 WAN) |
| LAN Ports |
8 × Gigabit RJ45 PoE+ LAN |
| Total Ports |
12 Gigabit ports |
| PoE Standard |
IEEE 802.3at/af (PoE+) |
| Total PoE Budget |
110W |
| Omada Controller |
Built-in; manages up to 10 Omada EAPs |
| VPN Protocols |
IPsec, OpenVPN, L2TP, PPTP (client/server mode) |
| Multi-WAN |
Load balancing & failover |
| Cooling |
Fanless (silent) |
| Mounting |
Desktop or wall mount |
| Management |
Omada App, Omada Cloud, Web UI |
| Weight |
1.92 kg |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link EAP655-Wall AX3000 Wi-Fi 6 Wall Plate AP — Managed directly by the ER7212PC’s built-in Omada controller; ideal for per-room Wi-Fi 6 deployment in hotels and offices.
-
TP-Link TL-WA3001 AX3000 Wi-Fi 6 Access Point — Ceiling-mount Omada-compatible AP for open-plan office and warehouse Wi-Fi 6 coverage, managed by the built-in controller.
-
TP-Link TL-SM331T RJ45 SFP Module — Use in the ER7212PC’s SFP WAN/LAN ports to connect via standard Cat6 copper cabling rather than fibre.
-
Cat6 Ethernet Cable — For reliable Gigabit and PoE+ delivery to all connected devices across the LAN ports.
-
TP-Link VIGI C440 4MP Full-Colour Turret Camera — Connect PoE-powered VIGI cameras directly to the ER7212PC’s PoE+ LAN ports for a combined network and surveillance deployment.
Downloads
Frequently Asked Questions
What does “3-in-1” mean for the ER7212PC?
The ER7212PC combines three separate network appliances into one device: a Gigabit VPN router (handling WAN connections, routing, and VPN), an 8-port PoE+ switch (powering access points, cameras, and phones), and an Omada SDN hardware controller (centrally managing up to 10 Omada EAPs). This eliminates the need to purchase and rack three separate devices.
How many Omada access points can the built-in controller manage?
The ER7212PC’s built-in Omada controller can manage up to 10 Omada EAPs simultaneously. For larger deployments requiring more than 10 APs, a dedicated Omada hardware controller (OC200 or OC300) or software controller is recommended.
Can I use all 4 WAN ports simultaneously?
Yes. The ER7212PC supports multi-WAN load balancing across up to 4 WAN connections simultaneously, distributing traffic proportionally across available connections. It also supports automatic WAN failover — if one connection drops, traffic is automatically rerouted to the remaining active WAN ports.
Does the 110W PoE budget cover all 8 LAN ports at full power?
The 110W total PoE budget is shared across all 8 PoE+ LAN ports. Each port supports up to 30W (802.3at), but the combined draw of all connected PoE devices must not exceed 110W. For example, eight 13W PoE cameras would draw 104W — within budget. Plan your PoE device power requirements before deployment.
What VPN protocols does the ER7212PC support?
The ER7212PC supports IPsec, OpenVPN, L2TP, and PPTP VPN in both client and server modes. One-click auto IPsec VPN simplifies site-to-site VPN configuration between multiple ER7212PC units or other compatible Omada routers. OpenVPN is recommended for remote access VPN clients on laptops and mobile devices.
Is the ER7212PC suitable for an NBN connection in Australia?
Yes. The ER7212PC connects to your NBN modem or modem-router via one of its RJ45 or SFP WAN ports. If your existing device is a modem-router combo, enable bridge mode or DMZ on the existing device to avoid double NAT. The ER7212PC then handles all routing, VPN, and PoE switching from a single appliance.
