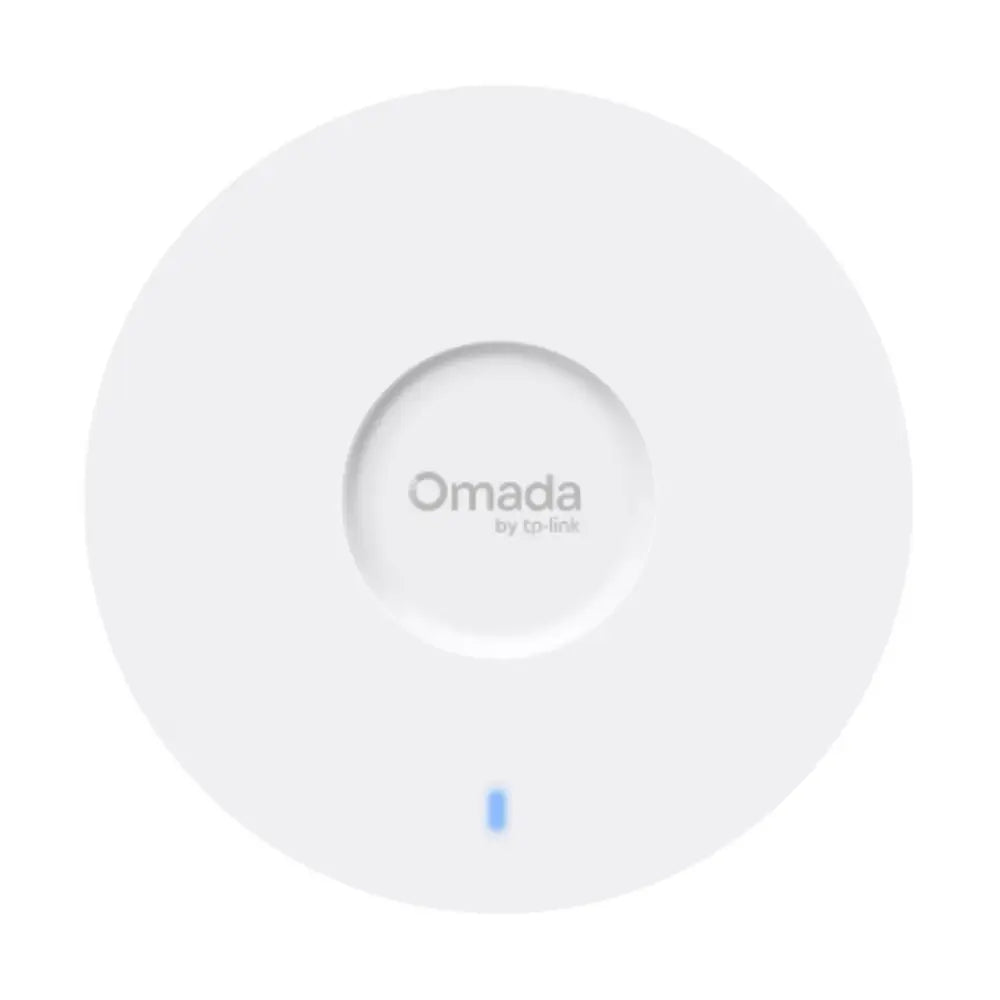

TP-Link Omada EAP653 (UR) AX3000 Wi-Fi 6 Ceiling Mount Access Point
Overview
The TP-Link Omada EAP653 (UR) is a high-performance AX3000 Wi-Fi 6 ceiling mount access point engineered for commercial and enterprise environments across Australia. Delivering combined wireless speeds of up to 3000 Mbps across dual bands, it supports seamless roaming, centralised cloud or controller-based management, and PoE+ power delivery — making it an ideal choice for offices, retail spaces, hotels, schools, and multi-tenant buildings.
Key Features
-
Wi-Fi 6 (802.11ax) — Up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for a combined 3000 Mbps throughput
-
OFDMA & MU-MIMO — Simultaneous multi-user transmission reduces latency and improves efficiency in high-density environments
-
BSS Colouring — Minimises co-channel interference in congested wireless environments
-
Seamless Roaming — 802.11r/k/v fast roaming ensures uninterrupted connectivity as users move throughout a site
-
PoE+ Powered — Supports 802.3at PoE+ for simplified, cable-efficient installation
-
Omada SDN Integration — Centralised management via Omada Hardware Controller, Software Controller, or Omada Cloud
-
Band Steering — Automatically directs capable clients to the less congested 5 GHz band
-
Up to 4 SSIDs — Segment traffic for staff, guests, IoT, and management networks
-
WPA3 Security — Latest wireless encryption standard for enhanced network protection
-

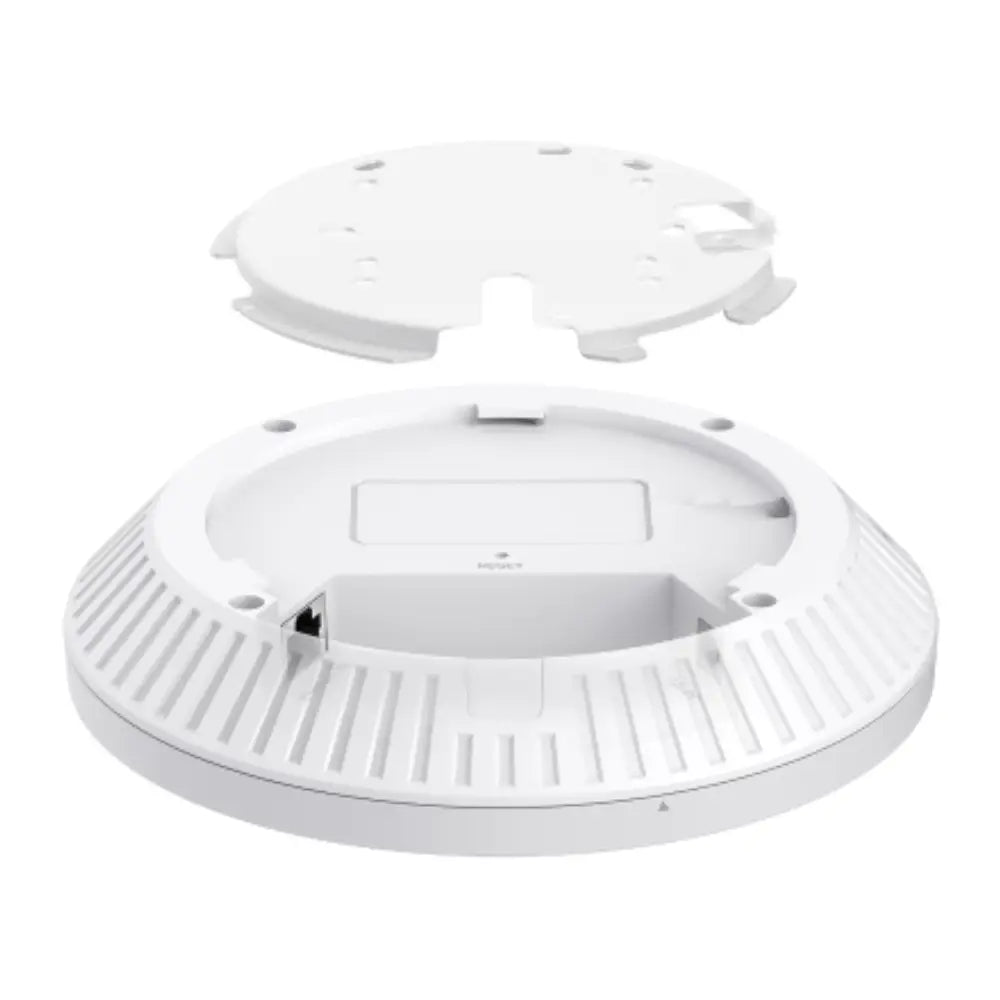

Low-profile ceiling mount design — Discreet installation suitable for commercial interiors
Use Cases
-
Commercial offices — Reliable high-density Wi-Fi for open-plan workspaces and meeting rooms
-
Retail & hospitality — Seamless guest Wi-Fi with VLAN segmentation and captive portal support
-
Education facilities — Scalable wireless infrastructure for classrooms and common areas
-
Healthcare & aged care — Stable, low-latency connectivity for clinical devices and staff tablets
-
Multi-tenant buildings — Centralised management across multiple floors or tenancies
-
Warehouse & logistics — Robust coverage for handheld scanners and mobile workstations
Technical Specifications
| Specification |
Detail |
| Model |
EAP653 (UR) |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wireless Speed |
AX3000 — 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) |
| Antennas |
4× internal omnidirectional antennas |
| Spatial Streams |
2×2 (2.4 GHz) + 4×4 (5 GHz) |
| Ethernet Port |
1× Gigabit RJ45 (PoE+ 802.3at) |
| Power Supply |
PoE+ (802.3at, 25.5 W) or passive PoE (48 V) |
| Max Clients |
Up to 512 wireless clients |
| SSIDs |
Up to 4 per radio (8 total) |
| Security |
WPA3, WPA2, WPA, WEP; 802.1X RADIUS |
| Management |
Omada App, Omada Cloud, Hardware/Software Controller |
| Mounting |
Ceiling mount (bracket included) |
| Dimensions |
197.6 × 197.6 × 36.4 mm |
| Weight |
430 g |
| Operating Temperature |
0°C to 40°C |
| Certifications |
CE, RCM (AU/NZ) |
Official Product Video
Watch the official TP-Link Omada EAP653 overview and installation guide:
Downloads
Frequently Asked Questions
Does the EAP653 require a controller to operate?
No. The EAP653 can operate in standalone mode via the Omada app without a controller. However, for multi-AP deployments, centralised management via an Omada Hardware Controller (e.g. OC300), Software Controller, or Omada Cloud is strongly recommended.
What PoE switch do I need to power the EAP653?
The EAP653 requires an 802.3at PoE+ switch or injector (minimum 25.5 W per port). TP-Link's Omada PoE switches such as the TL-SG2210P or TL-SG3428XPP are compatible and recommended for a fully managed Omada SDN deployment.
How many access points can I manage with one Omada controller?
The Omada Software Controller (free) supports unlimited APs on a local network. The Omada Cloud-Based Controller supports scalable multi-site management with a per-device licence model.
Is the EAP653 suitable for outdoor use?
No. The EAP653 is designed for indoor ceiling mount installation only. For outdoor coverage, consider the TP-Link Omada EAP620 HD Outdoor or EAP225-Outdoor.
Does the EAP653 support VLAN and guest network isolation?
Yes. The EAP653 supports VLAN tagging, multiple SSIDs, and guest network isolation to keep traffic segmented between staff, guests, and IoT devices.
