Description

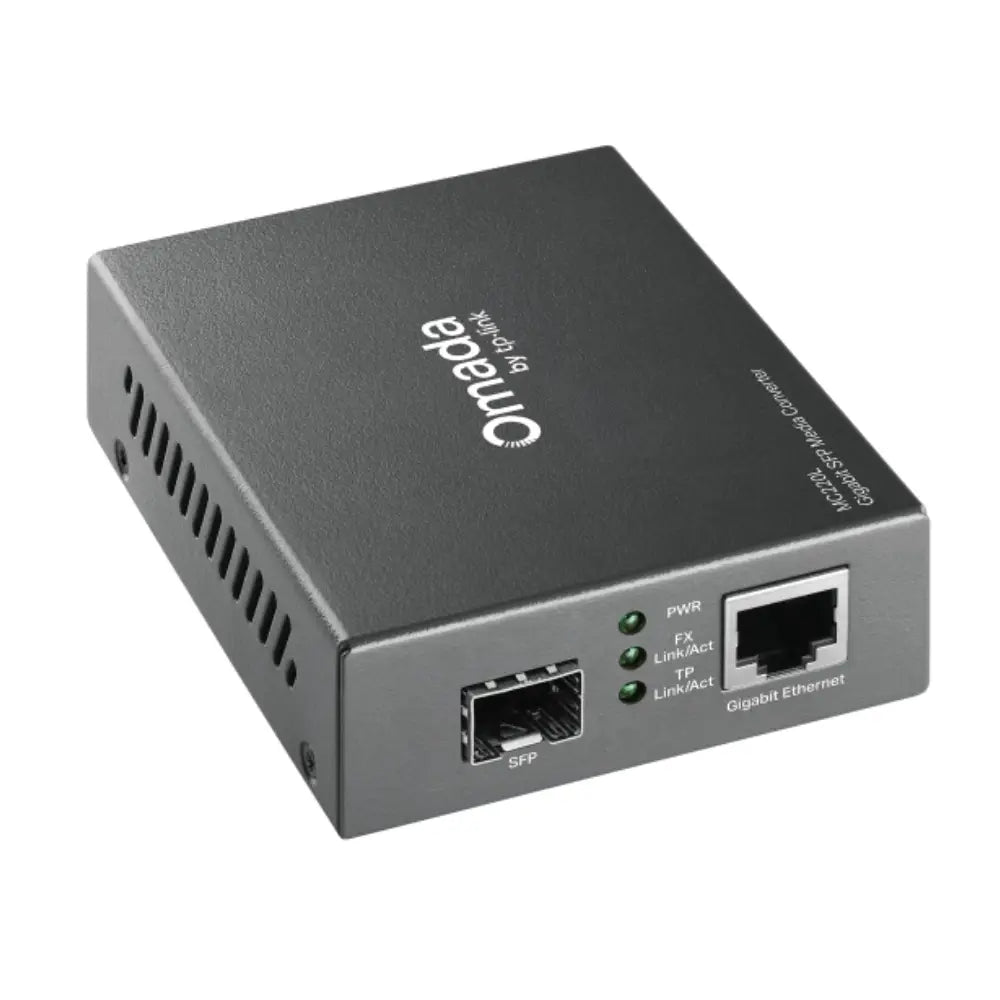

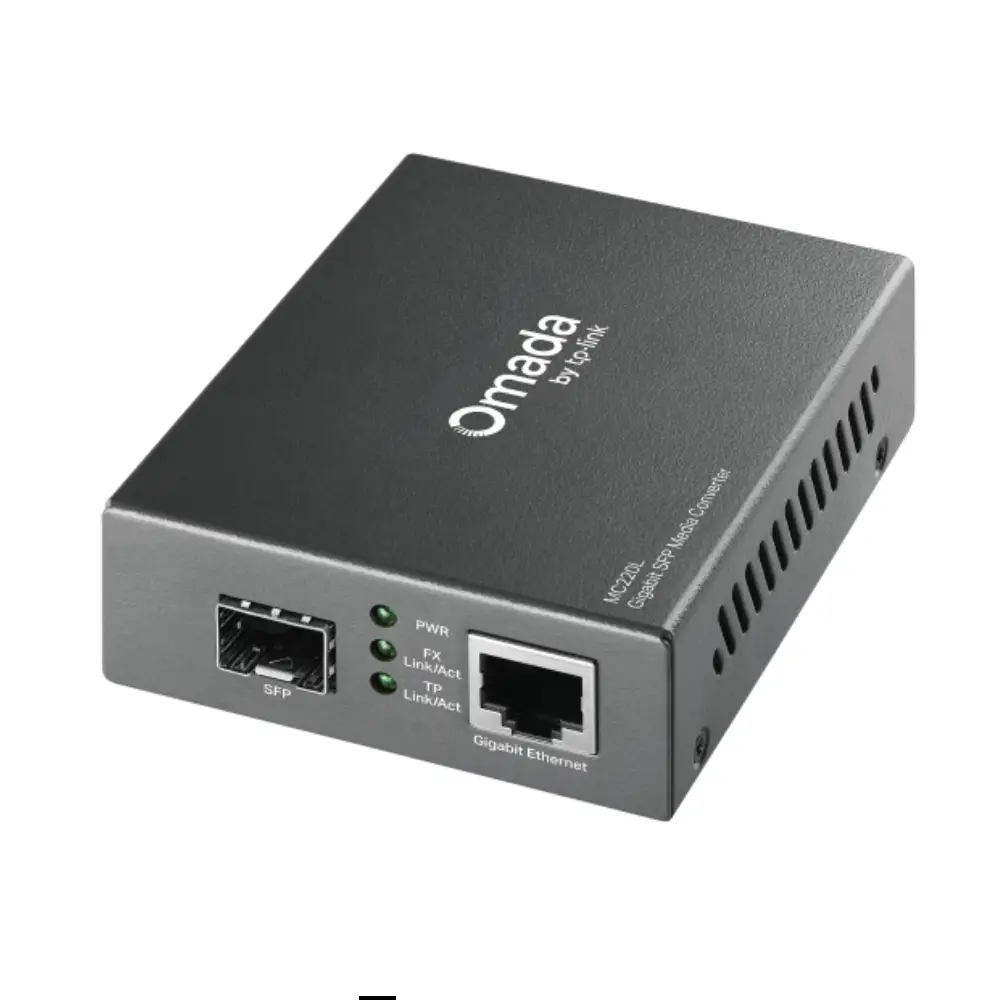

TP-Link MC220L Gigabit SFP Media Converter
Flexible Gigabit fibre conversion with the freedom of SFP. The TP-Link MC220L bridges a 10/100/1000Mbps copper RJ45 network to a Gigabit fibre link using a standard SFP (mini-GBIC) module — giving you the flexibility to choose your fibre type and distance by simply swapping the SFP. It supports both multi-mode fibre (up to 0.55km) and single-mode fibre (up to 10km), making it a versatile fit for building-to-building links, campus networks, and data centre interconnects.
Key Features
- 1 × 10/100/1000Mbps RJ45 copper port with Auto-Negotiation and Auto MDI/MDIX
- 1 × SFP (mini-GBIC) slot — accepts standard SFP modules for flexible fibre type selection
- Supports multi-mode fibre up to 0.55km and single-mode fibre up to 10km (SFP-dependent)
- Compliant with IEEE 802.3ab (1000Base-T) and IEEE 802.3z (1000Base-SX/LX)
- Hot-swappable SFP slot — replace or upgrade the SFP module without powering down
- Compatible with TP-Link TL-MC1400 media converter chassis for rack-based deployments
- Standalone desktop operation or chassis-mounted use
Use Cases
- Connecting Gigabit copper network equipment over fibre between buildings or floors
- Campus and enterprise network fibre backbone interconnects
- Data centre fibre-to-copper conversion at the server or switch edge
- Surveillance and IP camera networks requiring long-distance Gigabit fibre runs
- Rack-based deployments using the TP-Link TL-MC1400 chassis
Specifications
| Specification |
Detail |
| Model |
MC220L |
| Standards |
IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-SX/LX) |
| Copper Port |
1 × 10/100/1000Mbps RJ45 (Auto-Negotiation, Auto MDI/MDIX) |
| Fibre Port |
1 × SFP (mini-GBIC) slot |
| Multi-Mode Fibre Distance |
Up to 0.55km |
| Single-Mode Fibre Distance |
Up to 10km |
| SFP Hot-Swappable |
Yes |
| Deployment |
Standalone or TL-MC1400 chassis |
| Weight |
520 g |
| SKU |
MC220L |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SM311LM SFP Module — multi-mode SFP for 550m fibre links (LC connector)
- TP-Link TL-SM311LS SFP Module — single-mode SFP for 10km fibre links (LC connector)
- TP-Link TL-MC1400 Media Converter Chassis — for rack-based, high-density deployments
- LC-LC or LC-SC fibre patch cables — to connect the SFP module to your fibre infrastructure
Frequently Asked Questions
Does the MC220L come with an SFP module included?
No. The MC220L is sold without an SFP module. You will need to purchase a compatible SFP separately based on your fibre type (multi-mode or single-mode) and required distance. TP-Link TL-SM311LM (multi-mode) and TL-SM311LS (single-mode) are compatible options.
What fibre connector type does the MC220L use?
The connector type depends on the SFP module installed. Most standard Gigabit SFP modules use an LC duplex connector. Always confirm the connector type of your chosen SFP before purchasing fibre patch cables.
Can I use third-party SFP modules with the MC220L?
The MC220L is designed for use with TP-Link SFP modules. Compatibility with third-party SFPs is not guaranteed. For reliable operation, TP-Link-branded SFP modules are recommended.
Can the MC220L be installed in the TL-MC1400 chassis?
Yes. The MC220L is compatible with the TP-Link TL-MC1400 14-slot rackmount chassis, allowing centralised, rack-based deployment alongside other TP-Link MC series converters.
What is the difference between multi-mode and single-mode fibre?
Multi-mode fibre (MMF) supports shorter distances (up to 0.55km with this converter) and is typically used within buildings or between nearby structures. Single-mode fibre (SMF) supports longer distances (up to 10km) and is used for building-to-building or campus-wide links. The MC220L supports both — the SFP module you install determines which type is used.
