Description
One Device. Modem, Router, and Whole-Home Mesh Wi-Fi 6 — All in One
The TP-Link Deco X73-DSL is a whole-home Wi-Fi 6 mesh system with a built-in VDSL2 modem, purpose-built for Australian NBN FTTN and FTTB connections. It replaces your separate modem and router in a single unit, delivering AX5400 wireless speeds across every room while supporting downstream speeds up to 350 Mbps via VDSL2 Profile 35b. Expand coverage at any time by adding more Deco nodes to the mesh.
Key Features
-
Built-in VDSL2 Modem — Connects directly to your phone line for NBN FTTN and FTTB services; supports Profile 35b with downstream speeds up to 350 Mbps. Also compatible with ADSL and ADSL2+
-
AX5400 Wi-Fi 6 — 4804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz for fast, low-latency wireless across all your devices
-
Seamless Mesh Roaming — Automatically hands your device to the strongest Deco node as you move through your home, with no drop in connection
-

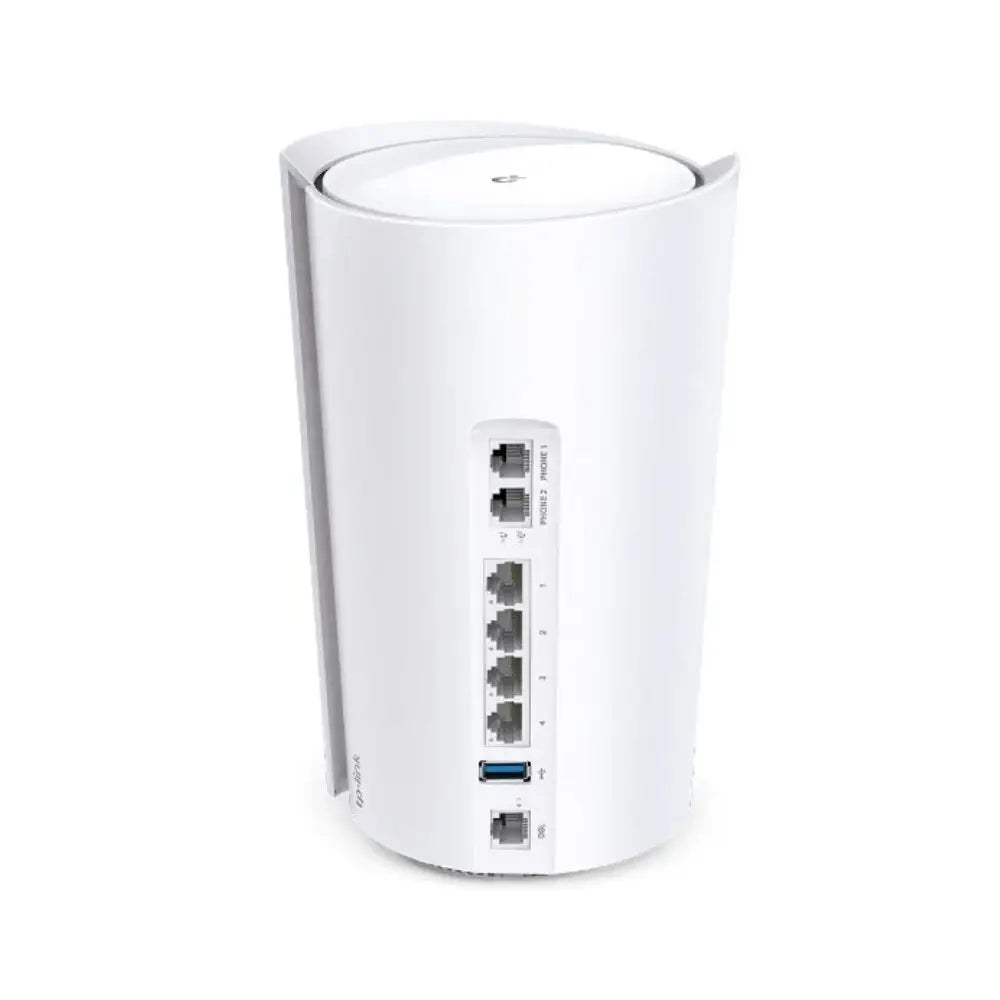

4× Gigabit Ethernet Ports — Flexible WAN/LAN configuration for wired devices including smart TVs, NVRs, gaming consoles, and desktop PCs
-
2× FXS Ports + 1× DSL Port — Connect up to two standard analogue phones directly without a separate VoIP adapter
-
OFDMA & MU-MIMO — Serves multiple devices simultaneously with reduced latency, ideal for busy households
-
Beamforming — Focuses wireless signal toward connected clients to extend effective range and improve throughput
-
4× Internal Antennas — Signal-boosting array covers more directions and larger areas for consistent whole-home coverage
-
TP-Link HomeShield — Real-time IoT device protection, parental controls with content filtering and screen time scheduling, and comprehensive network usage reports
-
Optional Ethernet Backhaul — Wire Deco units together for maximum mesh performance and dedicated backhaul bandwidth
-
Flexible Working Modes — DSL modem router, standard router, or access point to suit your existing setup
-
Deco App — Simple setup and ongoing management from your iOS or Android device
Typical Use Cases
- NBN FTTN or FTTB households replacing an ageing modem router with a single modern unit
- 1–3 bedroom homes needing whole-home Wi-Fi 6 coverage up to 270 m²
- Families requiring parental controls and IoT security via HomeShield
- Home offices with wired workstations, NAS drives, or IP cameras needing Gigabit LAN ports
- Households retaining an existing landline phone service via the built-in FXS ports
- Existing Deco mesh networks adding a VDSL modem-capable entry node
Technical Specifications
| Specification |
Detail |
| Model |
Deco X73-DSL (1-Pack) |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz; 802.11ax/n/b/g 2.4 GHz) |
| Wi-Fi Speed |
AX5400: 4804 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
| Wi-Fi Bands |
Dual-Band (2.4 GHz + 5 GHz) |
| Streams |
4 streams |
| Modem Type |
VDSL2 Profile 35b / ADSL / ADSL2+ |
| Max DSL Speed |
Up to 350 Mbps downstream (Profile 35b) |
| Ethernet Ports |
4× Gigabit WAN/LAN RJ45 |
| Phone Ports |
2× FXS (RJ11) + 1× DSL (RJ11) |
| Antennas |
4× internal |
| Wi-Fi Technologies |
OFDMA, MU-MIMO, Beamforming, BSS Colour |
| Working Modes |
DSL Modem Router / Router / Access Point |
| Coverage (1-Pack) |
Up to 270 m² (1–3 bedroom homes) |
| Security Suite |
TP-Link HomeShield (IoT protection, parental controls, network reports) |
| Management App |
Deco App (iOS & Android) |
| Weight |
1.74 kg (unit + accessories) |
| Barcode (EAN) |
6935364072872 |
| SKU |
Deco X73-DSL(1-pack) |
What’s in the Box
- 1× Deco X73-DSL unit
- 1× RJ45 Ethernet cable
- 2× RJ11 DSL cables
- 1× External DSL splitter
- 1× Power adapter
- 1× Telephony feature guide
- Quick installation guide
Frequently Asked Questions
Is the Deco X73-DSL compatible with Australian NBN FTTN and FTTB services?
Yes. The built-in VDSL2 modem connects directly to your phone line and is fully compatible with NBN FTTN (Fibre to the Node) and FTTB (Fibre to the Building) connection types. It also supports legacy ADSL and ADSL2+ services.
Do I still need a separate modem?
No. The Deco X73-DSL replaces both your existing modem and router in a single unit, simplifying your setup and reducing the number of devices in your home.
Can I keep my existing landline phone?
The Deco X73-DSL includes two FXS ports for connecting standard analogue phones. Whether you can retain your existing number depends on your NBN provider’s VoIP service — confirm with your ISP before purchasing if landline continuity is important.
Can I expand coverage beyond 270 m²?
Yes. Additional Deco nodes (such as the Deco X50 or Deco XE75) connect to the X73-DSL via wireless mesh or optional Ethernet backhaul to extend coverage throughout larger homes.
What is TP-Link HomeShield?
HomeShield is TP-Link’s built-in network security suite offering real-time IoT device protection, parental controls with content filtering and screen time limits, and detailed network usage reports. Basic features are free; HomeShield Pro unlocks advanced capabilities via subscription.
Does it support Ethernet backhaul between Deco units?
Yes. Running Ethernet cable between Deco units enables wired backhaul, which frees up wireless bandwidth for client devices and significantly improves overall mesh performance.
What NBN connection types does it NOT support?
The Deco X73-DSL is not compatible with NBN FTTP (Fibre to the Premises), FTTC (Fibre to the Curb), HFC (cable), or Fixed Wireless connections. For those connection types, you will need a standard router without a built-in DSL modem.
