Description

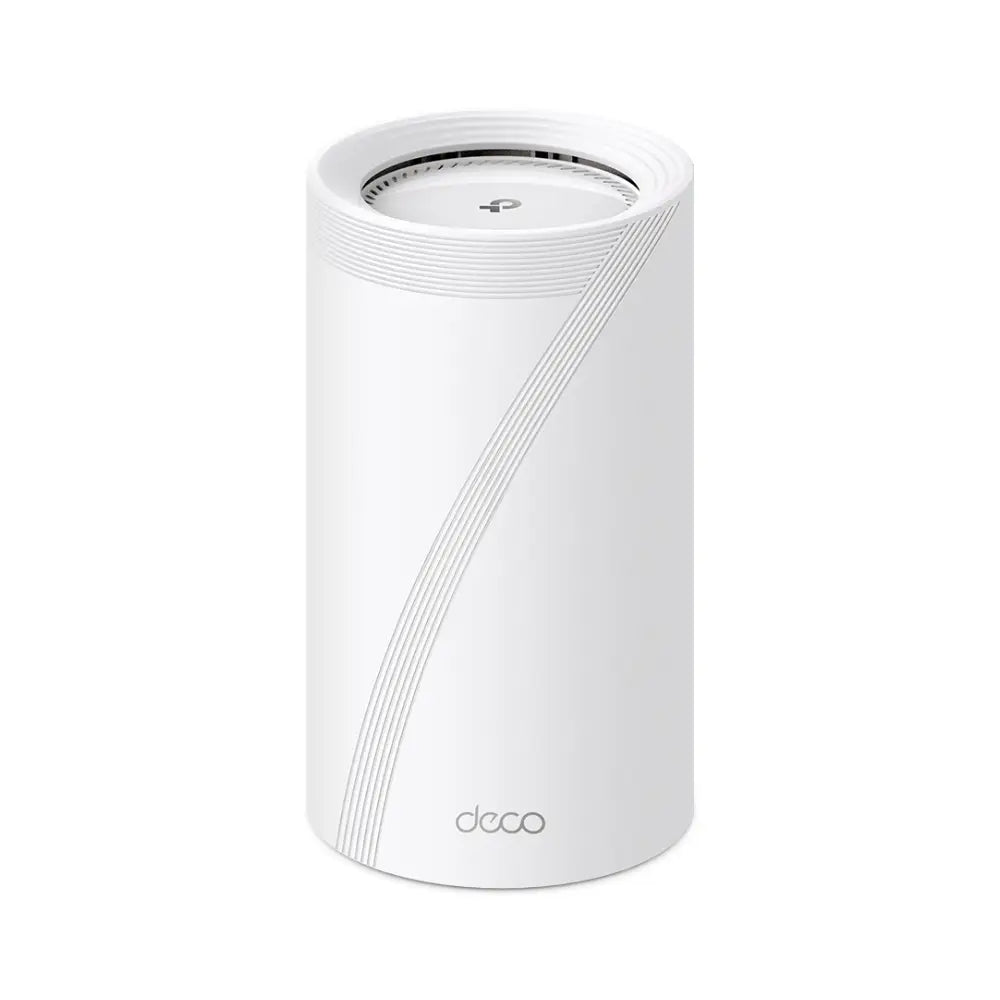

TP-Link Deco BE85 BE22000 Tri-Band Mesh Wi-Fi 7 System (1-Pack)
The Ultimate Wi-Fi 7 Mesh System for Demanding Homes
The TP-Link Deco BE85 represents the pinnacle of home mesh networking. Powered by Wi-Fi 7 (802.11be) and delivering a combined tri-band speed of BE22000, it brings the 6GHz band, Multi-Link Operation (MLO), and a 10G WAN/LAN port to your home network — delivering speeds and latency that were previously only achievable in enterprise environments. A single unit covers up to approximately 650m², making it ideal for large homes, home offices, and power users who demand the absolute best from their wireless network.
Key Features
-
Wi-Fi 7 (BE22000) Tri-Band — Combined wireless speeds up to 22000Mbps across three bands: 1376Mbps (2.4GHz) + 11520Mbps (6GHz) + 8640Mbps (5GHz).
-
Multi-Link Operation (MLO) — Wi-Fi 7’s defining feature: devices can simultaneously transmit and receive across multiple bands, dramatically reducing latency and improving reliability.
-
6GHz Band Support — Access the uncongested 6GHz spectrum for ultra-low latency and maximum throughput on compatible Wi-Fi 6E and Wi-Fi 7 devices.
-
10G WAN/LAN Port — A 10 Gigabit Ethernet port future-proofs your wired connections and supports multi-gigabit internet services and NAS connectivity.
-
2.5G WAN/LAN Port — Additional 2.5G port for flexible wired device or backhaul connections.
-
4K QAM — Higher modulation scheme delivers up to 20% more throughput compared to Wi-Fi 6E’s 1024-QAM.
-
320MHz Channel Width — Doubled channel bandwidth on the 6GHz band for significantly higher peak speeds.
-
OFDMA & MU-MIMO — Efficiently serves many devices simultaneously with reduced latency.
-
TP-Link HomeShield — Built-in network security powered by Trend Micro, including real-time IoT protection, parental controls, and network health monitoring.
-
Deco App Management — Set up and manage your entire network from your smartphone (iOS & Android).
-
Expandable Mesh Ecosystem — Add additional Deco BE85 or compatible Deco units to extend coverage further.
Use Cases
- Large homes requiring maximum Wi-Fi coverage and speed from a single unit
- Power users with Wi-Fi 7 devices demanding the lowest possible latency
- Home offices with multi-gigabit internet connections and NAS storage
- 4K/8K streaming, cloud gaming, and VR/AR applications requiring ultra-low latency
- High-density device environments with 50+ connected devices
- Homes with existing Cat6A or fibre cabling wanting to maximise wired and wireless performance
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11be/ax/ac/n/g/b/a (Wi-Fi 7) |
| Wi-Fi Speeds |
BE22000: 1376Mbps (2.4GHz) + 8640Mbps (5GHz) + 11520Mbps (6GHz) |
| Frequency Bands |
Tri-Band (2.4GHz + 5GHz + 6GHz) |
| Wi-Fi 7 Features |
MLO, 4K QAM, 320MHz Channel Width, OFDMA, MU-MIMO |
| Coverage (per unit) |
Up to ~650m² |
| Antennas |
12× Internal Antennas |
| MU-MIMO |
4×4 (2.4GHz), 4×4 (5GHz), 4×4 (6GHz) |

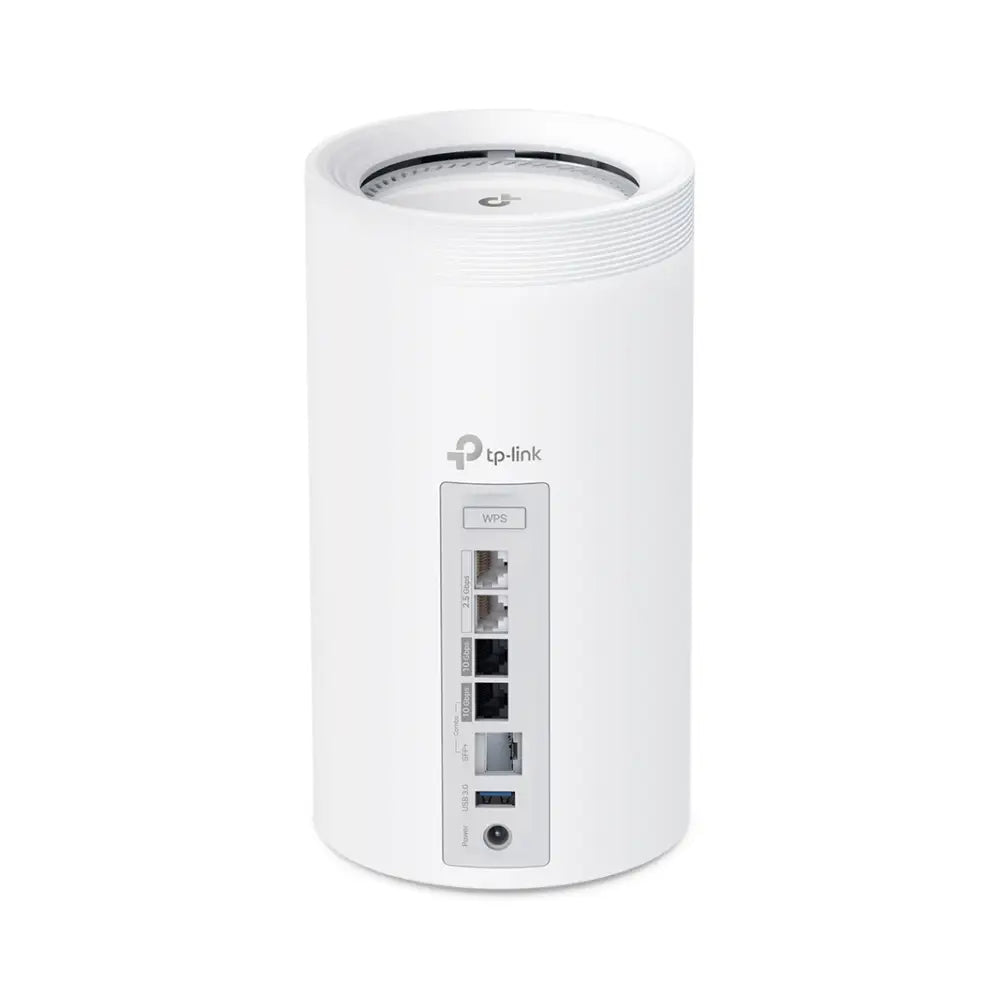

| Ethernet Ports |
1× 10G RJ45 (WAN/LAN) + 1× 2.5G RJ45 (WAN/LAN) + 2× Gigabit RJ45 (LAN) |
| Processor |
2.6GHz Quad-Core CPU |
| RAM / Flash |
2GB RAM / 512MB Flash |
| Security |
WPA / WPA2 / WPA3, SPI Firewall |
| HomeShield |
Yes (Basic free; Pro subscription available) |
| Management |
TP-Link Deco App (iOS & Android), Web UI |
| Power Supply |
19V DC / 3.42A (AU plug included) |
| Dimensions |
180 × 180 × 290 mm |
| Weight |
2.1 kg |
| Operating Temperature |
0°C – 40°C |
| Certifications |
RCM (Australia), CE, FCC, RoHS |
Downloads
Recommended Accessories & Products
-
TP-Link Deco BE85 (2-Pack or 3-Pack) — Extend coverage to 1300m² or beyond for very large properties
-
TP-Link TL-SG105-M2 — 5-Port 2.5G switch to connect wired devices to the Deco BE85’s 2.5G LAN port
-
TP-Link Omada ER707-M2 — Multi-WAN VPN router for advanced routing upstream of the Deco BE85
-
Cat6A Ethernet Patch Cable — Required for reliable 10G wired connections to the 10G port
Frequently Asked Questions
Do I need Wi-Fi 7 devices to benefit from the Deco BE85?
No. The Deco BE85 is fully backward compatible with Wi-Fi 6E, Wi-Fi 6, Wi-Fi 5, and older devices. All existing devices will connect and benefit from the improved network management and reduced congestion. However, to take full advantage of Wi-Fi 7 features such as MLO and 320MHz channels, you will need Wi-Fi 7 client devices.
What is Multi-Link Operation (MLO)?
MLO is the defining new feature of Wi-Fi 7. It allows a device to simultaneously send and receive data across multiple frequency bands (e.g. 5GHz and 6GHz at the same time), which dramatically reduces latency and improves reliability compared to Wi-Fi 6E, where a device can only use one band at a time.
Does the Deco BE85 work with NBN?
Yes. The Deco BE85 is compatible with all Australian NBN connection types, including FTTP, FTTN, FTTB, FTTC, and HFC, when connected to your NBN modem or gateway. For multi-gigabit NBN plans, use the 10G WAN port for maximum throughput.
What cable do I need for the 10G port?
The 10G RJ45 port supports Cat6A cabling for distances up to 100 metres at 10Gbps. Cat6 cabling may also work at shorter distances. For best results, Cat6A is recommended.
Can I add more Deco BE85 units to extend coverage?
Yes. The Deco BE85 is part of TP-Link’s expandable Deco ecosystem. Additional units can be added via the Deco app at any time to extend coverage to larger properties.
Is wired backhaul supported?
Yes. Connecting Deco BE85 units via Ethernet provides the most stable and highest-performance backhaul. The 10G port can be used for 10G wired backhaul between units for maximum mesh performance.
What is TP-Link HomeShield?
HomeShield is TP-Link’s built-in network security suite powered by Trend Micro. It includes real-time threat detection, IoT device protection, parental controls with content filtering, and network health reports. Basic features are free; advanced features require a HomeShield Pro subscription.
