Description
TP-Link CPE510 – 5GHz 300Mbps Outdoor CPE Access Point with 13dBi Antenna
The TP-Link CPE510 is a professional-grade outdoor wireless access point engineered for long-range point-to-point and point-to-multipoint deployments. With a built-in 13dBi dual-polarised directional antenna, Pharos MAXtream TDMA technology, and an IPX5-rated weatherproof enclosure, it’s a trusted choice for wireless ISPs, security installers, and network engineers across Australia.
Key Features
-
13dBi 2×2 Dual-Polarised Directional Antenna: High-gain MIMO antenna delivers focused, long-range signal with minimal interference.
-
15km+ Long-Range Transmission: System-level optimisations support wireless links exceeding 15 kilometres under line-of-sight conditions.
-
Pharos MAXtream TDMA Technology: TP-Link’s proprietary Time-Division Multiple Access protocol significantly improves throughput, capacity, and latency — ideal for point-to-multipoint (PTMP) deployments.
-
Adjustable Transmit Power: Output adjustable from 0 to 23dBm (200mW) for compliance and optimised link performance.
-
Multiple Operation Modes: Supports AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP) modes for flexible deployment.
-
Passive PoE Support: Included PoE adapter supports up to 60 metres of cable run, enabling remote installation without a local power source.
-
IPX5 Weatherproof Enclosure: Outdoor-stabilised housing rated for rain and dust ingress — built for Australian conditions.
-
6kV Lightning Protection & 15kV ESD Protection: Protects equipment and connected infrastructure from electrical surges.
-

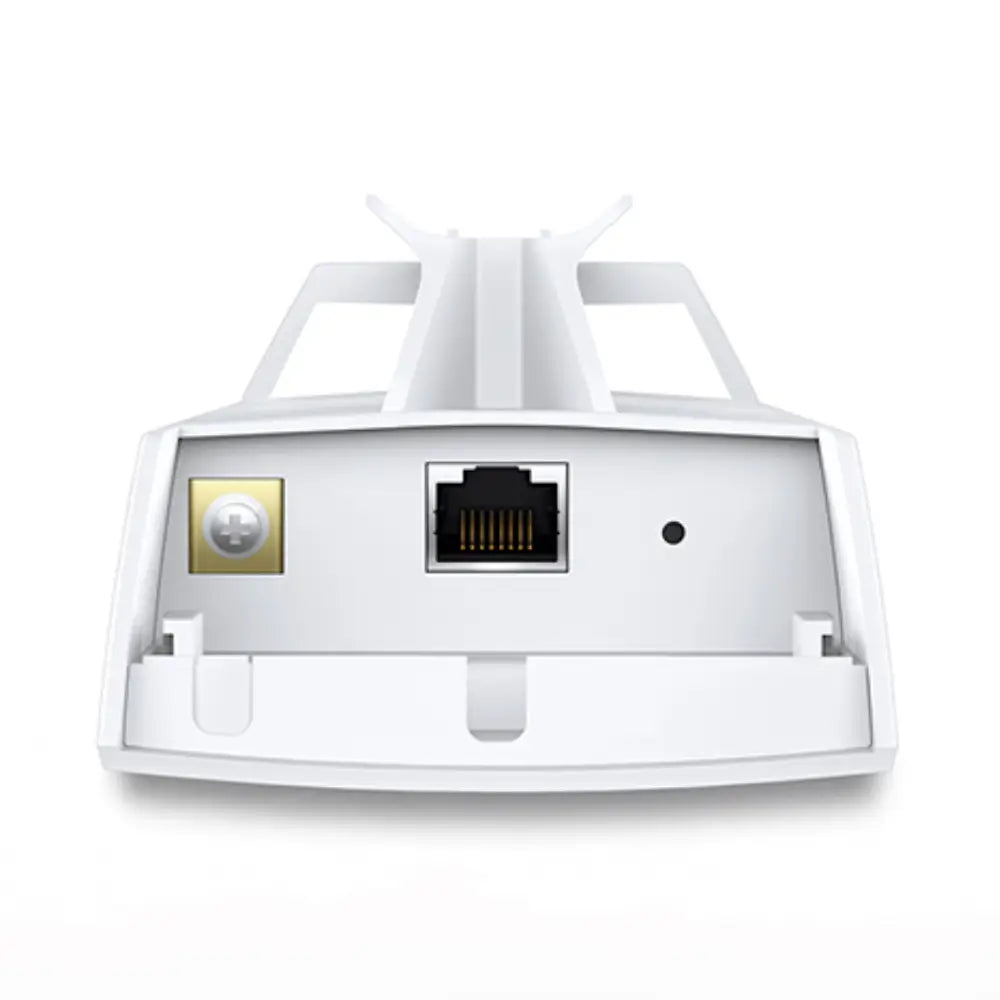

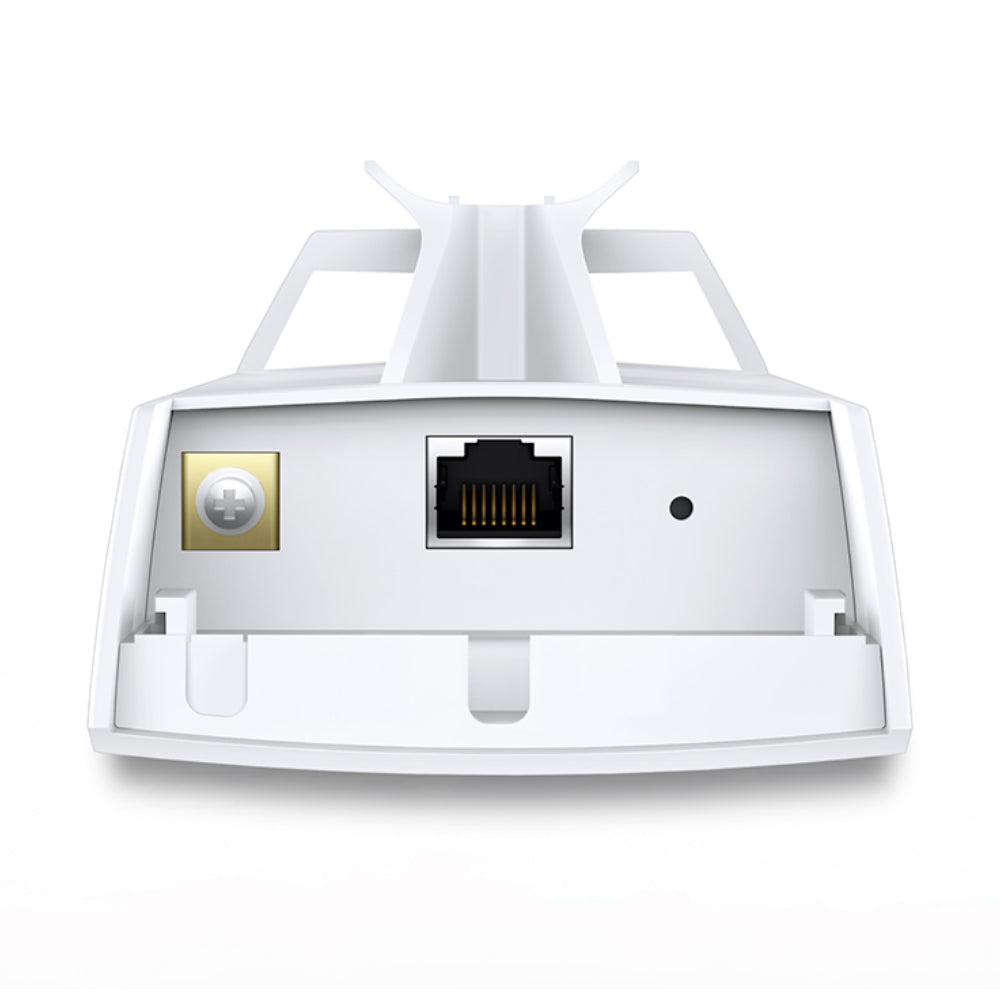

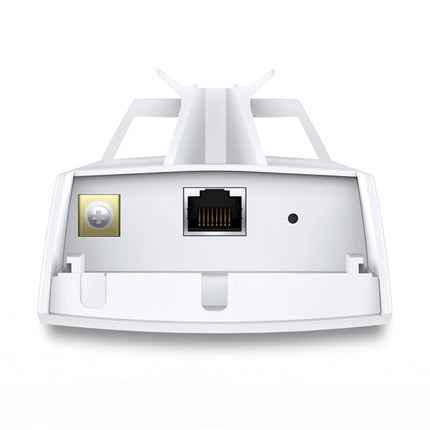

Dual Ethernet Ports & Grounding Terminal: Integrated for flexible cabling and safe earthing in outdoor installations.
-
Selectable Channel Bandwidth: Choose from 5, 10, 20, or 40MHz to suit link conditions and regulatory requirements.
-
Pharos Control: Centralised management system for monitoring and configuring multiple CPE devices from a single interface.
-
Built-in Diagnostic Tools: Throughput Monitor, Spectrum Analyser, Speed Test, and Ping tools for on-site commissioning and troubleshooting.
-
Wireless Security: WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption supported.
Ideal Use Cases
- Point-to-point wireless bridges between buildings, farms, or remote sites.
- Wireless ISP (WISP) last-mile connectivity for rural and regional areas.
- Extending network connectivity to outbuildings, warehouses, or car parks without trenching cable.
- Backhaul links for IP camera networks and NVR systems across large properties.
- Point-to-multipoint distribution networks for small WISPs or campus environments.
- Temporary or permanent site connectivity for construction sites and events.
Technical Specifications
| Specification |
Detail |
| Model |
CPE510 |
| Frequency Band |
5GHz (802.11a/n) |
| Wireless Speed |
Up to 300Mbps |
| Antenna |
13dBi 2×2 Dual-Polarised Directional MIMO |
| Max Transmit Power |
23dBm / 200mW (adjustable 0–23dBm) |
| Max Range |
15km+ (line of sight) |
| Operation Modes |
AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) |
| Channel Bandwidth |
5 / 10 / 20 / 40MHz (selectable) |
| Ethernet Ports |
2 × 10/100Mbps (with PoE on one port) |
| PoE Support |
Passive PoE (adapter included, up to 60m cable run) |
| Lightning Protection |
6kV |
| ESD Protection |
15kV |
| Weatherproof Rating |
IPX5 |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Management |
Web UI, Pharos Control (centralised) |
| Operating Temperature |
−30°C to 70°C |
| Weight |
0.68kg |
| SKU |
CPE510 |
| Barcode (EAN) |
6935364070922 |
What’s in the Box
- 1 × CPE510 Outdoor Access Point
- 1 × Passive PoE Adapter
- 1 × Power Adapter
- 1 × Mounting Kit
- Quick Installation Guide
Frequently Asked Questions
What is the maximum range of the CPE510?
TP-Link rates the CPE510 for wireless links exceeding 15km under clear line-of-sight conditions. Real-world range depends on terrain, obstructions, interference, and local regulatory power limits.
Can the CPE510 be used as a point-to-multipoint (PTMP) base station?
Yes. When combined with Pharos MAXtream TDMA technology, the CPE510 is well-suited for PTMP deployments where multiple client units connect to a single base station.
Does it require a separate PoE injector?
No. A passive PoE adapter is included in the box, supporting cable runs of up to 60 metres. This allows the unit to be mounted at height without requiring a local power outlet.
Is the CPE510 suitable for Australian outdoor conditions?
Yes. The IPX5-rated enclosure protects against rain and dust, and the operating temperature range of −30°C to 70°C covers the full range of Australian climates. Built-in 6kV lightning protection is also important for exposed outdoor installations.
What frequency band does the CPE510 use — will it interfere with my 2.4GHz network?
The CPE510 operates exclusively on the 5GHz band (802.11a/n), which is less congested than 2.4GHz and will not interfere with standard 2.4GHz Wi-Fi networks.
Can I manage multiple CPE510 units centrally?
Yes. TP-Link’s Pharos Control software provides centralised management for multiple Pharos-series devices, including configuration, monitoring, and firmware updates from a single interface.
Is the CPE510 compatible with other brands of wireless equipment?
The CPE510 supports standard 802.11a/n protocols and can interoperate with other 5GHz 802.11a/n devices in standard modes. However, Pharos MAXtream TDMA features require both ends of the link to be Pharos-series TP-Link devices.
